4x2 Yuejin RHD LHD 5000 liters camion cisterna de diesel

Product Overview

Description

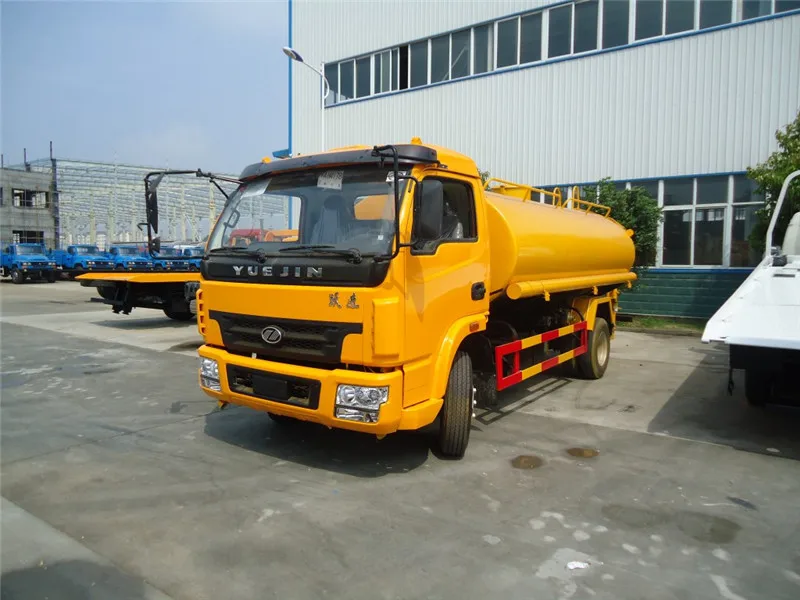

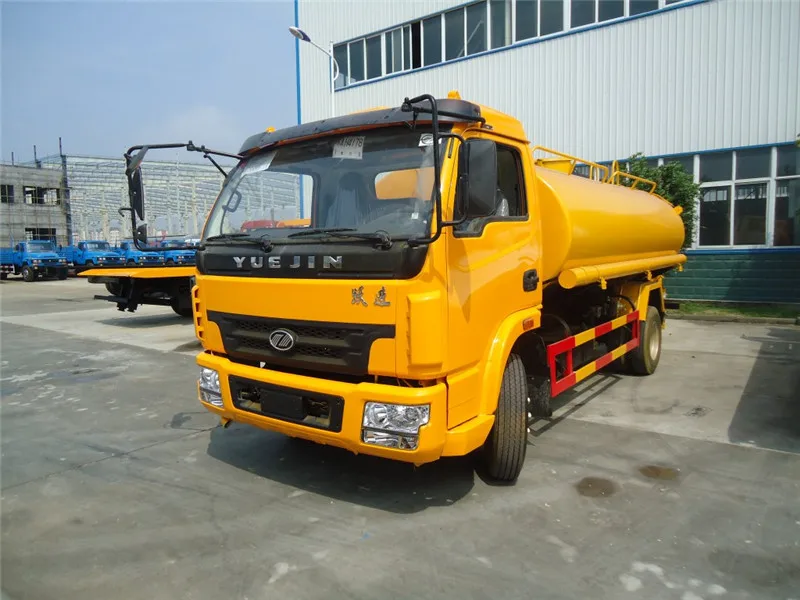

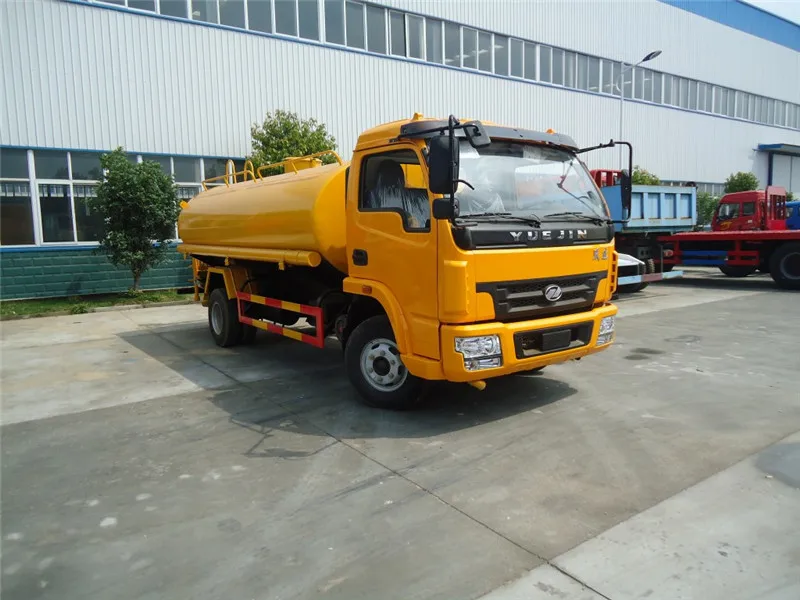

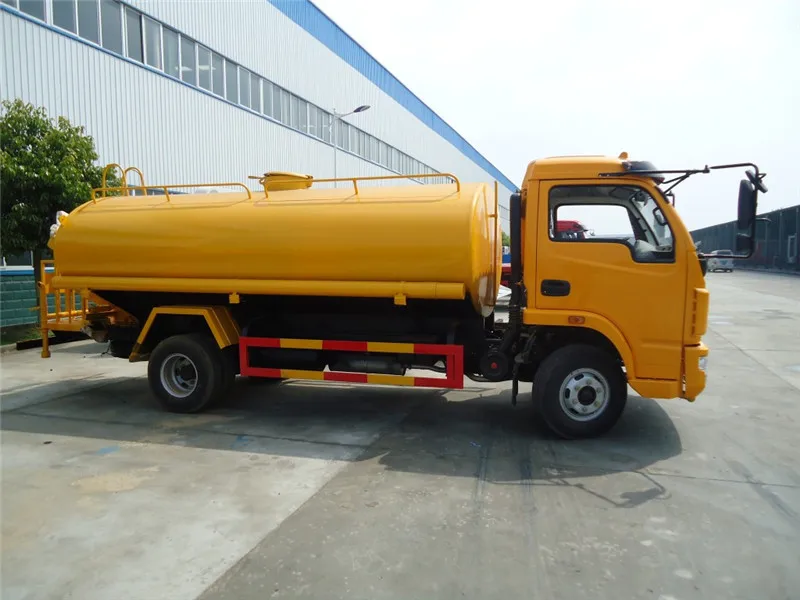

4x2 Yuejin RHD LHD 5000 liters camion cisterna de diesel

Ⅰ. The Product Description

Please note that we could provide the tank body for your chassis.

Fuel Tanker is widely used in oil industry for fuel transportation, refueling and storage, etc.





5/6CBM Fuel Truck
Overview
Name	Fuel Truck
Dimension(LxWxH)	6900X2320X2450(mm)
Total Mass	9315Kg
Rated Payload	5000Kg
Kerb Weight	4315Kg
Passenger	3
Approach/Departure Angle	20/13
The Parameters of Chassis (Optional)
Manufacture/Model	Dongfeng/EQ1070TJ9AD3
Driving Type	4*2 left/right hand drive
Wheel Base	3300 mm
Gearbox	Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1835/1640(mm)
Tyre	7.50-16
The Number of Tyre	6+1(spare tyre)
Front/Rear Suspension	1180/1920(mm)
Leaf Spring Number	11/9+7, 8/10+7
The Paremeters of Engine
Manufacturer/Model	Yunnei
Rated Power	105hp
Fuel Type	Diesel oil
Displacement/Capacity	3856ml
Emission Standard	Euro3
Cylinder	Straight/4/intercooling
Max. torque	450N.m
Velocity	2800rpm
The Parameters of Fuel Tank
Color/Logo	Customizable
Material	Carbon steel,stainless steel,aluminum,etc.alloy, etc.
Function	Transporting and refueling, etc.
Volume of Tank	5000/6000L
Thickness	5mm
Optional Equipment	Pump,dispenser,baffles,water box,tool box,EU subsea valve,static electricity wire coil,gasoline vapor recovery unit,spill-free alarm,bottom loading, etc.







We provide various tanker truck with chassis or tractor like Dongfeng, FAW, Forland, Yuejin, JMC, JAC, Sinotruck, Foton, Beiben, Shacman, Japan Chassis, Germany Chassis, etc.





The dimension of the tank is customisable. The color and LOGO of the tank is customizable.



The basic equipment is of valves, manhole, pipes, ladder, pump,dispenser,tool box,etc. For optional equipment,baffles,water box,EU subsea valve,static electricity wire coil,gasoline vapor recovery unit,spill-free alarm,bottom loading devices, etc. are available.



 Materials for the tank includes carbon steel, stainless steel, aluminum alloy, etc.



We provide the fuel tank truck, fuel tank trailer, fuel tank container, and fuel storage tank,etc.



Ⅱ. Packaging&Shipping

We provide Ro-Ro, container and bulk shipping.

Ⅲ. Our Factory&Certificate

Hubei Dali Special Automobile Manufacturing Co,. ltd. is located in the China special automobile industry city-Suizhou, Hubei Province. The company is the first domestic private enterprise entering the special automobile industry, which is also the first pressure tank vehicle manufacturing private enterprise and got the quarantine license from General Administration of Quality Supervision of China. The company has focused on all kinds of special automobile R&D, manufacturing, sales and service. Dali Special is a high-tech enterprise in Hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.
