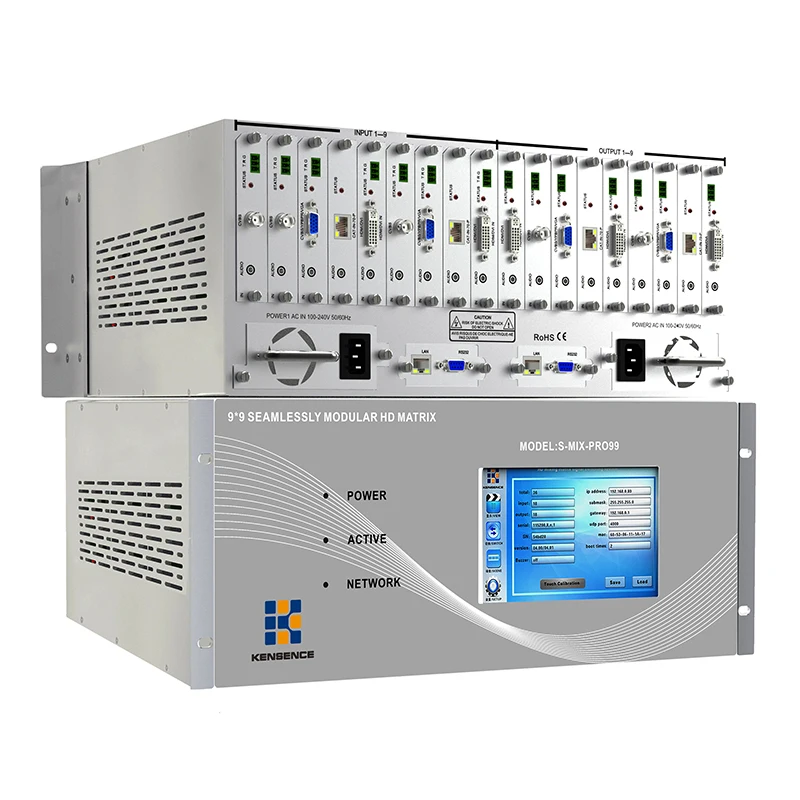

kensence modular seamless video conference video wall controller 9x9 matrix switcher
- Category: >>>
- Supplier: Kensence (shenzhen) Technology Development Co. Ltd.
Share on (60795723545):
Product Overview
Description
Features
Product Introduction
1.The S-Mix-pro series is an enhanced high definition hybrid matrix with a control signal. The plug-in design, can realize the site’s flexible configuration.It adopts the hot swap redundant power design,

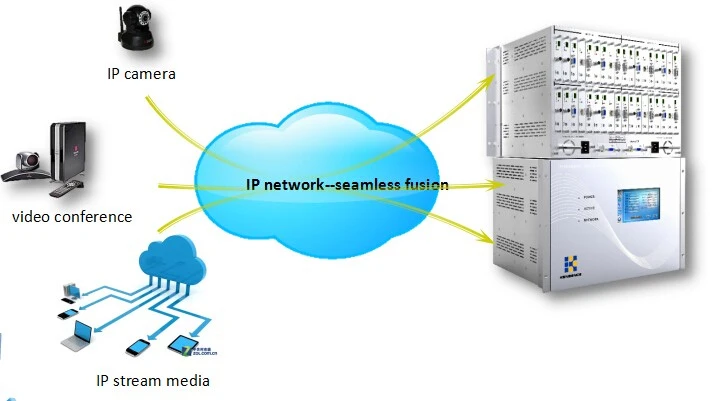

support 7*24 hours uninterrupted operation. 2.Supports common video signal input, such as DP, HDMI, DVI, VGA, YPBPR, CVBS, 3G/HD/SD-SDI, IP streaming media, etc., support powerful audio Embedded function, you can embed audio
signal into the video signal, you can also be embedded audio signal out the the video signal. Matrix

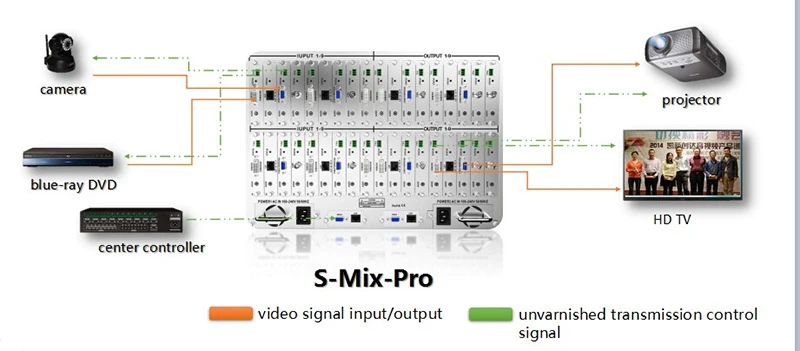

also supports control signal (RS232/IR) transmission and center console functions.
3.Intelligent EDID switch can ensure the best display.
Product Features

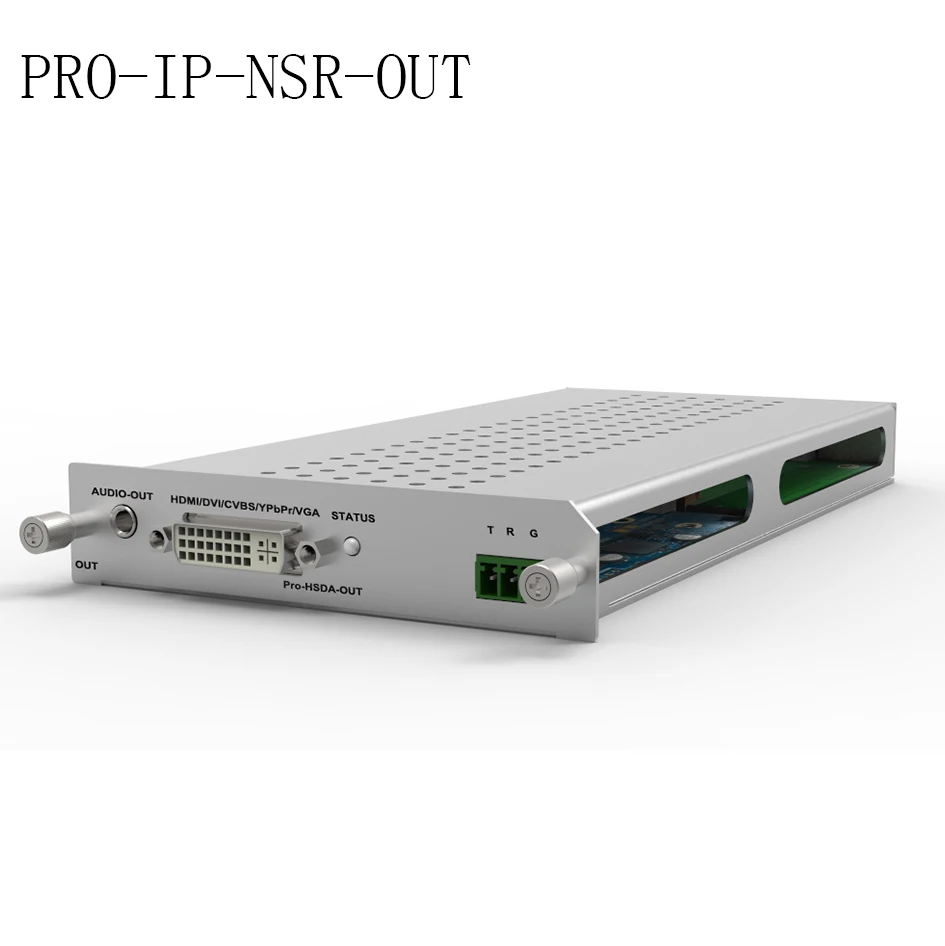

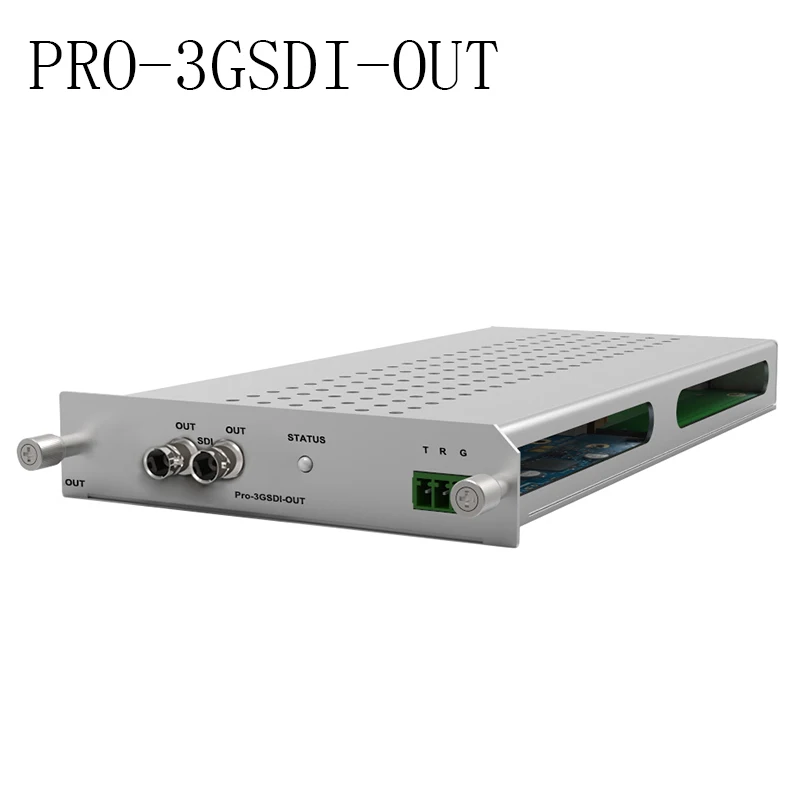

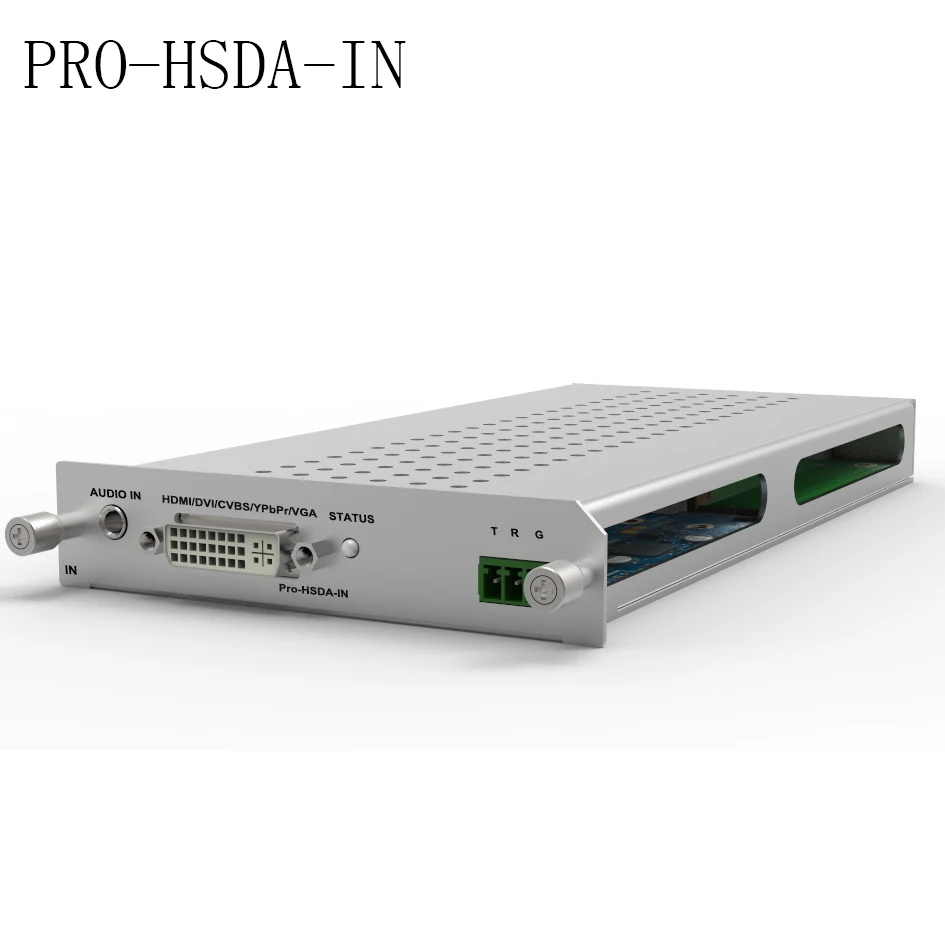

1. Modular structure design,support flexible configuration the signal type of input and output channel
2.Support CVBS,YPbPr,VGA,HDMI,DVI,AUDIO,3GSDI,HDBaseT,Fiber,IP streaming media input
3.Support CVBS,YPbPr,VGA,HDMI,DVI,AUDIO,3GSDI,HDBaseT and Fiber,IP streaming media output
4. Each card support RS-232 unvarnished transmission
5. Support rapid seamless switching technology
6. Intelligent EDID switching technology and intelligent HDCP managamen.
7. Each input channel support Scaler adjustment
8.Support Deep Color 48/36/30/24-bit,YUV4:2:2/4:4:4
9.Each output channel can be fixed output by 16 kinds of common resolution.
10.Support TCP,UDP,IP,HTTP,NTP,RTP,IGMP,RTSP,RTCP protocol .11.Support H.264 Baseline, Main High ,Profile code,advanced Video preprocessing algorithm MBAFF(Macro block adaptive frame field encoding)
12. Support fiber optic transmission technology,up to 80KM
13.Support control signal’s center console function,can realized the centralized control of peripheral equipment

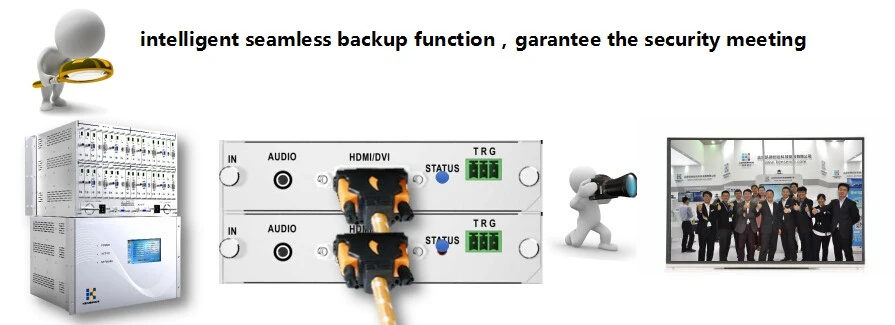

14.Support video port intelligent backup
15. Support POC(HDBaset)
16.Support monitor the device’s temperature and monitor the video port status
17. Support dual RS-232, touch screen control and TCP/IP control

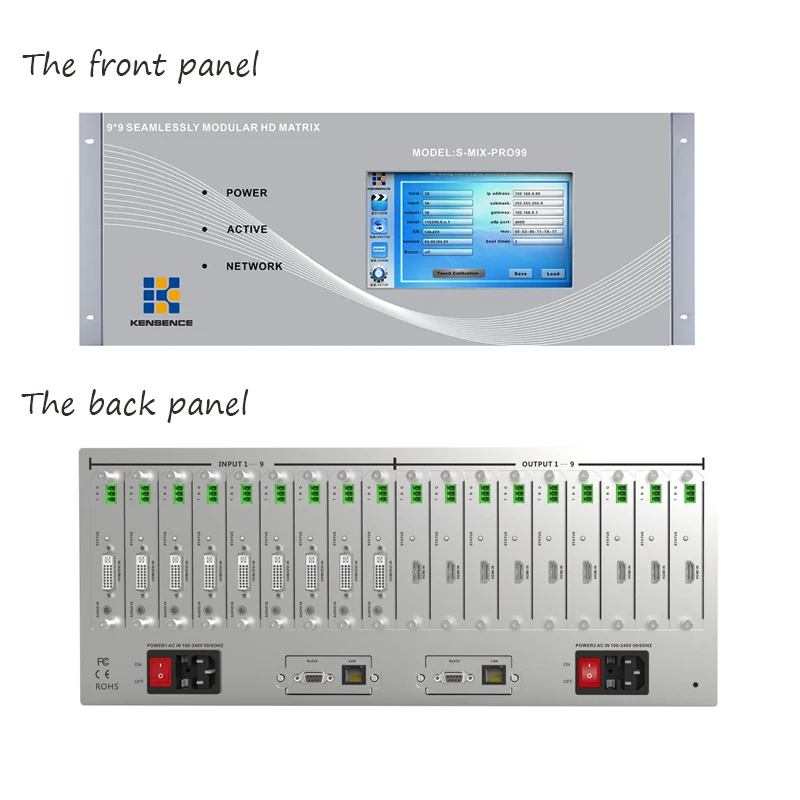

18. Front panel 7 inch HD touch screen can feedback the real-time status

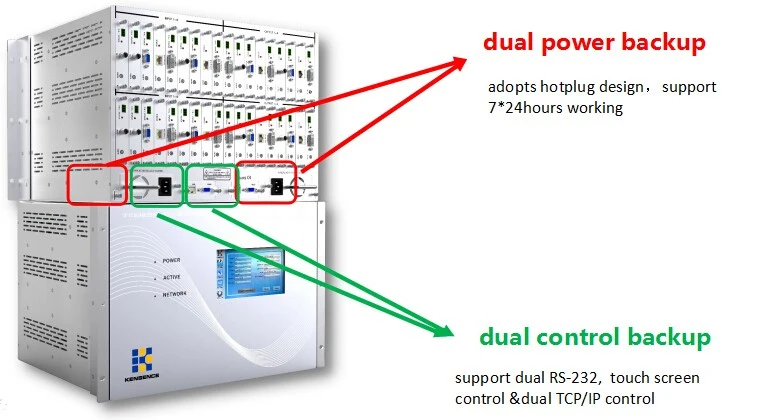

19.Adopts dual power supply redundant design,support 7*24 hours uninterrupted operation
Specification
Model | S-Mix-Pro 9x9 | S-Mix-Pro 18x18 | S-Mix-Pro 40x40 | S-Mix-Pro 80x80 |
Description | 9 ways enhanced HD modular matrix | 18 ways enhanced HD modular matrix | 40 ways enhanced HD modular matrix | 80 ways enhanced HD modular matrix |
Input/Output | 9/9 | 18/18 | 40/40 | 80/80 |
Input / output mode | Support CVBS,YPbPr,VGA,HDMI,DVI,AUDIO,3GSDI,HDBaseT,Fiber,IPstreaming media | |||
Bandwidth | 10.2 Gbps | |||
Serial control protocol | RS-232 (Baud rate: 115200 data bits: 8 stop bit:1: no parity) | |||
Serial port connector | 9 pin D-sub(DE9F) jack 3=TX 2=RX 5=GND | |||
Network control protocol | TCP/IP | |||
Network connector | RJ45 connector 10/100Base-T Ethernet | |||
Color Space | Supports RGB444, YUV444, YUV422 color space, supports x.v.Color extended gamut standard | |||
Transmission Distance | HDBaseT technology transmitting 70M-100M (CATS6), H.264 technology transmitting more than 160 meters (CATS6), 2-80 km (single core single mode fiber); 30 meters (digital cable) | |||
Electrostatic protection | Human body discharge mode: 8kV (air gap discharge) + 4kV (contact discharge) | |||
Input voltage | 100VAC~260VAC,50/60 Hz | |||
Operating temperature | 0ºC~40ºC | |||
Storage Temperature | −20ºC~60ºC | |||
