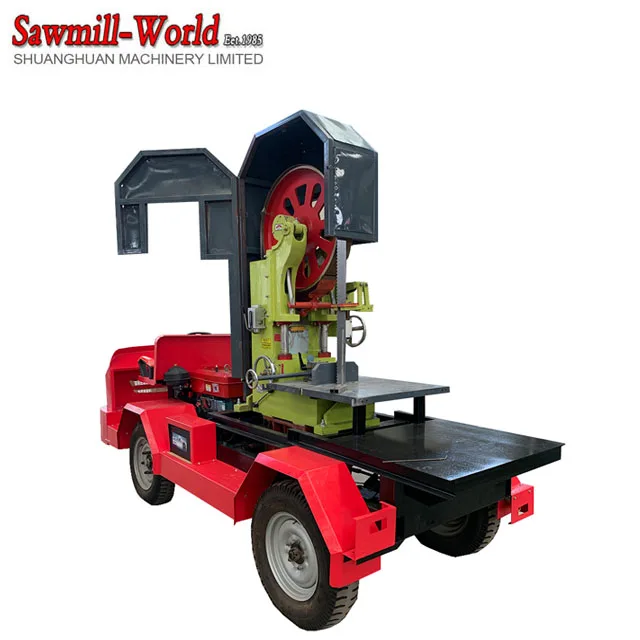

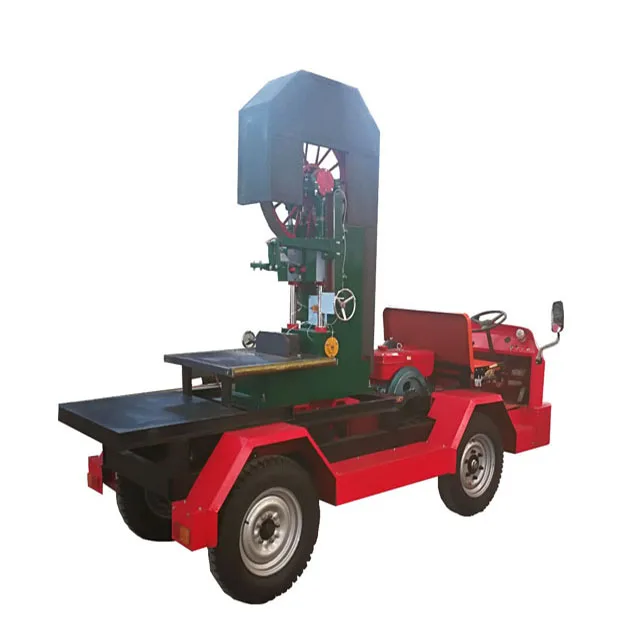

utv vertical band saw diesel portable sawmill
- Category: >>>
- Supplier: Shandong Zouping Shuanghuan Machinery Manufacturing Co. Ltd.
Share on (60795793395):
Product Overview
Description

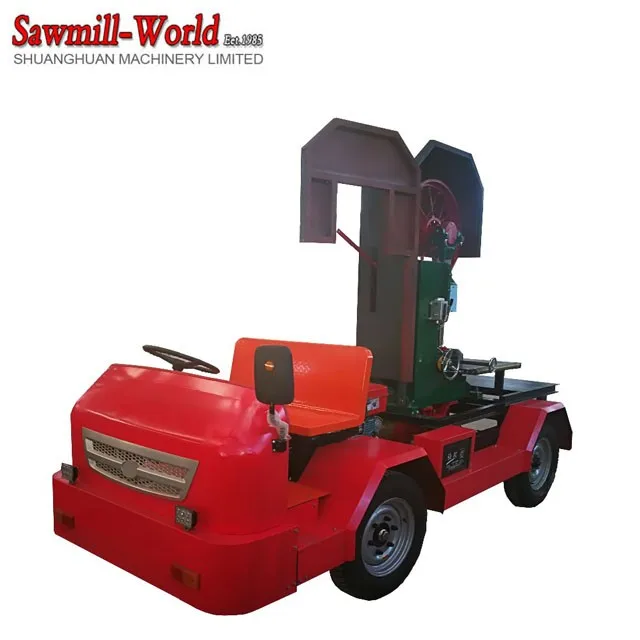

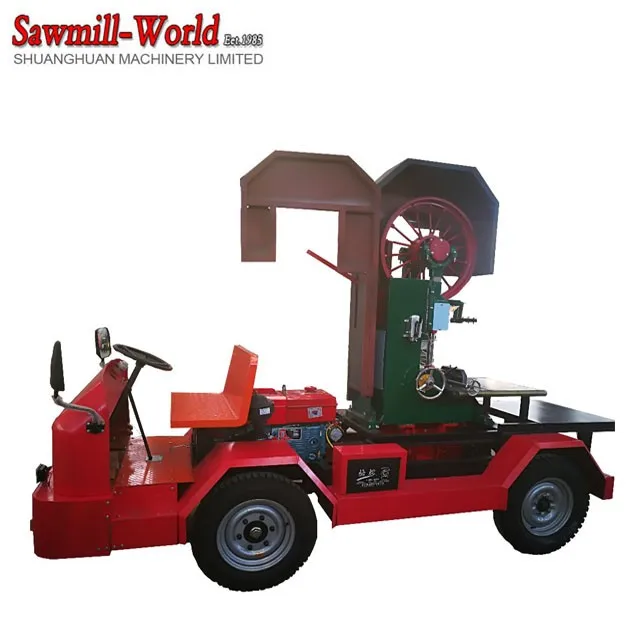

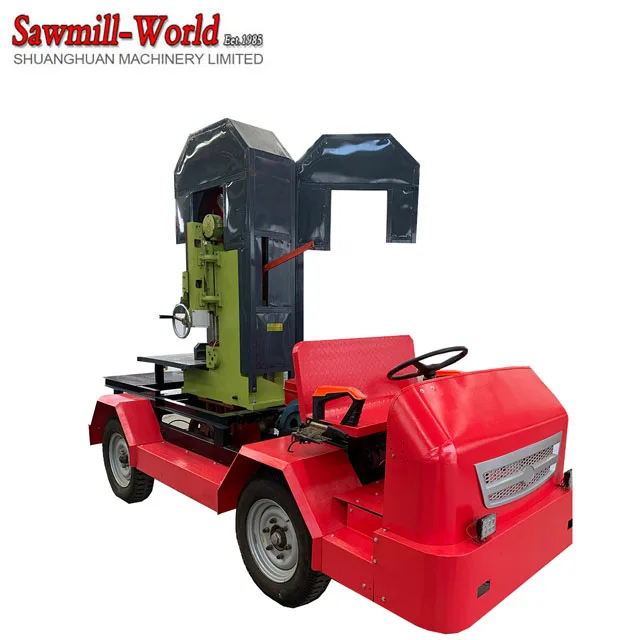

Mobile Band Saw

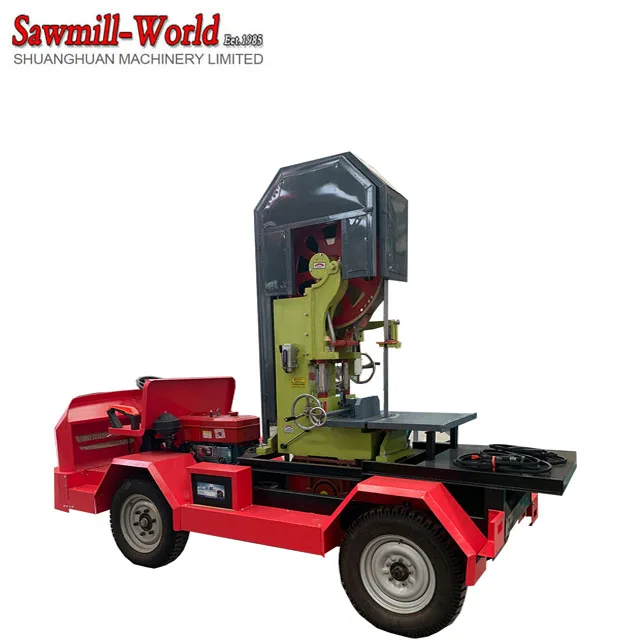

Mobile Diesel Powered Vertical Band Sawmill With Table
Mobile Diesel Powered Vertical Band Sawmill With Table | ||
Saw Wheel Diameter*Width | 800mm*110MM | |
Saw Wheel Speed | 750r·p·m | |
Max Sawing Wood Diameter | 600mm | |
Saw Blade | 5700*125*1.05MM | |
Up/Down Saw Wheel | Manual | |
Diesel Engine Power | 28HP Single Cylinder Water Cooling | |
4 Wheel Truck | 3500*1600*1250MM | |
Tyre Quantity | 4 | |
Load | 2000KG | |
Drive Model | Rear Drive | |
4 Wheel Truck Size | 3300*1600*1200 | |

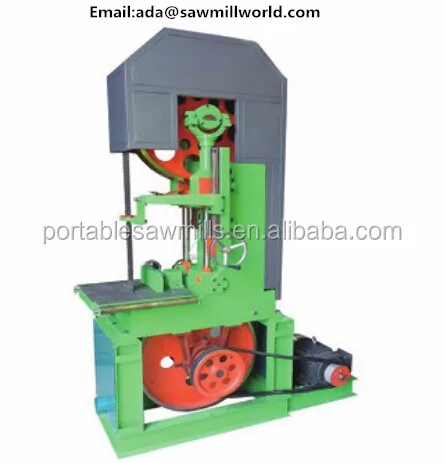

Band Saw

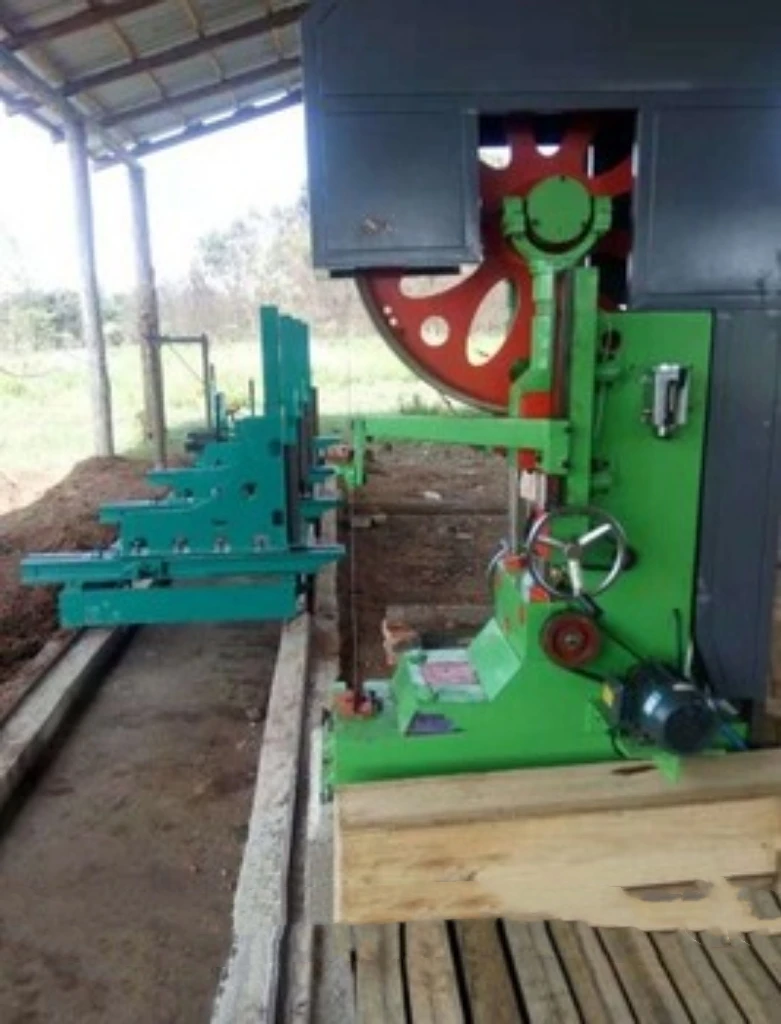

Vertical Band Sawmill With Table | ||||||||||
Technical Parameter | MJ328 | MJ329 | MJ3210 | MJ3310 | MJ3212 | |||||
Saw Wheel Diameter | 800mm | 900mm | 1000mm | 1070mm | 1250mm | |||||
Saw Wheel Width | 110mm | 120mm | 120mm | 120mm | 140mm | |||||
Saw Wheel Speed | 750r·p·m | 750r·p·m | 750r·p·m | 750r·p·m | 750r·p·m | |||||
Saw Wheel& Clip Model | Manual | Manual | Manual | Automatic | Automatic | |||||
Saw Wheel Length | 5700mm | 6400mm | 6800mm | 7400mm | 8600mm | |||||
Max Sawing Wood Diameter | 650mm | 750mm | 900mm | 1000mm | 1200mm | |||||
Main Motor Power | 11kw | 15kw | 22kw | 30kw | 37kw | |||||
Weight | 1000kg | 1300kg | 1600kg | 1800kg | 3200kg | |||||
Vertical Band Saw

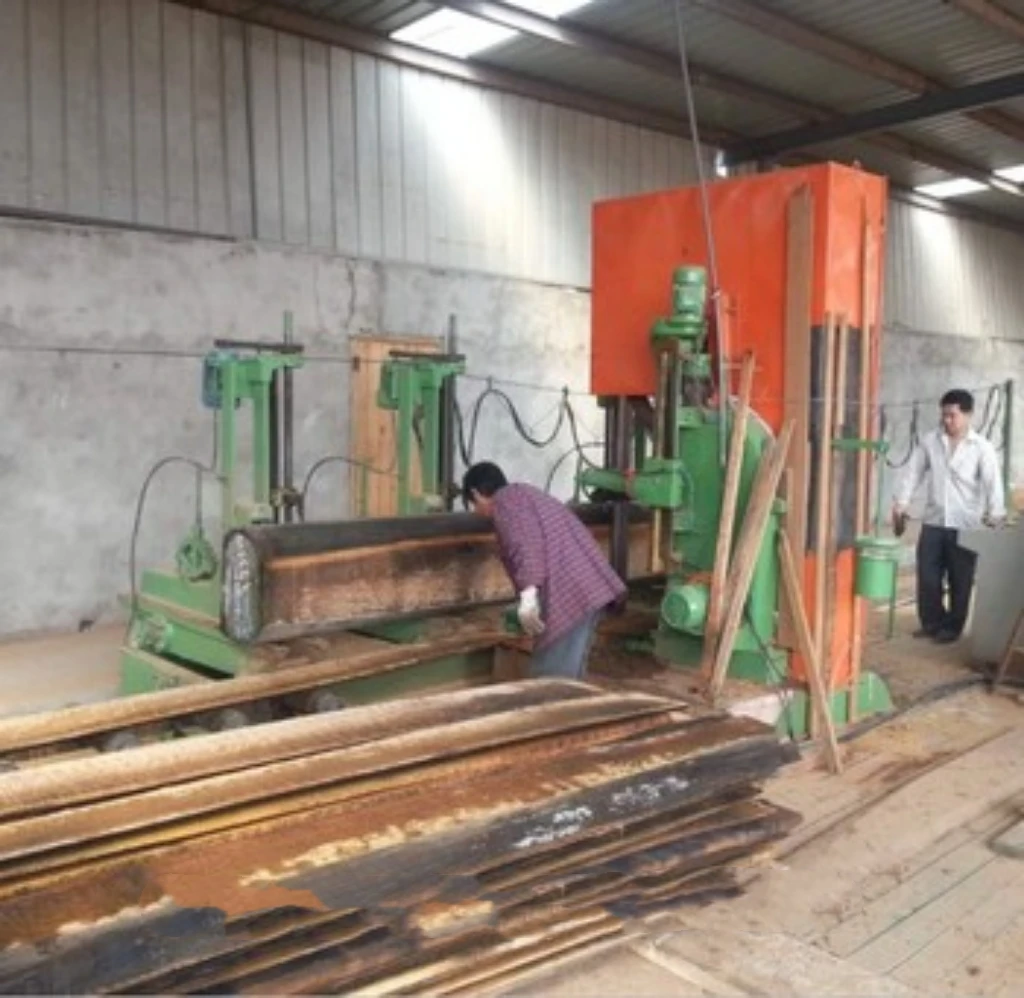

Model | MJ3210- DD3000 | MJ3210-ZD3000 | MJ3210-DD5000 | MJ3210-ZD5000 | |||
Saw Wheel Diameter (MM) | 1000MM | ||||||
Max Sawing Wood Diameter | 800MM | ||||||
Saw Blade Length (MM) | 6850*125*1.05MM | ||||||
Saw Clip And Wheel Up and Down | Electric | ||||||
Main Motor Power( KW) | 22 KW | ||||||
Log Carriage | DD3000 | ZD3000 | DD5000 | ZD5000 | |||
Carriage Length | 3000MM | 5000MM | |||||
Max Sawing Wood Length | 4000MM | 6000MM | |||||
Wood Grasp Clip Quantity | 3 Sets | 4 Sets | |||||
Carriage Forward/Backward | Electric | Frequency | Electric | Frequency | |||
Wood Grasp | Manual | Electric | Manual | Electric | |||
Sawing Thickness Setting | Electric | Touch Screen | Electric | Touch Screen | |||
Model | MJ3312-ZD3000 | MJ3212-ZD5000 | |
Saw Wheel Diameter (MM) | 1250MM | ||
Max Sawing Wood Diameter | 1200MM | ||
Saw Blade Length (MM) | 8600*150*1.25MM | ||
Saw Clip And Wheel Up and Down | Electric | ||
Main Motor Power( KW) | 37 KW | ||
Carriage Length | 3000MM | 5000MM | |
Max Sawing Wood Length | 4000MM | 6000MM | |
Wood Grasp Clip Quantity | 3 Sets | 4 Sets | |
Carriage Forward/Backward | Frequency | Frequency | |
Wood Grasp | Electric | Electric | |
Sawing Thickness Setting | Touch Screen | Touch Screen | |

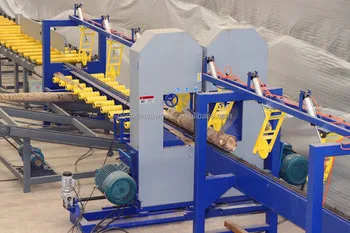

Twin Vertical Saw
Twin Vertical Band Sawmill | ||
Technical Parameter | TVBS400 | |
Max. Sawing Wood Diameter | 400mm | |
Min. Sawing Wood Diameter | 100mm | |
Sawing Wood Length | 1000-5000mm | |
Feeding Speed | 14-20 Meter/Min,Frequency | |
V Type Feeding Conveyor | 6000mm | |
V Type Output Conveyor | 6000mm | |
Saw Wheel Diameter | 700mm | |
Band Saw Blade Width | 32mm-100mm | |
Main Motor | 2*18.5KW | |
Motor For Forward and Backward | 3KW*2 | |
Feeding Type | Variable Frequency | |
Setting Sawing Wood Dimension | Touch Screen | |
