Product Overview

Description

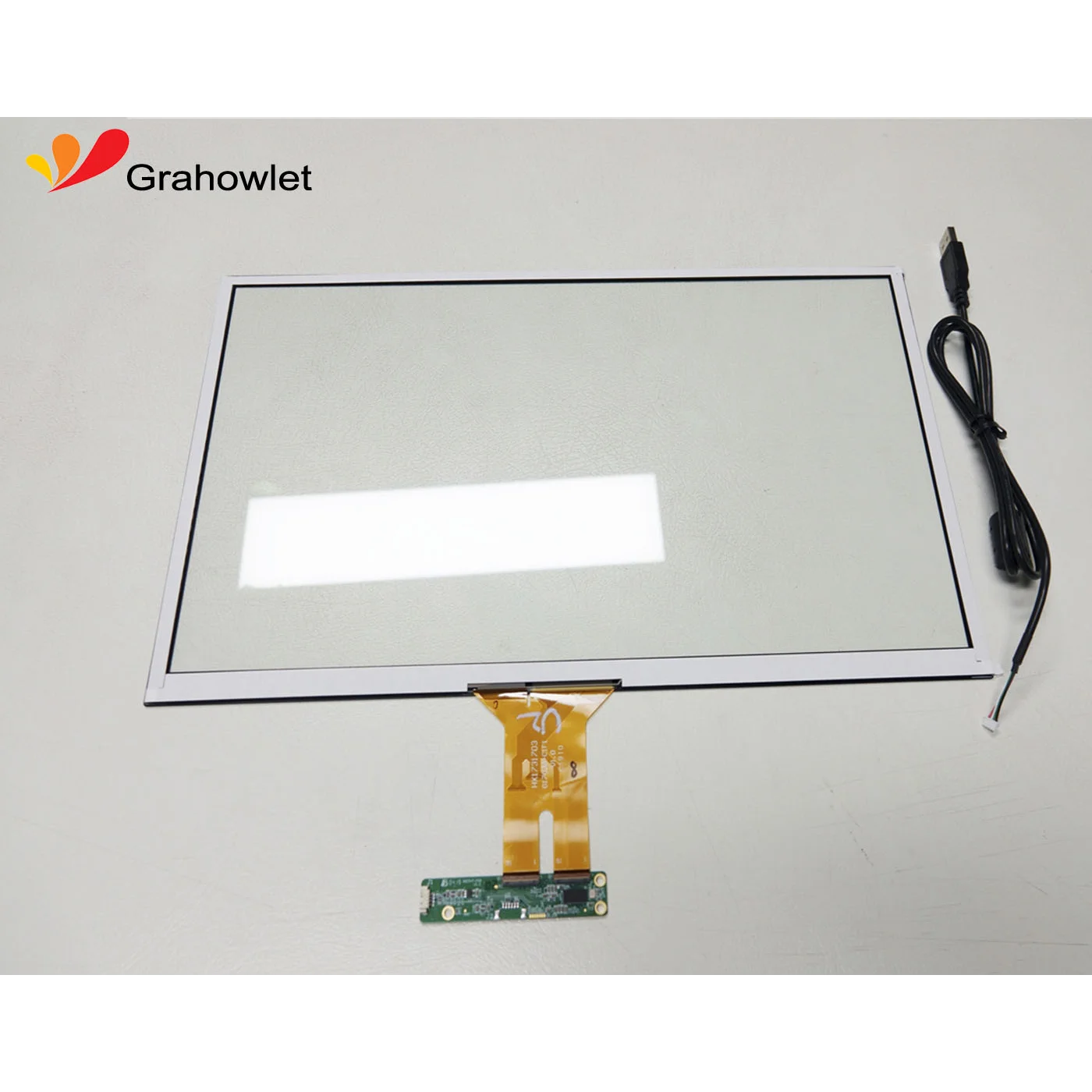

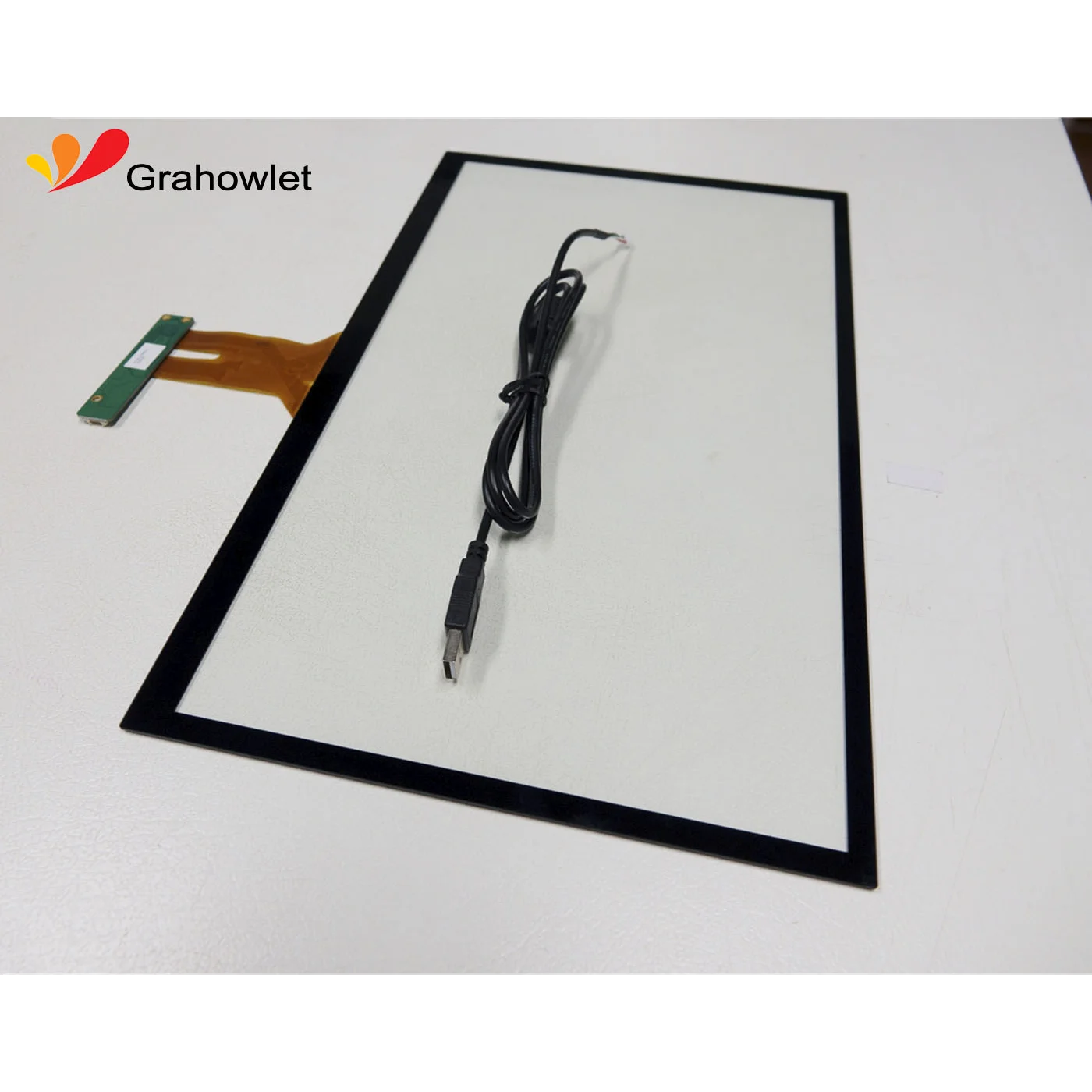

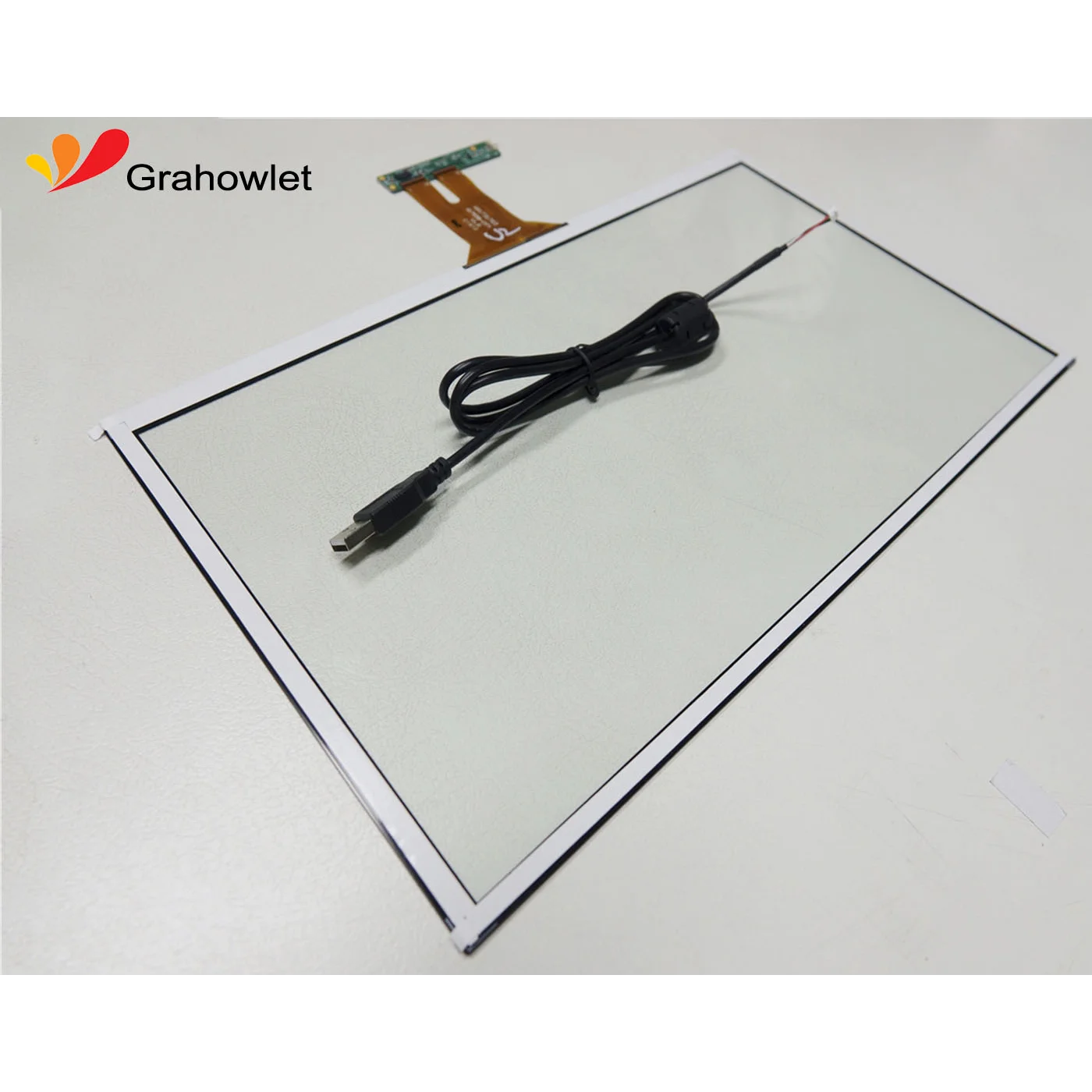

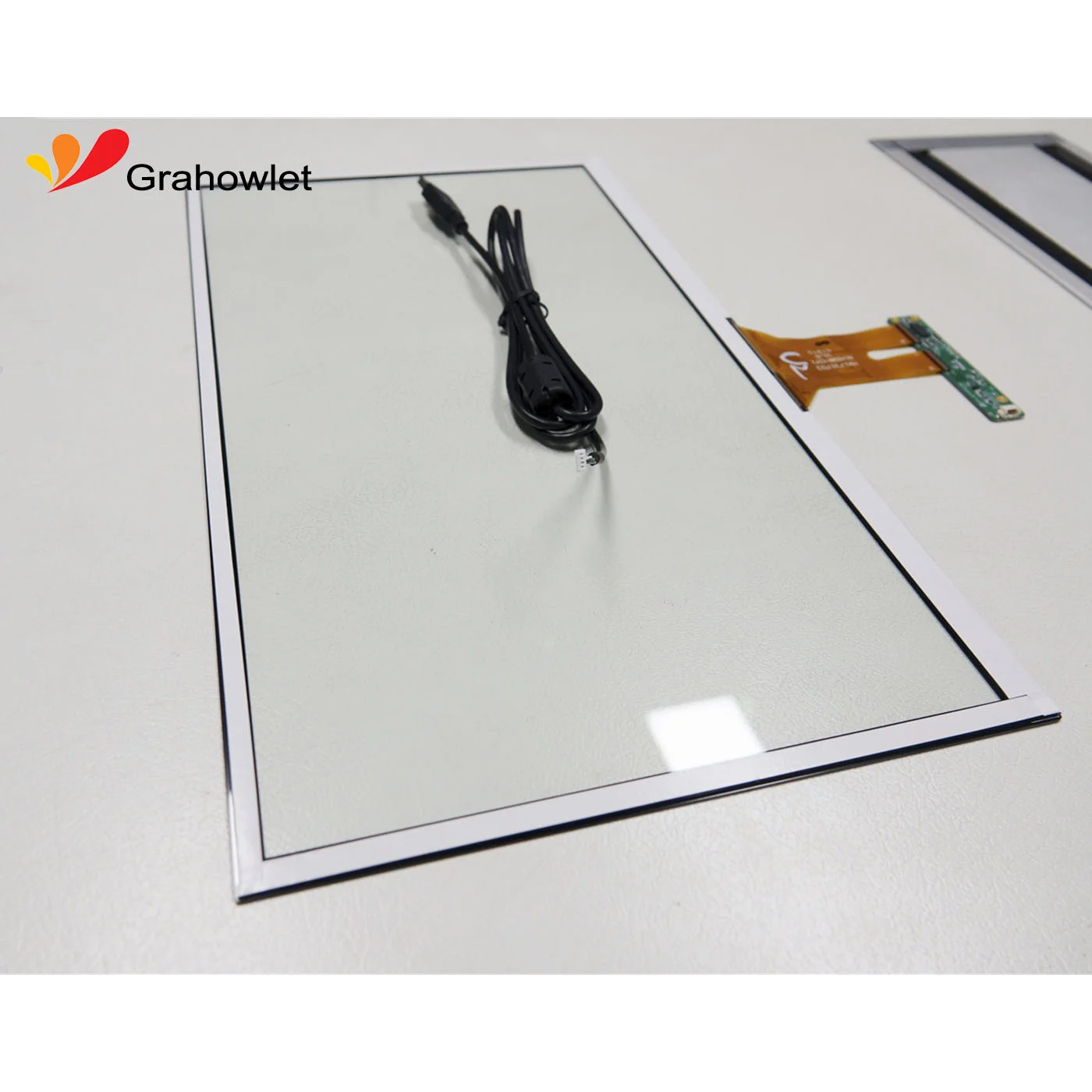

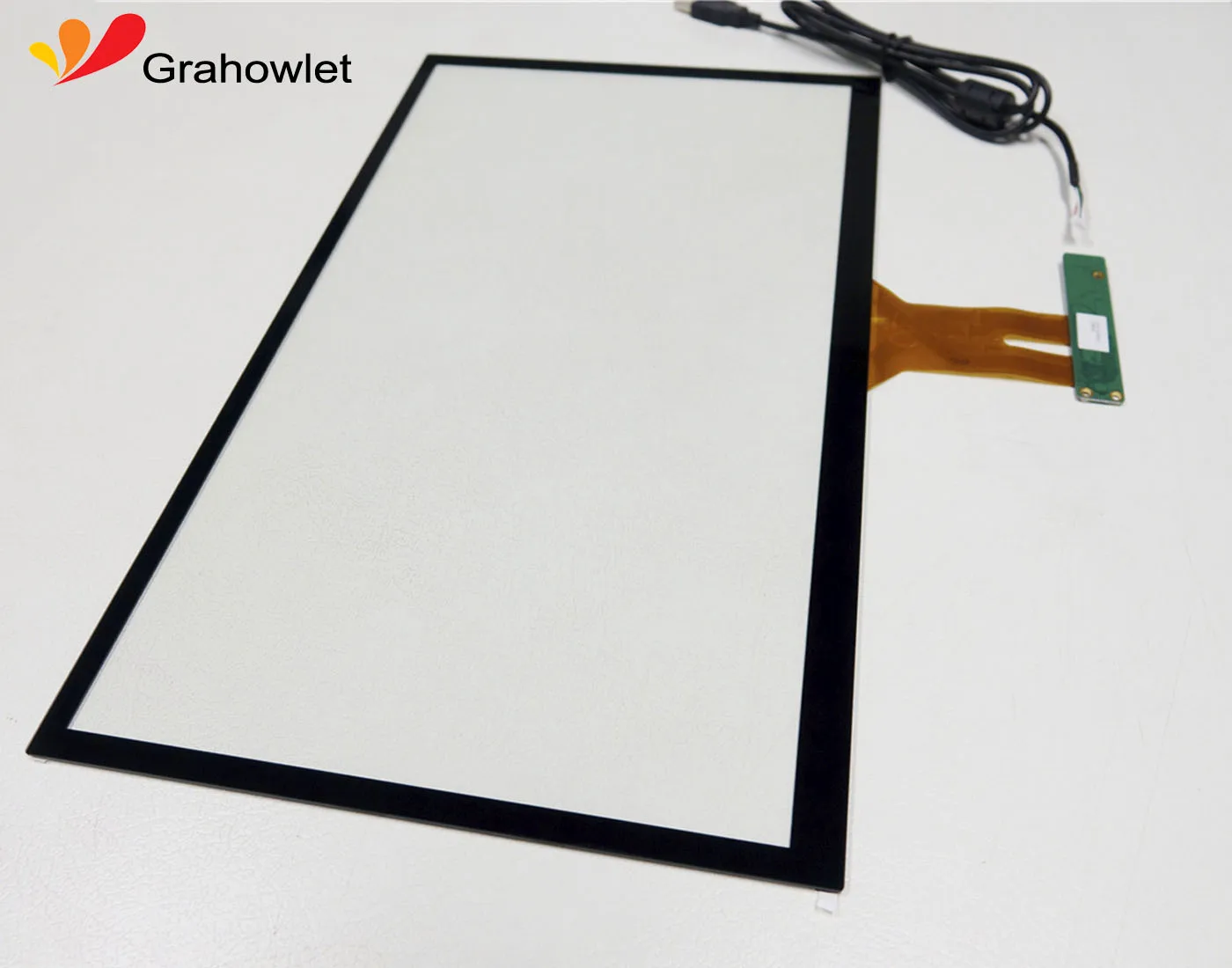

Custom size PCAP 15.6 17.3 18.5 19 21.5 24 30 32 inch capacitive touchscreen panel,transparent touch screen


Product Description


Customize PCAP/PCAP+ LCD DISPLAY 1.3-65 inch

Full range of standard product in stock (no need customization)

Need to be reminded: Standard products haven't special functions for the time being. If your product needs special features,such as: waterproof, explosion-proof, gloved touch, etc, please feel free to contact me.Thanks!





Model Number
HX1731703
Brand
Grahowlet
Size
17.3 inch
Interface Type
USB
Structure
Glass+Glass
Controller IC
ILITEK
Touch Points
10 points
Transparency
≥85%
Surface Hardness
≥6H
Operating Environment
-20℃ ~ 70℃,≤85% RH
Storage Environment
-30℃ ~ 80℃,≤85% RH
Power Supply Voltage
5V
Outline Dimension
403.00(W)x240.00(H)x3.35(D) mm
Viewing Area
383.89(W)x216.81(H) mm
Support Systems
Windows/Android/Linux etc.
Warranty
1 year




Related Products




We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.


Application




Courier handheld terminal

Portable medical machine



Front loading Vehicle control system

Industrial Data Detection Equipment







If you want USB interface, we can supply IIC to USB Bridgeboard







1.Support gloved touch of all materials and thickness with 6mm





2.Support Touch with water/brine





3.Cover glass Support -8mm thickness--explosion-proof





4.Cover glass surface treatment--AG, AR, AF





Anti Glare (AG) processing could eliminate screen surface mirror problem through converting
direct light to diffuse light on the touch screen.




AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.


Our Service


programe evsluation
1 to 2 morking days
Drawings
2 to 3 working days
Customized products
3 to 4 weeks(after drawings confirmed)
Mass Production delivery
4 to 6 weeks
Software debugging
Capacity
100K per month(each type)
Process capability
G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support
Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products


Feedback of customers


For more Ratings & Reviews, please Click here

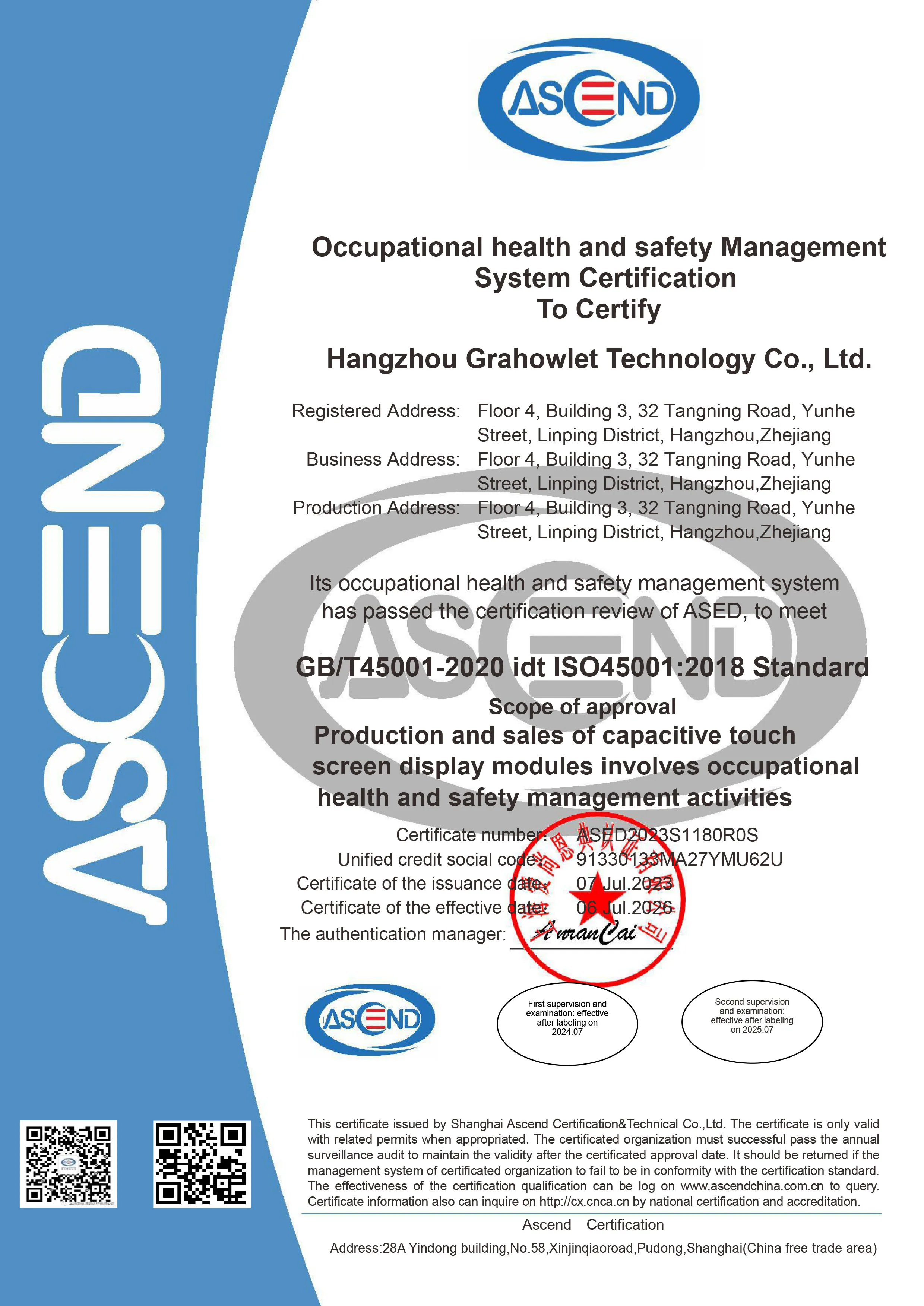

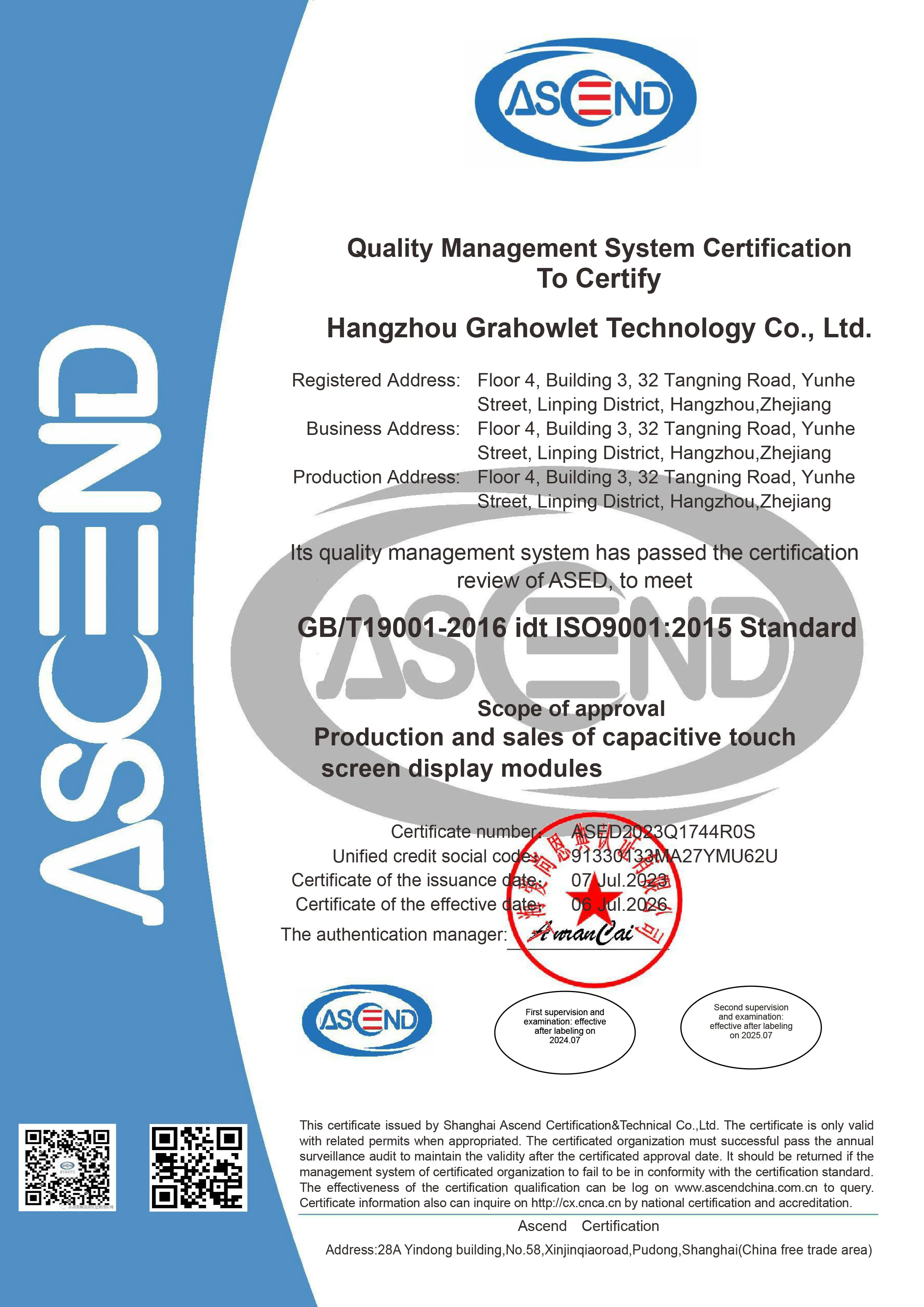

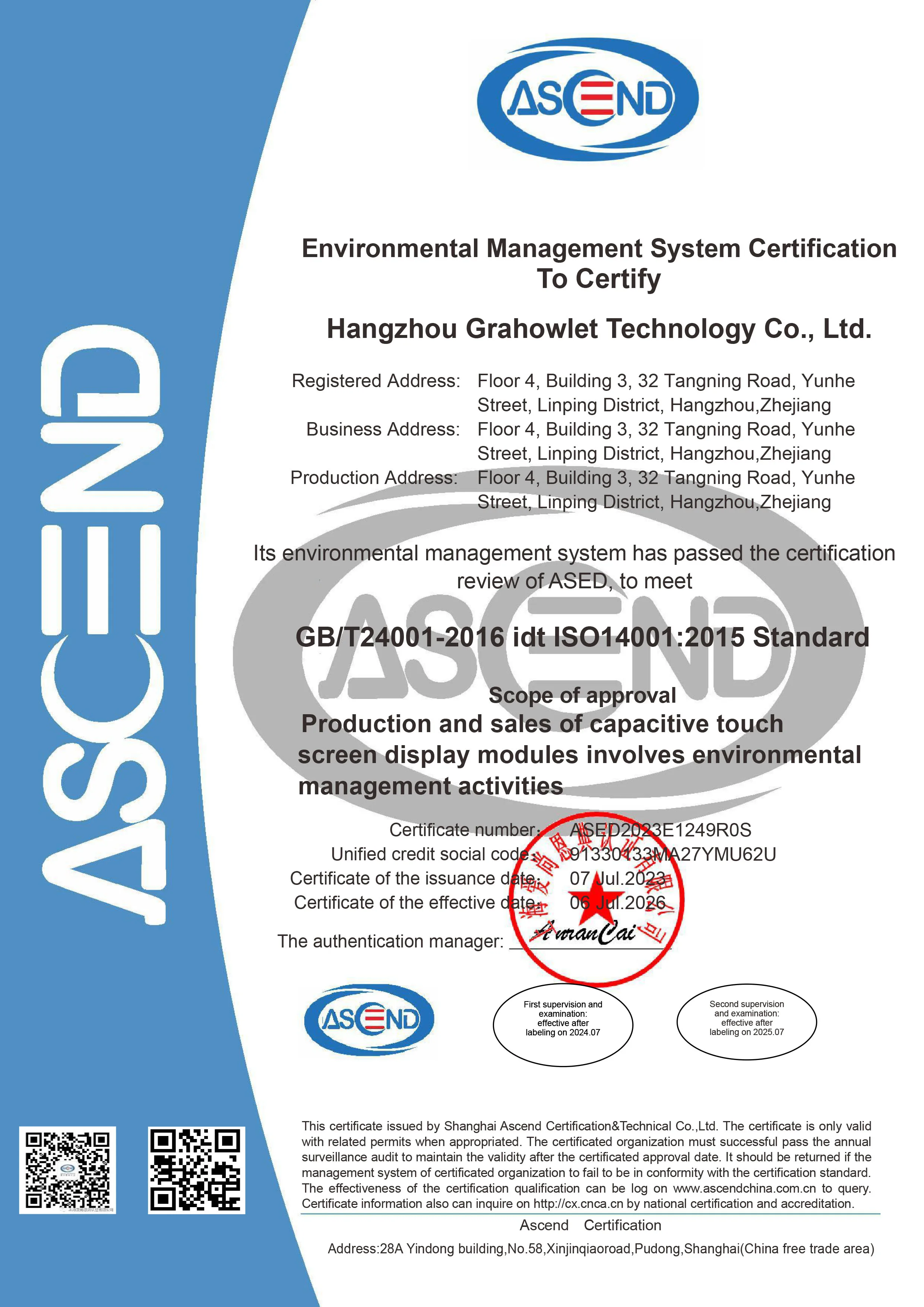

Certifications




Packing & Delivery




FAQ


Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
