Product Overview

Description


DC Brushless Motor

Application

Office computer peripherals, Electronic digital consumer products, Industrial control products, Medical equipments, Fans, etc.

\t
Product Name
\t
DC Brushless motor
\t
Phase & Poles
\t
Three phase 12 poles
\t
Rotor
\t
Inner rotor
\t
Rotation Direction
\t
CW / CCW
\t
Materials
\t
Cast iron housing, Stainless steel shaft
\t
Bearing & Life time
\t
2 ball bearing: 40000~50000h
\t
Features
\t
Reverse protection; Auto Re-start
\t
Operating Temperature
\t
-10℃ ~ 60℃
\t
Lead Wire
\t
RED: Positive(+); BLACK: Negative(-)
Wire insert: 2.5-2P / NOP(Tin exposed 5mm)
\t
Custom: RED: Positive(+); BLACK: Negative(-); YELLOW: Function wire.
Wire insert: 2.5-3P/4P/NOP(Tin exposed 5mm)
\t
Certification
\t
CE, RoHS

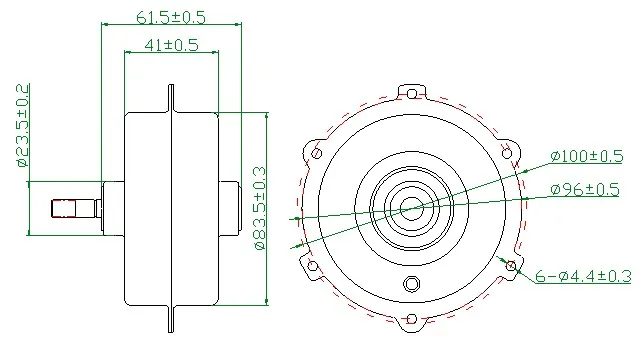

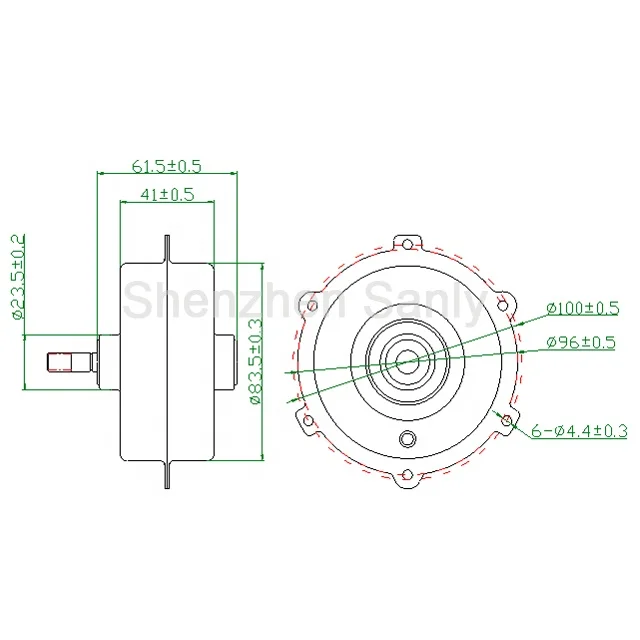

Dimension: Unit (mm)

\t
Model
\t
Rated
Voltage
\t
Operating Voltage Range
\t
Rated
Current
\t
Rated Input Power

\t
No-load Speed
\t
Noise
\t
NO
\t
VDC
\t
VDC
\t
Amp
\t
Watt
\t
R.P.M
\t
dB-A
\t
SF8440BM
\t
12
\t
6to13.5
\t
0.18
\t
2.16
\t
1600
\t
34.0
\t
SF8440BH
\t
12
\t
6to13.5
\t
0.25
\t
3.00
\t
2000
\t
42.0
\t
SF8440BM
\t
24
\t
18to25.5
\t
0.20
\t
4.80
\t
1800
\t
38.0
\t
SF8440BH
\t
24
\t
18to25.5
\t
0.25
\t
6.00
\t
2500
\t
48.0

Note:

1. We can produce more power motor. Please tell us your requirements.

2. Voltage: DC5V, DC12V, DC24V, other voltage (within 48V)
3. Power: Energy saving design. Power with 50W.
4. Warranty: 1 year.

Packing & Delivery
Packing Details : Samples: 1-10pcs/carton, Large order goods: Use the right carton according to the total quantity
Delivery Details : 3-30 days after received deposit payment
