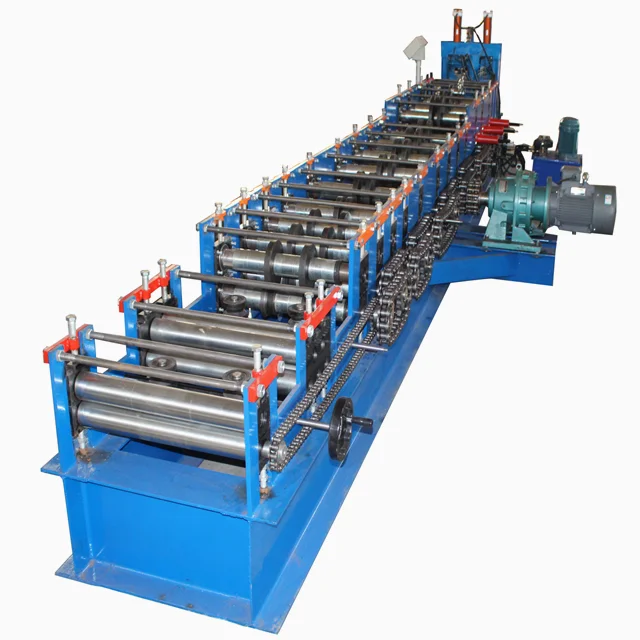

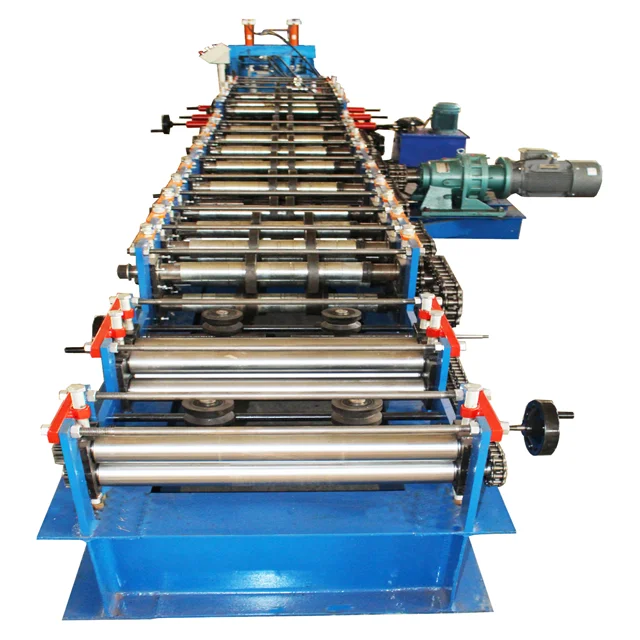

Hydraulic cutting Steel Profile Channel Shape Metal C Z purlin making machine C purlin roll forming machine

 NOTE: All technical parameters can be changed according to user s need, and only as a reference.
2.Components specification
(1) Manual Uncoiler
Max.Capacity:5T

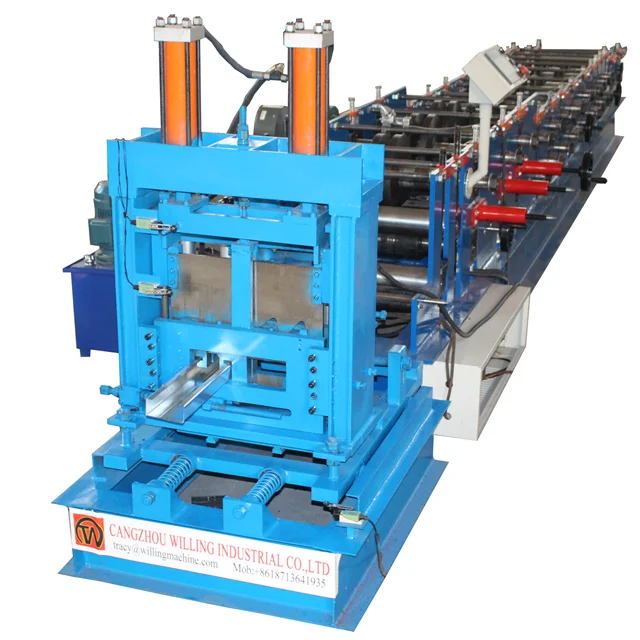

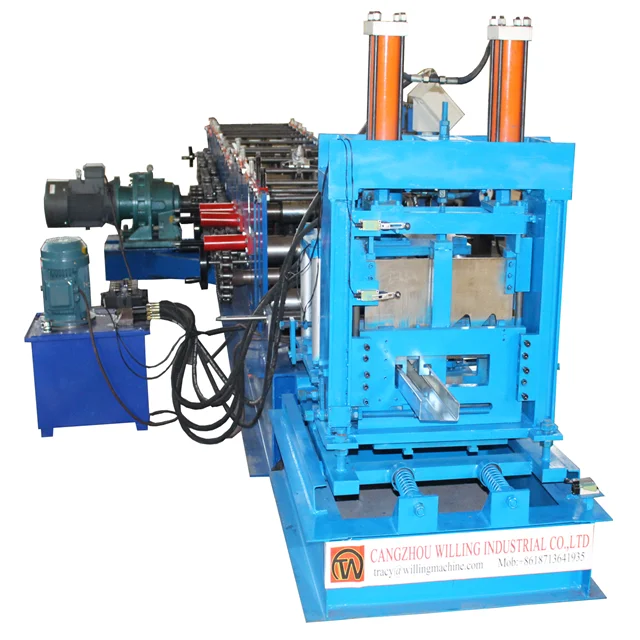

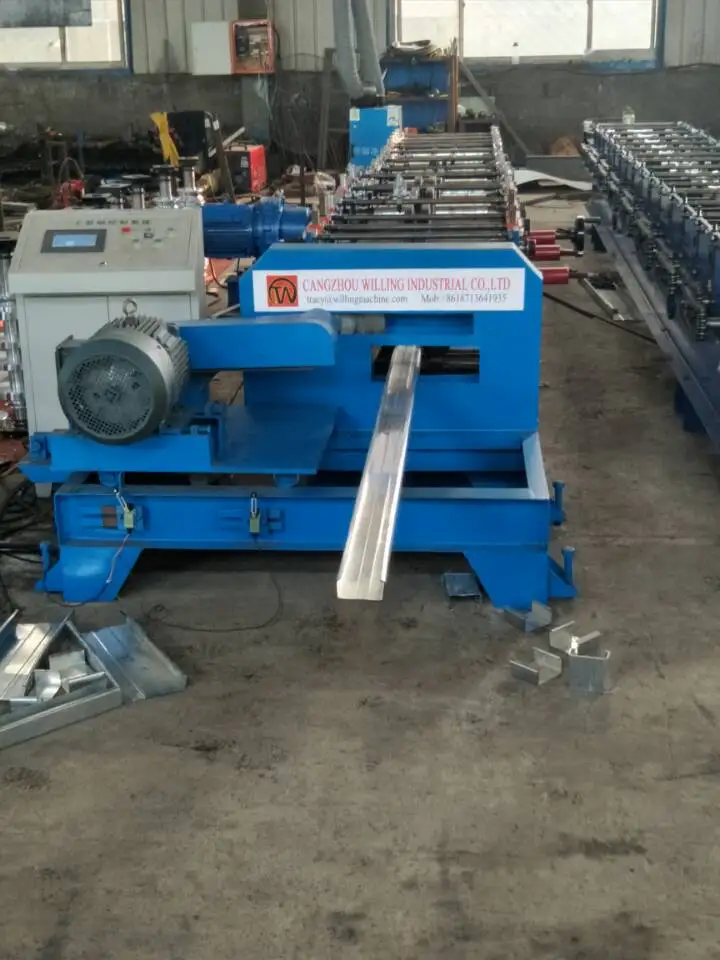

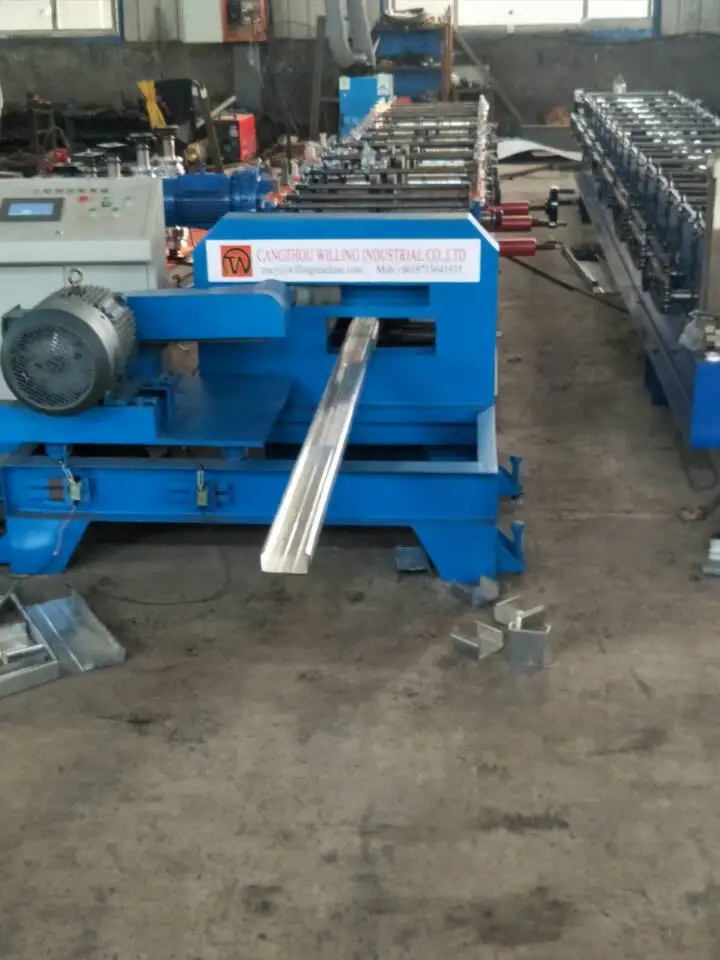

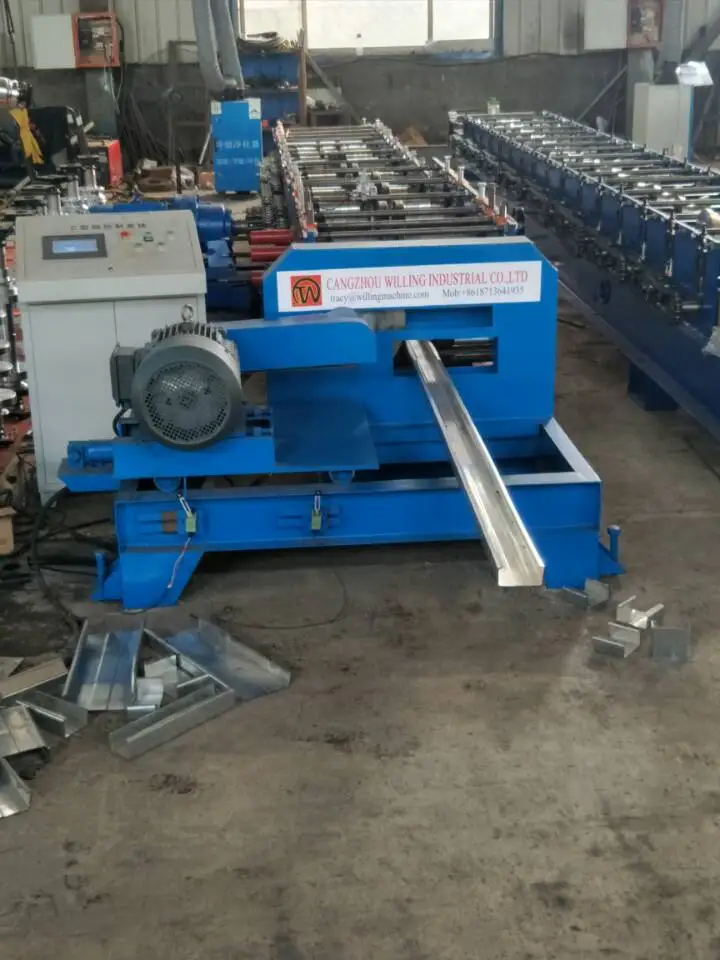

(2)Pre- Cutting Device& Pre-Punching Device
It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.
Cutting length tolerance:±2mm
Material:GCr12 with quenched treatment 60-62°C

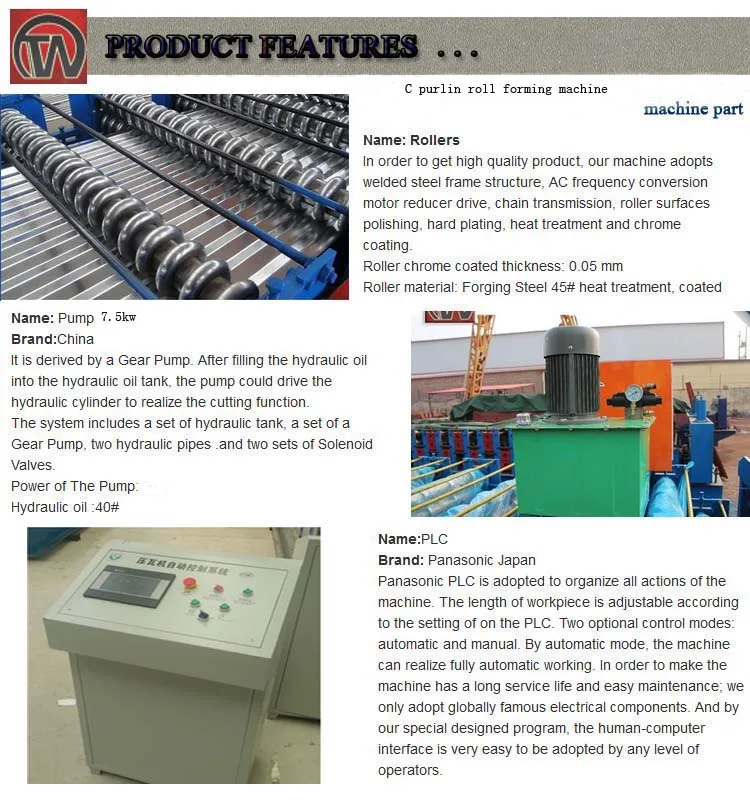

(3)Hydraulic System
Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.
Power: 7.5KW
(4)Control System
It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.
Computed mode: automatic or manual
(5)Encoder
The counter gauges length, and modulates pulses.
(6)Simple Stack

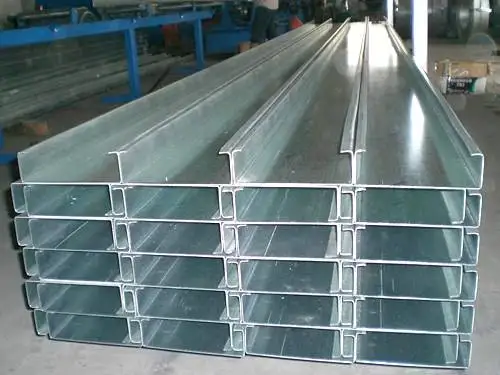

It is used for loading the formed plate.
