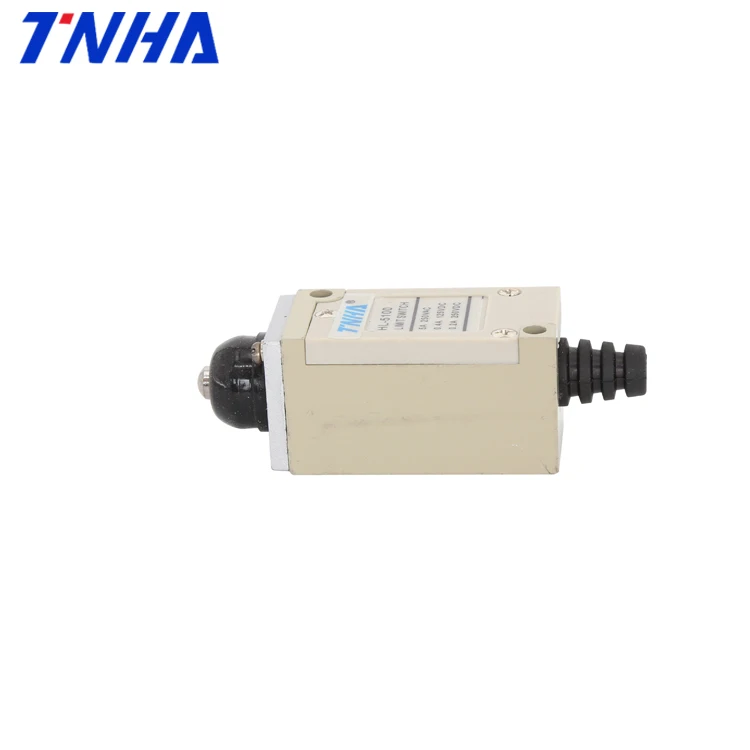

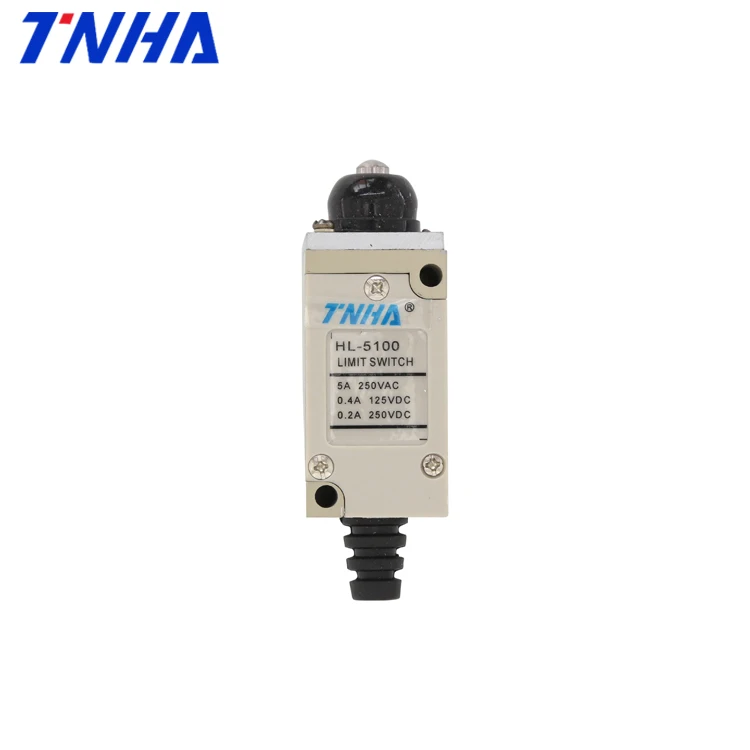

TNHA IP65 Rated Waterproof Magnetic Limit Switch hoist limit switch wireless limit switch
- Category: Limit Switches >>>
- Supplier: ZHEJIANG TNHA ELECTRICAL CO. LTD.
Share on (60795940379):
Product Overview
Description
Product Pictures
Product Description
| Model No. | CHL-5100 |
| Name | Limit switch |
| Double Break Mechanism | INO+INC Force Break snap action |
| Rated Voltage/ Current | 10A, 125, 250VAC / 6A, 380VAC For inductance Load, Cos®=0.4 |
| Contact Resistance | 25m Q max. (initial value) |
| Insultation Resistance | 100mfi min. (at 500VDC) |
| Dielectric Strength | 1000VAC,50/60 HZ for 1 minute between terminals of the same polarity |
| 1500VAC,50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
| Electrical Life | 500,000 at 10A 250VAC Resistive |
| Mechanical Life | 10,000,000 operations min. (under rated conditions) |
| Operating Speed | 5mm/s to 0.5m/s |
| Degree of Protection | IP65 |
| Ambient Temperature Rised | Max 30°C over ambient temperature at rated voltage/current |
| Conformed Standards | Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660 |
| Shock Resistance | Mechanical durable: 1000m/s²min. |
| Malfunction: 300m/s²min. | |
| Vibration Frequency | Malfunction: 10 to 55HZ 1.5mm double amplitude |
Company Information
Packaging & Shipping
FAQ
Q: Are you factory?
A: Yes,We focus on Crane Push button Switch , Elevator control station and Limit swtich more than 17 Years in China.
Q:How about your Product Quality?
A:Aour products quality is good and most of all products approval of CCC and TUV. After you use it, you will know more understanding for our quality.
Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
Q:How long is your products Warranty Period?
A: Generally, 1~2 years(After shipment date).
Q:Where can I get more products details?
A: Please check our website:www.tnhaelec.com
Q:How you will send the goods to us?
A:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way to send to you by sea but will take much time. For small orders, express will be best. We can send the goods to you by DHL, FEDEX, UPS, EMS etc .
Q:What is the payment term?
A:We accept T/T, L/C, Western Union and paypal.
