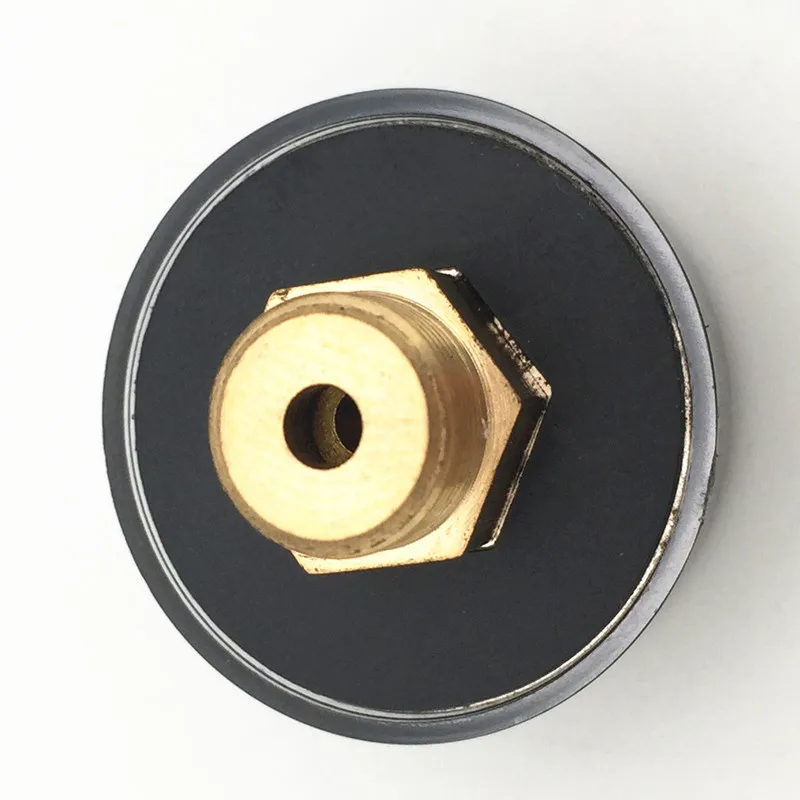

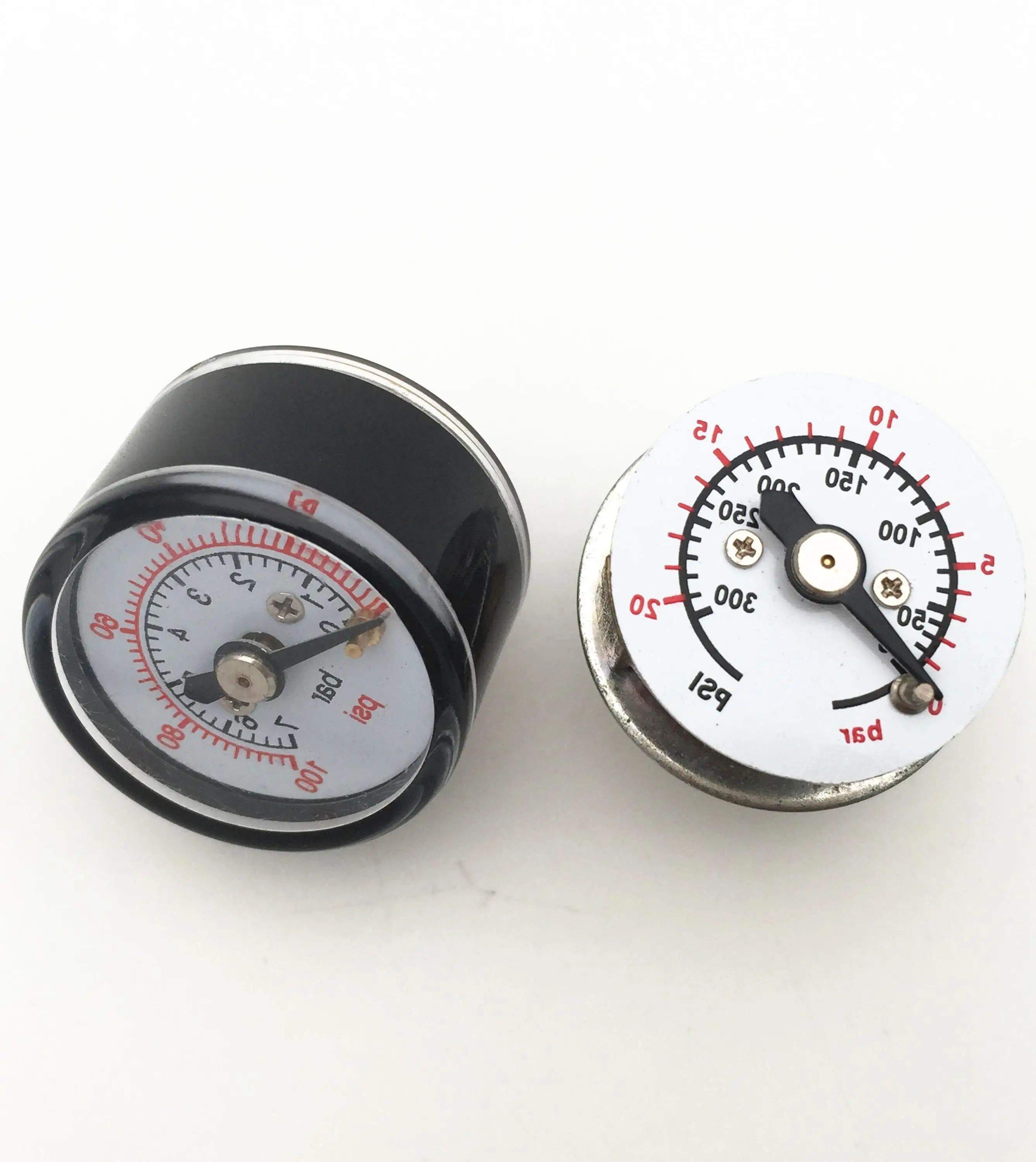

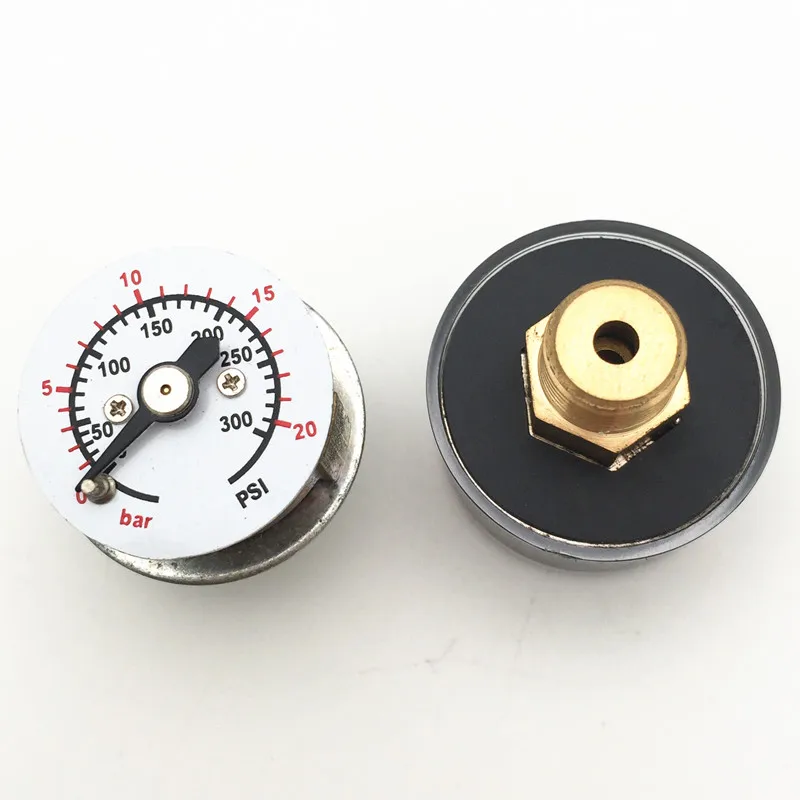

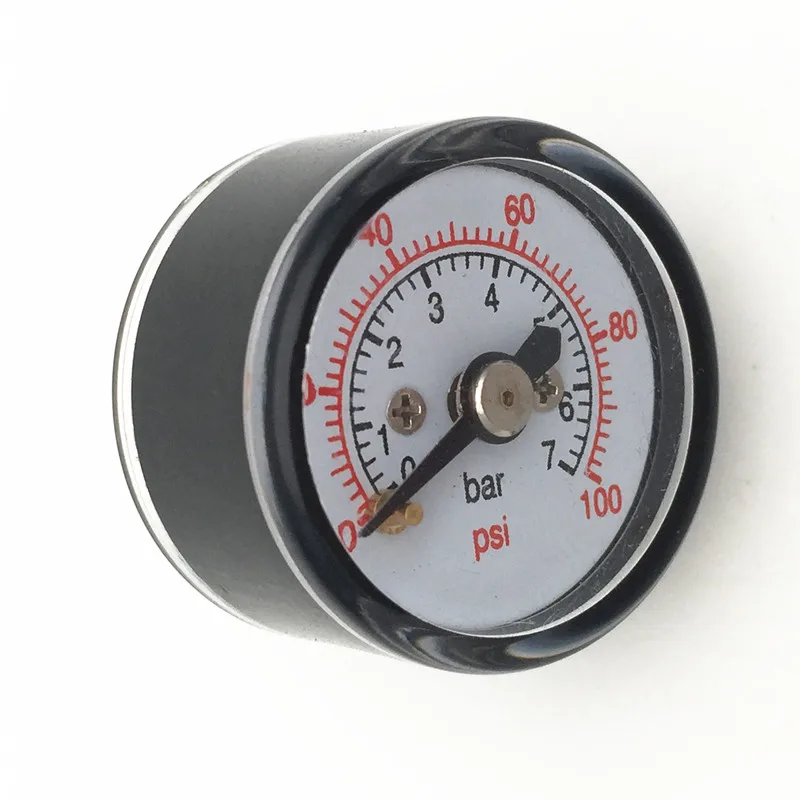

0 7 bar 25mm small mini air compressor pump pressure gauge
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (60795990661):
Product Overview
Description
• Reliable, small diameter, low profile gauge
• 1" (25mm) sizes
• 1/8" NPT socket
• Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
• Safety over-pressure port on the lens
• "Use No Oil" for use in oxygen service
• 1" (25mm) sizes
• 1/8" NPT socket
• Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
• Safety over-pressure port on the lens
• "Use No Oil" for use in oxygen service
• Application:
Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers
•Options/notes :
• Less than 100 PSI internal use "bourdon tube" type
• Usually,1 " type of the case is brass plating, stainless steel is also avaliable.
• Usually,1 " type of the case is brass plating, stainless steel is also avaliable.
Product Details:
Dial | 1” (25mm), white aluminum with black markings |
Case | Brass, stainless steel |
Lens | Plexiglass or Polycarbonate |
Connection | 1/8” NPT standard, back |
Over-Pressure Limit | 10% of full scale value |
Working Pressure | 10% of full scale value |
Ambient | -40°F to 150°F (-40°C to 65°C) |
Accuracy | ±3-2-3% ANSI/ASME Grade B |
Enclosure Rating | IP65 |
Packaging & Shipping
Our Services
Company Information
KARA is one of the leading measurement instruments supplier of high quality,competitively priced pressure gauges, temperature gauges, pressure transmitter and those pressure and temperature measurement instruments. KARA’s products offering include bourdon tube type pressure gauges, diaphragm capsule pressure gauges (For micro pressure situation ). With internal parts made of stainless steel,brass/bronze, stainless iron. Pressure gauges’ dimension range from 1 inch to 8 inch. Other products include bimetallic thermometers from 2.5 inch to 6 inch in dimension as well as thermowells, pressure transmitter.
KARA are young, energetic, optimistic and friendly, totally committed to meet everyone requirement from our clients. We promise that every inquiry would be replied within 24 hours. Also senior engineer waiting here to solve all your confusion of our instrument.
FAQ
1. What kind of payment terms are acceptable ?
KARA: Currently we accept T/T, WN payment.
For small oders( Less than 1000 USD), full payment in advance;
For bulk orders, 30% payment in advance, balance done before delivery.
2. What is the delivery time?
KARA: Small orders: 15 days;
Bulk orders: 20-30 days.
3. What’s the products quality warranty ?
KARA: The products quality warranty is 12 months.
4. How do you ship the pressure gauges and other products ?
KARA: Before shipping, we use PC bag, corrugated carton, buble pack and buble box to pack the gauges carefully.
Shipping Method:
Express: FedEX, UPS, TNT, EMS etc. We provide cheaper, safer, faster delivery;
By Air: In some area, the freight by air is more expensive than express, plese attention;
By Sea: The most economic delivery, but take long time.
5. How do you control your products quality ?
KARA: All our products have passed CMC, ISO9001:2008, CE certificates. Besides, all material need to be inspected before using. All products need to be callibrated for twice during manufacturing.
6. Can you supply OEM/ODM service ?
KARA: Yes, OEM service is available. Also, our engineer is professional in this field over 10 years, we’ll provide all what we can to help you with ODM service.
