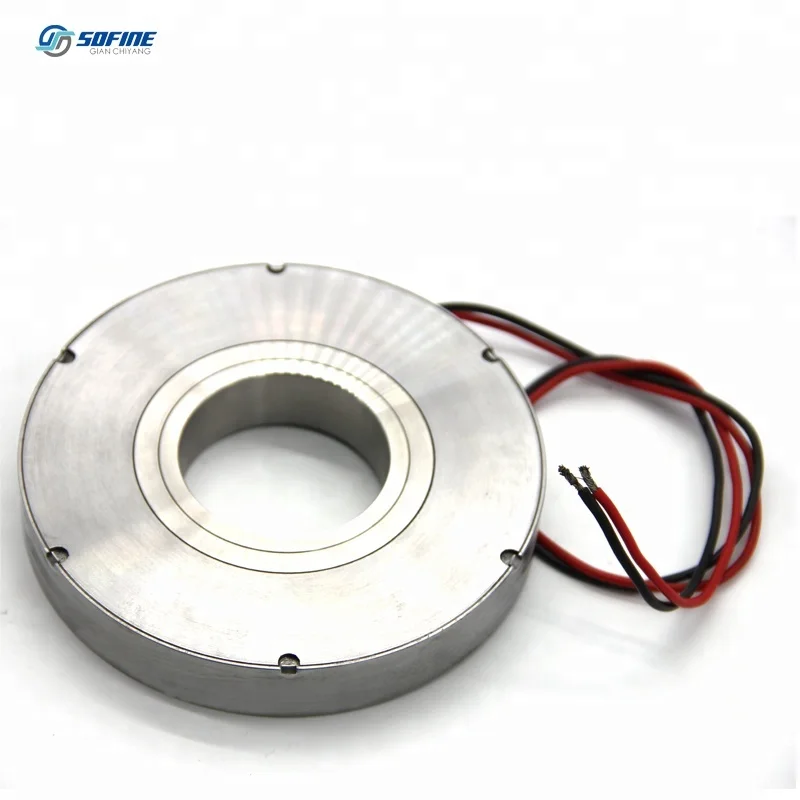

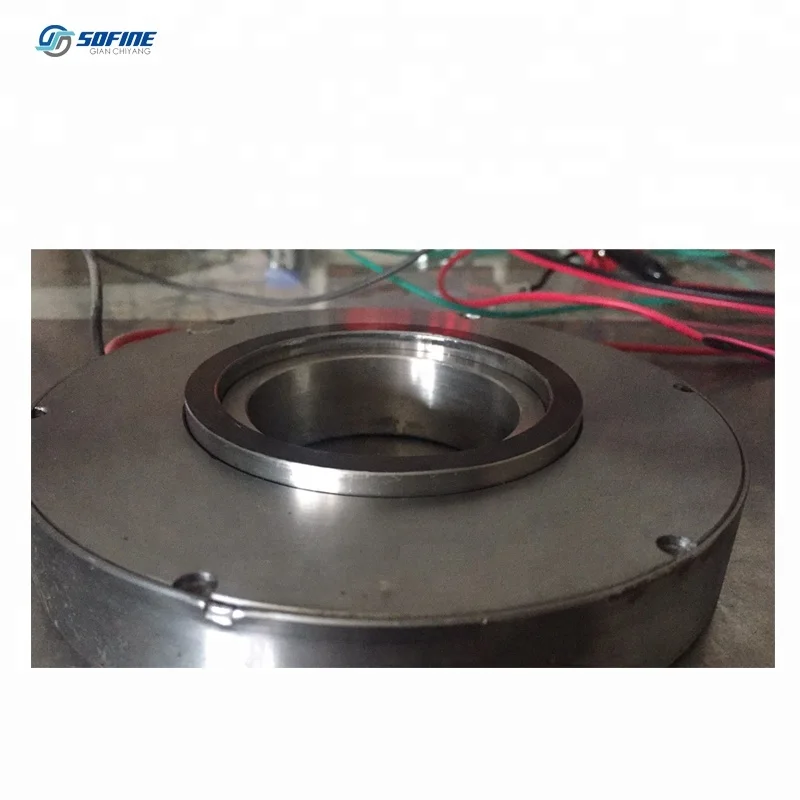

Dc 12V ,4A Large Force Long Stroke Electromagnet Push Electromagnets Lift 3.7kgs Stroke 4mm

12V DC Super Strong Electric Lifting Magnet Solenoid Electromagnet Lift Holding Electric Magnet

· Holding solenoid 12/24V DC

· Electric lifting magnet

· Powerful and compact

· Smooth and flat surface

· Low consumption and reliable

· Applications: Assembly line, sorting machine, mechanical arm, experimental facility,Automated production line,sorting machines,robots,laboratory equipment,medical,grinding,cutting,cutting and other automated processing production line delivery of material or products,delivery,simple control,effort saving,safe,reliable,and can be remotely operation,etc..

Product Specification

Energise to Hold Electromagnet

The Energise to Hold Electromagnet is a standard electromagnet concept - a solenoid (wound copper coil) within a high quality high permeability iron assembly for high clamping forces and low magnetic losses.

The iron cylinder of the energise to hold electromagnet is of sturdy design with a bright nickel finish passivated with body mounting. Armature plates (keeper plates) exist to suit each energise to hold electromagnet unit.

The energise to hold electromagnet has, depending on the size, three supply voltages:- 12V dc, 24V dc and 240V ac.

The energise to hold electromagnet has an ED rating of 100% and an IP rating of 54 (20 for the two-pole connector version). The energise to hold electromagnets have maximum possible pull force ratings from 113N up to 3500N (24.25lb to 771.6lb) depending on the size of unit (the actual pull achieved will depend on the application).

High-quality permeable iron for low remanence.

Note for Use
Adsorb surfaces should as for as possible level,and adsorption suction and not less electromagnet of face.Attraction is the solenoid pull the iron surface and the adsorbed (magnetic metal,Not less than 5mm thickness) after contact with electricity generated entirely suction.

Purpose
Electric Sucking Solenoid in the energized state can produce a strong adhesive force, it can be installed in the automation equipment is adsorbed on to shop or move the object role to play.
Distribution is widely used in automated production line,sorting machines,robots,laboratory equipment,medical,grinding,cutting,cutting and other automated processing production line delivery of material or products,delivery,simple control,effort saving,safe,reliable,and can be remotely operation.Routine use of working voltage for DC6V,DC12 and DC24V.

Why Choose Us

1. High Quality
2. Small Order
3. Quick Response
4. Certification: ISO9001, CE, ROHS
5.Factory Price
6.10 years of designing and producing experience
7.OEM/ODM is welcomed

Special Remind
•Because of different factory custom specifications of products,product size and shape are different,so product appearance depends on goods

•Because of different type and specification,market prices fluctuate frequently,so the actual price will be subject to the contract

Warm Tip
•Our company has many kinds of electric permanent magnetic chucks, different targets, please reference selection guidelines before selection.First determine the use of workpiece and use function,then choose different categories of products.Electric permanent magnetic chuck is suitable for all kinds of large quantities of assembly line work.

•More info. please contact John of the personnel of the service,ask about details,provide your demand, professional engineers will make plan for you.
