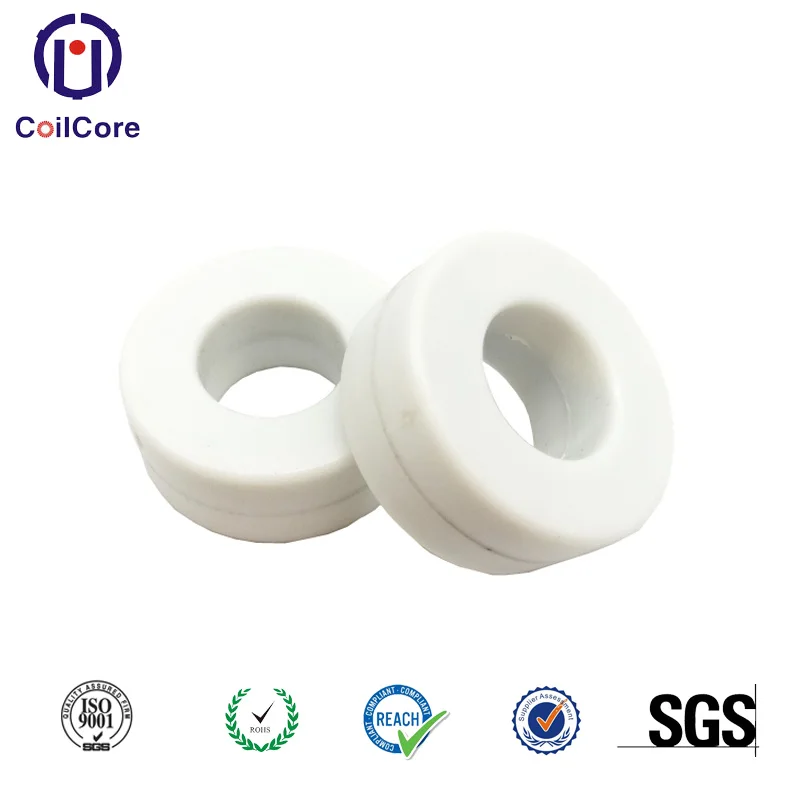

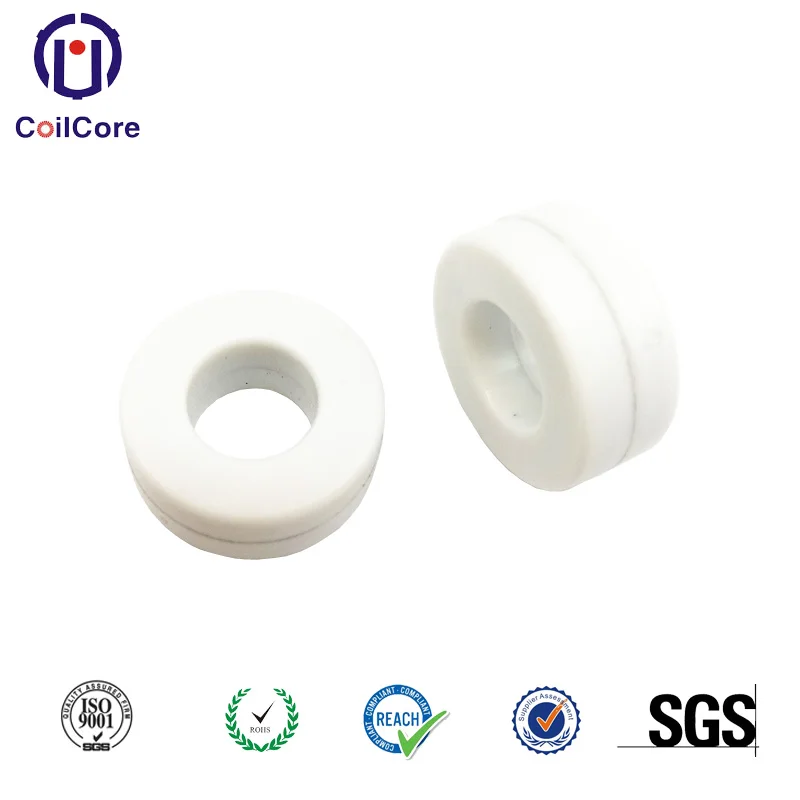

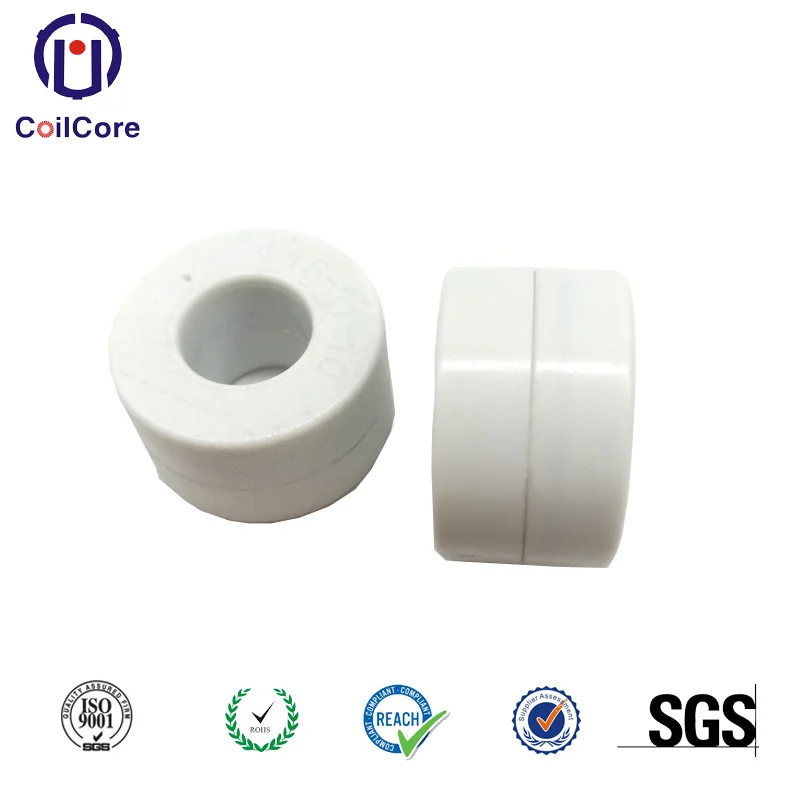

Free Sample Soft IronToroidal Magnetic Core for Choke

Product Overview

Description



On this page, you'll purchase Toroidal Magnetic Core with following parameters:

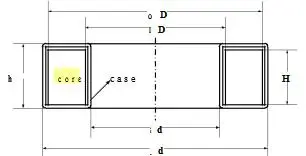

1. Finished Dimension
2. Mechianical Data
Core Dimension (mm)			Case Dimension (mm)			Core Parameter		Core Weight
OD	ID	H	od	id	h	Le (cm)	A (cm2)	(g)
16	10	8	17.8±0.2	8.5±0.2	10±0.2			6.5

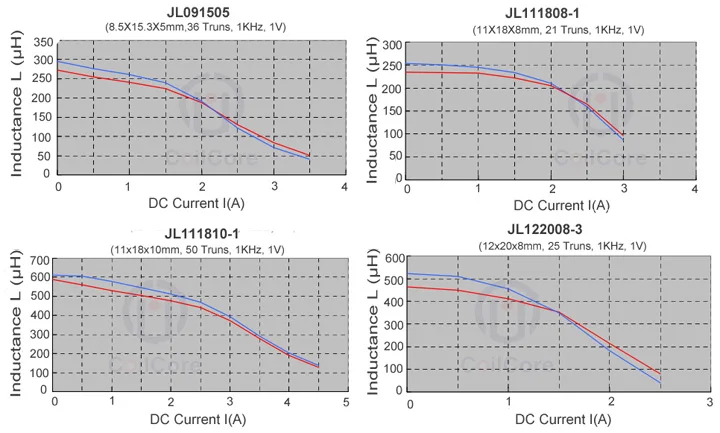

3. Magetical Test
Test Condition			Speificataion
TH2826A 1KHZ,, N=26TS			200μH<L<280μH @1khz, 1v, DC bias is 0A 160μH mIN @ 1khZ, 1V, DC bias is 2.0A
4. Componet List
No.	Name			Material			Authentication
1	Core			AMORPHOUS 1K101			RoHs
2	Case			PBT (white)			E202G30
3	Silicon Rubber			TH-706			RoHs



Key Properties:

· High saturation magnetic induction (Bs)

· Low core loss compared to other core materials

· Good frequency and temperature characteristics,usable to 3000KHz

· Good DC Bias characteristics

· Low leakage flux

· Size saving and lighter weight, compared to others



Typical Parameter
Density	7.3g/cm3
Curie Temperature	Tc =410°C
crystallization temperature	Tx =530°C
Saturation	Bs= 1.56T
Electrical Resistivity	ρ=130Ω-cm
Saturation Magnetostriction	λs=27x10-6



Main Application:

·

· Output choke coil for SMPS

· Choke coil for DCC/DC Converter

· Normal mode choke coil; Normal mode line filter

· Choke coil for adapter and battery charger

· PFC Choke Coil

· Car Audio Choke Coil

· Choke And Energy Storage

· Smooth Filter

· Inductors Of High Frequency Swithched Mode Power Supplies.



Flexible Design:

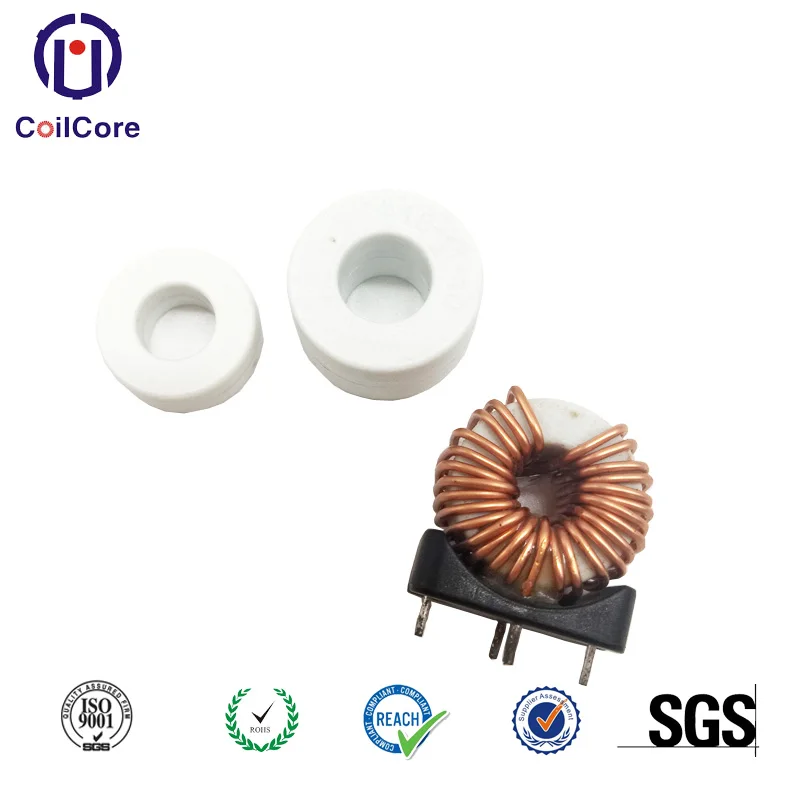

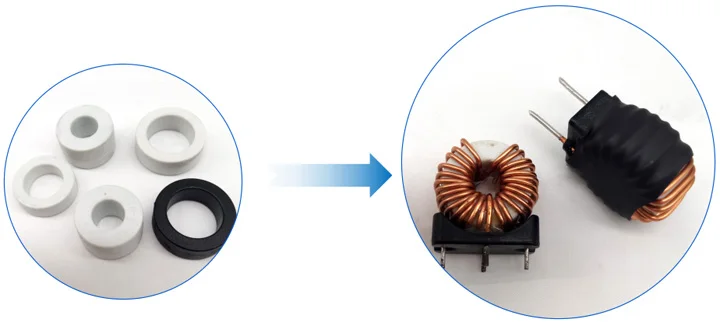

1. We supply from Core to Coil based on clients request.

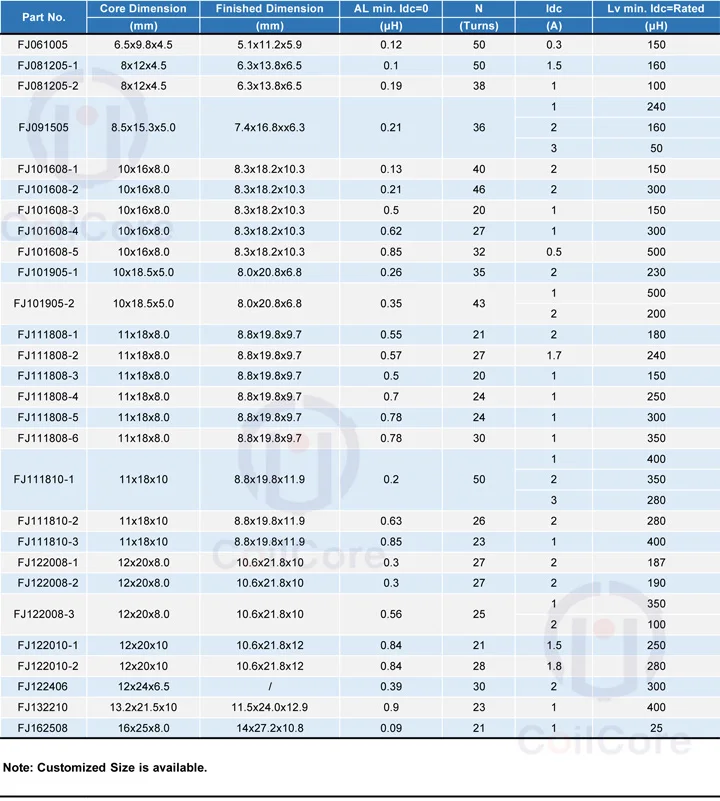

2. Customized Size available, standard specifications and electric parameters:

We can design & produce goods based on specifications & drawing, specification needed including:

1. Bare core size, Size finished

2. Parameter, AL @ DC bias =0A ;  AL@DC bias=1A/2A/3A....

3. What diameter of copper wire for coil.



Our Partner:

Top Supplier for Value Customers:



Manufacture:





Certificates:



Safe Package:
