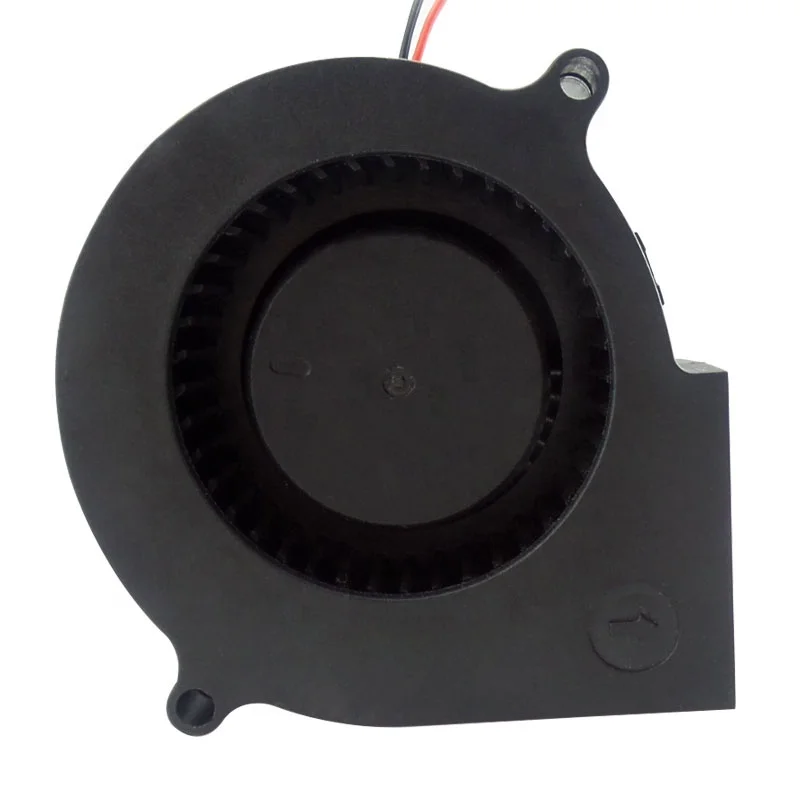

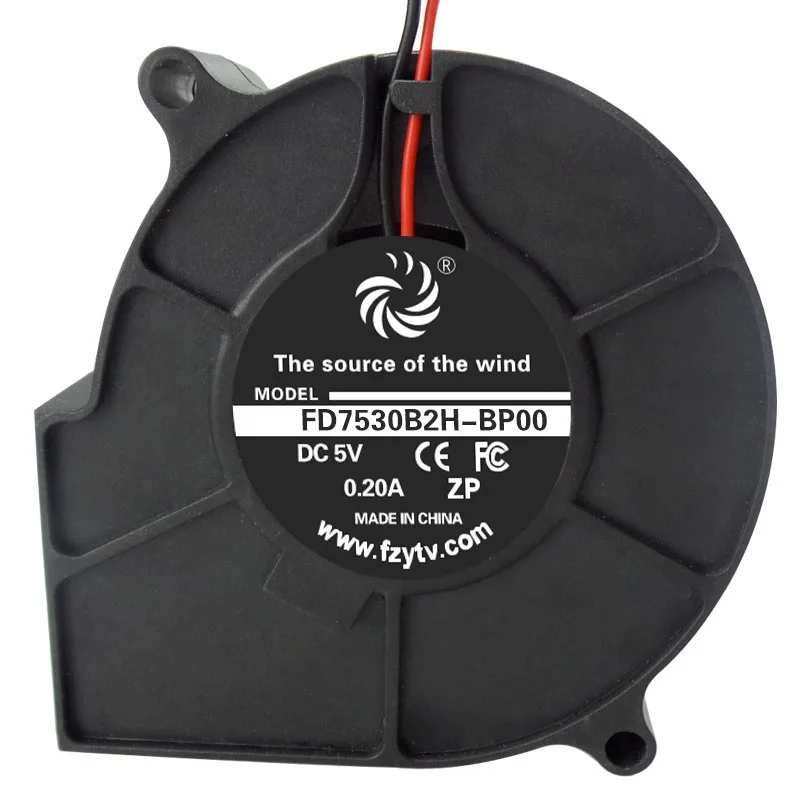

High speed centrifugal brushless 12v 24v snail 7530 75mm dc cooling 75X75X30mm air blower fan
- Category: Ventilation Fans >>>
- Supplier: Shenzhen Feng Zhi Yuan Electronics Co. Ltd.
Share on (60796070839):
Product Overview
Description
High speed centrifugal brushless 12v 24v snail 7530 75mm dc cooling 75X75X30mm air blower fan
Product Description
If you want to know more details,welcome to contact us!
| Model | Rated Voltage | Voltage Range | Current | Power | Speed | Air Flow | Pressure | Noise | ||
| VDC | VDC | Amp | Watts | RPM | m³/min | CFM | mm Aq | In H2O | dBA | |
| FD7530B4U-BP00 | 24 | 12~26.4 | 0.30 | 7.20 | 5000 | 0.60 | 21.2 | 26.74 | 1.05 | 53.3 |
| FD7530B4H-BP00 | 0.20 | 4.80 | 4000 | 0.46 | 16.1 | 20.12 | 0.79 | 46.3 | ||
| FD7530B4M-BP00 | 0.16 | 3.84 | 3500 | 0.39 | 13.7 | 14.67 | 0.58 | 41.2 | ||
| FD7530B4L-BP00 | 0.10 | 2.40 | 3000 | 0.33 | 11.6 | 9.93 | 0.39 | 36.4 | ||
| FD7530B2U-BP00 | 12 | 6~14 | 0.40 | 4.80 | 5000 | 0.60 | 21.2 | 26.74 | 1.05 | 53.3 |
| FD7530B2H-BP00 | 0.25 | 3.00 | 4000 | 0.46 | 16.1 | 20.12 | 0.79 | 46.3 | ||
| FD7530B2M-BP00 | 0.20 | 2.40 | 3500 | 0.39 | 13.7 | 14.67 | 0.58 | 41.2 | ||
| FD7530B2L-BP00 | 0.13 | 1.56 | 3000 | 0.33 | 11.6 | 9.93 | 0.39 | 36.4 | ||
About Us
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V 48V 60V and72V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
Bearing type | Lifetime |
Dual Ball Bearing | 50000 hours |
Sleeve Bearing | 20000 hours |
Hydraulic Sleeve Bearing | 30000 hours |
Q4: What effects the quoted price for the fan?
A4:
Specification | Example |
1 size of the fan | 4010 (40*40*10mm) |
2 Voltage | 5V\\12V\\24V |
3 current | 0.15A |
4 speed | 8000RPM |
5 air flow | 8.6CFM |
6 noise | 24dBA |
7 bearing type | ball\\sleeve\\Hydraulic sleeve |
8 two wire or three wire | 2 wire |
9 cable length | 100mm |
10 connector type | 2 pin,2.5mm pitch |
11 function | FG\\RD\\PWM\\Soft Start ...... |
12 quantity | 100\\1000\\5000\\10000 ...... |
Q5:Certificate?
A5:FCC,CE, ROSH,ISO9001,ISO14001 Approved.
Q6:What is the delivery time?
A6:Sample lead time:3-5 days
Mass production delivery lead time:2-3 weeks(Depend on the quantity)
Q7:Delivery ways ?
A7:FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
Q8:Payment terms ?
A8: By T/T or Paypal .
100% payment for sample orders .
30% as deposit and 70% balance before shipment .
Q9: What is the fan use for?
A9:
Office supplies | 3D printers |
Industry & Scientific | Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer. |
Home & Kitchen | Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine. |
Computer appliances | CPU cooler,Case. |
