Машина для гемодиализа из Гуанчжоу для очистки крови/диализатор, машина для переработки для больничного использования MSLDRM01

Guangzhou hemodialysis machine for blood cleaning/dialyzer reprocessing machine for hospital use MSLDRM01

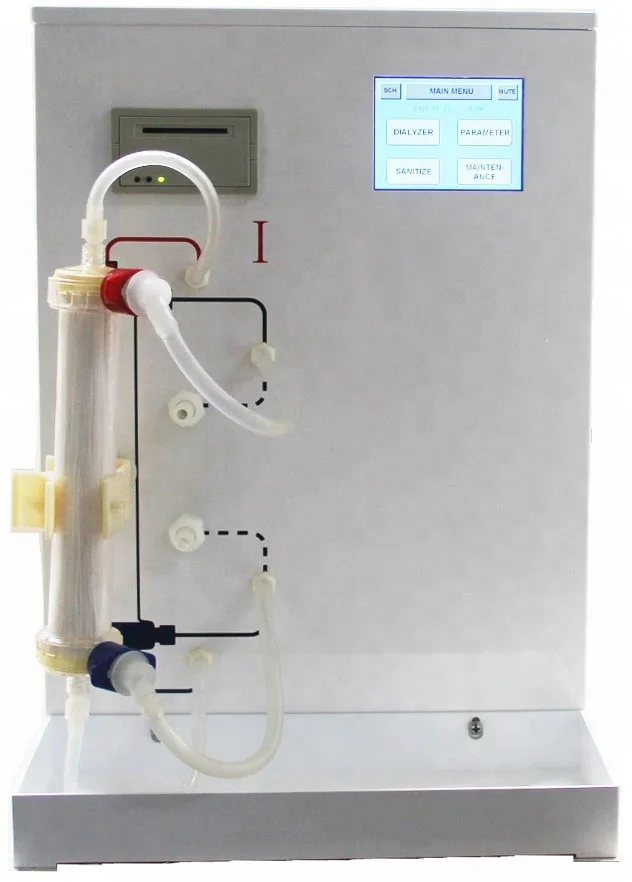

Dialyzer reprocessing machine is the main device for hospital to sterilize, clean, test and affuse reusable dialyzer used in hemodialysis treatment. And can just been used in hospital only.

Models:

1. MSLDRM01-A: Can only clean one dialyzer automatically.

2. MSLDRM01-B: Can clean two dialyzers separately at the same time within around 12 minutes. (Only our company is mass producing reprocessing machine in China.)

Procedure of reusing processing:

Rinse: Using R.O water to rinse dialyzer

Clean: Using disinfectant to clean dialyzer

Test: Testing blood chamber capacity of dialyzer and whether the membrane is broken or not

Disinfect: Using disinfectant to affuse dialyzer

Technical Parameter

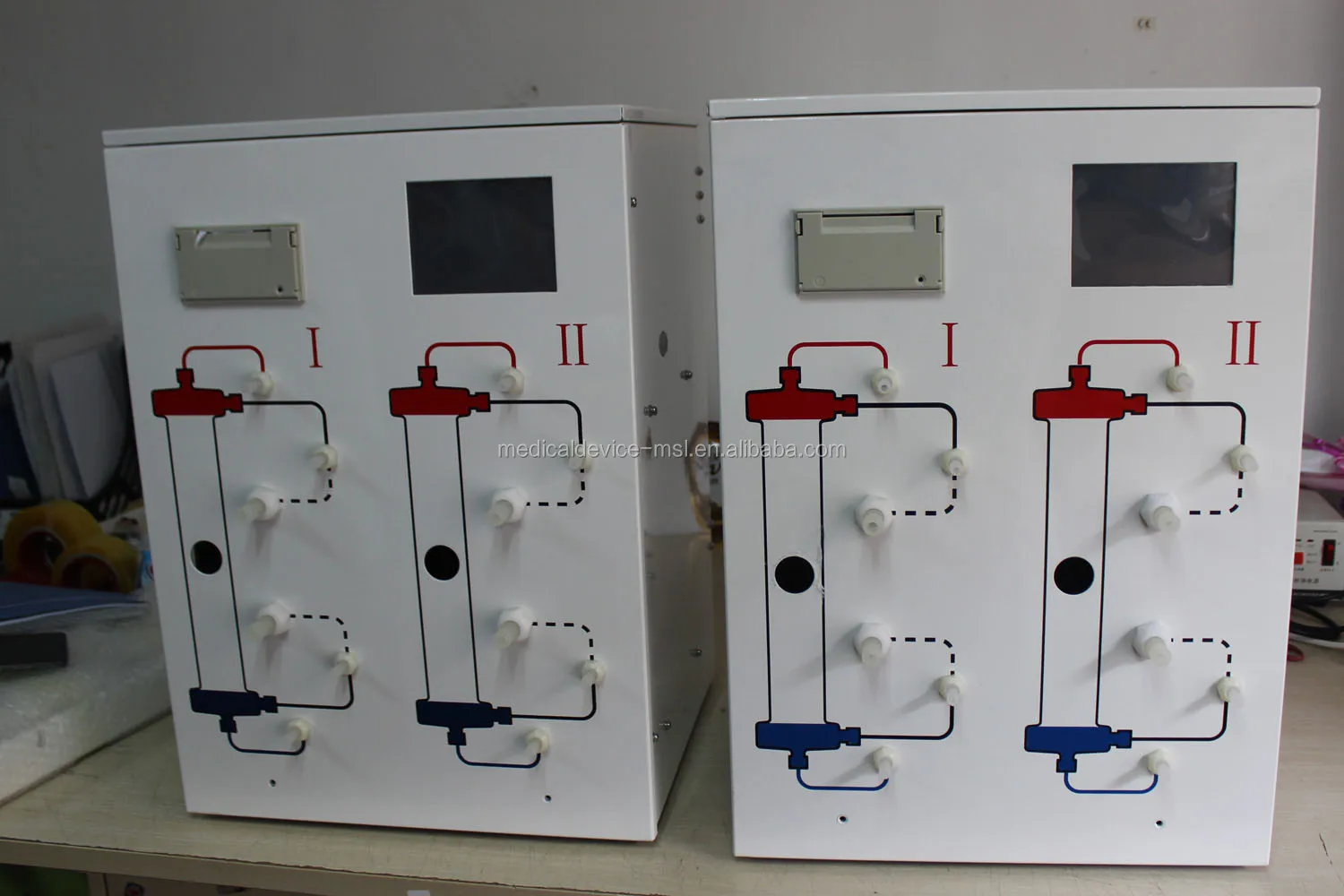

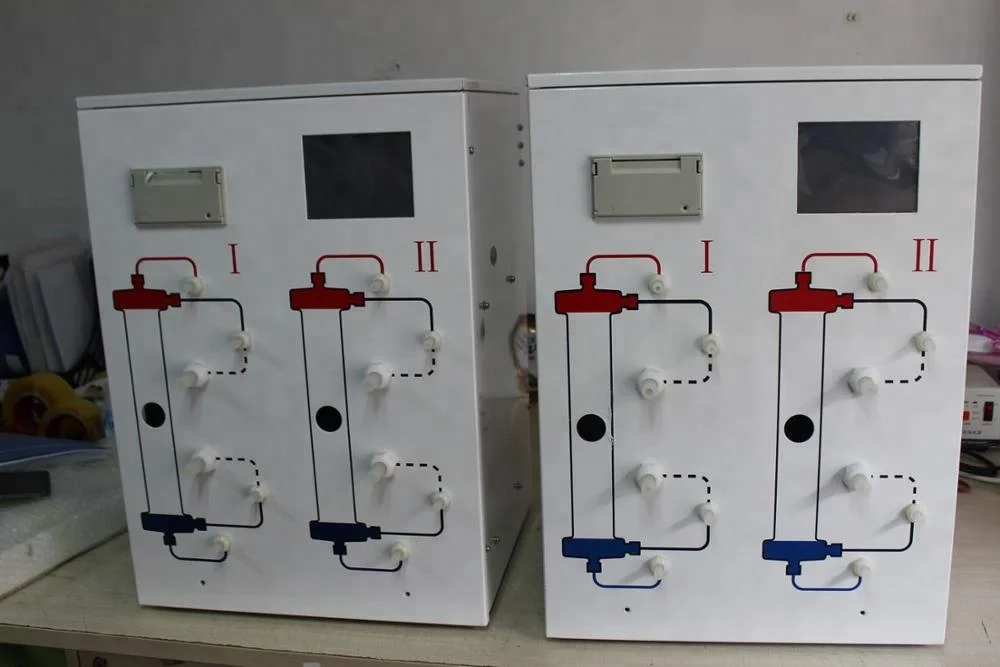

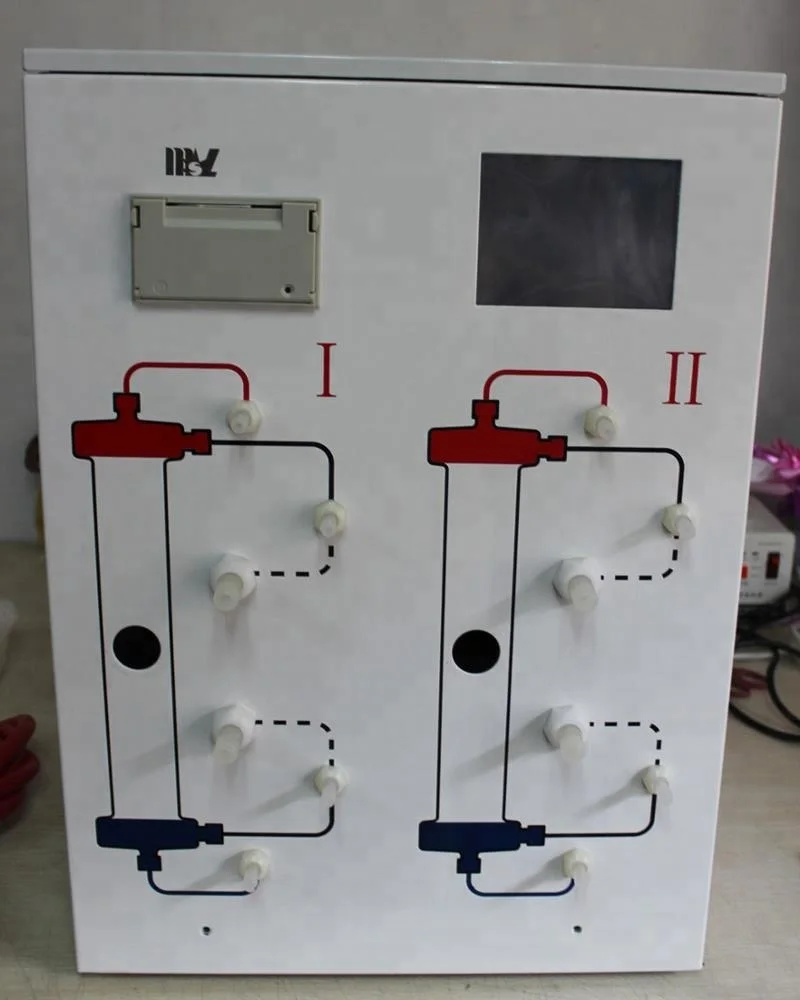

Model: MSLDRM01-B (double work stations)
Size: 370mmx430mmx600mm

Weight: 35KG

Power supply: AC220V±10%, 50Hz-60Hz, 2A

In put power: 150W

Water input pressure: 0.15~0.35Mpa, (20P.S.I~50P.S.I)
Water input temperature: 10℃~40℃

Minimum water inlet flow: 1.5L/min

Reprocessing time: about 12 minutes per cycle

Work environment temperature 5℃~40℃, at relative humidity

Storage temperature should be between 5℃~40℃ at relative humidity less than80%;

Feature:
Data management: PC work station can create, save, and search the patients’ database, operation, standard of nurse easily. (Optional)

High Efficient: When reprocessing single or double dialyzers simultaneously

Cost-saving: Compatible with many brand of disinfectant

Accuracy safety: Automatic disinfectant dilution

Anti-cross infection control: Extra blood port header to prevent infection among the patients

Record function: print reprocessing data, such as name, sex, case number, date, time...

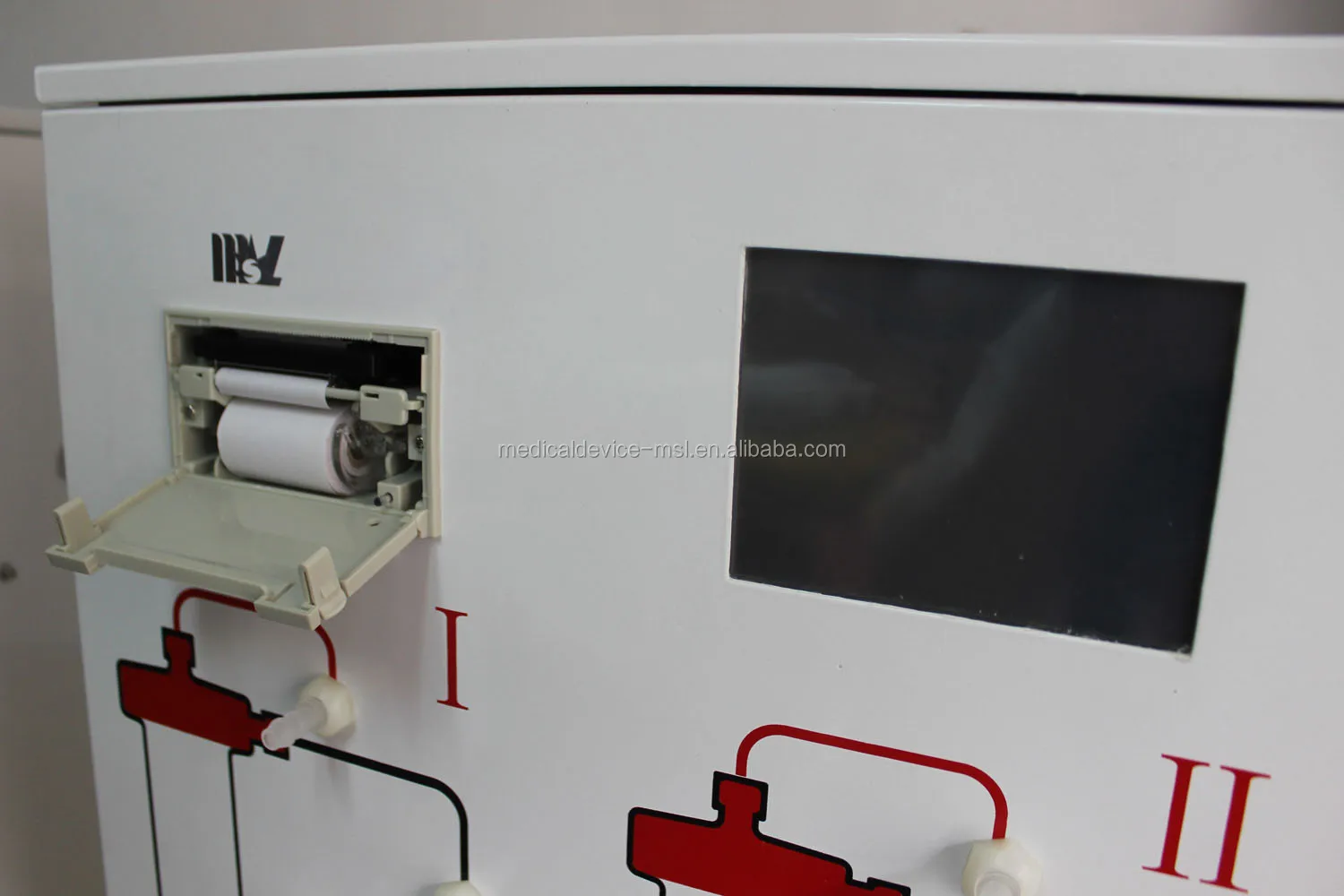

Double printing: built-in printer or optional external printer (Adhesive sticker)

The advantage of dialyzer reprocessing machine:

1. Clean more deeply:Bcz of the rinsing way such as reverse ultrafiltration, it can recover the blood volume efficiently and can clean more deeply comparing with other brands.

2. Test: The accurate and efficient test of TCV and blood leak, reflect directly the situation of reprocessing, thus assure the safety of the whole course.

3. User friendly: Rinse, cleaning, testing and disinfectant affusion could be done either respectively or together, suiting different requirements.

4. Safety:     1. Functions like reprocessing system setting, run the evacuation

before affusion, in order to prevent the re-dilution of disinfectant.

2.The special design of concentration detection ensures the accuracy of disinfectant and safety of disinfection.

5. Easy operation: Human oriented design of touch control LCD screen makes the operation easily.

6. One button to start: Only pressing one button and the whole reprocessing would work automatically.

7. Data storage: The stored information of model capacity ultra filtration coefficient etc. Makes operation accurate.

8. Alarm system:Function of troubleshooting tips and shooting alarm refect the situation timely to the operator.

9. Saving water and disinfectant:

1. The adoption of 41 patents, it improved the quality while decreased water use

(Less than 8L once for each dialyzer)

2. Save disinfectant and to clean one dialyzer only need around 30 ml disinfectant.

10. The MSLDRM01-B can clean two dialyzers simultaneously within 12 minutes.
