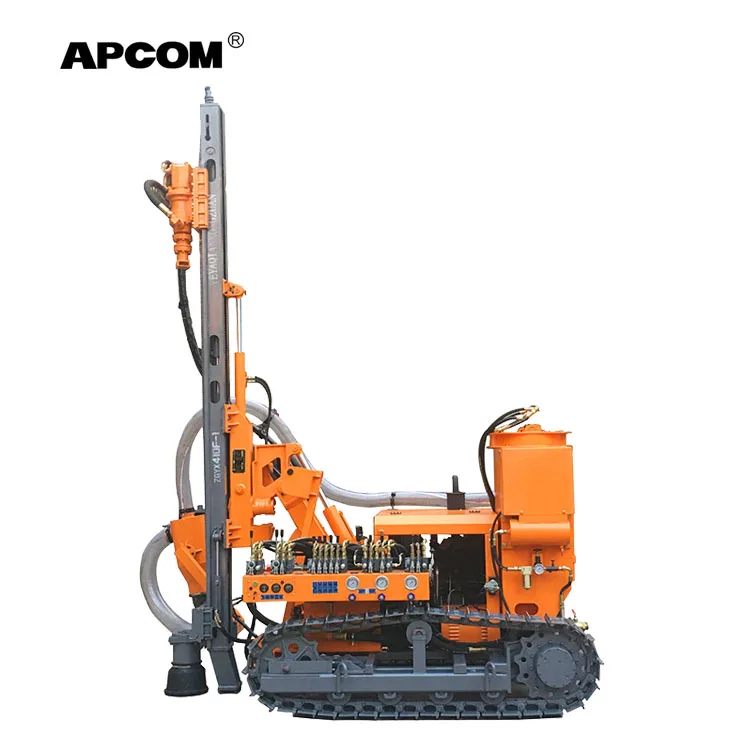

Blasted drilling rig electric drive drilling rig machine Low pneumatic APCOM ZGYX 420D ZEGA Kaishan surface rock hole drill rig
- Category: Energy & Mineral Equipment >>>
- Supplier: Shanghai APCOM Compressor Machine Co. Ltd.
Share on (60796140785):
Product Overview
Description
ZAYX-420D Rig Parm
Main technical specifications | ZAYX-410D | ZAYX-420D |
Working Pressure | 0.7-1.5 Mpa | 0.7-2.5 Mpa |
Capacity F.A.D | 7-13m3/min | 8-20m3/min |
Hole Range | 90-110 mm | 90-140 mm |
DTH Hammer | 3.5" | 3.5" / 4" |
Max. Hole Depth | 20 m | 30 m |
Drill Pipe Length | 2 m | 3 m |
Drill Pipe Diameter | 60 mm | 60 mm / 80 mm |
Rotation Speed | 120 rpm | 80 rpm |
Rotation Torque | 970 N.m | 2050 N.m |
Moter Power Pack | 22 kw | 30 kw (Option 55 kw) |
Diesel Engine | NO | NO |
Model | Moter power | Drilling method | Hole Diameter |
ZAYX-410B-D | 22kw | Down-the-hole | 90-110mm |
ZAYX-420D-1 | 30kw | Down-the-hole | 90-140mm |
ZAYX-420D-2 | 55kw | Down-the-hole | 90-140mm |
Contact Us
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 189 6700 9313
WhatsApp: +86 181 6701 6615
Cummins Engine Drill Rig
Cummins Engine Blasting Drilling Rig for Mine | ||||||||||||||||
Model Click on | Borehole Diameter | Drill depth | DTH Hammer | Pipe | Cummins Power | Cummins Model | Air Compresor | Automatic Rod Change | ||||||||
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine | ||||||||||||||||
Model Click on | Hole | Depth | Drill pipe | Compresor | Cummins Power | Impactor parameter | Note | |||||||||
Drill rig Intro
Surface Drilling Rig
APCOM brand Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 80-203 mm. A total of 56 products.
1 ) Click on ==> Automated hydraulic drilling rig ( Drilling method: Tophammer ), 7 products found:
ZAYX-T422 / ZAYX-T423 / ZAYX-T424 / ZAYX-T425; ZEGA-T630 / ZEGA-T635 / ZEGA-T640
2 ) Click on ==> Anchor surface drilling rig ( Drilling method: Down-the-hole ),3 products found:
ZGM 1240A / ZAYX-420S / ZAYX-425S
3 ) Click on ==> Water well surface drilling rig ( Drilling method: Down-the-hole ), 8 products found:
SJ-180 / SJ-200 / SJ-250 / SJ-300 / SJ-400 / SJ-450 / SJ-600 / SJ-700
4 ) Pneumatic drilling rig ( Drilling method: Down-the-hole ) , 28 products found:
Click on ==> 16 products separate drilling rig
Click on ==> 4 products integrated drilling rig no cabin
Click on ==> 8 rigs are fully automatic pneumatic DTH rigs
Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click on UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33
Integrated Rig Parm
ZAYX-421T & ZAYX-452
High Current Price Ratio
High Efficiency
High Quality
High Quality
An integrated drilling rig, which means that the air compressor has been installed in the rig and is driven by the same diesel engine.
Integrated DTH Surface Drill Rig With Air Compressor | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-421T | YUCAI 140KW | 10m3/min 15bar | 80-100mm | 25m | No | |||||
ZAYX-452+ | YUCAI 191 KW | 15m3/min 17bar | 108-127mm | 25m | No | |||||
ZAYX-423 | YUCAI 162KW | 11m3/min 15bar | 90-115mm | 25m | Yes | |||||
ZAYX-453 | YUCAI 230KW | 16m3/min 17bar | 90-138mm | 25m | Yes | |||||
ZAYX-454 | Commins 266KW | 20m3/min 18bar | 110-152mm | 28m | Yes | |||||
ZAYX-455 | Commins 287KW | 20m3/min 24bar | 138-165mm | 35m | Yes | |||||
ZAGA-470 | YUCAI 294KW | 20m3/min 24bar | 138-178mm | 40m | Yes | |||||
Top Hammer Drilling Rig | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-422T | Commins 93KW | 3.4 m3/min 7bar | 42- 89mm | 15 m | yes | |||||
ZAYX-423T | Commins 119KW | 4.7 m3/min 9bar | 64-102mm | 17 m | yes | |||||
ZAYX-424T | Commins 179KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
ZAYX-425T | Caterpiller 168KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
