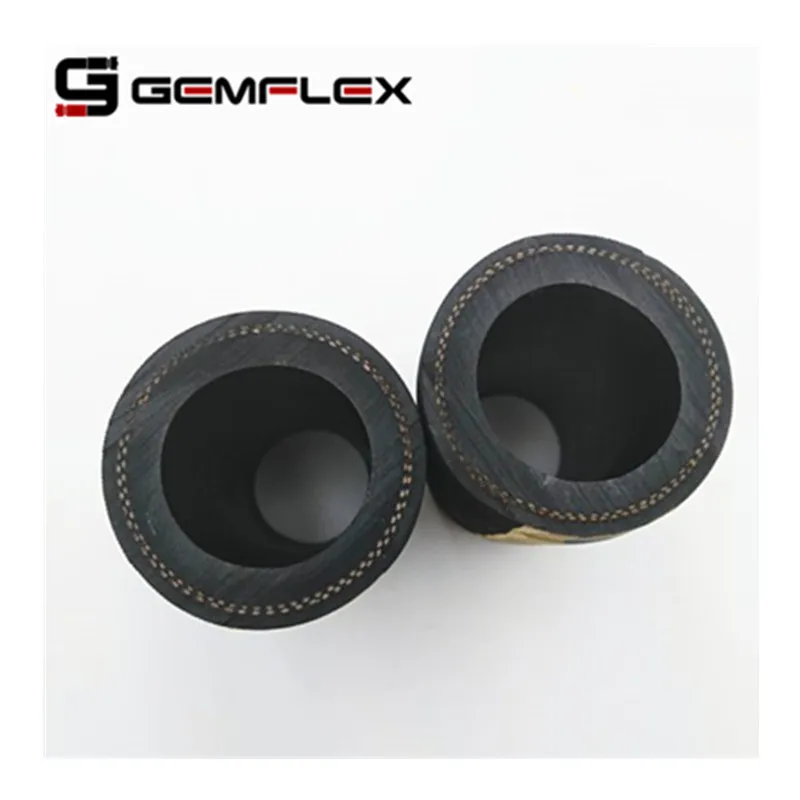

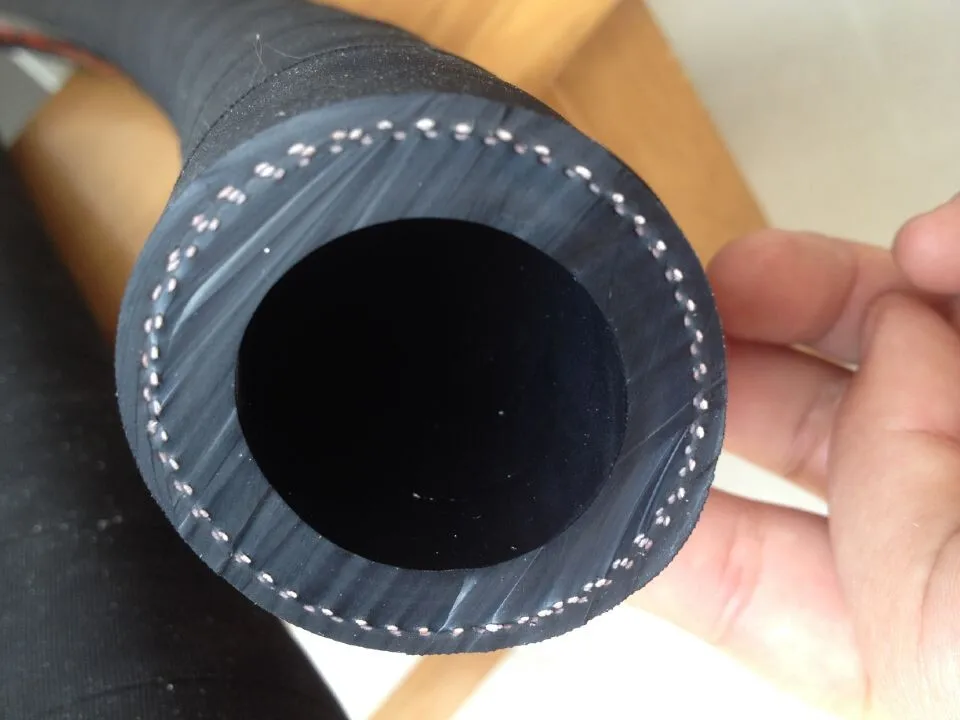

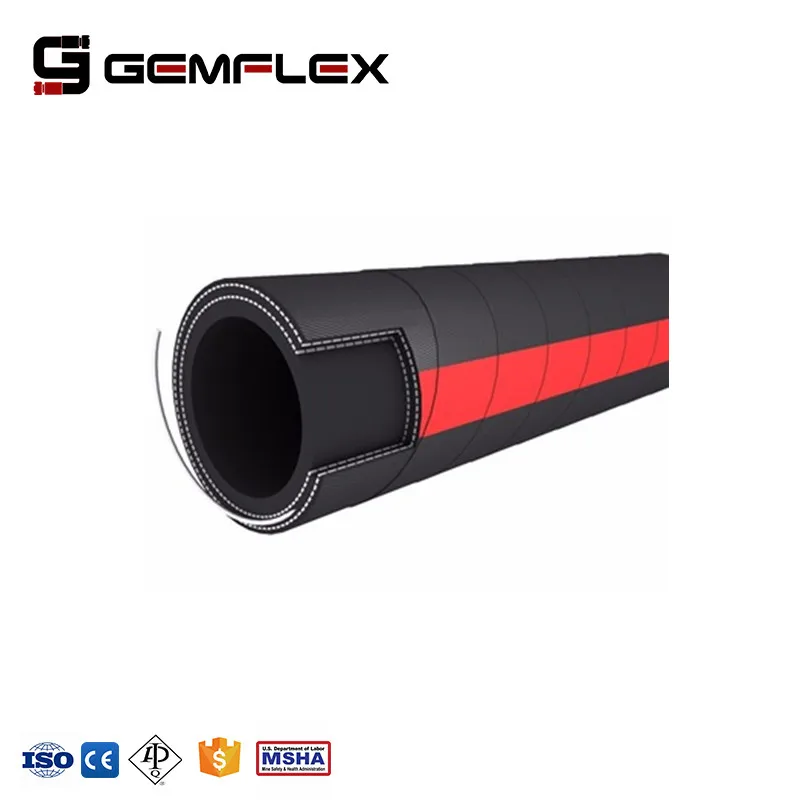

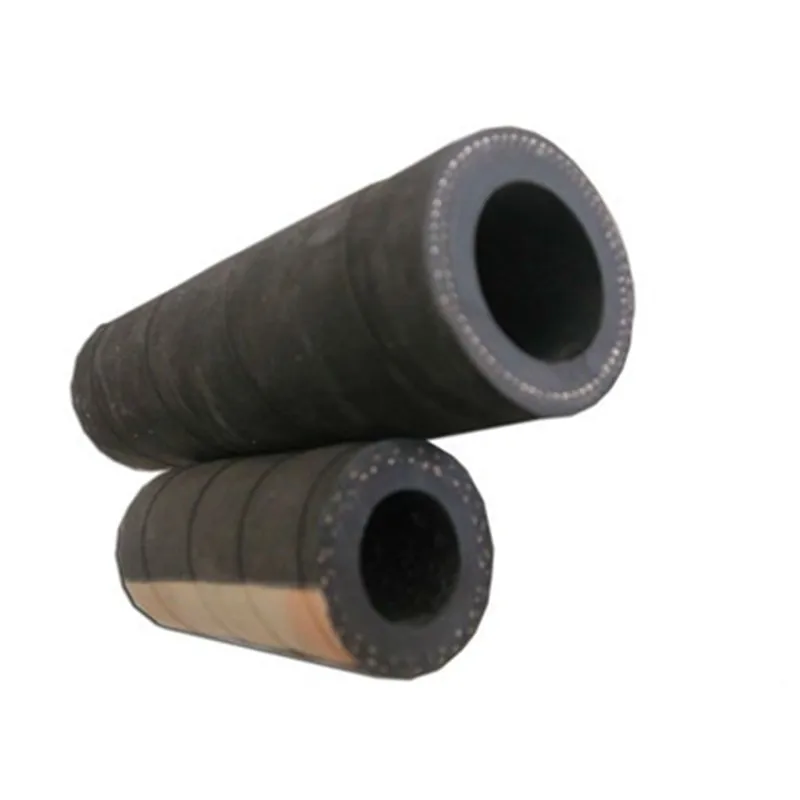

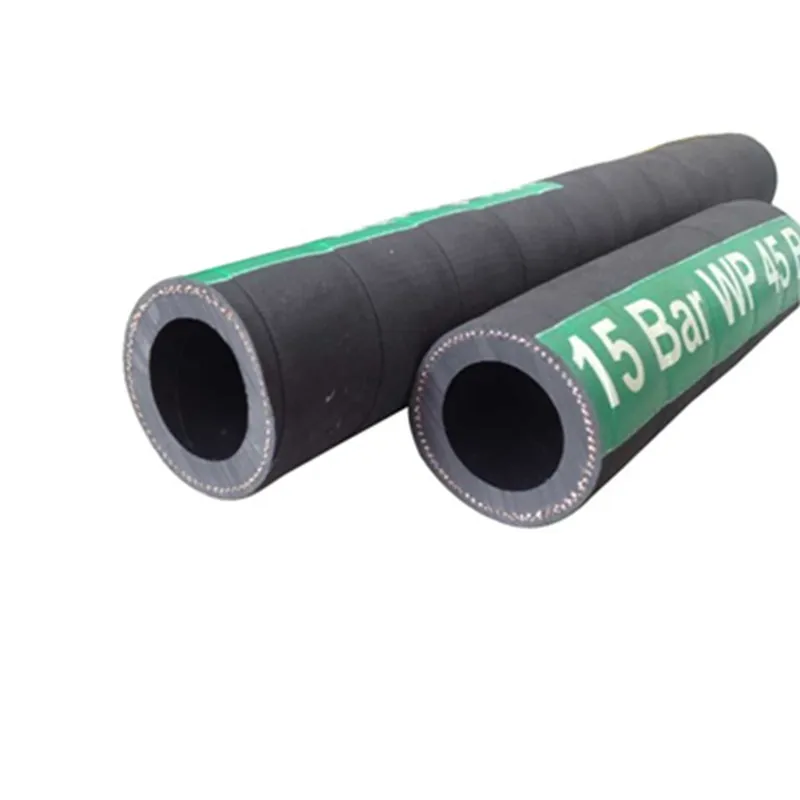

Tube: oil resistant synthetic rubber. Reinforcement: high strength synthetic cord plus helix wire. Cover: abrasion,ozone and weather resisitant synthetic rubber. Tmperature range: -40°C to 80°C Application: It is used for the suction & discharge of benzine,kerosene,diesel oil,heavy oil,engine oil and other mineral oil.
Norminal Bore
Outer Diameter
Length (m/roll)
Minimum bend radius(mm)
Working Pressure
Burst Pressure
DN
Inch
Dimensions in millimeters
Bar
Bar
25
1"
37±0.8
20
75
10
30
32
11/4"
44±1.2
20
95
10
30
38
11/2"
51±1.2
20
120
10
30
51
2"
65±1.2
20
150
10
30
64
21/2"
79±1.5
20
250
10
30
76
3"
91±1.5
20
300
10
30
102
4"
121±2.0
20
500
10
30
125
5"
146±2.0
10
750
10
30
152
6"
175±2.0
10
960
10
30
200
8"
232±2.0
10
1200
10
30
254
10"
287±2.0
10
1500
10
30
Advantages
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). 25 years manufacturing experience, strong and experienced export team

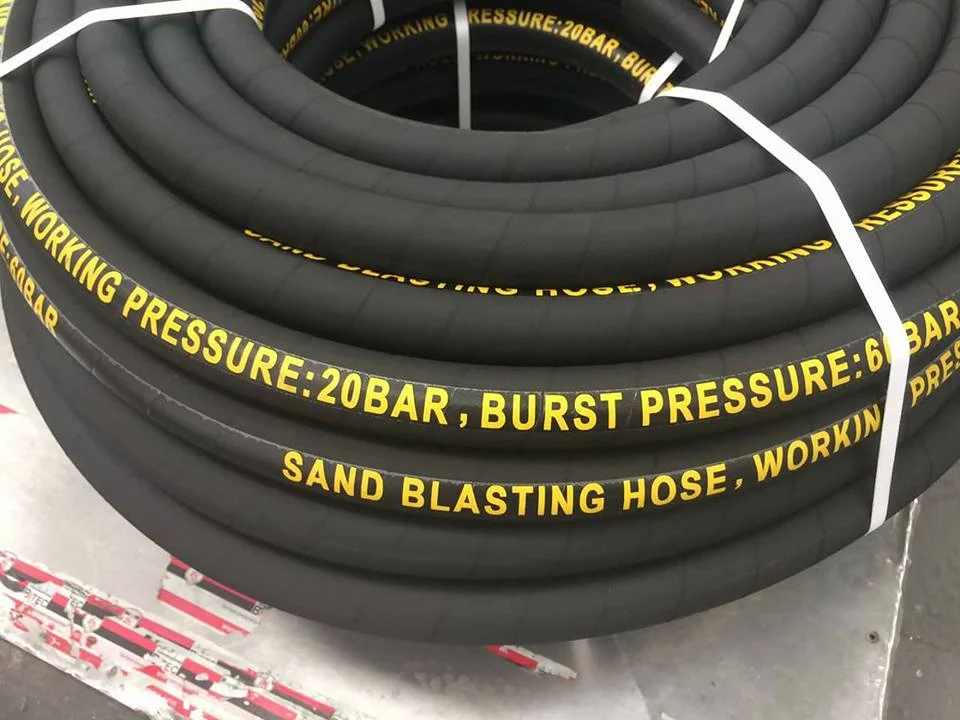

Production display
