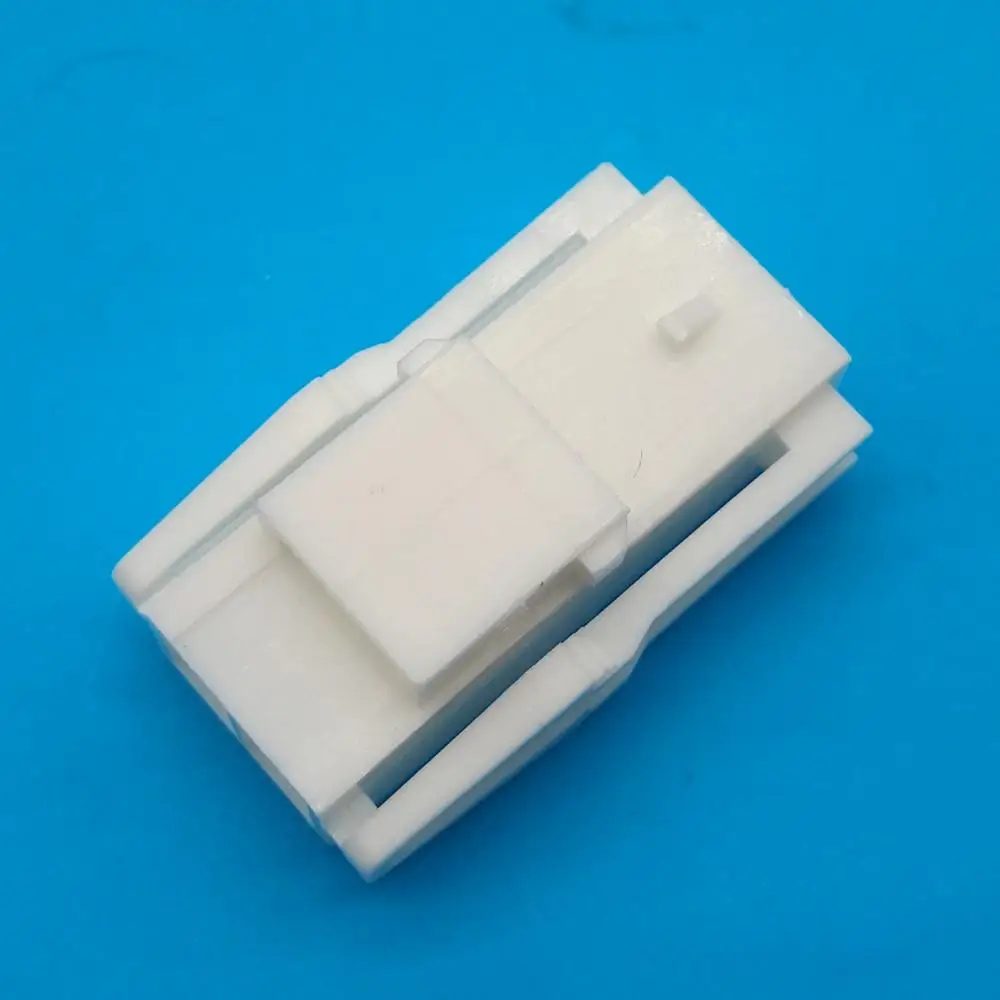

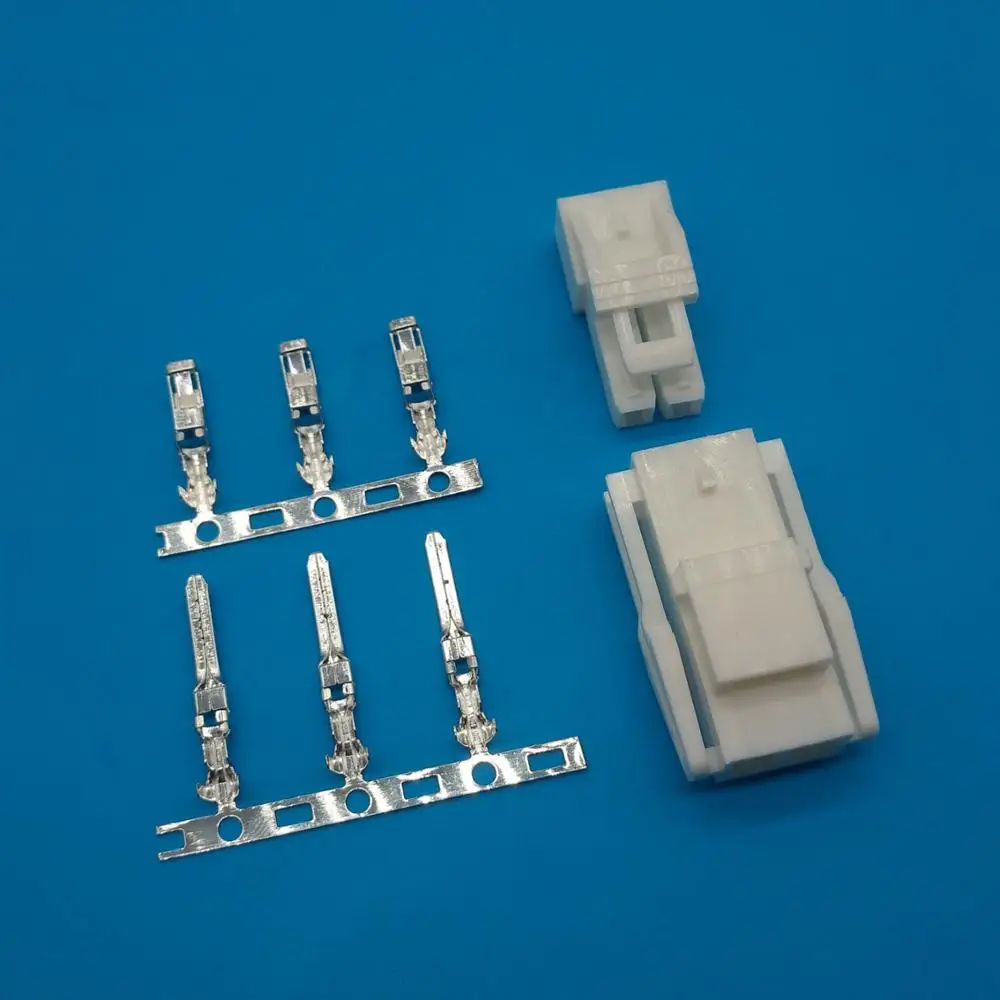

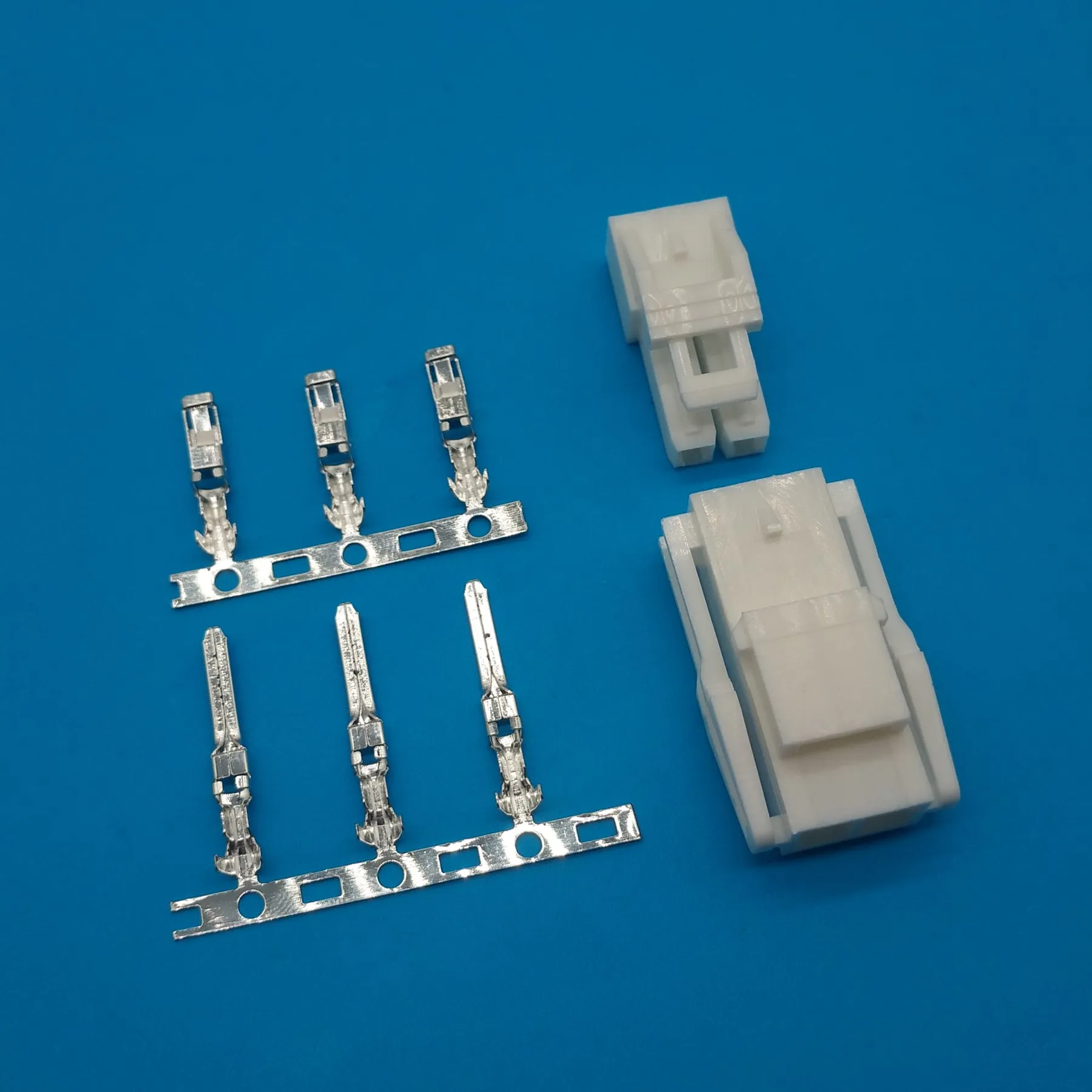

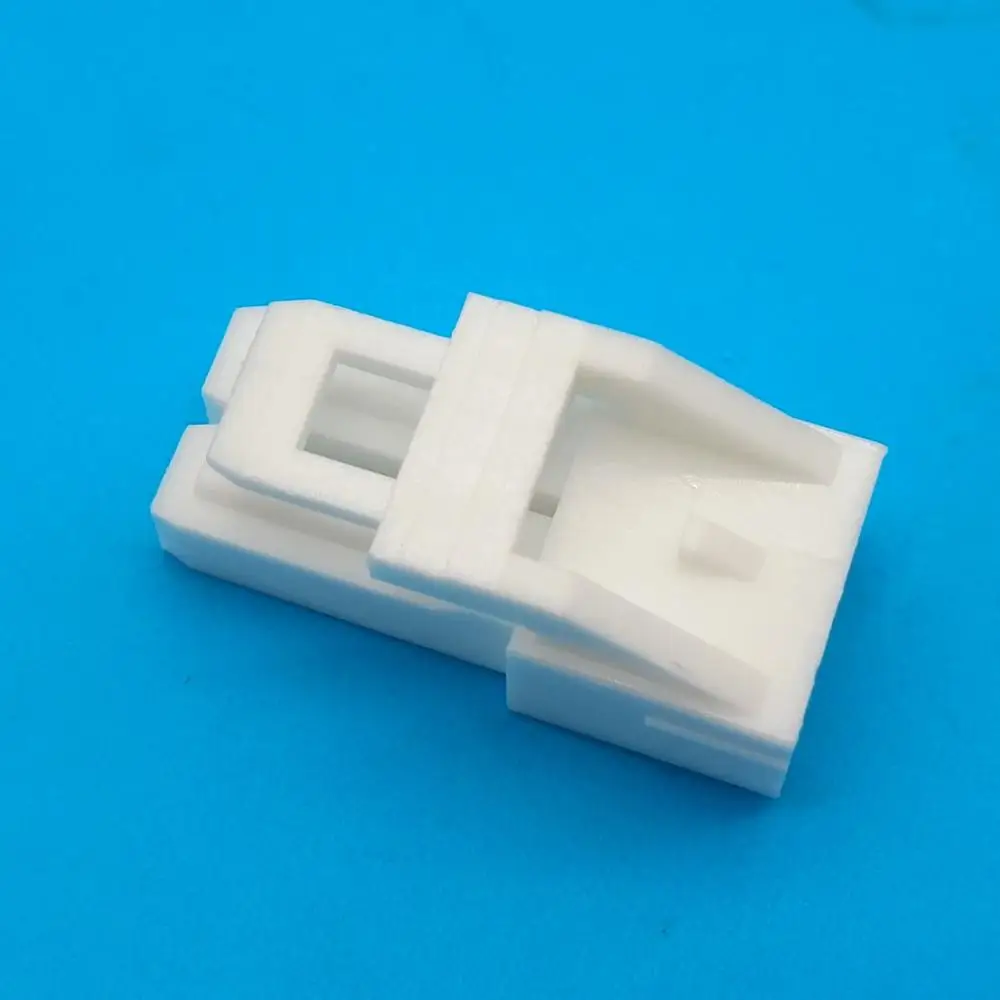

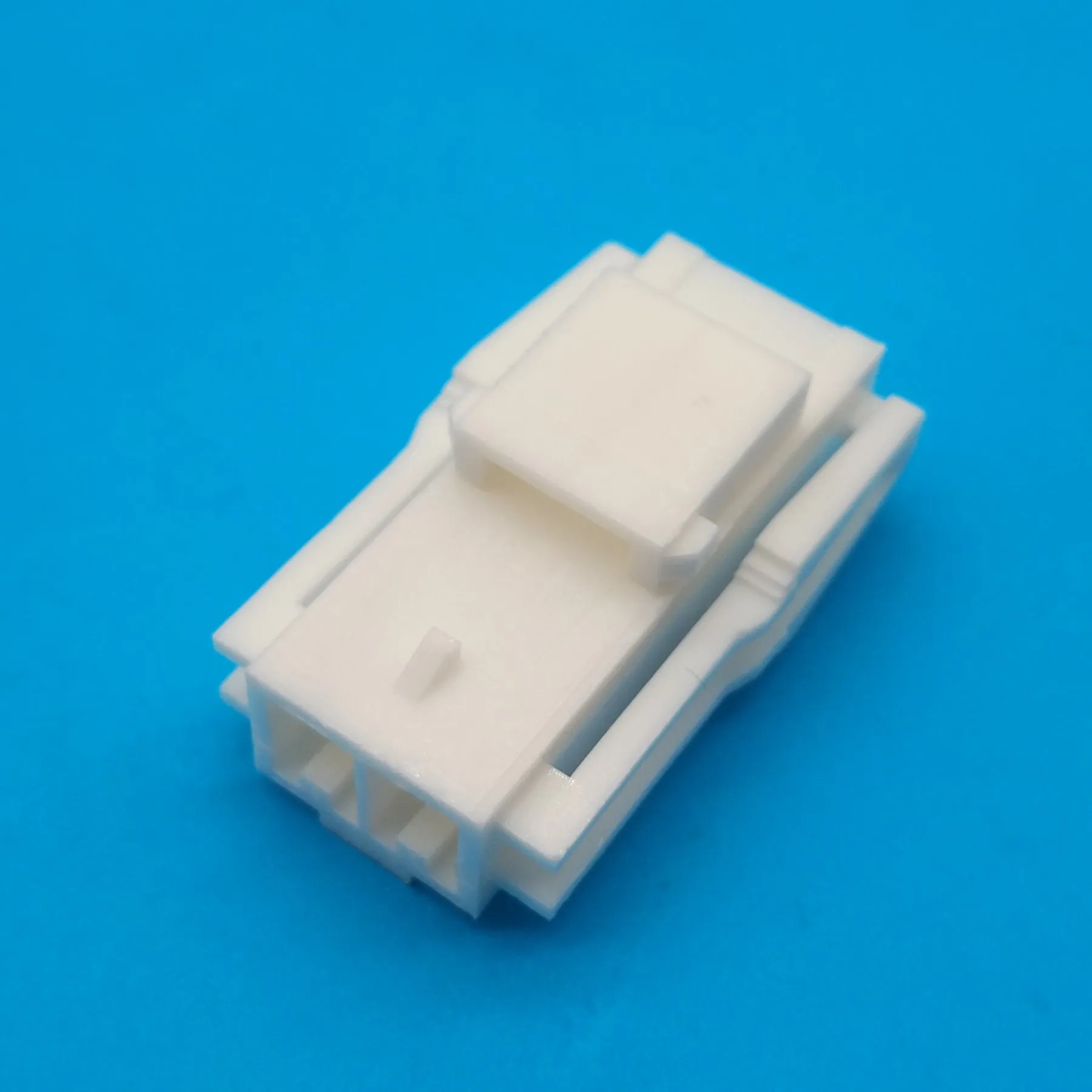

jst YL 4.5mm pitch male female wire to wire connector
- Category: >>>
- Supplier: Shenzhen Jun An De Connector Co. Ltd.
Share on (60796171179):
Product Overview
Description
Product Description
Series name:YL
Authentication: ROHS REACH ISO9001 UL
Application:wire to wire

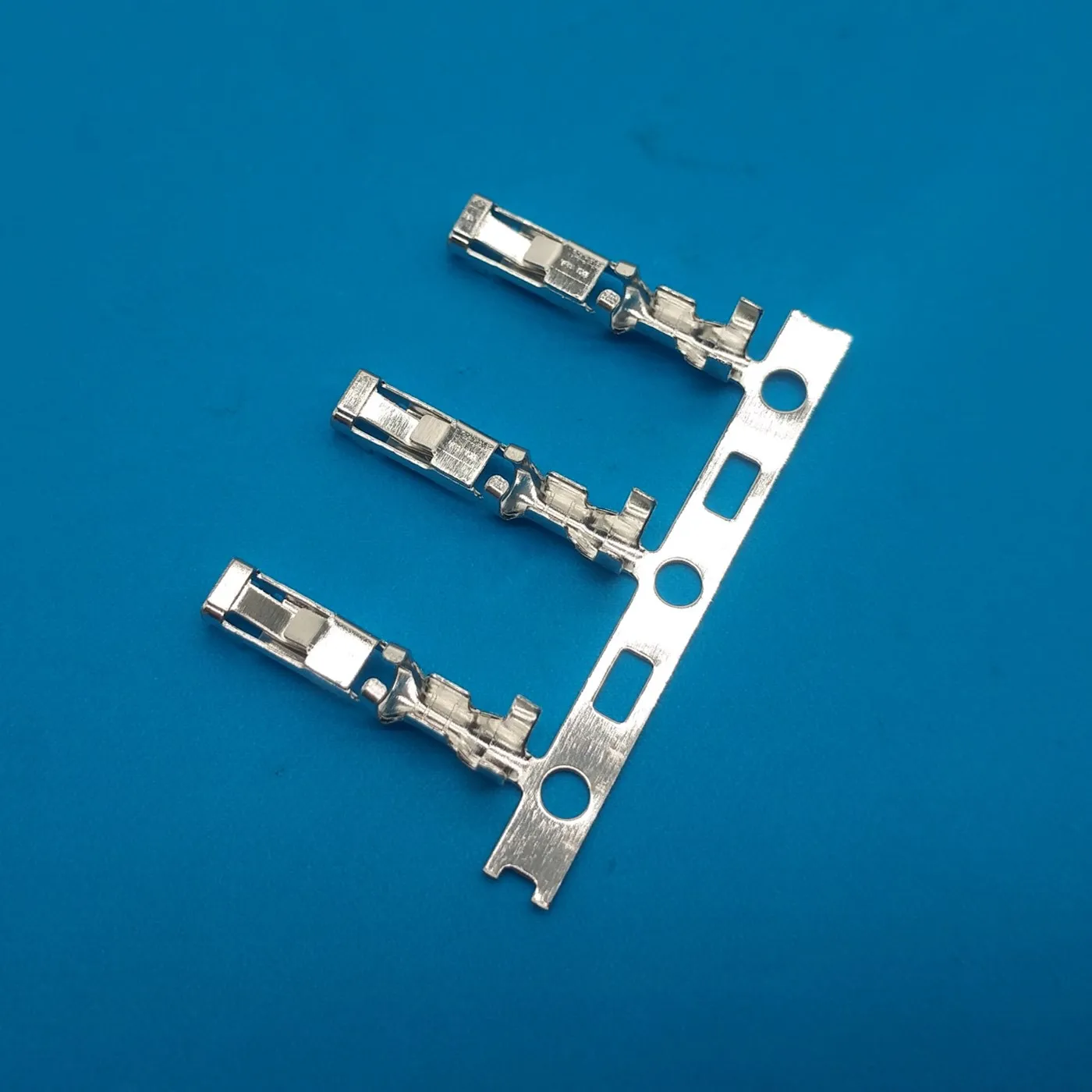

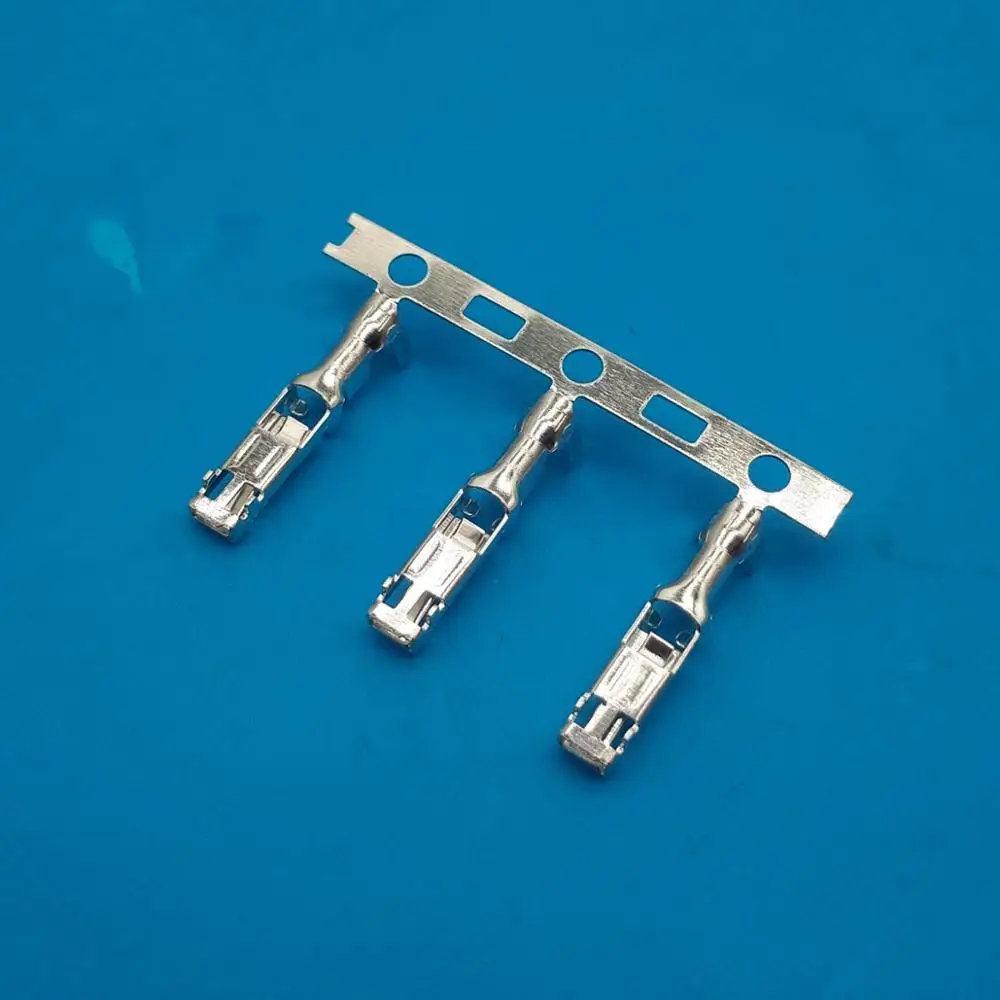

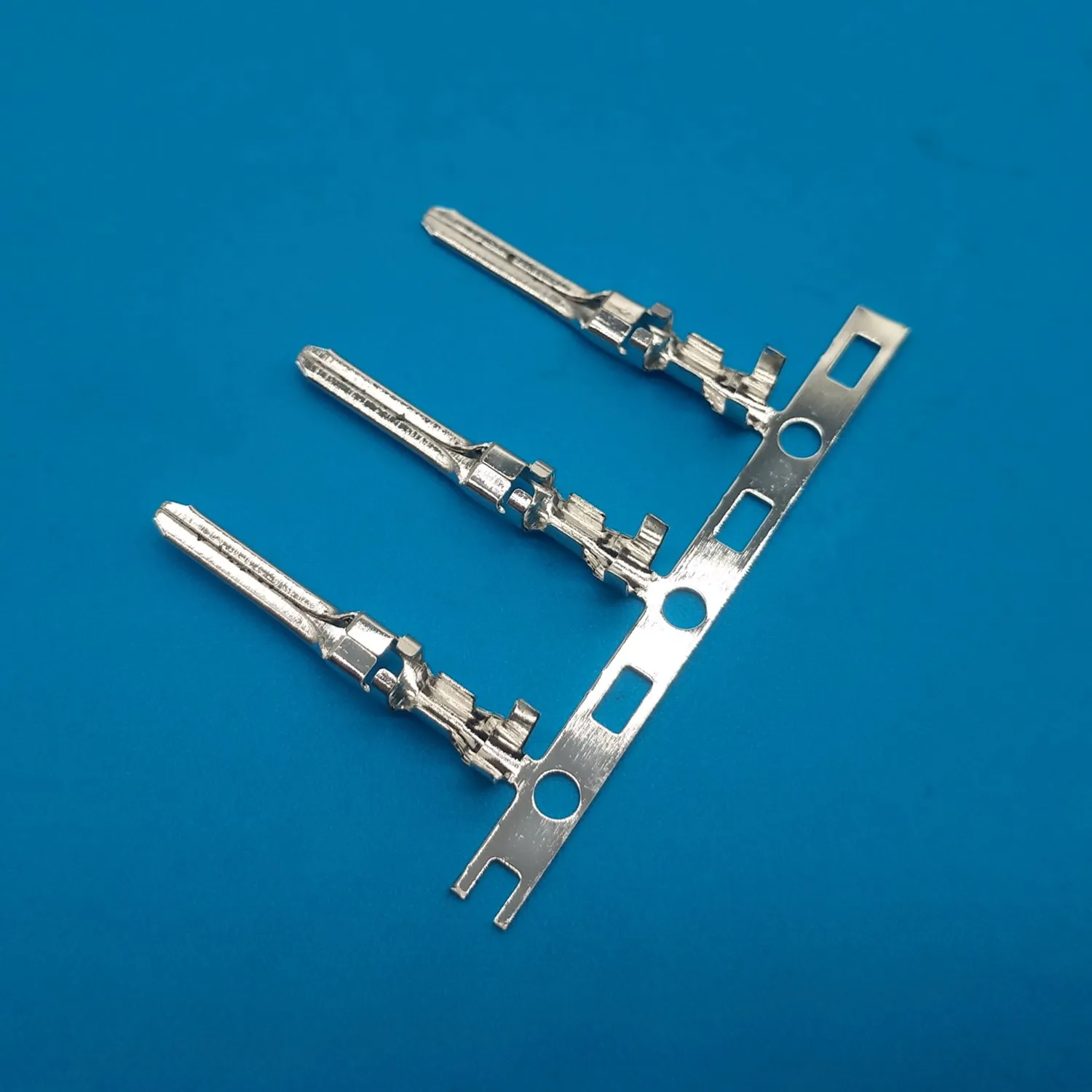

Housing:YL-nP Terminal :YL-T
Pitch:4.5mm Material:Phosphor Bronze
Poles:1pin 2pin 3pin 2*2pin Surface Treatment:Tin Plating
2*3pin 2*4pin 3*3pin
3*4pin 2*6pin 3*5pin 2*8pin
Material:Nylon UL94V-0 Packaging Type:Reel
Color:white Wire Size AWG:18 20 22 24 26
Packaging Type:bag male Number:3500piece/reel
male Number:500piece/bag
Electrical Parameters
Voltage rating:300V
Current rating:10A
Withstand voltage:1500V AC/minute
Working Temperature:-25℃~+85℃
Insulation resistance:1000mΩ
Contact resistance:15mΩ

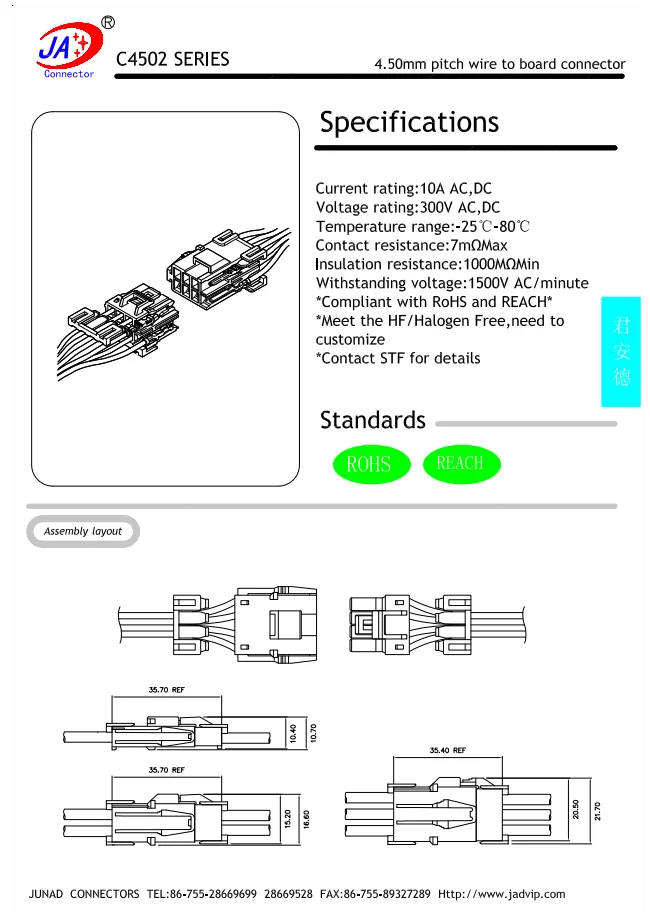

| Product drawings |
Our advantage
Related Products
Company Information
Packaging & Shipping
FAQ
Q: What is your MOQ?
A: There is no MOQ for most of the products. Small orders also will be highly welcome.
Q: What’s the sample time and lead time for mass production?
A: Normally, sampling time is about 2-3 days upon receipt of request . Lead time for mass production is 7day after payment
Q: Is a sample available?
A: Yes, we could provide you free sample as your requirement
