High quality Cold rolled low carbon DC06 steel plate or coil for deep drawing
Product Name
High quality Cold rolled low carbon DC06 steel plate or coil for deep drawing
Product Type
Cold rolled steel plate
Grade
DC06
Standard
EN 10130
Thickness
0.3-3.5mm
Width
700-1830mm
Length
1000-6000mm
Package
Export standard package, it for all kinds of transport, or as required
Application
Constructure

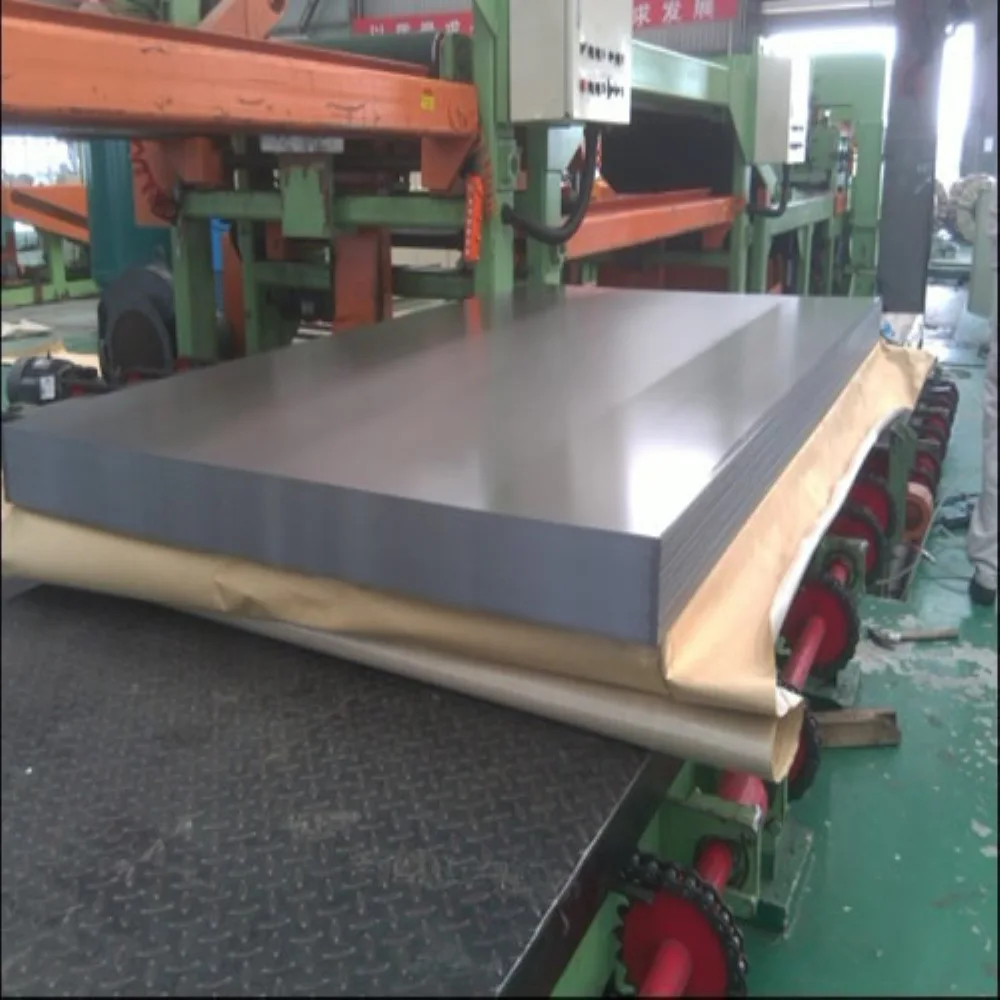

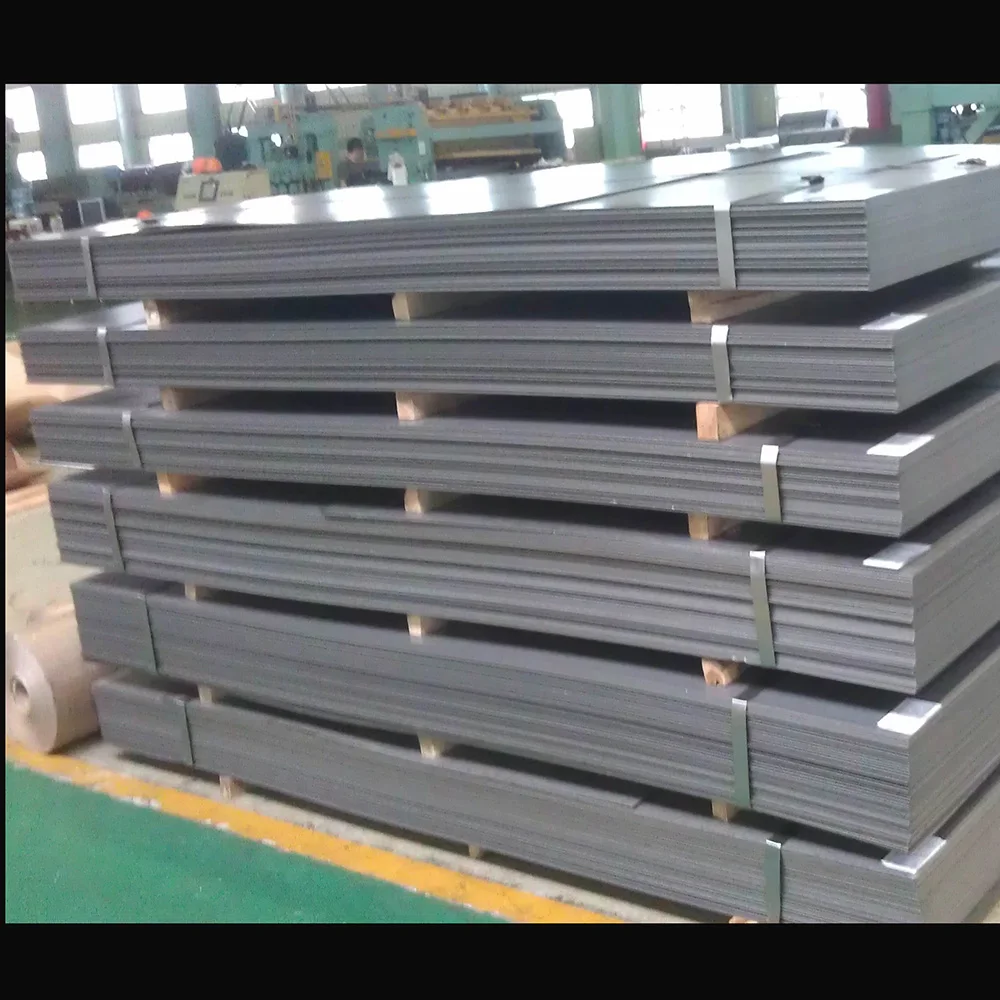

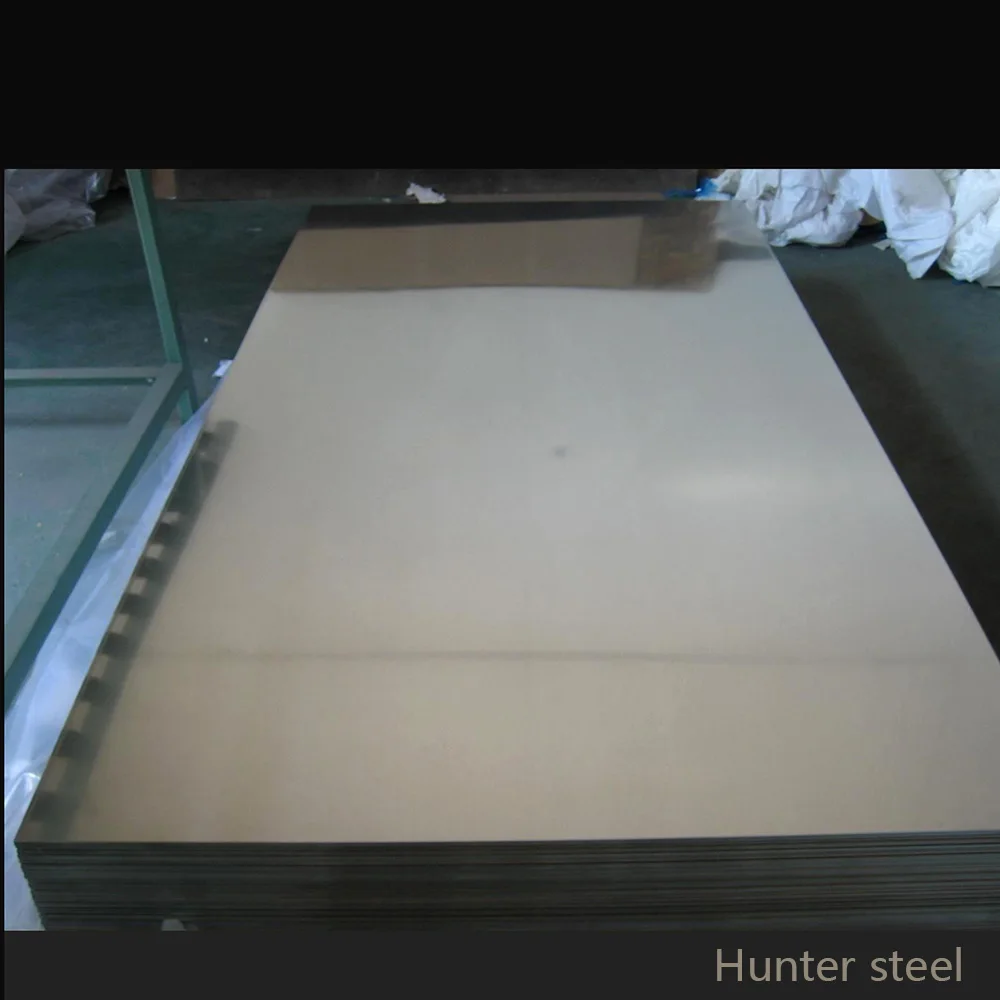

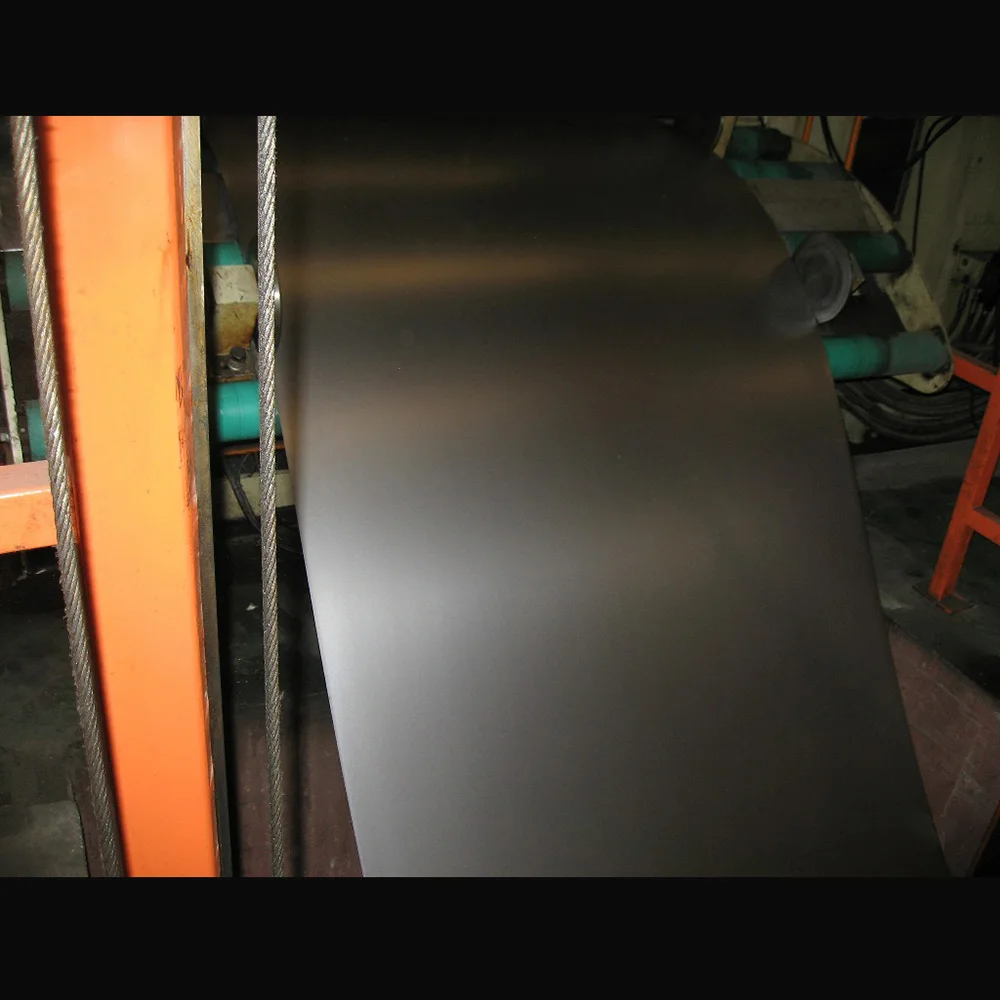

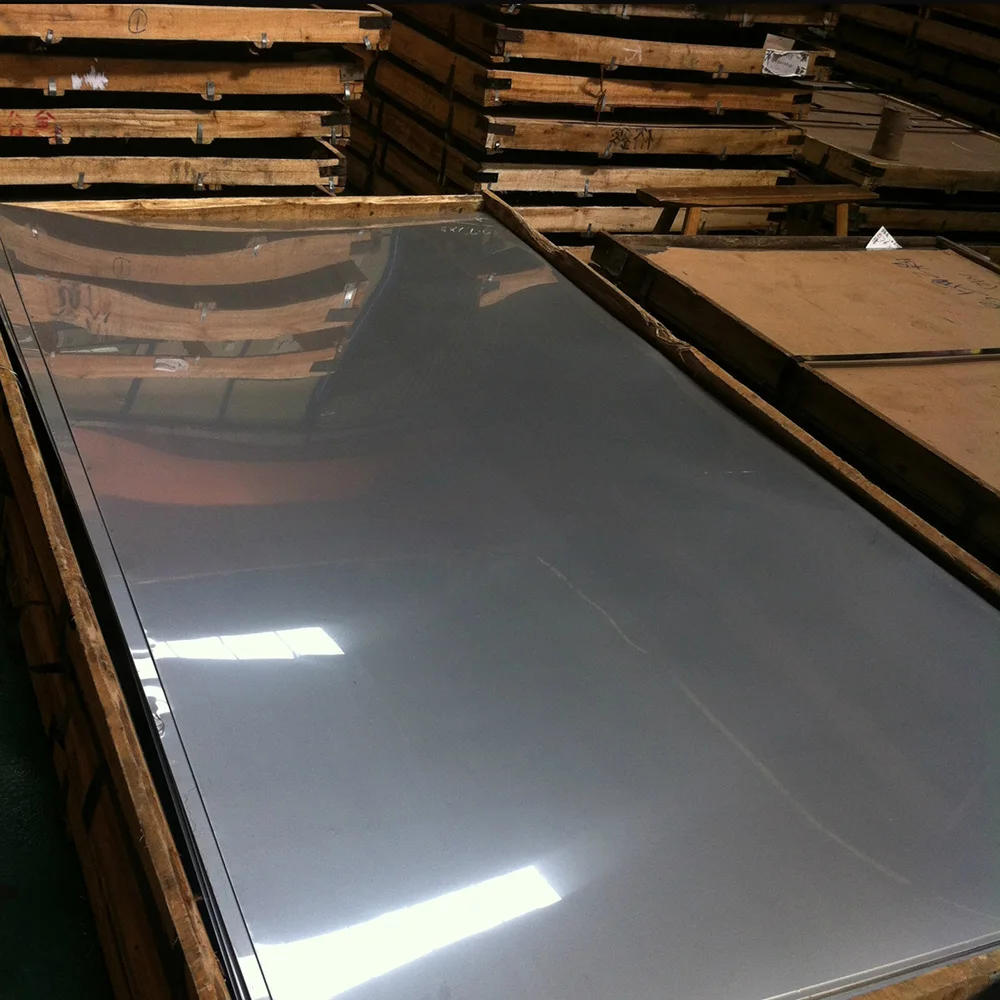

Detailed Images
Chemical Composition
Grade
C≤
Mn≤
P≤
S≤
Alta≥
Tib≤
DC01(st12)
0.10
0.50
0.035
0.025
0.020
-
DC03
(st13)
0.08
0.45
0.030
0.025
0.020
-
DC04(st14,st15)
0.08
0.40
0.025
0.020
0.020
-
DC05(BSC2)
0.008
0.30
0.020
0.020
0.015
0.20
DC06(st16,st14-T,BSC3
0.006
0.30
0.020
0.020
0.015
0.20
Mechanical Properties
Grade
Yield Strength(MPa)
Tensile Strength(MPa)
Elongation(L0=80mm, b=20mm)%≥
R值
≥
N值
≥
Thickness mm
<0.70
0.70-1.0
1.0-1.6
≥1.6
DC01
130-260
270
28
30
32
34
-
-
DC03
120-240
270
32
34
35
36
-
-
DC04
120-210
270
36
38
39
40
1.5
0.18
DC05
110-190
260
38
39
40
41
1.8
0.20
DC06
100-180
250
39
40
41
42
2.0
0.22
Packaging & Shipping
There are 2 package ways for the sheets.
One is normal package, the sheets will be fastened by steel tapes without wrapping.
The other is box package. The sheets will be wrapped in oilpaper and protected by boards from the sides and top direction. Stow-wood and tray will be fastened under the sheets. In order to avoid the rust and scratch during transport and storage, it's better to choose the box package.
