Heavy duty amphibious transport truck amphibious truck
US $46200-$50820
garbage compactor truck 6 M3 8 M3 10 M3 12 M3 18M3
- Category: >>>
- Supplier: Chusheng Vehicle Group Co. ltd
Share on (60796207988):
Product Overview
Description

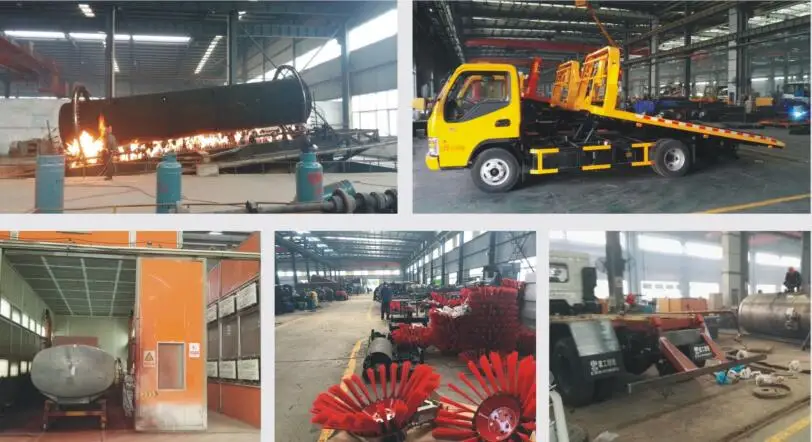

Factory fast View
Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd, was established in 1998 and is located in Suizhou city, Hubei province, in the central part of China. Its distance to Shenzhen 3 hours by high speed train and to SanXia (The Three Gorges) is 330 kilometers,and the traffic is very convenient. Our company is the foreign trade department in wuhan city .Its total assets exceeds $320 million. In addition, our site has an area of 690,000 square meters and it has a staff of more than 3000.
1.Traffic : 3 hours to shenzhen by high speed train ,6 hours to shanghai by high speed train
2.Certificate: CCC , ISO9001 , ISO14001
3.Annual prodcution capacity : 20000-25000 sets
4.Engineer employee: 210
Product Description
Chasis option: DAF , ISUZU , HOWO , JAC etc.
Dive type:6x4,4x2,4x4,8x4.6x6,8x8
Garbage compactor truck 6 M3 8 M3 10 M3 12 M3 18M3
| Product name | Dongfeng 6cbm hydraulic garbage compactor truck/refuse garbage truck | ||
| Dustin volume(m³) | 6~7 | Chassis model | DFA1080SJ11D3 |
| Overall dimension(mm) | 7390×2350×2850 | Brand name | Dongfeng |
| Gross weight(Kg) | 8495 | Wheelbase(mm) | 3800 |
| Payload(Kg) | 2000 | Drive type | 4*2 |
| Curb weight(Kg) | 6300 | Fuel type | Diesel |
| Axle No. | 2 | Emission standard | Euro 2/Euro 3/Euro 4 |
| Cab seats(person) | 3 | Transmission | 5-speed |
| Approach/departure angle(°) | 24/13 | Tires No. | 6 |
| Axle load (Kg) | 3390/5105 | Tire specification | 7.50-16 |
| Front/rear hang(mm) | 1210/2380 | Max speed(km/h) | 95 |
| Front/Rear track(mm) | 1845/1680 | Steel spring number | 8/10+7 |
| Engine parameters | |||
| Engine model | Engine manufacturer | Displacement (ml) | power(kw) |
| CY4102-CE4B | Dongfeng chaoyang forward power co ., LTD | 3856 | 100 |
| Chassis Description | Dongfeng 4x2 chassis, single row and left/right hand drive optional,136HP Engine. | ||
| Standard Equipment | 1. Dustbin volume: 6~7m³, it is made of carbon steel plate. | ||
| 2. Equipped with front push back pressure, vice press plate, sewage box, electric control operation. Compressed dustbin is couplet body type, external power source work, overturn feedstock, compression push board in dustbin, rear lock door and tipping bucket, hydraulic electric system and etc. | |||
| 3.Garbage compactor truck adopt machine,electricity,liquid linkage control system, computer control and manual operation system, realize rubbish into,crush or press flat through loading device and push shovel, and then squeeze garbage into the dustbin, compaction and push unloading. | |||
| 4.The garbage compactor truck is constructed with 12# low alloy steel and 5mm,4mm,10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed .All the waste water can go directly into the sewage tank,so as not to corrode the body and the chassis.Morever,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.The garbage tank compacts the waste by a hydraulically powered mechanism,which employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. | |||
| Optional Equipment | We can make the garbage compactor truck according to customer's requirements with the optional equipments below: | ||
| 1. Rear turnover mechanism; | |||
| 2. Back swing arm mechanism; | |||
| 3. Hopper | |||
| 4. Side compression with draw bar hoisting mechanism, rear hydraulic door, with compression function in dustbin. | |||
| 5. Compressor | |||
| 6. Please advise us in advance if you have any special requests for the garbage compactor truck, we can equip various kinds optional equipment for you. | |||
| Purposes | Garbage compactor truck is mainly used for the sanitation department of municipal and large-scale factories and mines.The truck can transport a variety of garbages and bulk building materials(such as:ash , sand , stone and soil), ore and coal in mines and coal mine.It is especially suitable for transport household garbage in residential area. | ||
| Product advantage | 1. Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and realiable | ||
Customer Visit
FAQ
Q1. : Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle, we will lease a vessel.
Q 3 : How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q 4 : Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q 5 : What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles.
We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
CHINA FAMOUS BRAND
XGCS is the china famous brand . And we pass the ISO certificate to meet international market need.
Certifications
Contact
Abby
Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou, Hubei, China
Office: Room 1108, Eurasia Plaza, No.20 Jinyinhu Road, East- west lake District, Wuhan, Hubei, China.
E-mail: abb(AT)cs-vehicle.com
Tel: +86-27-59215038;
Tel: +86-27-59215038;
Fax: +86-27-59215082
Whatsapp: +86 13641662326
Web: www.cs-vehicle.com
Whatsapp: +86 13641662326
Web: www.cs-vehicle.com
