FE 06 Food processing machinery / grinding machine rice milk making machine
- Category: >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (60796226675):
Product Overview
Description

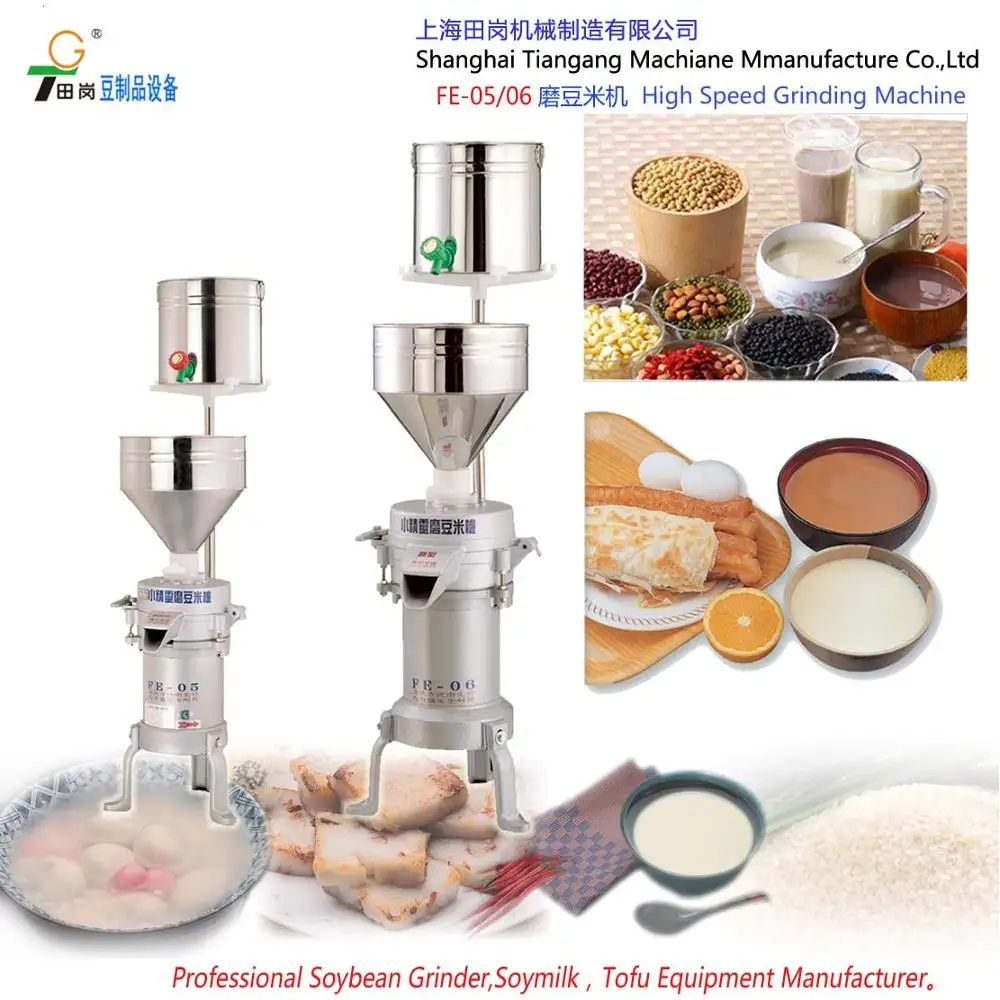

FE-06 Food processing machinery /grinding machine - rice milk making machine

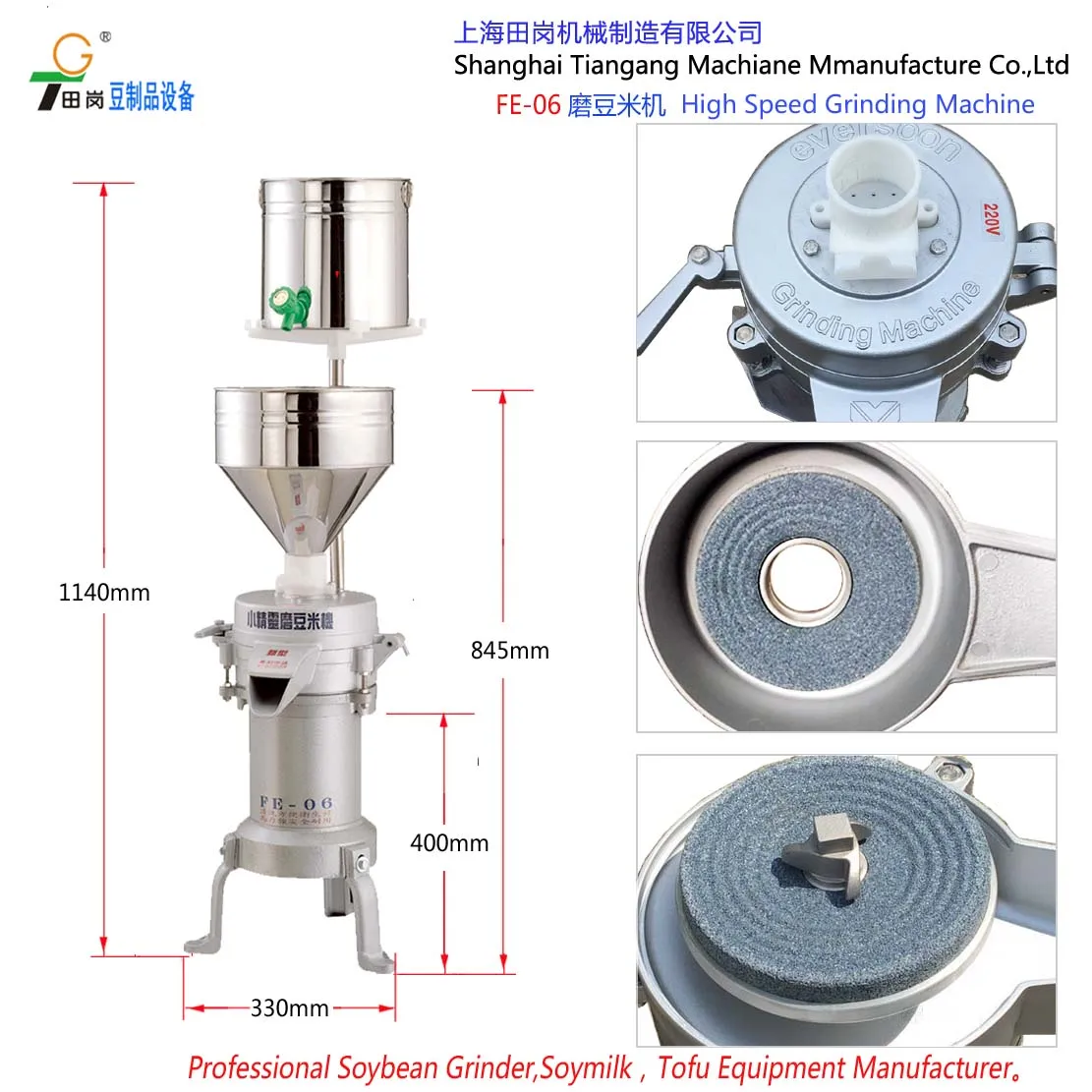

FE-06 High Speed Grinding Machine
Features:
1、Specially designed grindstone angle makes been-grinding fast and rice-grinding fine.,use aluminum-alloy accurate die-casting
2、Newly designed motor with more sufficient power.Special water-prooof design with safety&durability .
Application:
Apply to make soybean milk rice milk mung bean paste and chili sauce、 Soaked soft goods grinding fine and other functions。
Features:
1、Specially designed grindstone angle makes been-grinding fast and rice-grinding fine.,use aluminum-alloy accurate die-casting
2、Newly designed motor with more sufficient power.Special water-prooof design with safety&durability .
Application:
Apply to make soybean milk rice milk mung bean paste and chili sauce、 Soaked soft goods grinding fine and other functions。
Brief Introduction.
Output: 30-70kgs/hr;Diameter of the grinding stone :150mm,
Material of the grinding stone: corundum.
Power:750W;Voltage:220v/50Hz;Speed:1720/1430 R.P.M.
Weight:29kgs；Gross Weight:38kgs
Size:531*333*1067mm;Packing size:390*350*900mm,
Material of the grinding stone: corundum.
Power:750W;Voltage:220v/50Hz;Speed:1720/1430 R.P.M.
Weight:29kgs；Gross Weight:38kgs
Size:531*333*1067mm;Packing size:390*350*900mm,
TGM-100 Main Data ：
TGM-100 Main Data ：
Voltage:220v/50Hz;Power:750w;(Can be customized)
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:22kgs；Size: 320*360*720mm;
Gross Weight:28kgs；Packing size:300*320*800mm
Voltage:220v/50Hz;Power:750w;(Can be customized)
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:22kgs；Size: 320*360*720mm;
Gross Weight:28kgs；Packing size:300*320*800mm
TGM-100B Main Data ：
Voltage:220v/50Hz;Power:750w;
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:26kgs；Size: 460*600*1150mm;
Gross Weight:36kgs；Packing size:460*320*1200mm；
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:26kgs；Size: 460*600*1150mm;
Gross Weight:36kgs；Packing size:460*320*1200mm；
TGM-130B Main Data ：
Voltage:220v/50Hz;Power:1500W;(Can be customized)
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:35-65kgs/hr（Dried soybean calculation）
Diameter of grinding stone :125mm；
Material of grinding stone:white corundum；
Weight:45kgs；Size: 360*480*880mm;
Gross Weight:53kgs；Packing size:380*420*1020mm；
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:35-65kgs/hr（Dried soybean calculation）
Diameter of grinding stone :125mm；
Material of grinding stone:white corundum；
Weight:45kgs；Size: 360*480*880mm;
Gross Weight:53kgs；Packing size:380*420*1020mm；
TGM-200 Main Data ：
Voltage:380V/50Hz;Power:5KW;
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:100-175kgs/hr（Dried soybean calculation）
Diameter of grinding stone :200mm；
Material of grinding stone:white corundum；
Weight:96kgs；Size: 480*600*1150mm;
Gross Weight:105kgs；Packing size:530*470*1250mm；
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:100-175kgs/hr（Dried soybean calculation）
Diameter of grinding stone :200mm；
Material of grinding stone:white corundum；
Weight:96kgs；Size: 480*600*1150mm;
Gross Weight:105kgs；Packing size:530*470*1250mm；
TGM-200B multi-function food grinding machine
Uses: Make sesame sauce, peanut butter, chili sauce and soy milk, rice syrup, and other foods soaked in soft items.
Technical Parameters:
Power supply: 380V/50Hz; power: 4KW; speed: 1430 R.P.M
Production: 80-150kg / hour; grinding wheel diameter: 200mm
Weight: 96kgs;Size: 480*520*1150mm,
gross weight: 105kg ;package size: 530*480*1250mm
Technical Parameters:
Power supply: 380V/50Hz; power: 4KW; speed: 1430 R.P.M
Production: 80-150kg / hour; grinding wheel diameter: 200mm
Weight: 96kgs;Size: 480*520*1150mm,
gross weight: 105kg ;package size: 530*480*1250mm
TGM-300 Main Data ：
This device of wet grinding equipment which is a novel stainless steel ,used in the food class materials for wet milling processing of wet grinding., such as rice, soybeans, corn, etc soybeans and soaked soft foods grinding.
Voltage：380v/50Hz,Power:7.5kW;Motor Speed：1440r/min;Capacity：beans 300kgs/hr;
Grinding stone Diameter:300mm;
Weight:180kg；Size: 540*580*1250mm;
Gross Weight:195kgs；Packing size:520*540*135mm
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
