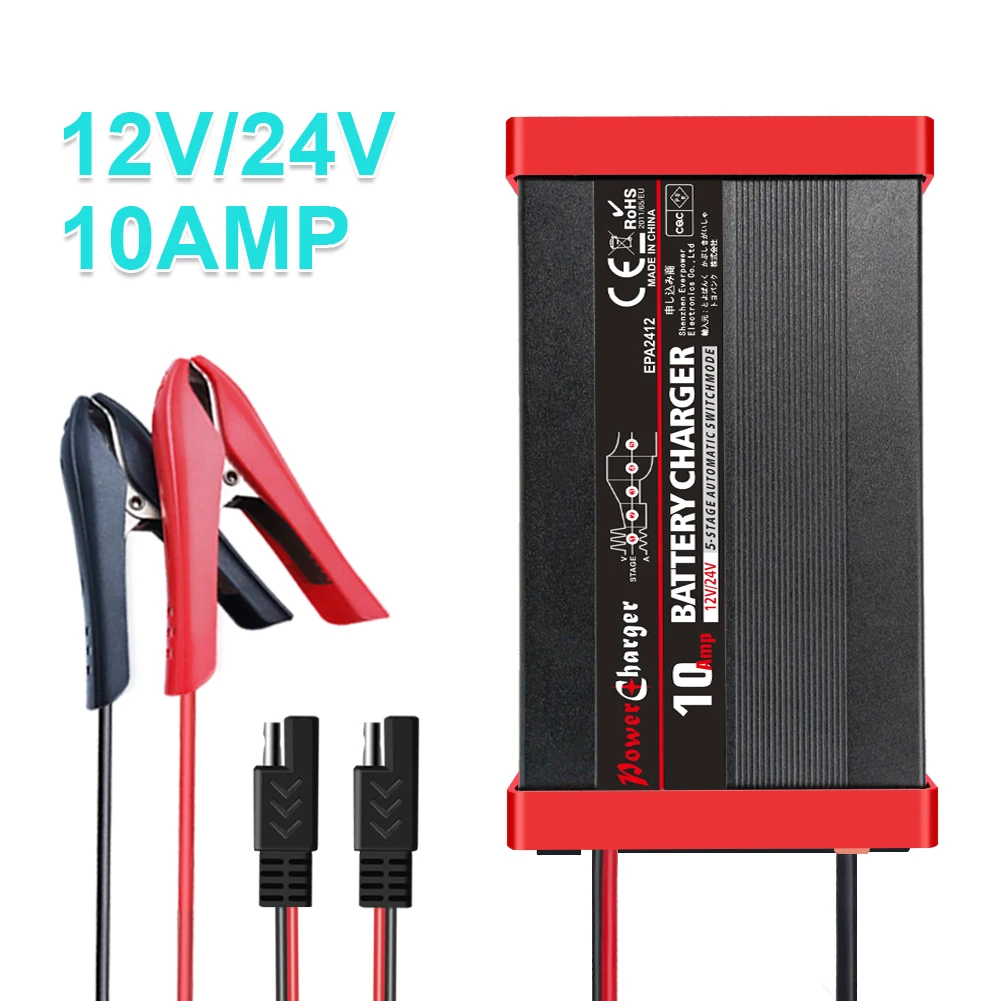

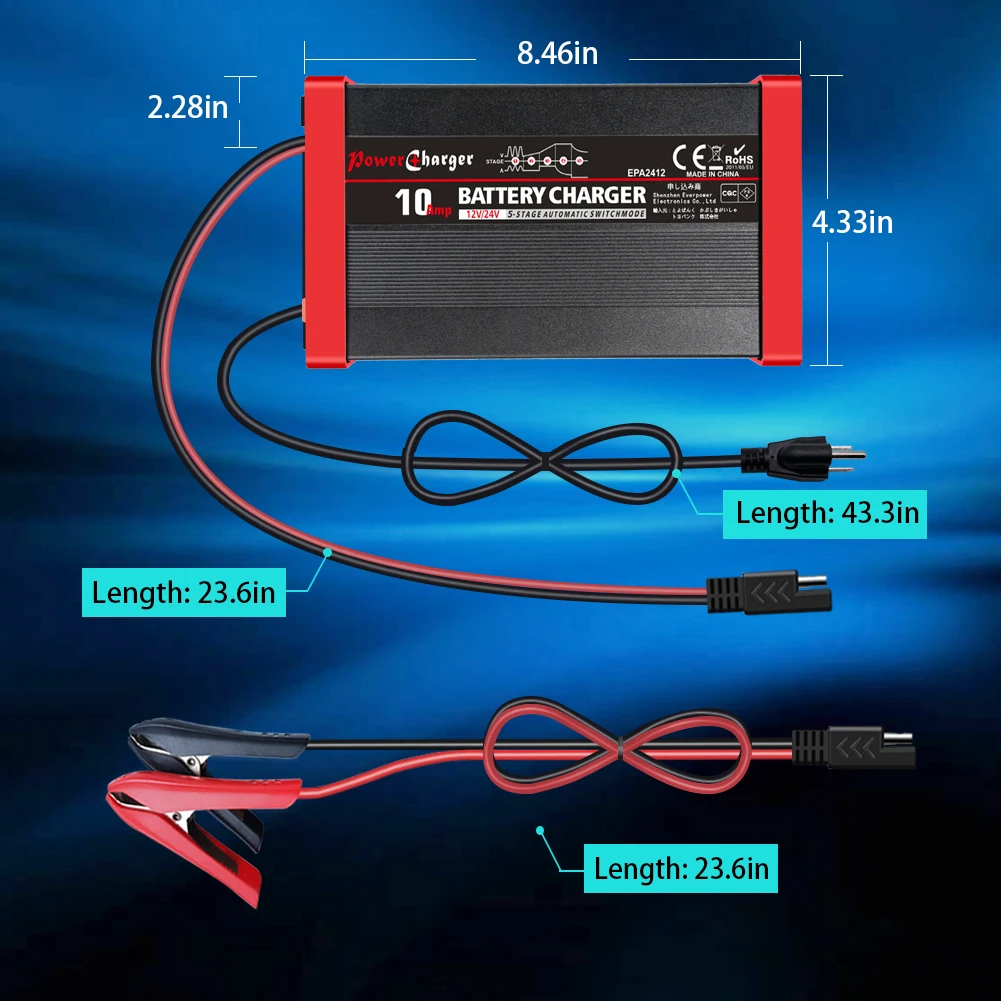

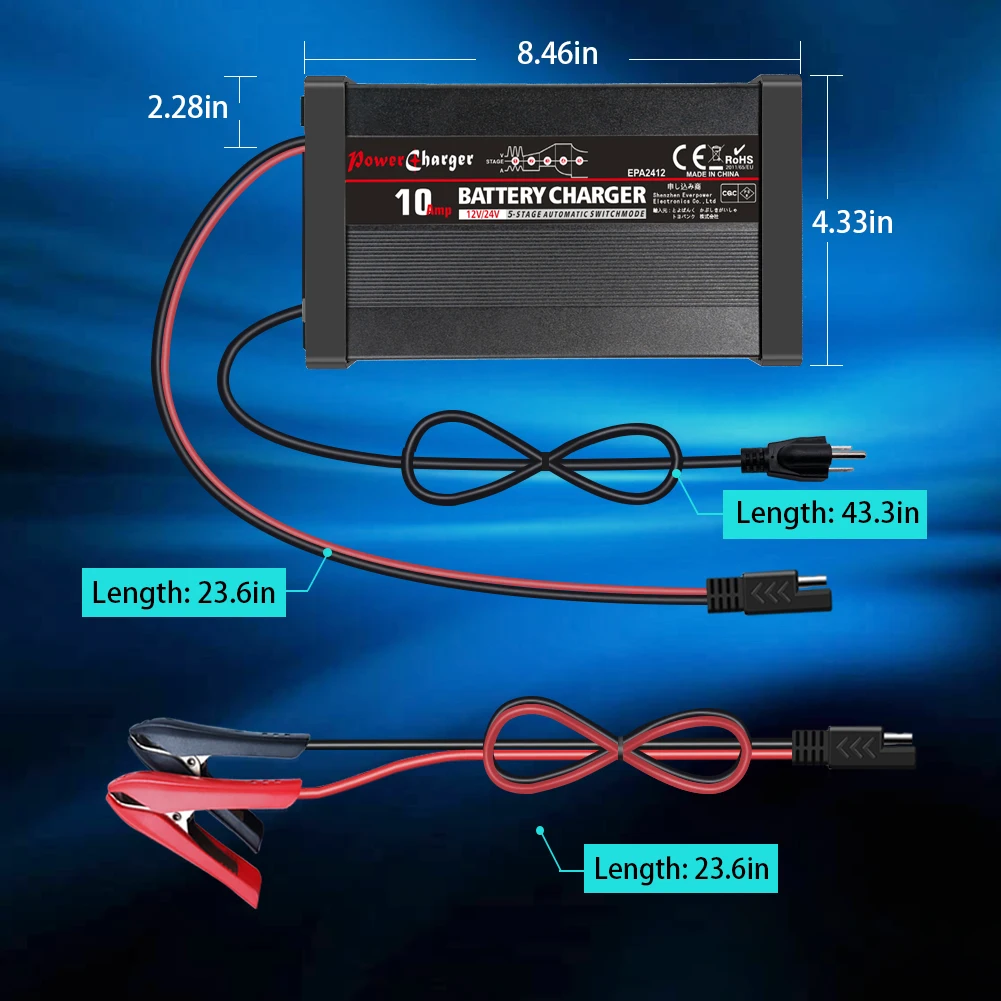

12/24V 10Amp Auto 5 stage GEL AGM WET battery charger 12v 24v smart car battery charger
- Category: >>>
- Supplier: Shenzhen Everpower Electronics Co. Ltd.
Share on (60796244095):
Product Overview
Description
Product Description
DESCRIPTION:
EPA2412 is a 300W double voltage automatic 5 stages smart battery charger by MCU controlled with switch mode the charging process is setting
5-stage: initialization, soft start, Bulk, Absorption, Float;
initialization:the charger power on and detect the battery correct conntect, When the battery correct connect,then the charger will give bulk current charging, "Absorption"stage is followed,the output voltage is limited at 14.7V; When the battery is nearly full, stage"float" will turn on duty, at this stage,the battery is charged completelyand the charger output some pulse to maintenance the battery
5-stage: initialization, soft start, Bulk, Absorption, Float;
initialization:the charger power on and detect the battery correct conntect, When the battery correct connect,then the charger will give bulk current charging, "Absorption"stage is followed,the output voltage is limited at 14.7V; When the battery is nearly full, stage"float" will turn on duty, at this stage,the battery is charged completelyand the charger output some pulse to maintenance the battery
FEATURE :
1. Microprocessor control swith mode Suit battery

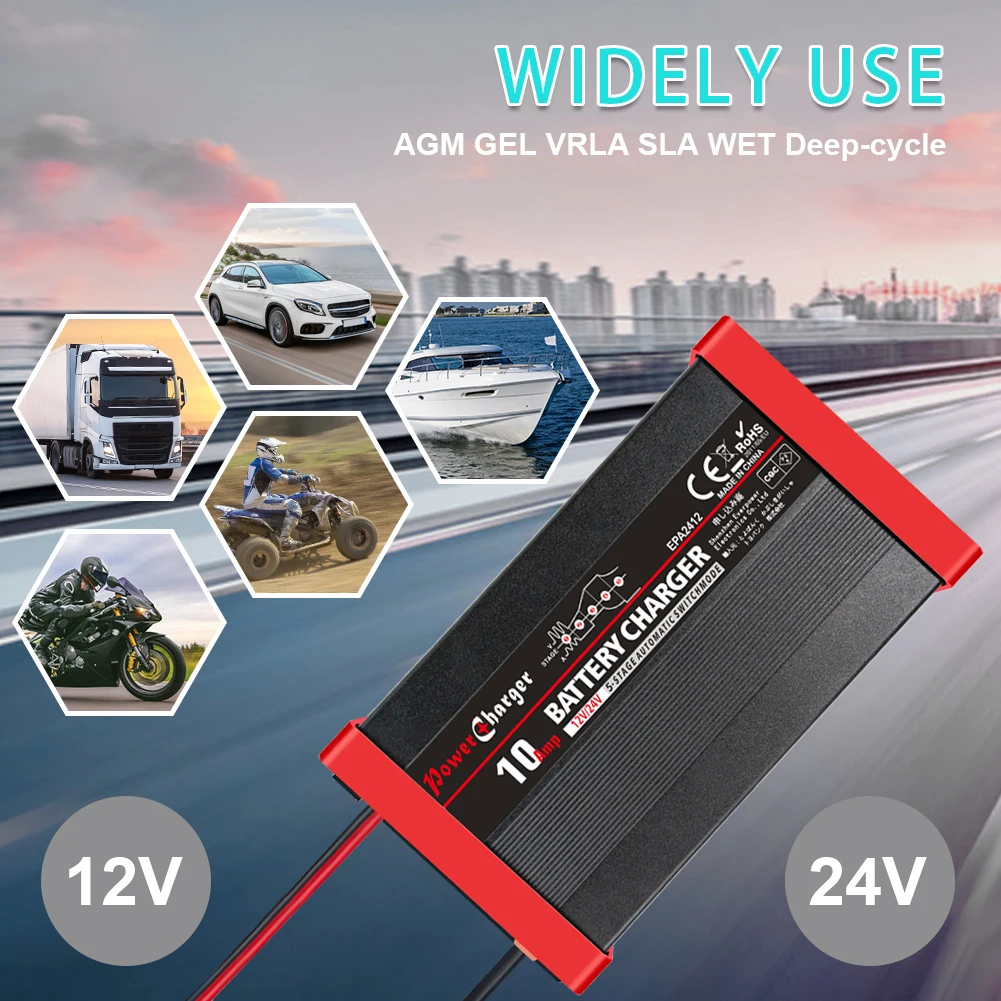

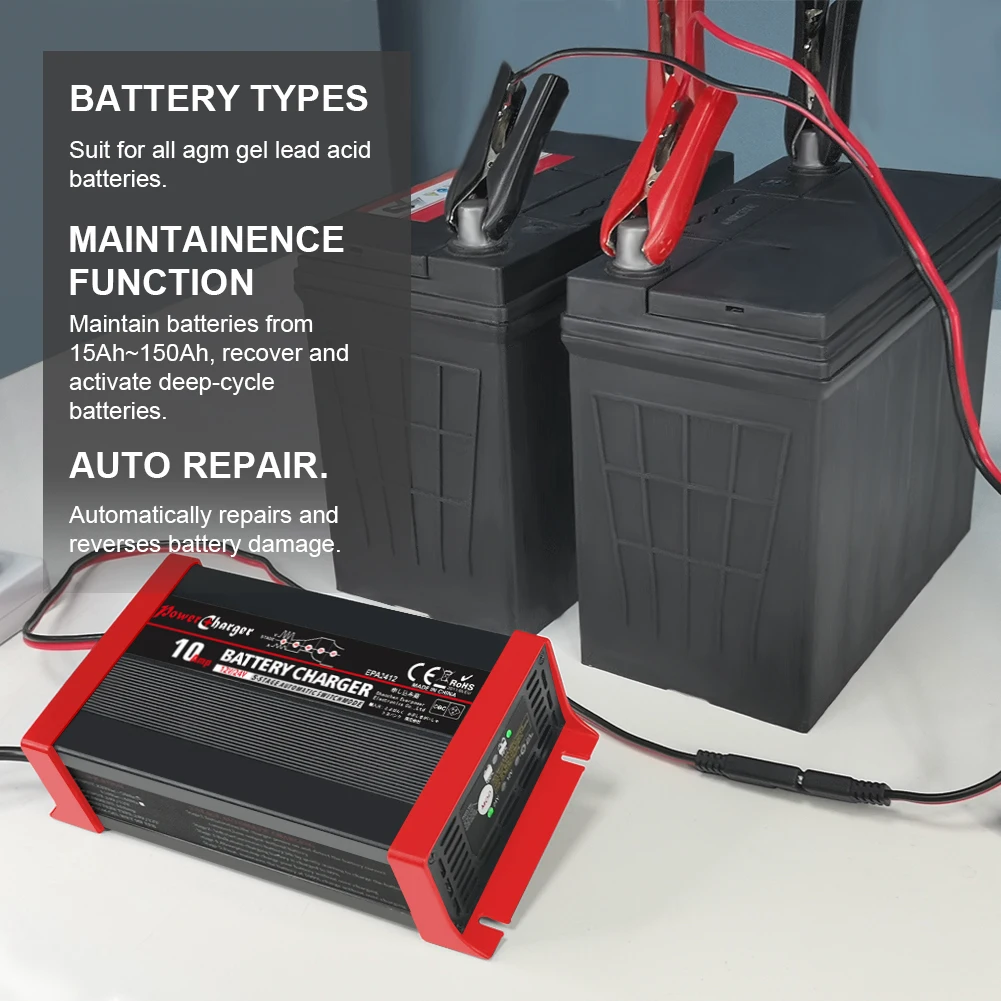

2. Ideal for starting,Marine,Mobility and solar applications SLA/GEL/AGM 12V 30~240Ah
3. Fully automatic 5 stages charging process, VRLA/WET battery 24V 30~240AH

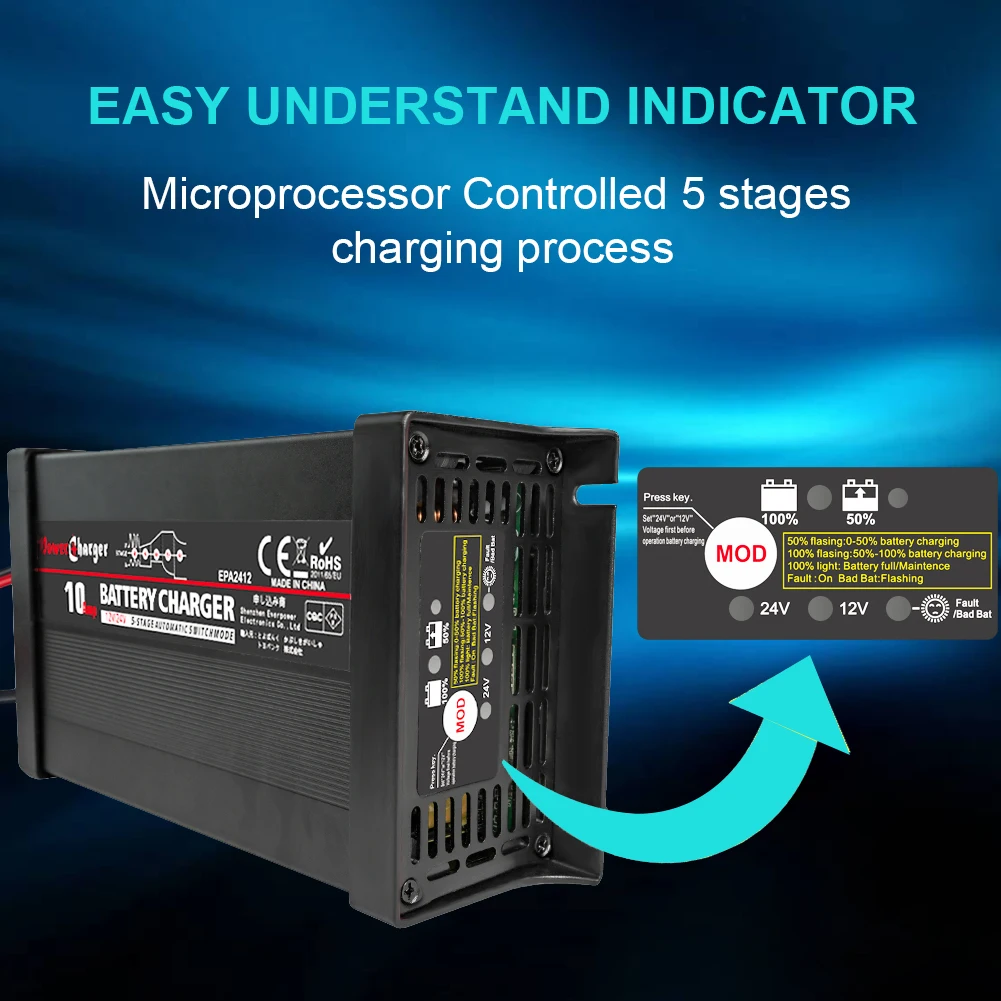

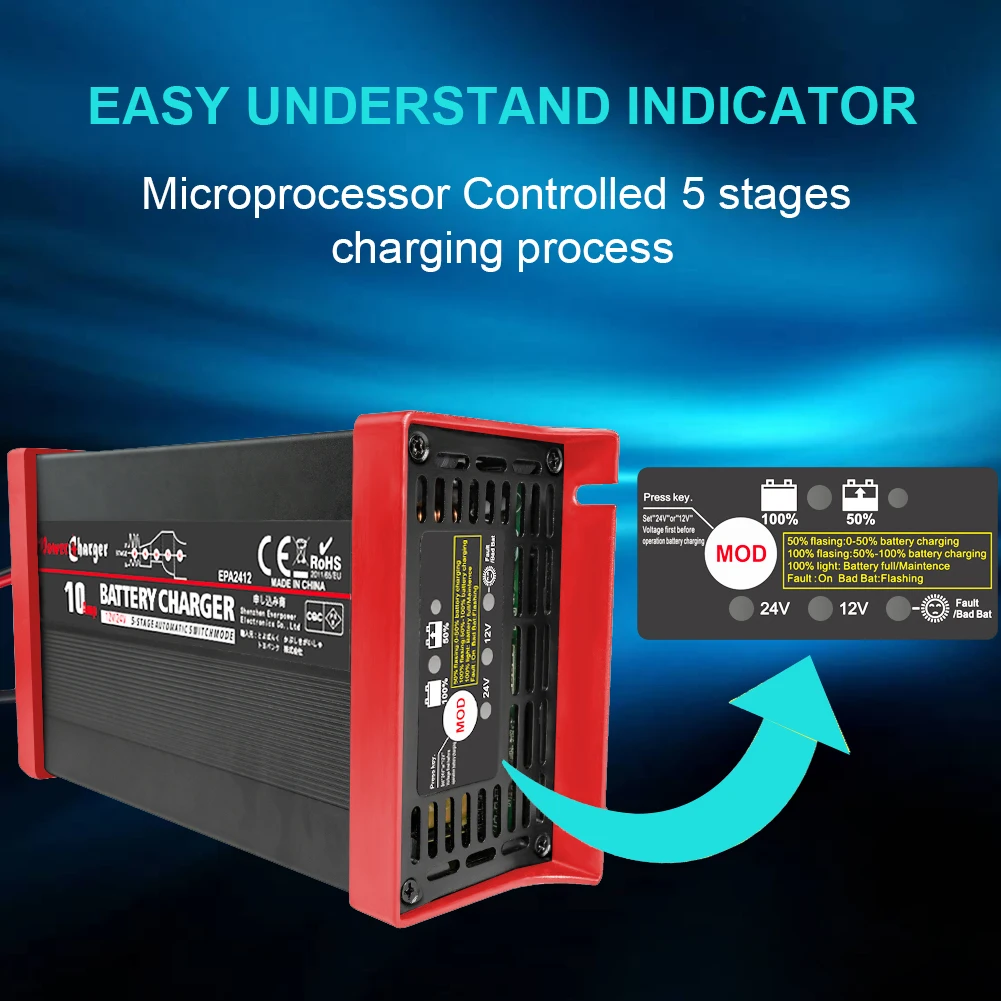

4. 2 Leds indicator for battery charging 50%,100%,An independent failure indicator Car,Marine,vehicle,starting,Mobility,Solar
5. 12V/24V double charging output for use with starting and deep cycle batteries Emergency light, Industrial cleaning

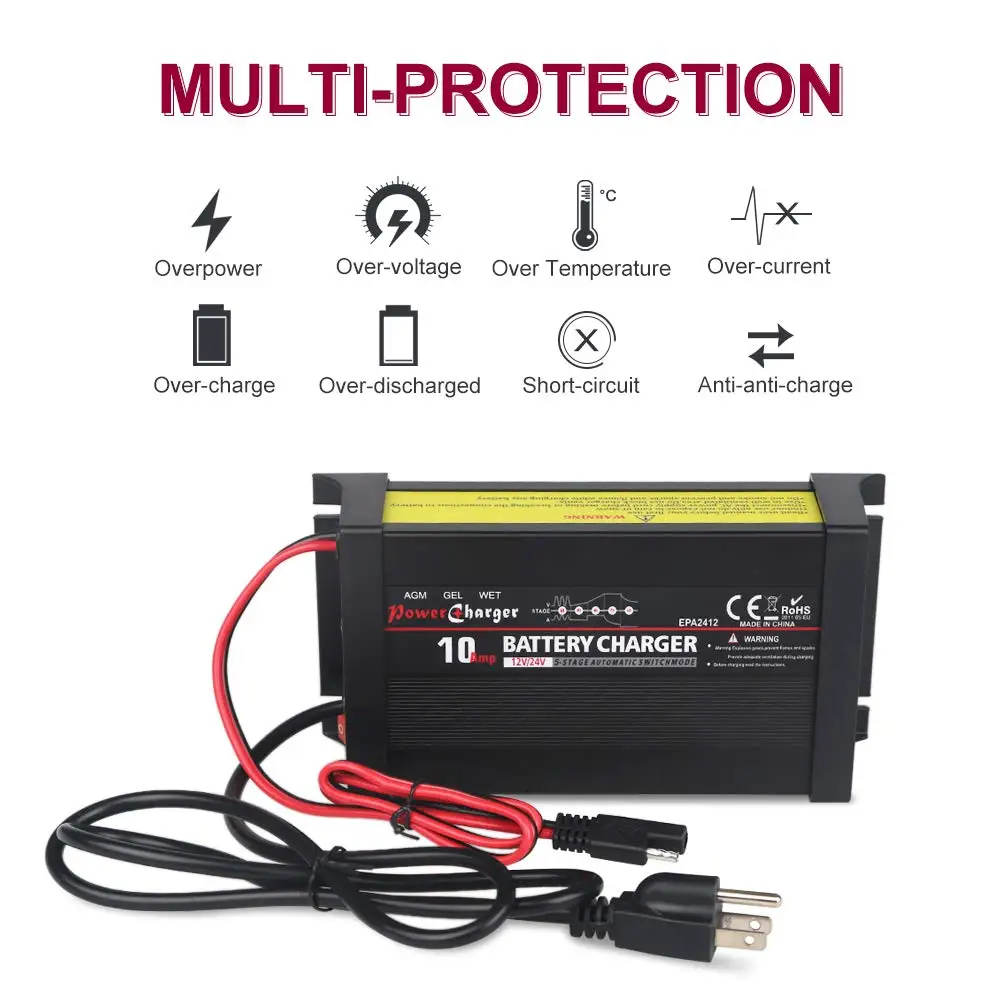

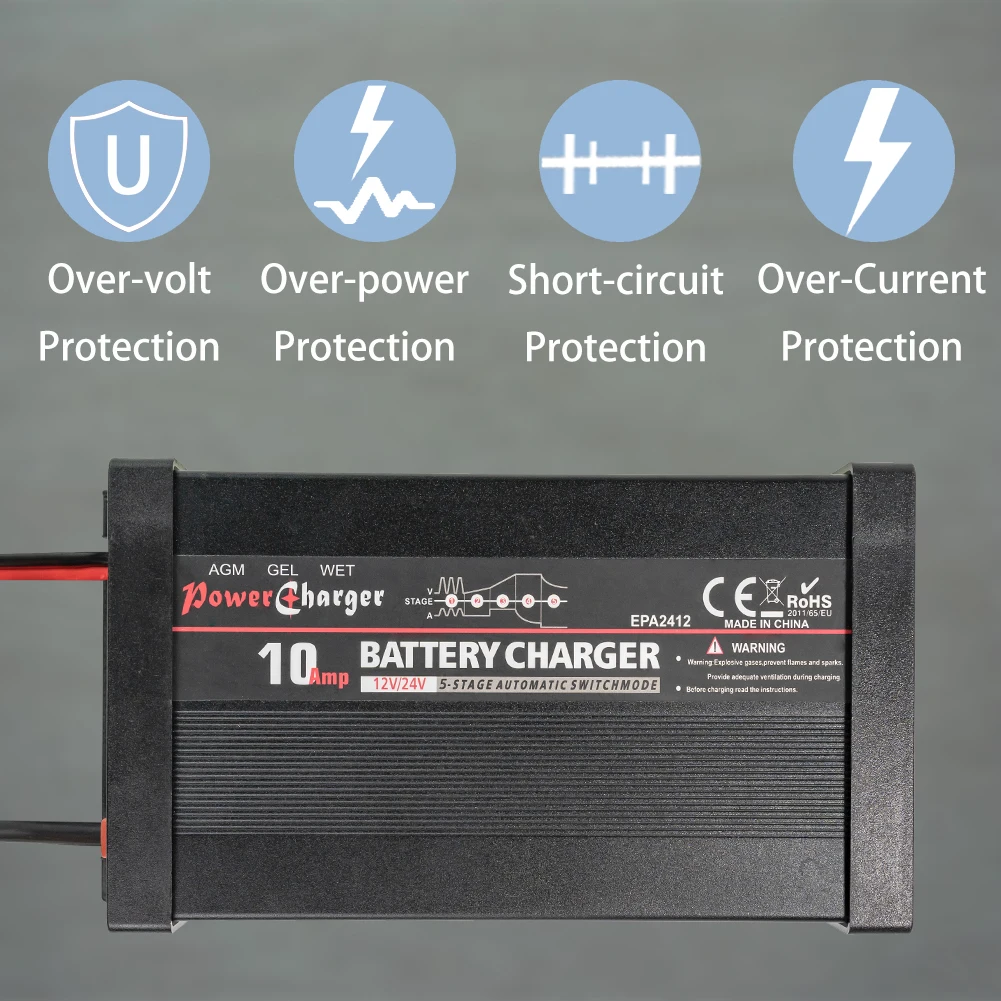

6. Protections:Short circuit/OVP/OCP/Overload/Polarity reversed equipment
7. Superior charging and maintaing
8. 100% full load and burn-in test
9. 18 months warranty
2. Ideal for starting,Marine,Mobility and solar applications SLA/GEL/AGM 12V 30~240Ah
3. Fully automatic 5 stages charging process, VRLA/WET battery 24V 30~240AH
4. 2 Leds indicator for battery charging 50%,100%,An independent failure indicator Car,Marine,vehicle,starting,Mobility,Solar
5. 12V/24V double charging output for use with starting and deep cycle batteries Emergency light, Industrial cleaning
6. Protections:Short circuit/OVP/OCP/Overload/Polarity reversed equipment
7. Superior charging and maintaing
8. 100% full load and burn-in test
9. 18 months warranty
PRODUCT DISPLAY:

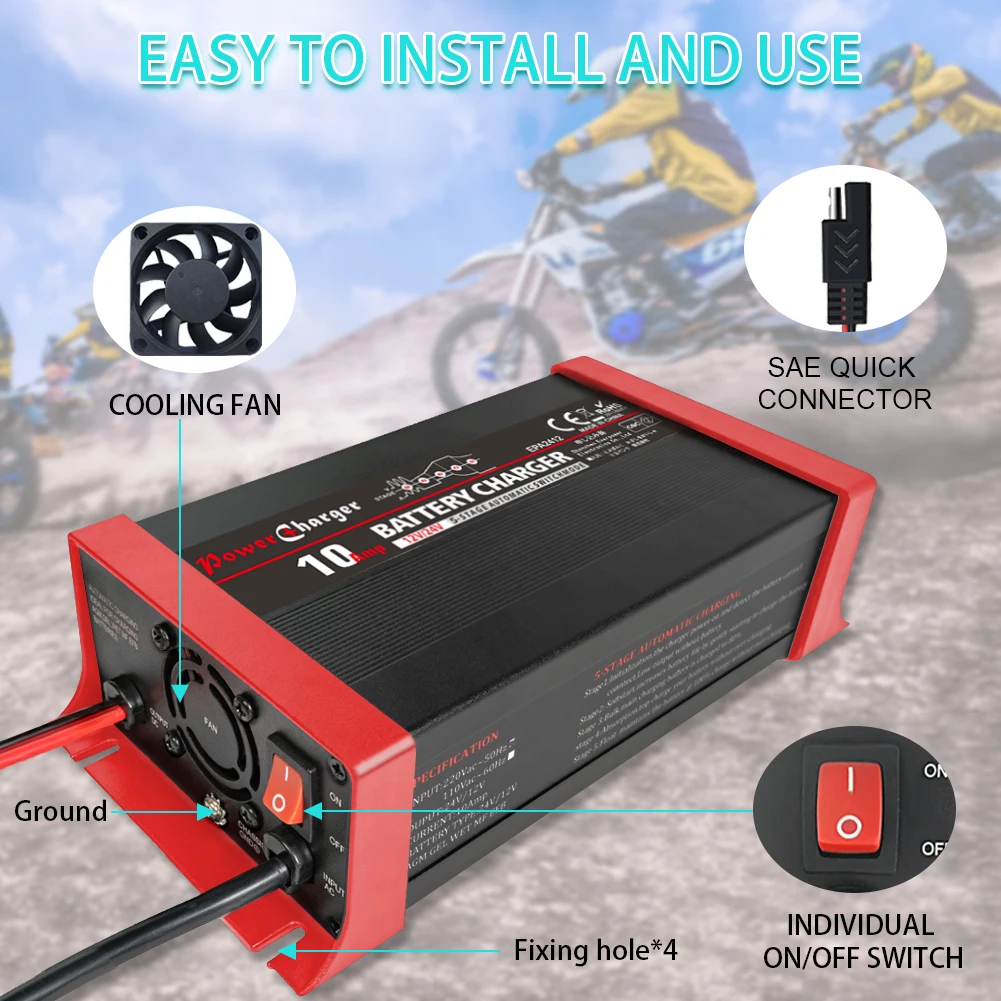

Intelligent temperature control fan, I/O switch design

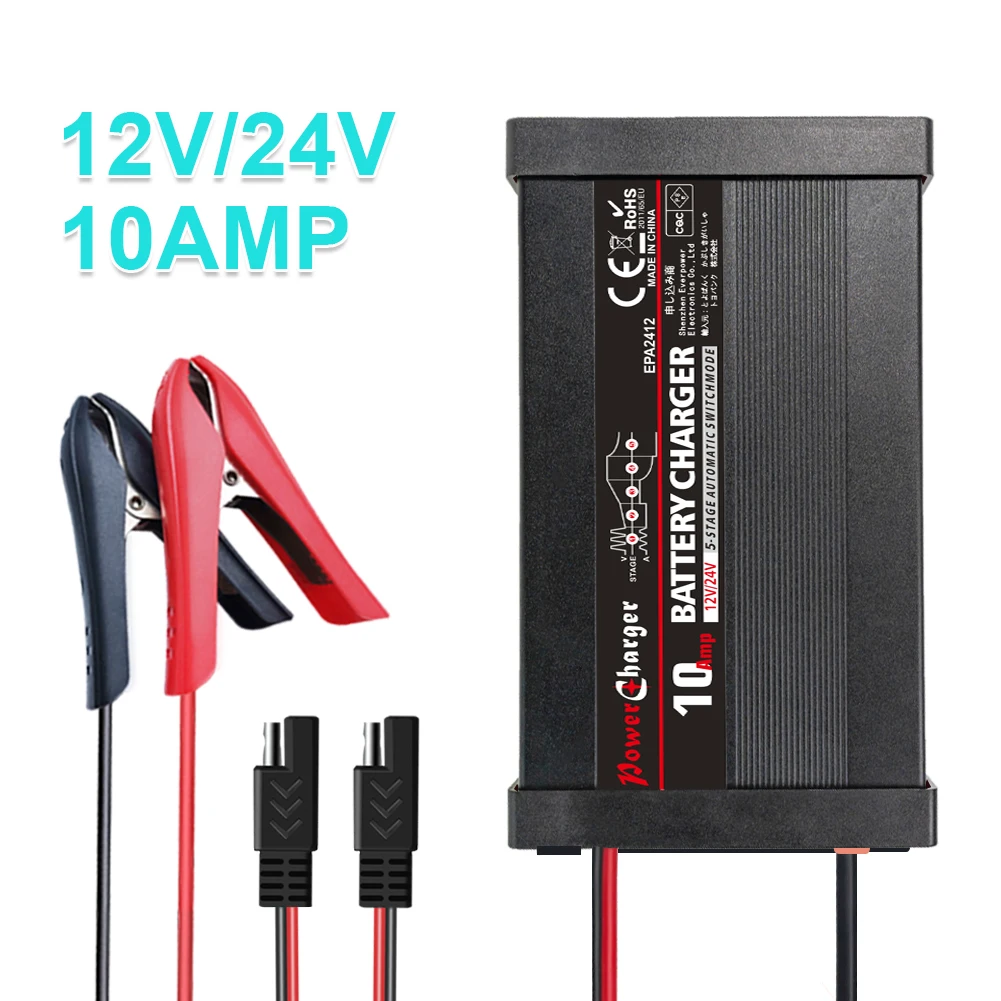

24V, 12V dual voltage output, MODE switch selection

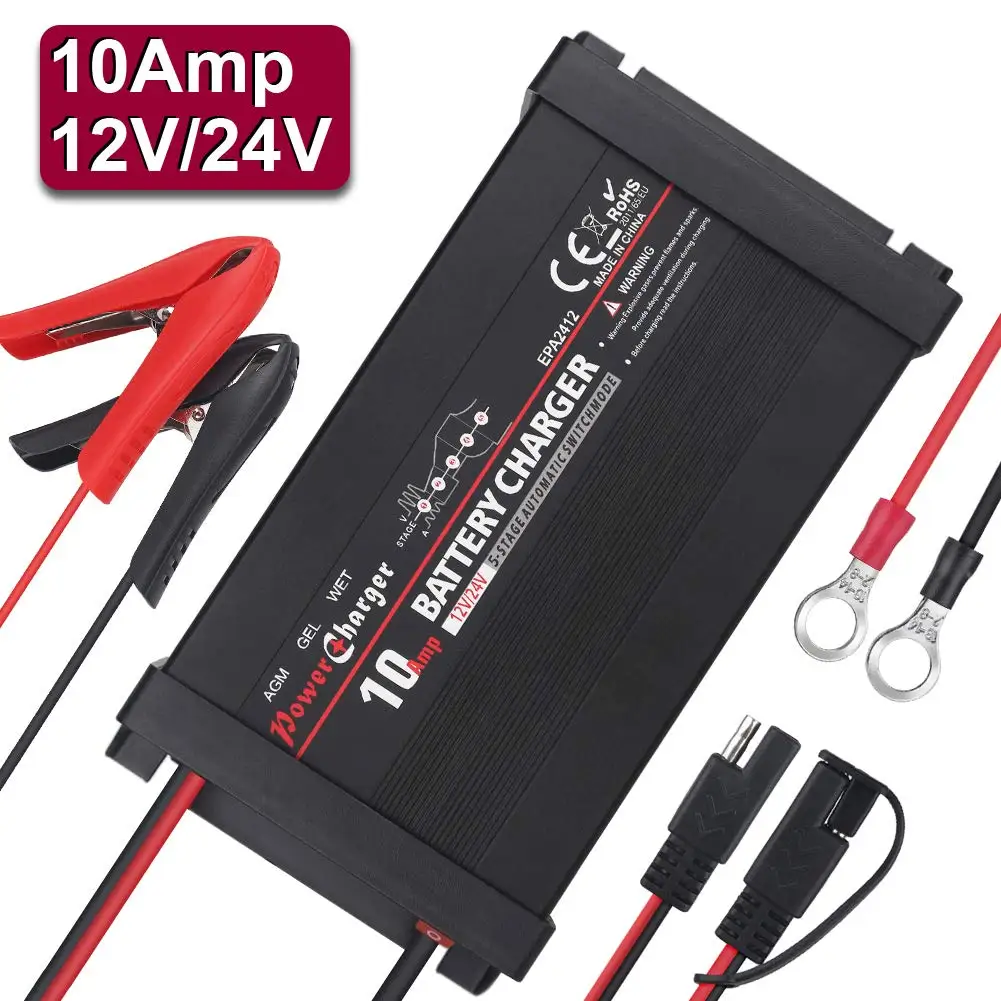

High quality accessories configuration
Patent for protection cover design
High quality accessories configuration
Patent for protection cover design
Product Specification
Model | EPA2412 |
DC Voltage | 13.8V/27.6V |
RATED CURRENT | 10A |
RATED POWER | 294W |
VOLTAGE RANGE | 4-30V |
CURRENT RANGE | ±0.5A |
VOLTAGE TOLERANCE | ±0.2V |
LINE REGULATION | ±0.5% |
VOLTAGE RANGE | 110VAC or 220VAC |
FREQUENCY RANGE | 47~63Hz |
EFFICIENCY | >85% |
AC CURRENT | 3.5A/110 VAC 1.75A/220VAC |
CHAEGING PROCESS | Ud-Im-Uo-Up |
CHARGING MODE | Fully automatically 5 stages by MCU controlled |
FOLATING CHARGE CONDITION | 1-1.5A |
CHARGING INDICATOR | see the LED display frame |
SUIT BATTERY | AGM/GEL/SLA/WET 30-240AH |
CHARGING TIME | 4~24H |
OVER VOLTAGE | 15V(12V mode) or 30V (24V mode) |
OVER LOAD | 110~140% rated output power |
OUTPUT SHORTED | Fault LED Flash/Hiccup mode,recovers automatically after fault condition is removed |
POLARITY REVERSED | Fault LED Flash/Hiccup mode,recovers automatically after fault condition is removed |
WORKING TEMP. | -10 ~ +50°C |
WORKING HUMIDITY | 20`90% RH NON-CONDENSING |
STORAGE TEMP.,HUMIDITY | -10 ~ +50°C 20`90% |
Cooling | FAN |
IMPACT | 1 Meter drop test>=3times |
SAFETY STANDARDS | EN60950-1,EN55022,EN6900 |
MTBF | 30000 Hrs MIL-HDBK-217F |
ESD | 8KV |
ISOLATION RESISTNCE | i/p to o/p: 3000V (1 min.) |
MAX.TEMP.RISE | < 40°C on casing |

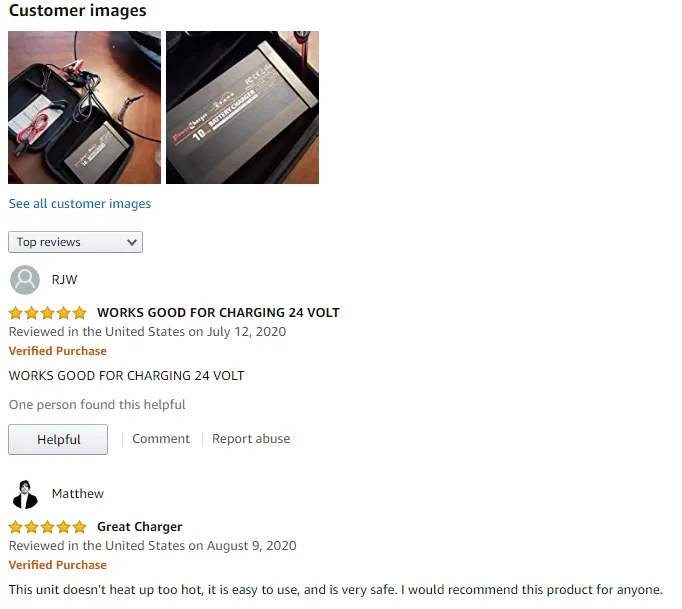

Customer Feedback
