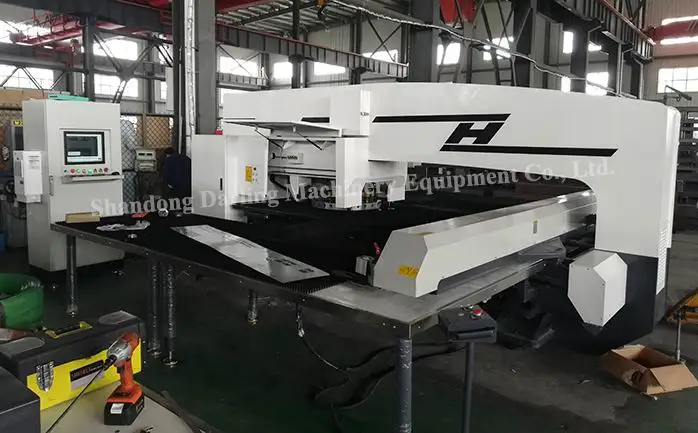

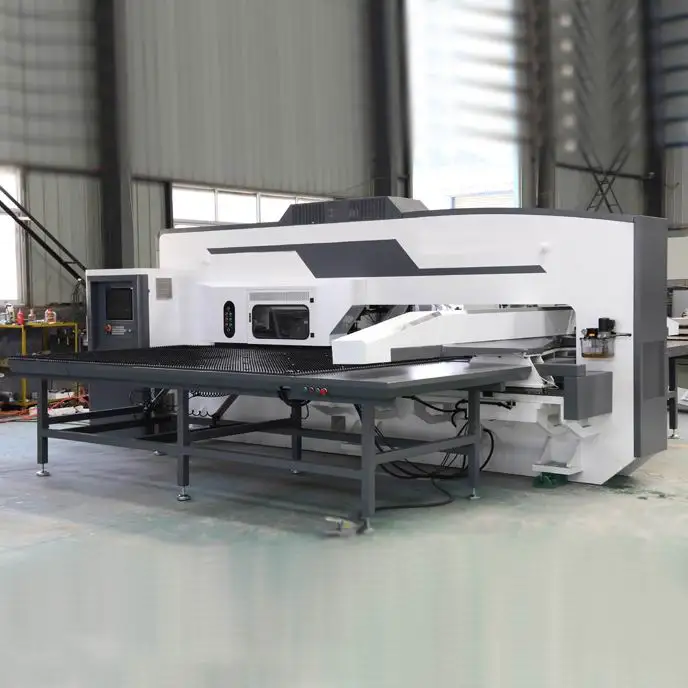

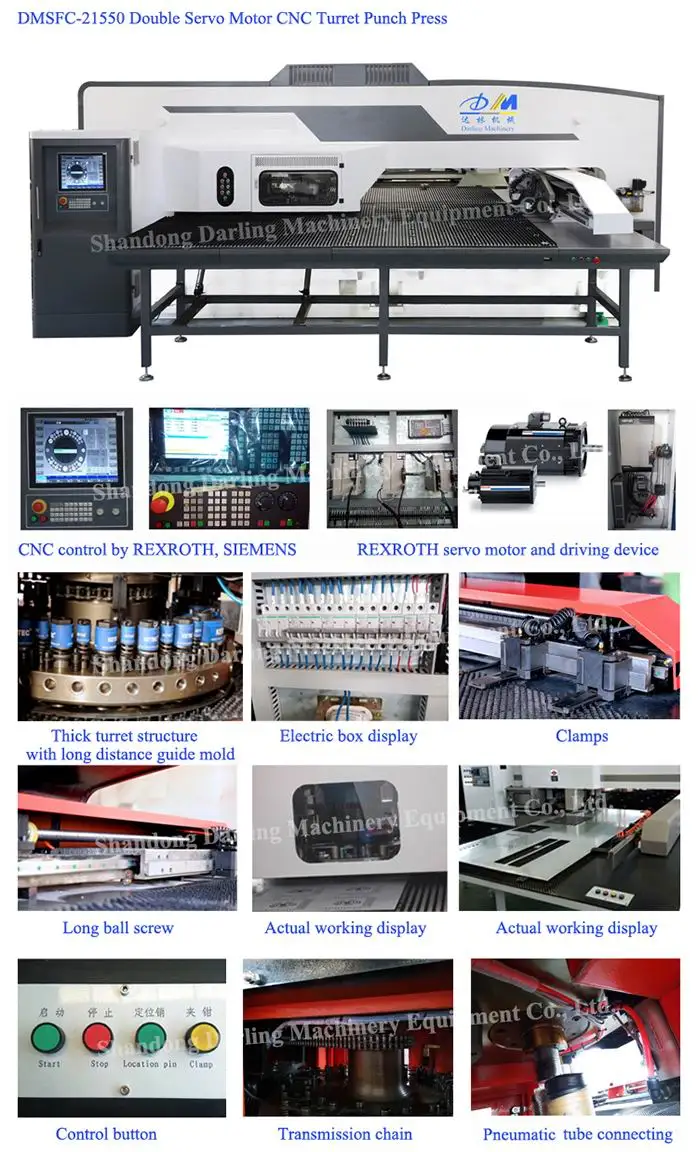

New technology high quality DMSFC 21550 servo motors 1500x5000mm hole punching machine

Product Overview

Description

New technology high quality DMSFC-21550 servo motors 1500x5000mm hole punching machine

Video link:

YouTube: https://youtu.be/w_LBkImnARo

QQ video: https://v.qq.com/x/page/w3215xq6kcm.html

Baidu video: https://haokan.baidu.com/v?vid=4796257467261552449&bfe=1

Main technology parameters

Pressure	KN	300
Max.punching diameter	mm	88.5 (D station)
Max.workpiece thickness	mm	6.35
Max.workpiece weight	Kg	120
Punching precision	mm	±0.1
Resent location precision	mm	±0.1
Compressed air	Mp	0.55-0.8Mpa  (Laser using air pressure is higher than 2.0Mpa)
Punching frequency	time/min	1500
Cutting speed	m/min	30 (because of different material, cutting speed is based on actual work)
Feeding speed	m/min	100m/min
Punching size	mm	1500x5000 (including one reset )

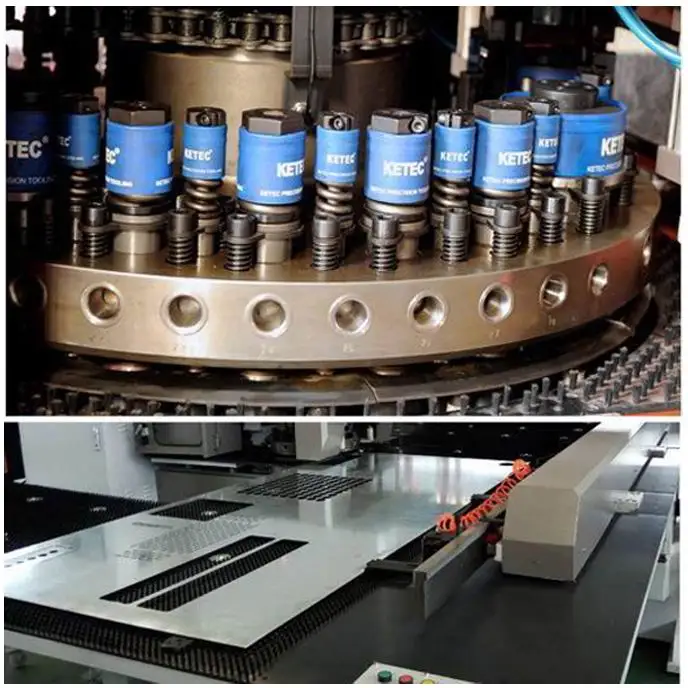

Punching stations	set	32 (Thick turret length-oriented international general mold)
Rotating station	B/C	1B, 1C
Control axis	set	5
Turret speed	Hpm	30
Dimension	mm	5300x5100x2200
Station layout		A, B, C, D (2 rotating stations)

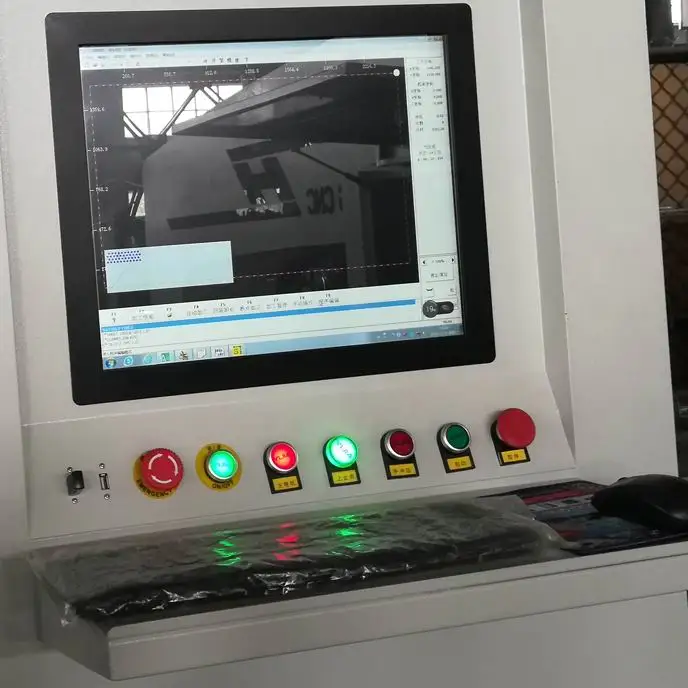

CNC system

Professional punching machine CNC control system is the latest professional industry control system, machine running reliability is improved highly.

8-1, System characteristics

8-1-1, CNC turret punch press professional system with drawing and step punching function.

8-1-2, Simple international using G code programming, operating conveniently.

8-1-3, Computer control directly, make CAD drawing directly.

8-1-4, Equipped with the most advanced digital AC servo motor and servo system.

8-1-5, Site programming, background programming.

8-1-6, Chinese and English language.

8-1-7, Key of operating panel can be defined according requirement, satisfy with client personalized design.

8-1-8, Using high speed serial data cable, less connecting cable.

8-1-9, High integration, using professional software. Less starting time, no data losing if there is sudden power off.

8-2, System Function

8-2-1, Linear axis: X and Y

8-2-2, Alarming display for many mechanical and electrical fault like over moving stroke.

8-2-3, With self-diagnose function.

8-2-4, With soft location limiting function.

8-2-5, With international using G code programming.

8-2-6, With punching mold compensation function.

8-2-7, With pitch compensation function.

8-2-8, With opposite gap compensation function.

8-2-9, With coordinate offset function.

8-2-10, With location reset function.

8-2-11, With automatic, manual and semi-automatic method.

8-2-12, With inner store locked function.

8-2-13, With parameter editing function.

8-2-14, With subprogram store and recalling function.

8-2-15, With fact locating and punching locked function.

8-2-16, With single step punching function.

8-2-17, With all kinds of M function.

8-2-18, With absolute and increasing program.

8-2-19, With jumping function in normal and abnormal situation.

8-2-20, With punching mold anti-hitting function.

8-2-21, With plate anti-hitting function.

Our service

1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our  machine, let you take the biggest profit through using our  machine.

2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.

3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.

4, our quality assurance: all our  machine using life.

Getting Local office support, please contact with our company:

Shandong Darling Machinery Equipment Co., Ltd. Add: Shacun Industry Park, Licheng District, Jinan City, China. Contact person: Martin Hoo +86-15253156158 (WhatsApp) Skype/Wechat: martinhoo936 QQ: 613252158  Website: www.darlingmachinery.com

We will be the best partner



Although we live in different countries, our hearts are always together. We don’t only sell machine, we also sell service, technology and brand. One time cooperation, be friend forever!



Our cooperation is Double win results.



® Our aim is:

Through using our machine, you can make better product and earn more money !



FAQ:

1, are you manufacture or trading company?

we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.

2, how about your quality ?

we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.

3, what about your after sales service ?

we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.

4, why  do we must choose you as our supplier ?

customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let  you to cooperate with us safely.
