BW-160/10 Mud Pump:
BW-160/10 triplex mud pump is one of the primarily utilized equipment for geological prospecting. During core drilling, this triplex reciprocating pump provides the drilling hole with enough slurry or cleaning water and makes it circulate in the drilling hole to carry the debris up to the earth surface, so as to clean the bottom of the drilling hole as well as cool and lubricate the drilling tools. In this way, the wall of the drilling hole can be protected and the drilling working will be faster. The performance of mud-pump directly affects the efficiency of drilling and safety in production, so users must read the user’s guide before utilizing the pump.
BW160/10 three piston mud pump is a new member of our portable mud pump family. It is a horizontal single acting triplex reciprocating piston pump. This triplex mud pump is small and light, and it enjoys long service life, simple operation and reliable performance. Additionally, it is equipped with a number of interchangeable parts and standard parts to facilitate assembly and repair. This triplex reciprocating pump is extensively applied to geological and engineering prospecting within a hole depth of 1,000m in industries like railway, water conservancy, metallurgy, building, geology, etc.
BW-160/10 triplex mud pump is one of the primarily utilized equipment for geological prospecting. During core drilling, this triplex reciprocating pump provides the drilling hole with enough slurry or cleaning water and makes it circulate in the drilling hole to carry the debris up to the earth surface, so as to clean the bottom of the drilling hole as well as cool and lubricate the drilling tools. In this way, the wall of the drilling hole can be protected and the drilling working will be faster. The performance of mud-pump directly affects the efficiency of drilling and safety in production, so users must read the user’s guide before utilizing the pump.
BW160/10 three piston mud pump is a new member of our portable mud pump family. It is a horizontal single acting triplex reciprocating piston pump. This triplex mud pump is small and light, and it enjoys long service life, simple operation and reliable performance. Additionally, it is equipped with a number of interchangeable parts and standard parts to facilitate assembly and repair. This triplex reciprocating pump is extensively applied to geological and engineering prospecting within a hole depth of 1,000m in industries like railway, water conservancy, metallurgy, building, geology, etc.
Technical Parameters
| Model number | BW-160/10 |
| Type | horizontal, triplex. single acting reciprocation piston pump |
| Stroke(mm) | 70 |
| Dia. of piston(mm) | 70 |
| Pump speed(min) | 200 132 83 55 |
| Output volume(1/min) | 160 107 67 44 |
| Pressure(Mpa) | 2.5 4 6.5 10 |
| Volumetric efficiency(%) | 95 |
| Overall efficiency(%) | 75 |
| Input hose diameter(mm) | 51 |
| Output hose diameter(mm) | 32 |
| Power of dynamic force(Kw) | 11 |
| Rotate speed of dynamics force(r/min) | 1460 2200 |
| Overall size(length*width*height) | 1400*860*950 |
| Mass(kg) | 325 |
BW Series Size Mud Pumps Available:
BW-120, BW-145, BW-150, BW150/1.5, BWZ-150, BW-160, BW160/10, BW-160H, BW-200, BW-250, BW-280/12, BW-280/30, BW300/12, BW-300/12B, BW-300/16, BW-320, BW-350/15, BW-450, BW-450/5, BW-600/10, BW-800/15, BW-1000/12, BW-1500/12, BW-2000/12, BW-2500/16.
Horizontal Directional Drill Series Pumps:
BW-100, BW-150GM, BWF-160/10, BWF-240, BW-250A, BWF-250, BW-320A, BWF-400/10, BWF-600/10.
Related Products

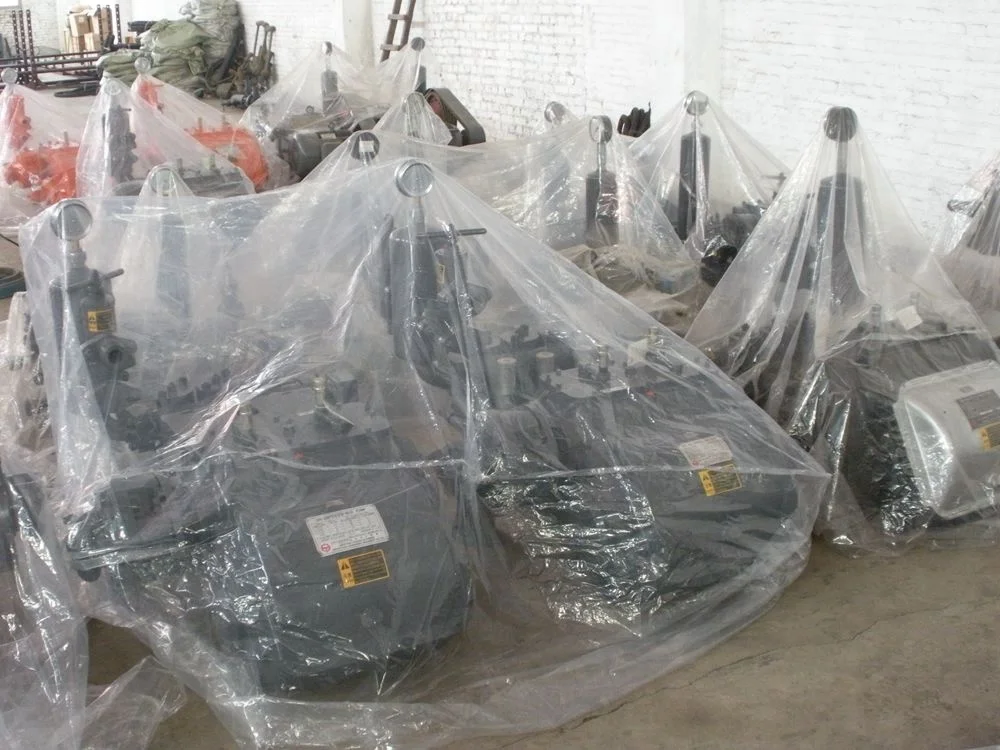

Packaging & Shipping
