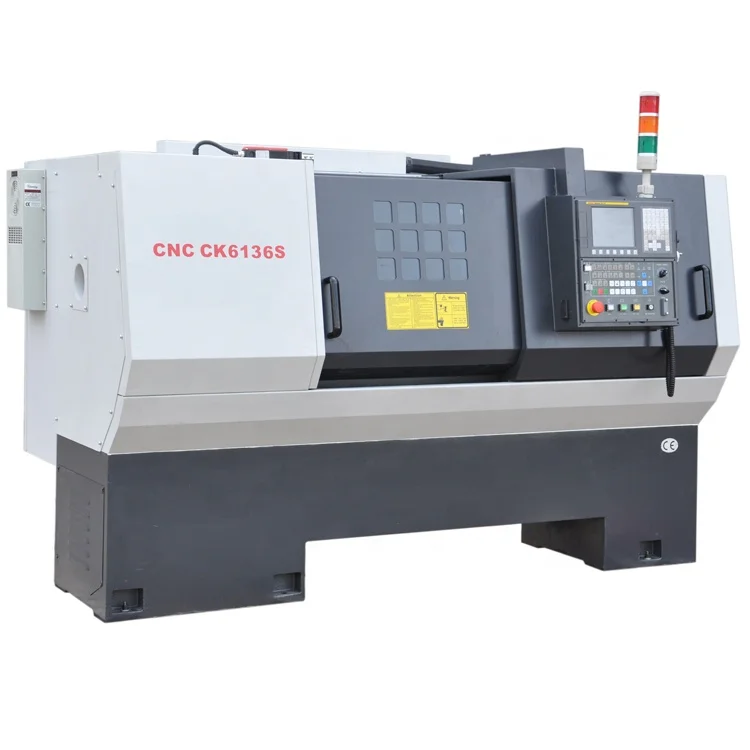

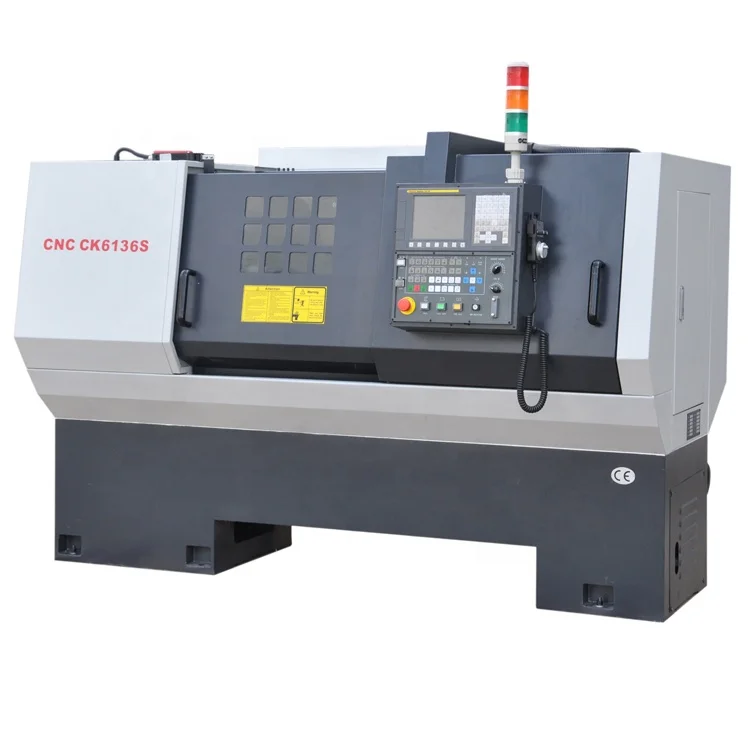

turkey cnc lathe custom cnc lathe cnc screw machine mass production lathe
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (60796315141):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Adopting high strength, high quality cast iron made by resin sand process and aging treatments.
2. Adopting high precision rolling bearings lubricated with grease.
3. Centralized lubrication.
4. Full enclosure with safety switch and door interlock.
5. Movable control panel is convenient for operation and allows easy access.
Right elevation
Left elevation
Back elevation
PRODUCT SPECIFICATIONS
MODELS | CK6130S | CK6140S | |||
CAPACITY | |||||
Max.swing over bed | Ф300mm | Ф400mm | |||
Max.swing over carriage | Ф135mm | Ф225mm | |||
Max. length of workpiece | 500mm | 750/1000mm | |||
Max.turning length | 390mm | 700/950mm | |||
6-way turret max turning length | 340mm | 590/840mm | |||
6-way turret max turning diameter | Ф185mm | Ф300mm | |||
TRAVEL | |||||
Max.cross travel(X) | 165mm | 235mm | |||
Max.longitudinal travel(Z) | 460mm | 740/990mm | |||
FEED | |||||
Rapid feed for axis X | 8m/min | 8m/min | |||
Rapid feed for axis Z | 10m/min | 10m/min | |||
SPINDLE | |||||
Spindle nose | D4 | C6 | |||
Spindle bore | Ф38 | Ф52mm | |||
Taper bore of spindle | M.T.NO.5 | M.T.NO. 6 | |||
Steps of spindle speed (manual) | Variable | Variable | |||
Range of spindle speed | 200~3500rpm | 200~2800rpm | |||
TOOL POST | |||||
Tool post stations | 4-way | 4-way | |||
Tool cross section | 16×16mm | 20×20mm | |||
TAILSTOCK | |||||
External diameter of tailstock sleeve | Ф50mm | Ф60mm | |||
Taper bore of tailstock sleeve | M.T.NO.3 | M.T.NO.4 | |||
Max.traverl of tailstock sleeve | 130mm | 120mm | |||
OTHERS | |||||
Min. input | 0.001mm | 0.001mm | |||
Main motor power | 3kw | 3.7kw (optional: 5.5kw) | |||
Coolant pump power | 75w | 75w | |||
Overall dimensions(L×W×H) | 1500×945×1380mm | 2370×1200×1415mm | |||
Net weight | 1100kg | 1800/2000kg | |||
PRODUCT CONFIGURATION

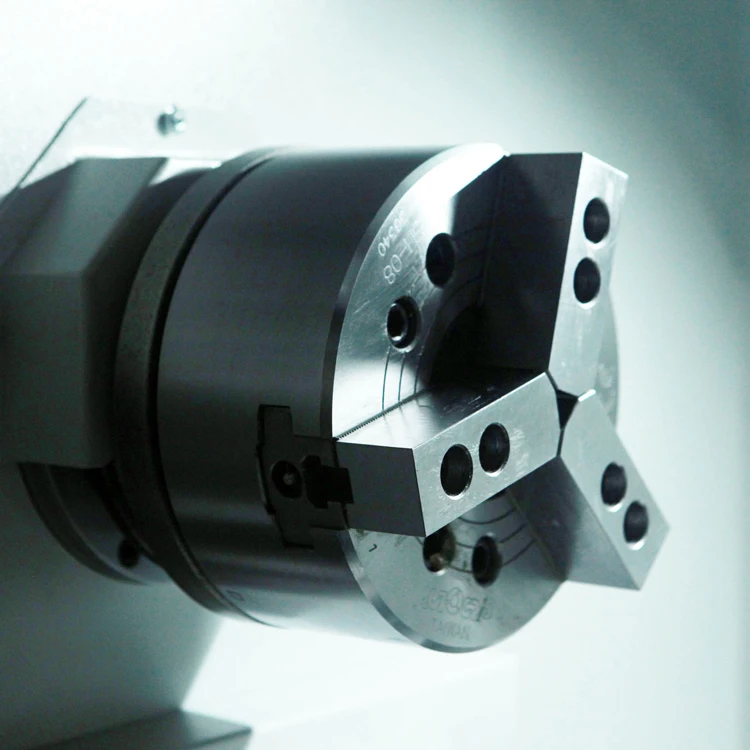

3-jaw manual chuck or Taiwan hydraulic chuck is optional.

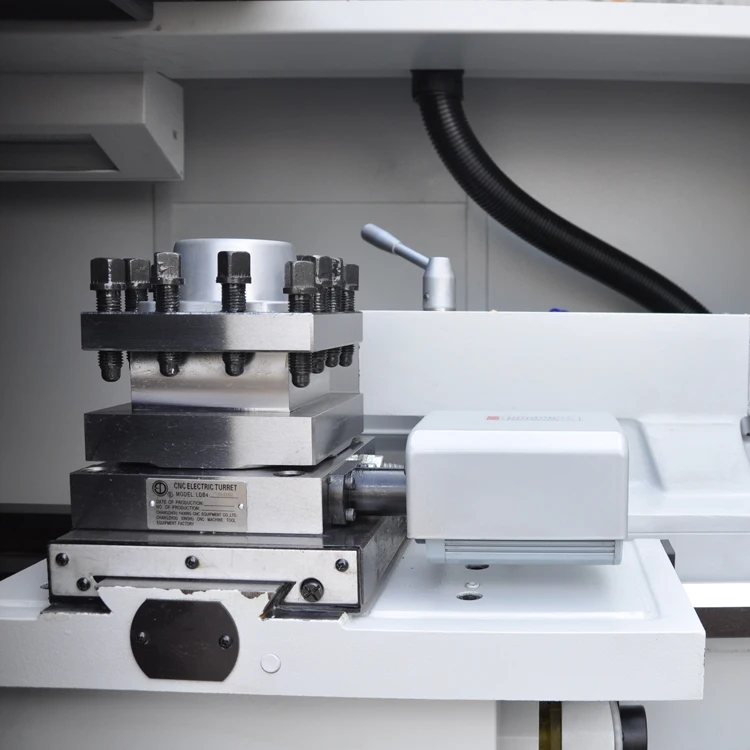

4-station/6-station/8-station turret are optional.
Manual tailstock or hydraulic tailstock is optional.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto chip conveyor is optional.
Auto bar feeder is optional.
