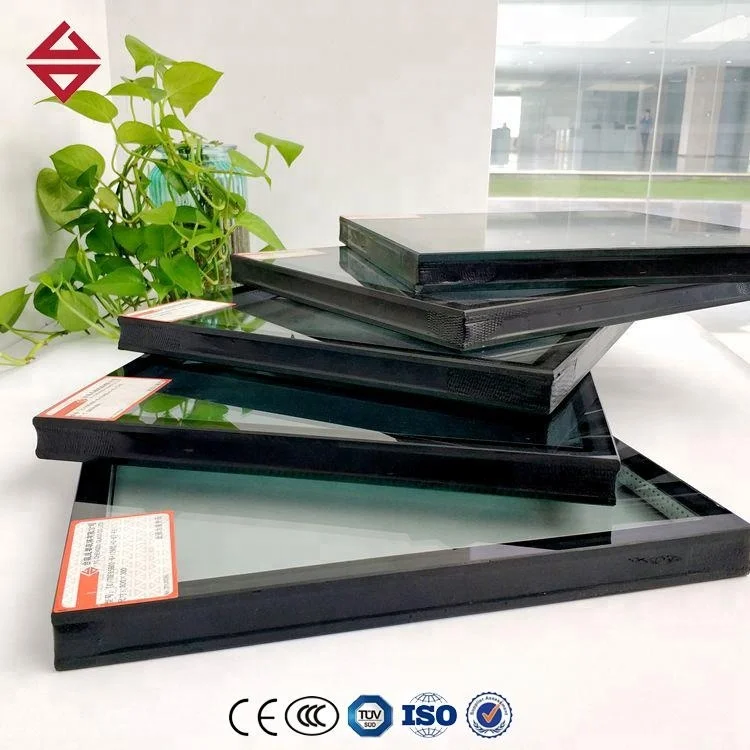

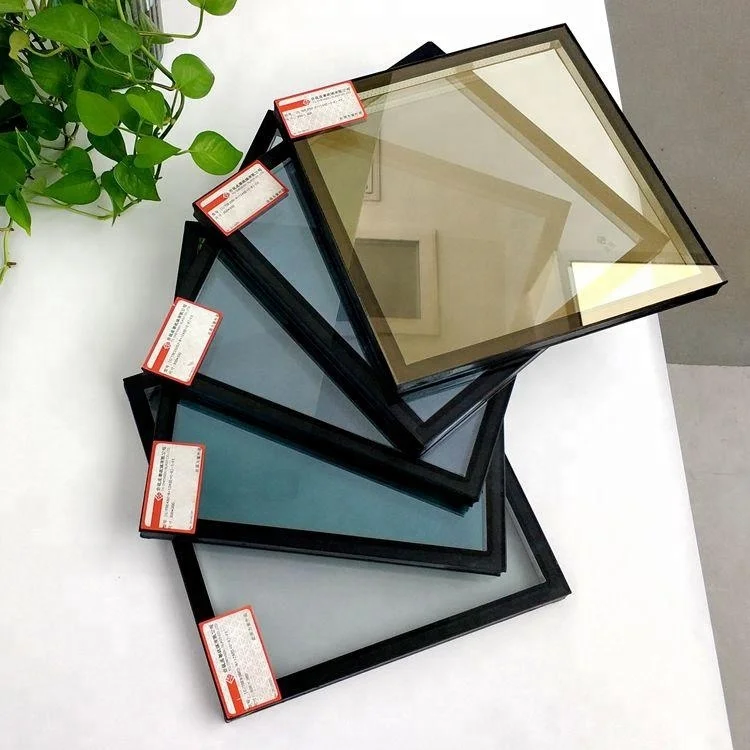

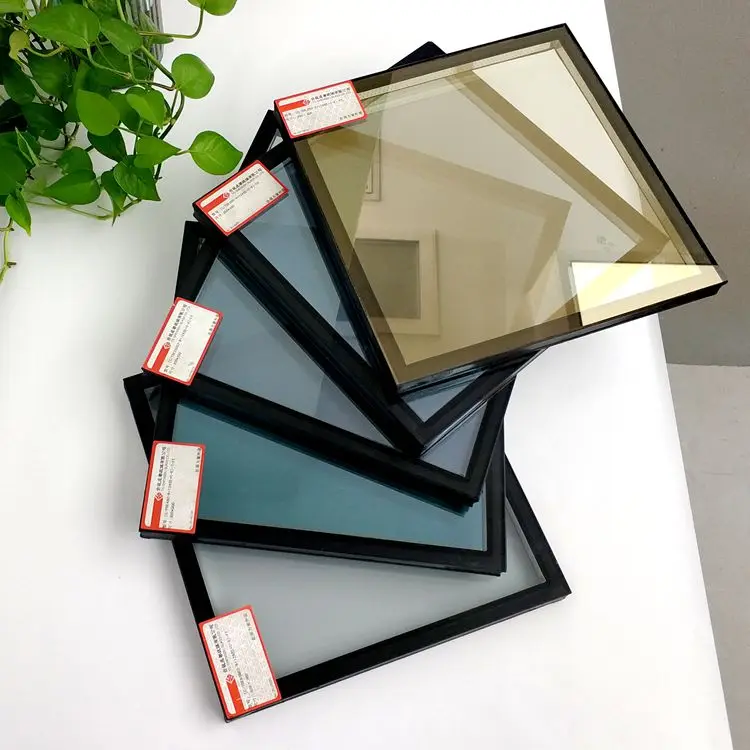

3MM 4MM 5MM 6MM 8MM 10MM 12MM 15MM 19MM ENERGY SAVING LOW-E COATING GLASS PRICE
| Product Name | 3 mm to 19 mm Energy Saving Low-e Coating Glass Price |
| Types of Product | Single Low-E Glass (SLE) Double Low-E Glass (TDE) Triple Low-E Glass (TTE) Low-E-SUN Layer Glass (LES) Post-temperable Low-E (PLE) Post-temperable Double Low-E Glass (PDE) Post-temperable Triple Low-E Glass (PTE) |
| Regular Size | 1650*2200 mm, 1650*2440 mm, 1830*2440 mm, 2134*3660 mm, 2200*3300 mm, 2440*3000 mm, 2440*3050 mm. 2440*3300 mm, 2440*3660 mm or we can produce according to customer's requirement. |
| Thickness | 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm |

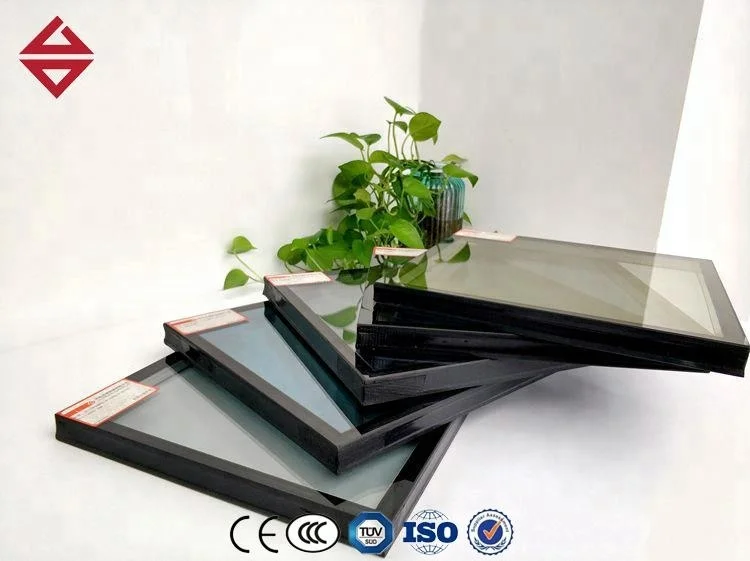

| Insulating Glass Thickness | 4mm+6A+4mm ~ 15mm+24A+15mm |
| Payment Terms | L/C or T/T |
| Capacity | 95000 Square Meter/Day |
| Packing | In plywood crates with paper interleaving. (No need to fumigation.) The inner layer have an plastic paper packaging to isolated with air. |
Production Time | In 4 weeks after order confirmation. |

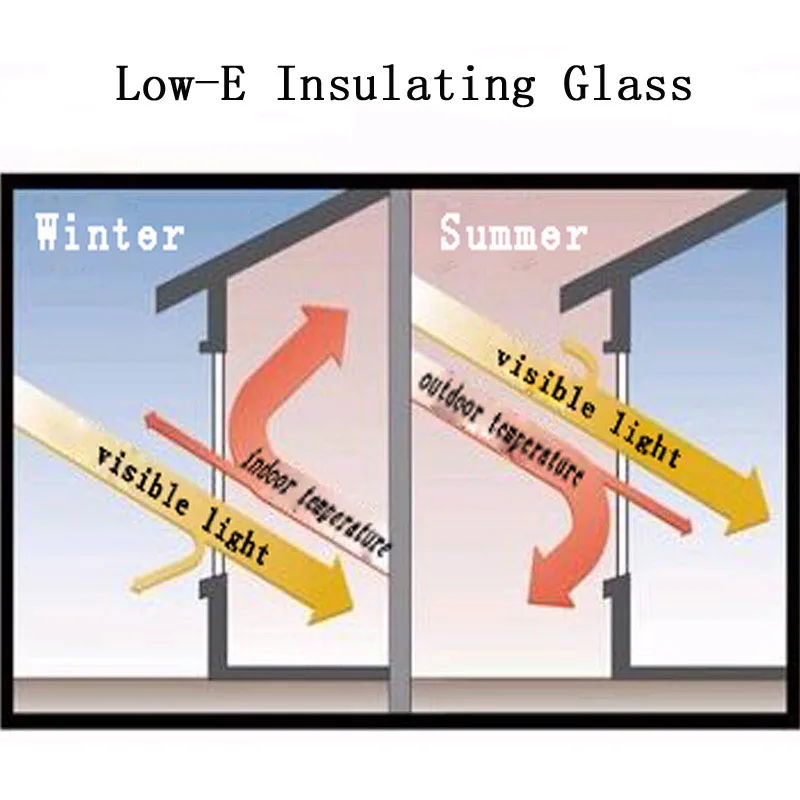

Benefits
n Approaches the natural color of glass.
n Highly transparent to visible light (wavelength 380 nm-780 nm), will not produce significant glare problems caused by high reflectance of visible light.
n Allows most sunlight in the visible range to enter without altering its natural color. Provides excellent natural illumination and saves energy by reducing the need for artificial lighting.
n Relatively high reflectance of infrared radiation (wavelength 780 nm-3000nm). In particular, reflects nearly all long-wave infrared (wavelength greater than 3000nm). Blocks the entrance of large amounts of heat, and leaves interior comfortably cool in summer and warm in winter.
Design And Construction Considerations
n Because Low-E metal coating is likely to cause adverse reactions when exposed to the atmosphere, so it must be sealed or processed into insulating glass in a very short time. Not recommend to use it in a single piece.
n The emissivity of Low-E glass is 0.02-0.15, and the generally emissivity of uncoated glass is 0.84.
n The design of the metal frame should be well drained to prevent the glass from deterioration and Fog due to the accumulation of water.
n Do not apply thermal insulation paper on the surface of Low-E insulating glass to avoid thermal split phenomenon.
n To identify the Low-E coating surface, in addition to our company will have a mark on the Low-E glass; check the Low-E glass, you can use a cigarette lighter to inspect the coating position, the flame reflected on the ordinary glass surface is yellow, and the flame reflected on the Low-E glass coating surface is pink or blue, which makes it easy to find out the position of the coating, to avoid erroneous installation and affect the insulation effect.
n When using at altitudes above 1000 meters highlands, due to the necessity of internal pressure adjustment, please contact our company for case discussions beforehand.
Advantages
1. We owns two large-scale low-e glass production lines that are rare in China and provides low-e glass panels for many other manufacturers. Factory outlets, prices are more competitive.
2. We introduced state-of-the-art vacuum sputtering coating equipment and technology from USA's Appiled Films Group and Germany's Von Ardenne.
3. We have a special technical team, were able to recommend the appropriate color to our customers according to the technical parameters needs of customers.
4. If the demand is large, the new technical parameters can be customized according to the customer's special needs.

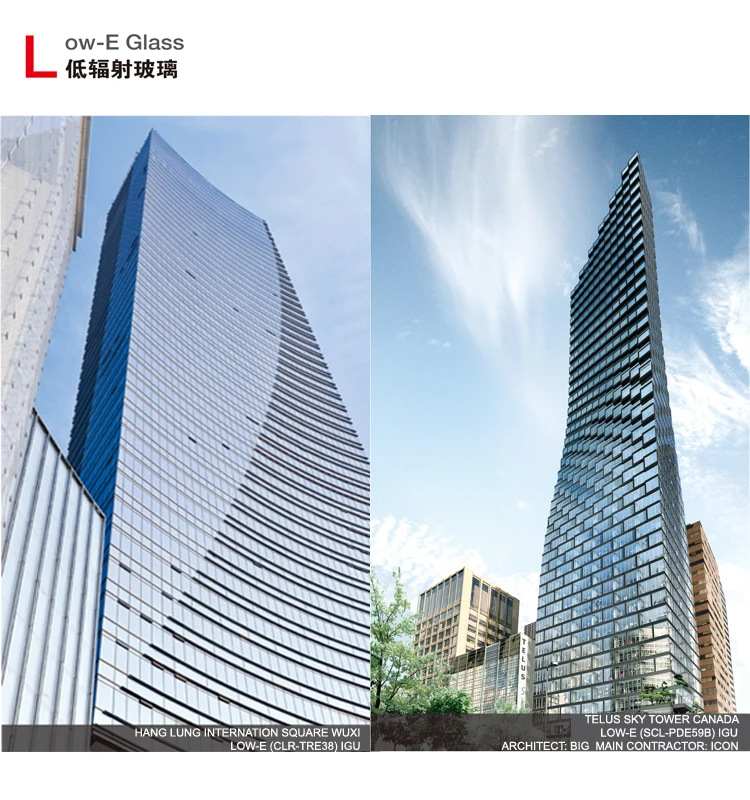

Project Display

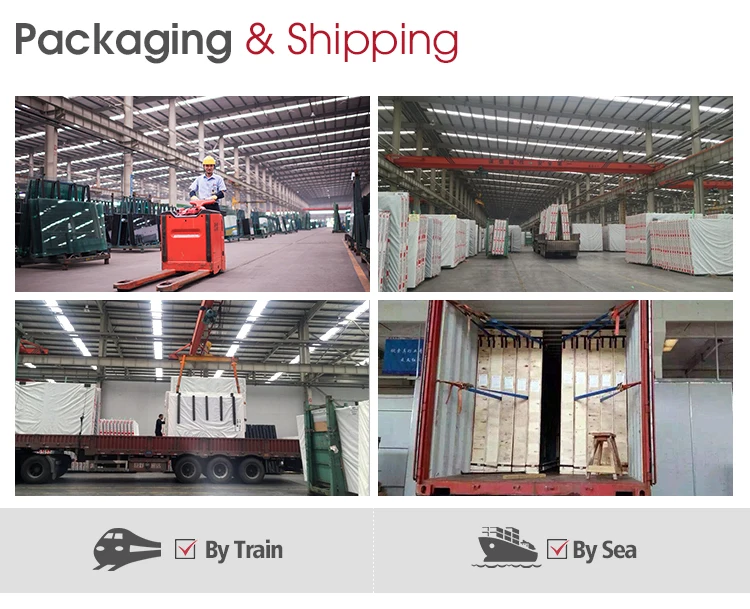

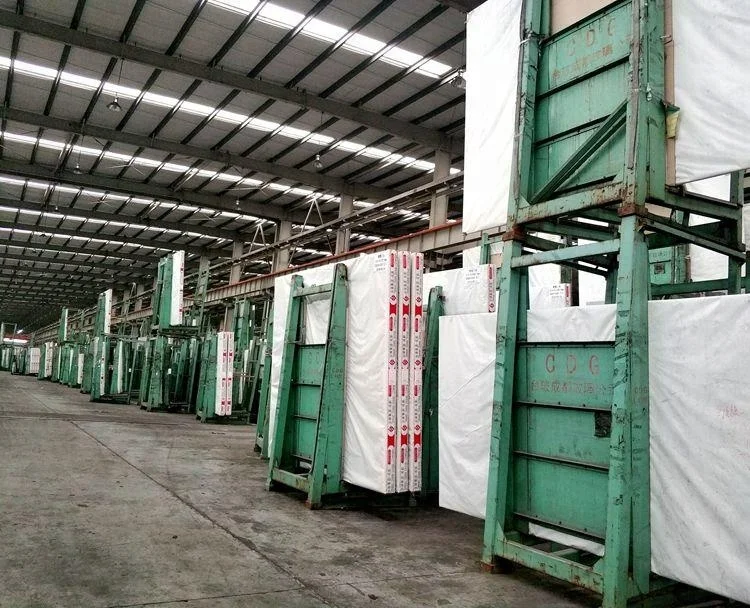

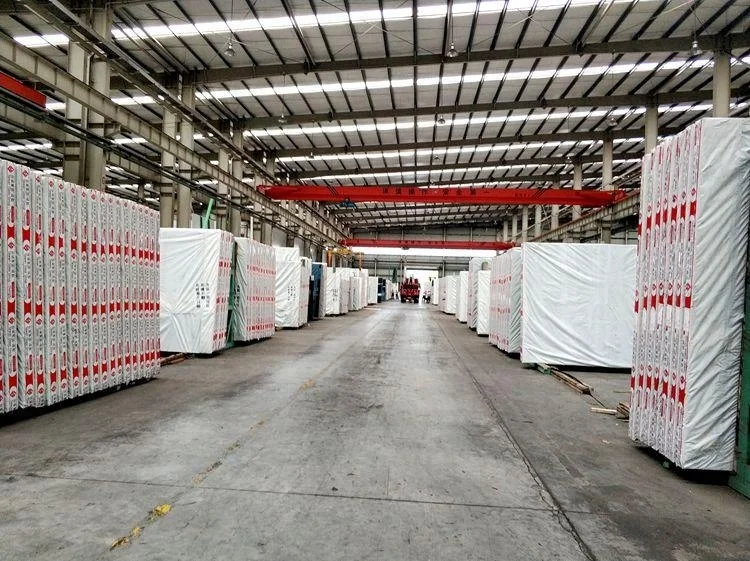

Packaging&Shipping
Why Choose Us
Industry leader
Taiwan Glass Group is a leading position in the glass industry. All product quality control is higher than the national standard.
cost-effective
Our factory has two large float glass production line and Low-e coated glass production line, large batch production and domestic sale to the domestic and small factories, so our factory can carry out high quality glass and the price is more favorable.
Professional team
At present, our factory has more advanced production technology and professional technical team in China, which can satisfy customers' needs to the greatest extent.

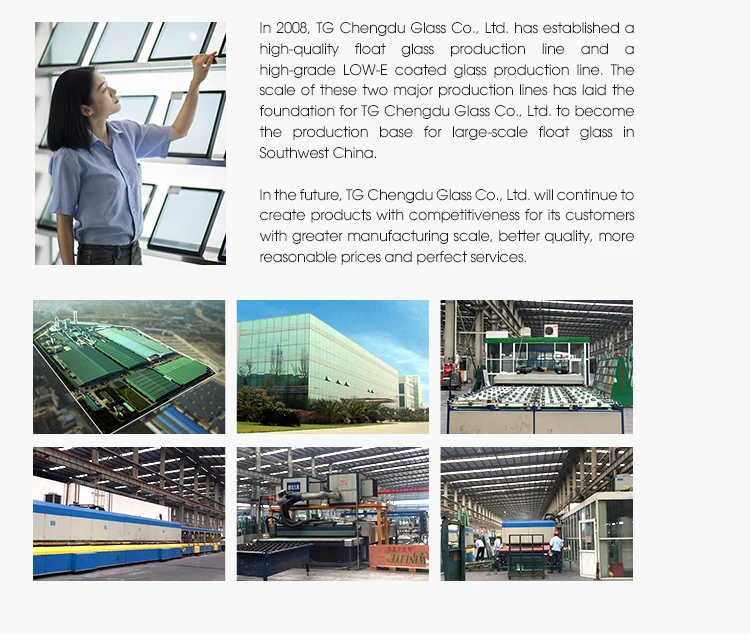

About Us
FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer based in Chengdu city.
Q: Can i get samples before my order ?
A: Free samples are available, freight charge is to customer’s account.
Q: How long it will be to get samples?
A: 7-10 days for general products, 15-25 days for customized products.
Q: What is the delivery time if i place my order ?
A: 7-15 days for general products, 15-25 days for customized products.
Q: What is the MOQ ?
A: The MOQ of Low-E Glass and Float Glass is one 20 feet container (25 Tons). The MOQ of Deep Processing Glass is 200 square meter. Products of different sizes and specifications could be mixed in one container.
Q: Can I get a lower price if I order large quantities?
A: Yes, prices can be discounted with bigger order quantities.
Q: What’s the transportation way?
A: By sea or railway.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, so we could produce the glass depends on your requirements.
