Биоразлагаемый Ланч бокс/тарелка/Термоформовочная Машина для рисовой шелухи
- Category: Plastic Vacuum Forming Machines >>>
- Supplier: Fujian Baochuang Machinery Industry Co. Ltd.
Share on (60796460028):
Product Overview
Description

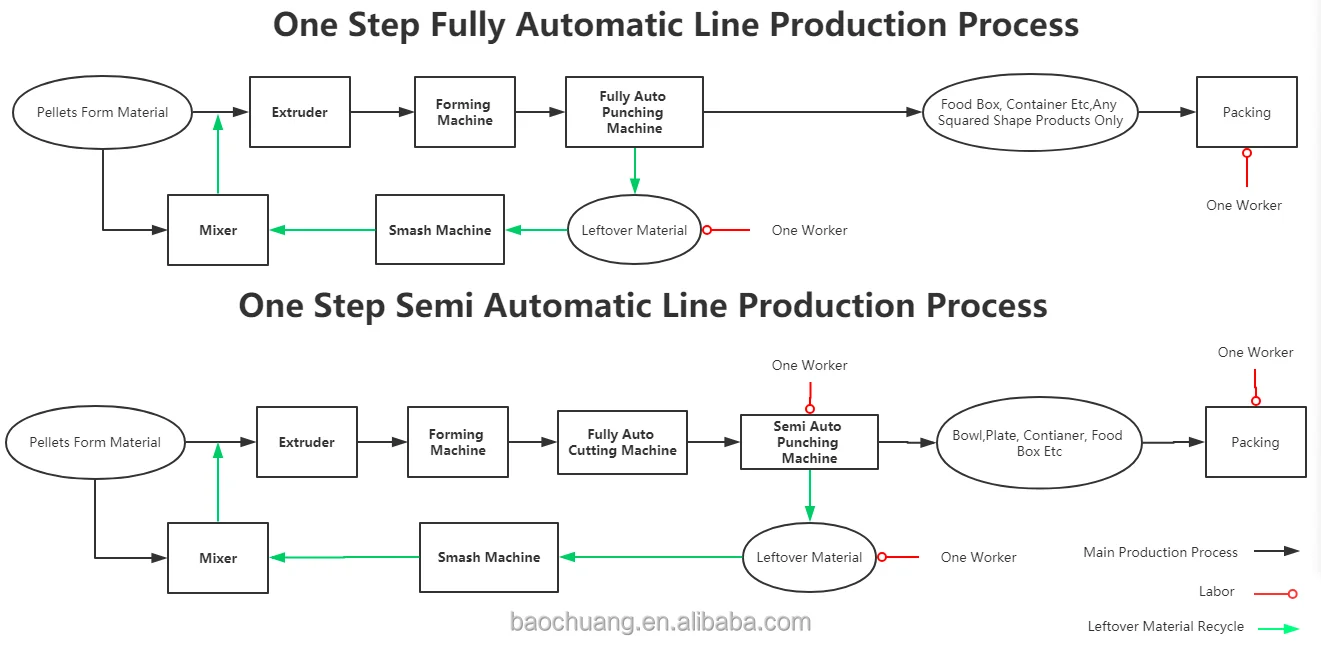

Machine Description
The main advantages of Machine Line
1. Low machinery investment: Total production line investment is about:USD30000-USD48000 with all the equipment that clients require to produce products, and one set of customized mold included.
3. By changing mold, One machine line is able to produce lunch box, burger box, food container, market tray, plate, bowl etc.
4.The weight of products can be easily controlled by adjusting sheet thickness.
5.By using PLA/PBAT, or PP with photo-biodegradable agent, the products is 100%
6. Save Labor: one machine line requires only 1-2 workers to operate.
7. Output Capacity is large: The output capacity of regular size lunch box is 4000-4500/hour.
8. Energy saving: about 30-40 degree consumption per hour.
2. Machine line uses variety of material: PP with calcium carbonate, plant fiber, starch, PLA, PBAT etc.
3. By changing mold, One machine line is able to produce lunch box, burger box, food container, market tray, plate, bowl etc.
4.The weight of products can be easily controlled by adjusting sheet thickness.
5.By using PLA/PBAT, or PP with photo-biodegradable agent, the products is 100%
biodegradable. What is more, the formula of making biodegradable products comes with machine line for free.The certificated degradation rate reaches 80% in 28 days.
6. Save Labor: one machine line requires only 1-2 workers to operate.
7. Output Capacity is large: The output capacity of regular size lunch box is 4000-4500/hour.
8. Energy saving: about 30-40 degree consumption per hour.
Manufacturing Technique | ||||||||||
90Main Screw | 90mm | Power of main motor | 37KW | Pumping speed of vacuum pump | 70m3/h | |||||
Length-to-diametre ratio of main screw | 1:36mm | Power of sucking plastic and shaping section | 1.5KW | Pressure of air source | 0.5~0.7mpa | |||||
Screw rotation speed | 10~80r/min | Max shaping area | 600mm×260mm | Power supply | 380V50HZ | |||||
Heating system | 65A | Max shaping depth | 80mm | Weight of complete unit | 6T | |||||
Extrusion output | 120kg/h | Working speed | 25-32s/min | Machine size(mm) | 7000*1200*2000 | |||||
Hourly Output Capacity | ||||||

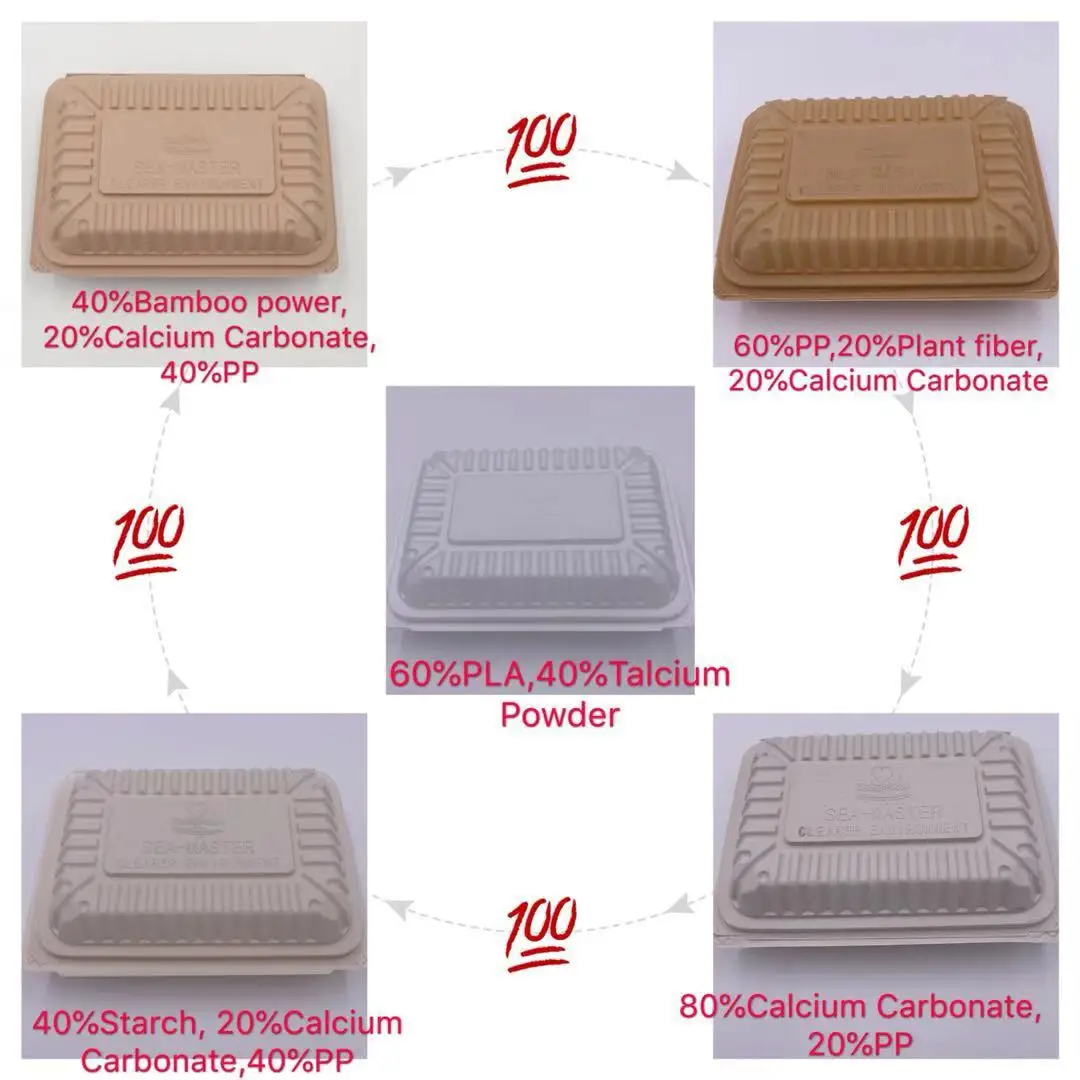

Plate Size(mm) | 40%Starch, 40%PP, 20% Calcium Carbonate | 40%PP, 60% Calcium Carbonate | 60%PLA， 40% Talcium | |||
240*240*90 | 1600-1800 | 1800-2000 | 2000-2200 | |||
200*140*70 | 2400-2600 | 2600-2800 | 3400-3600 | |||
150*150*80 | 1800-2000 | 2000-2200 | 2200-2400 | |||
220*120*80 | 2400-2600 | 2600-2800 | 3400-3600 | |||

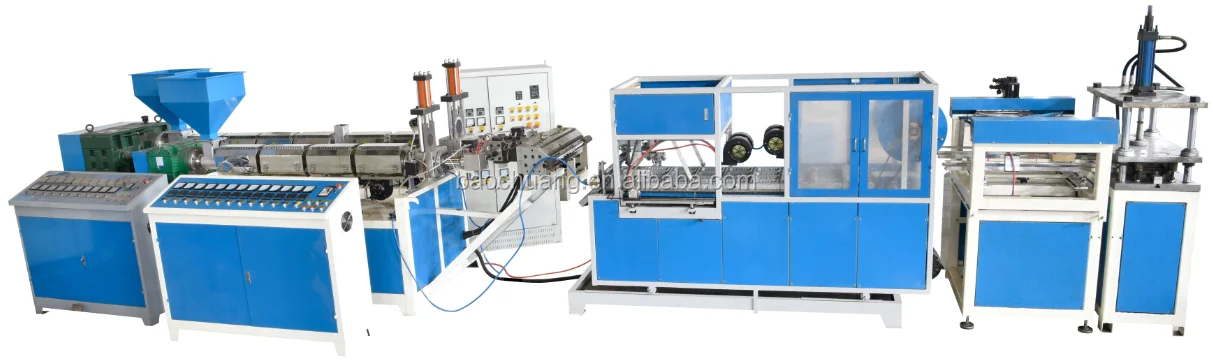

Machine Details
90 Sheet Extruder | ||
Length-to-diametre ratio of screw | 1:32 | |
Screw rotation speed | 10~80r/min | |
Extrusion output | 120-140kg/h | |
Power of main motor | 37KW | |
Sheet Extruding Head size | 950mm | |
Forming Machine | ||
Max shaping area | 650mm×350mm | |
Cooling Method | Fan Cooling | |
Output Capacity | 30-45 mold/min | |
Controller | PLC | |
Power of shaping section | 1.5kw | |
Fully Automatic Punching Machine | ||
Controller | PLC | |
Servo Motor | Two | |
Mode | Hydralic | |
Punching Speed | 30-50 time/min | |
Product Counting | Yes | |

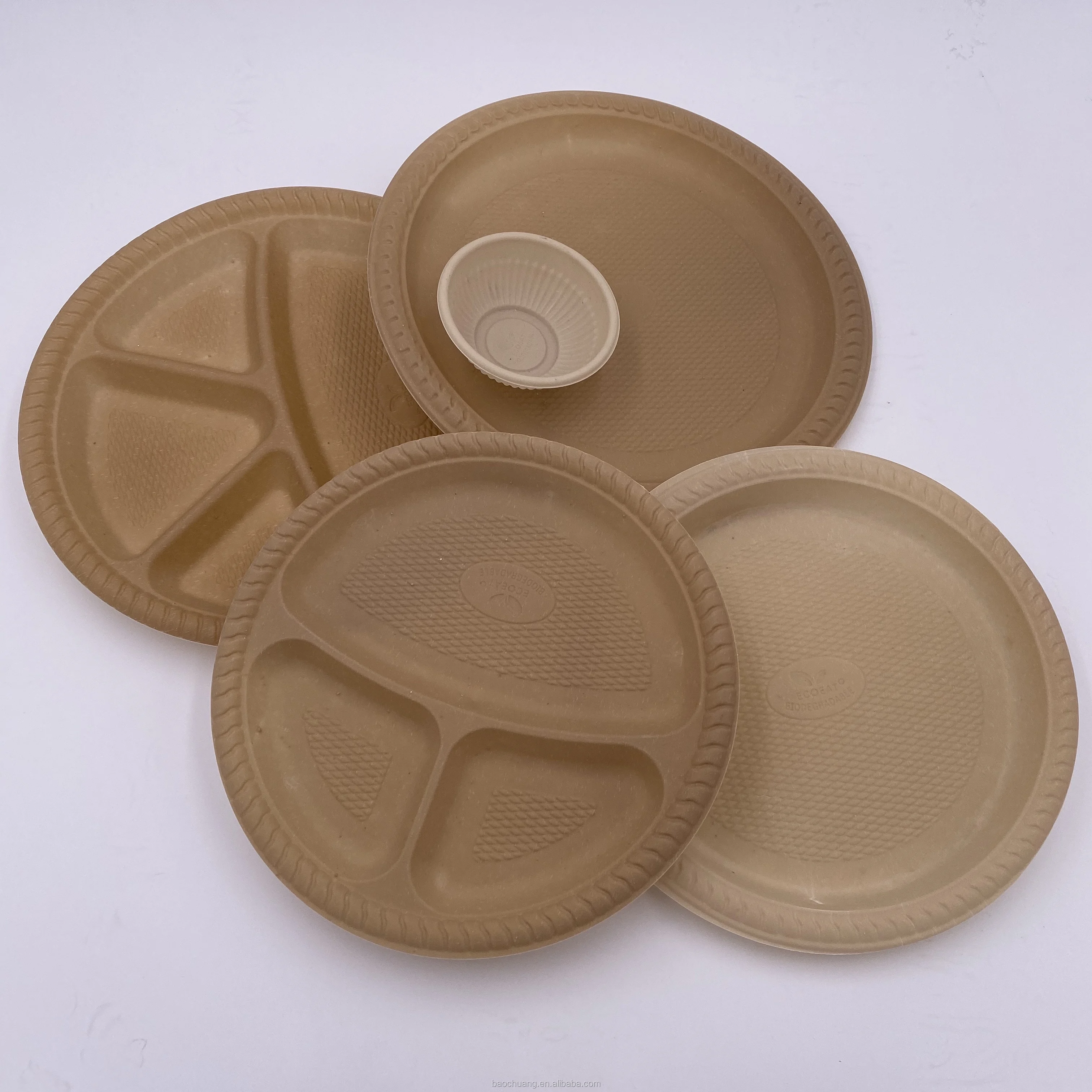

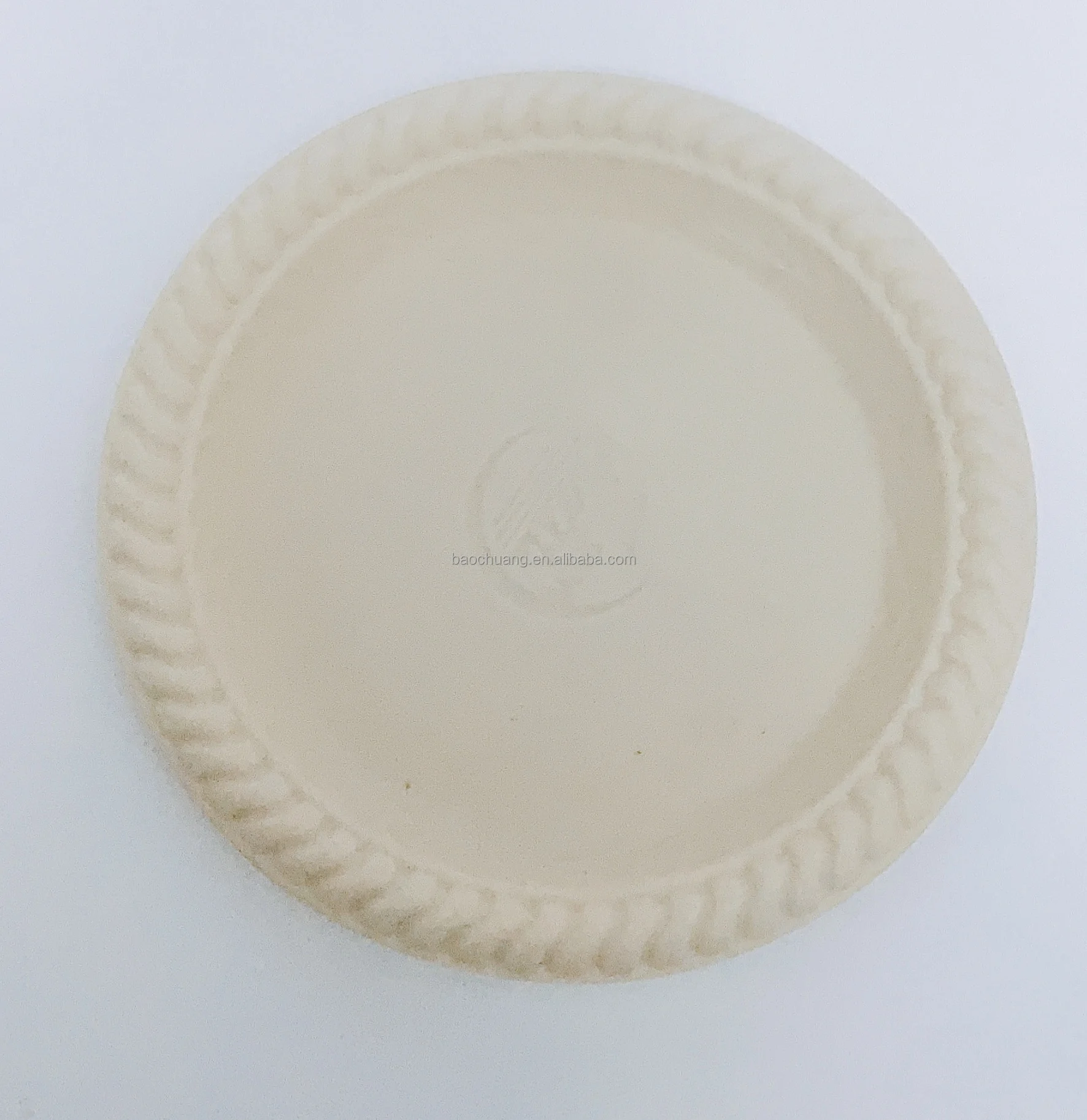

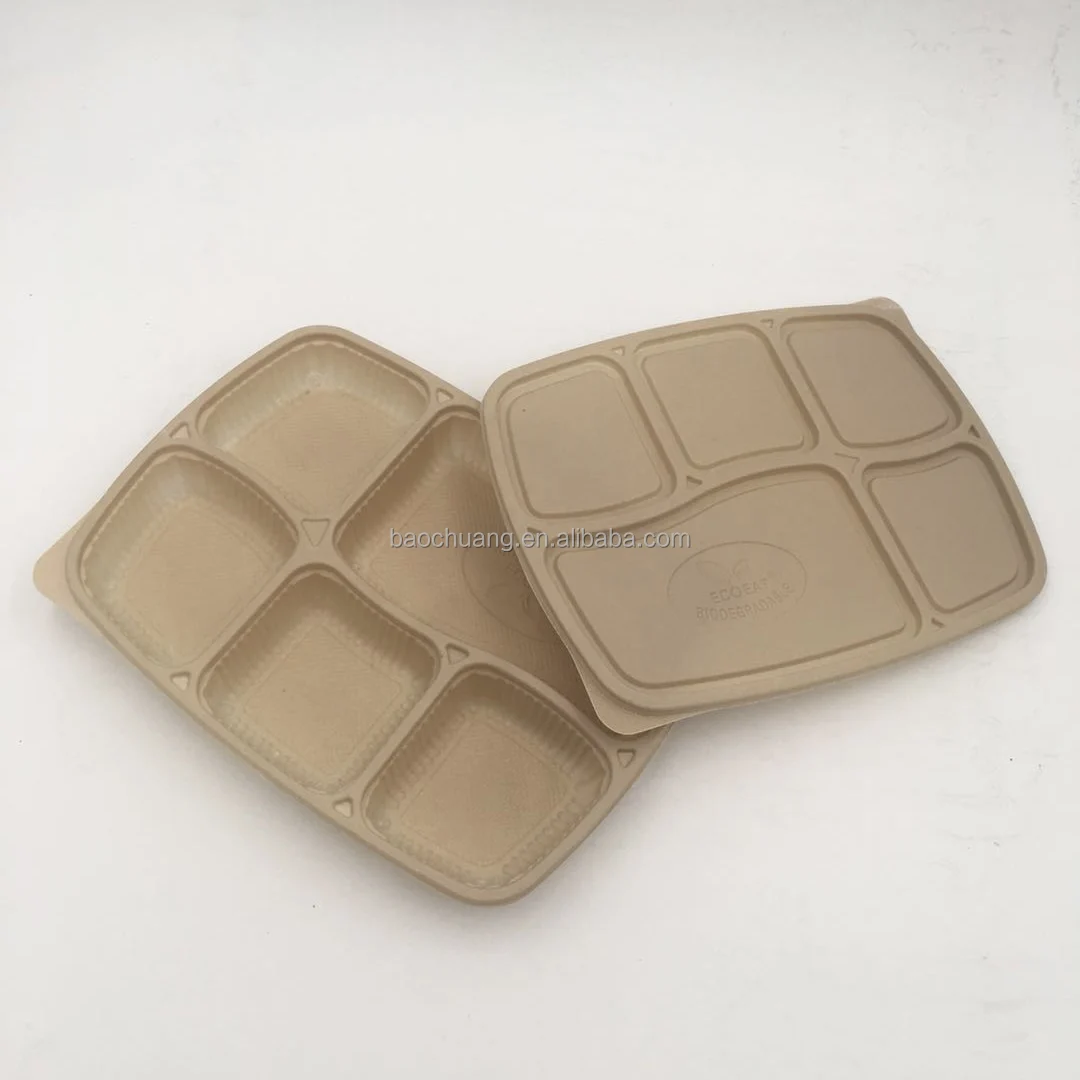

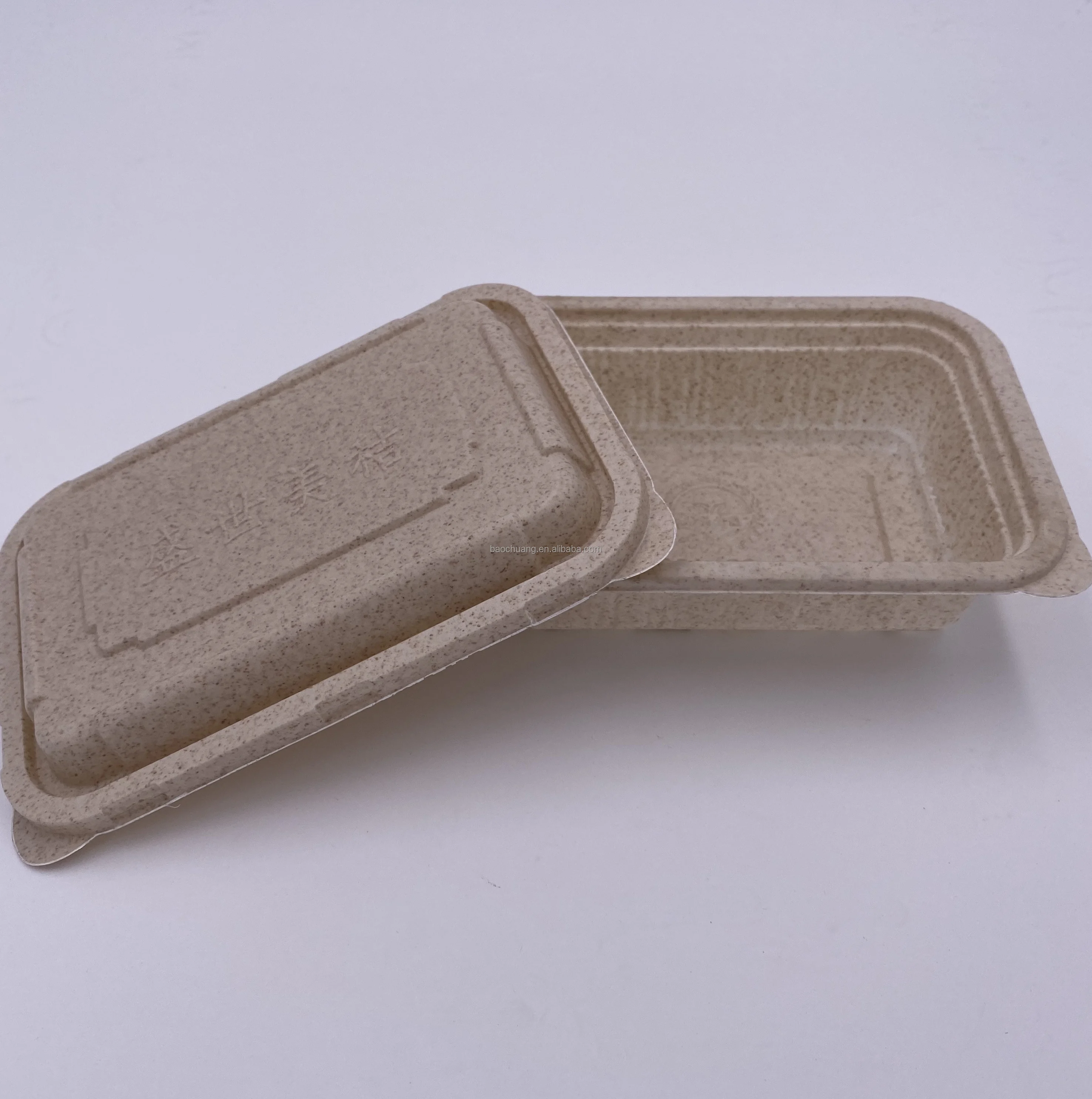

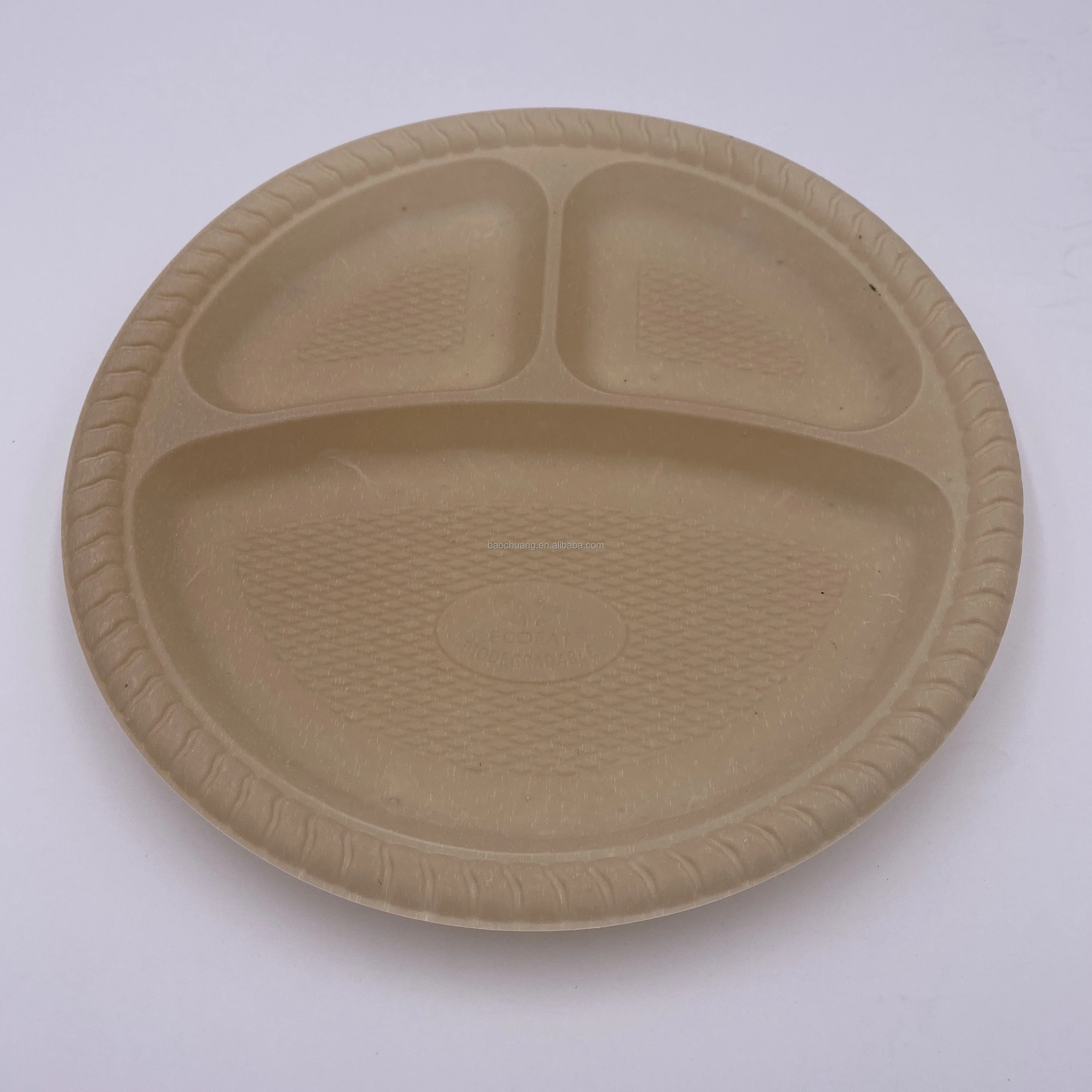

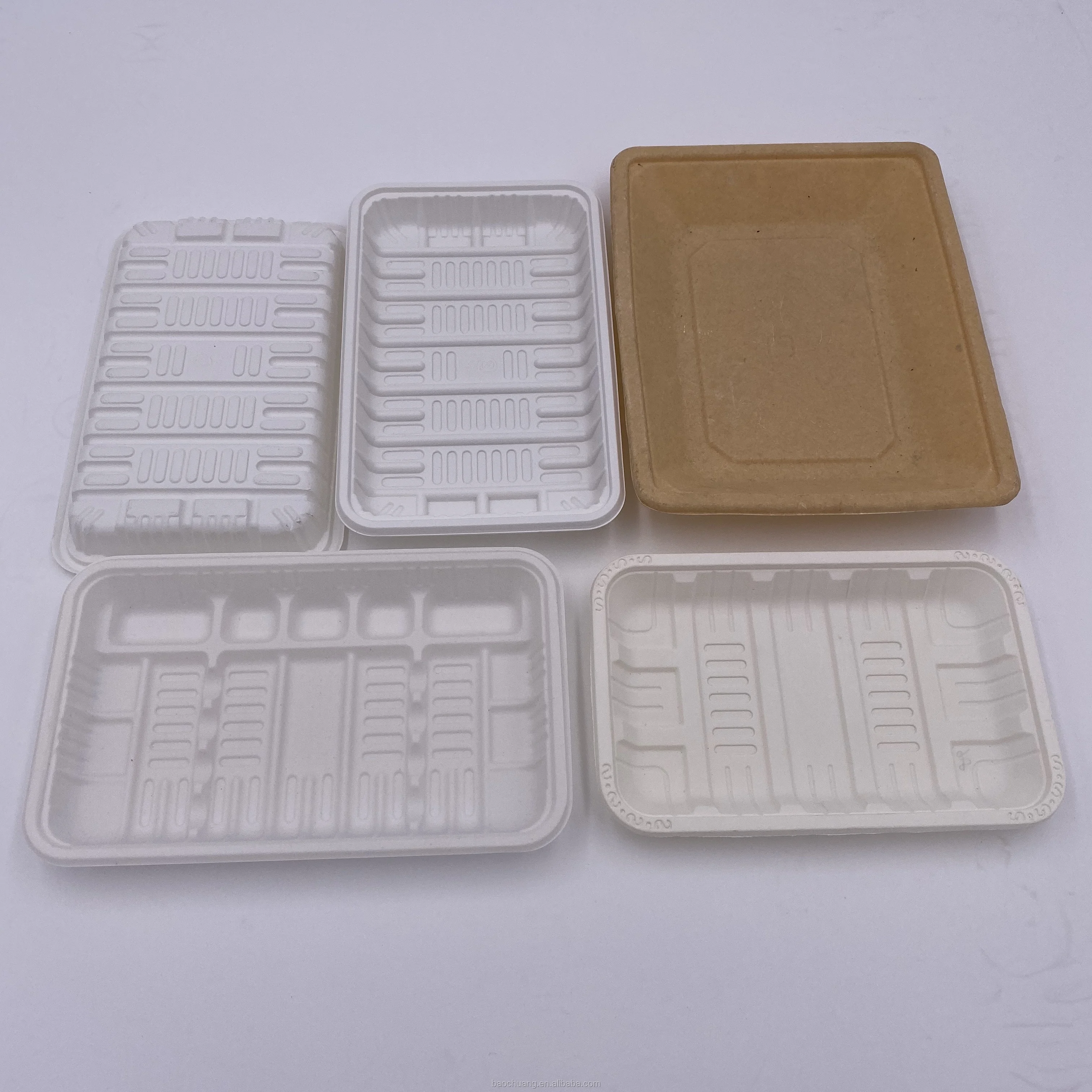

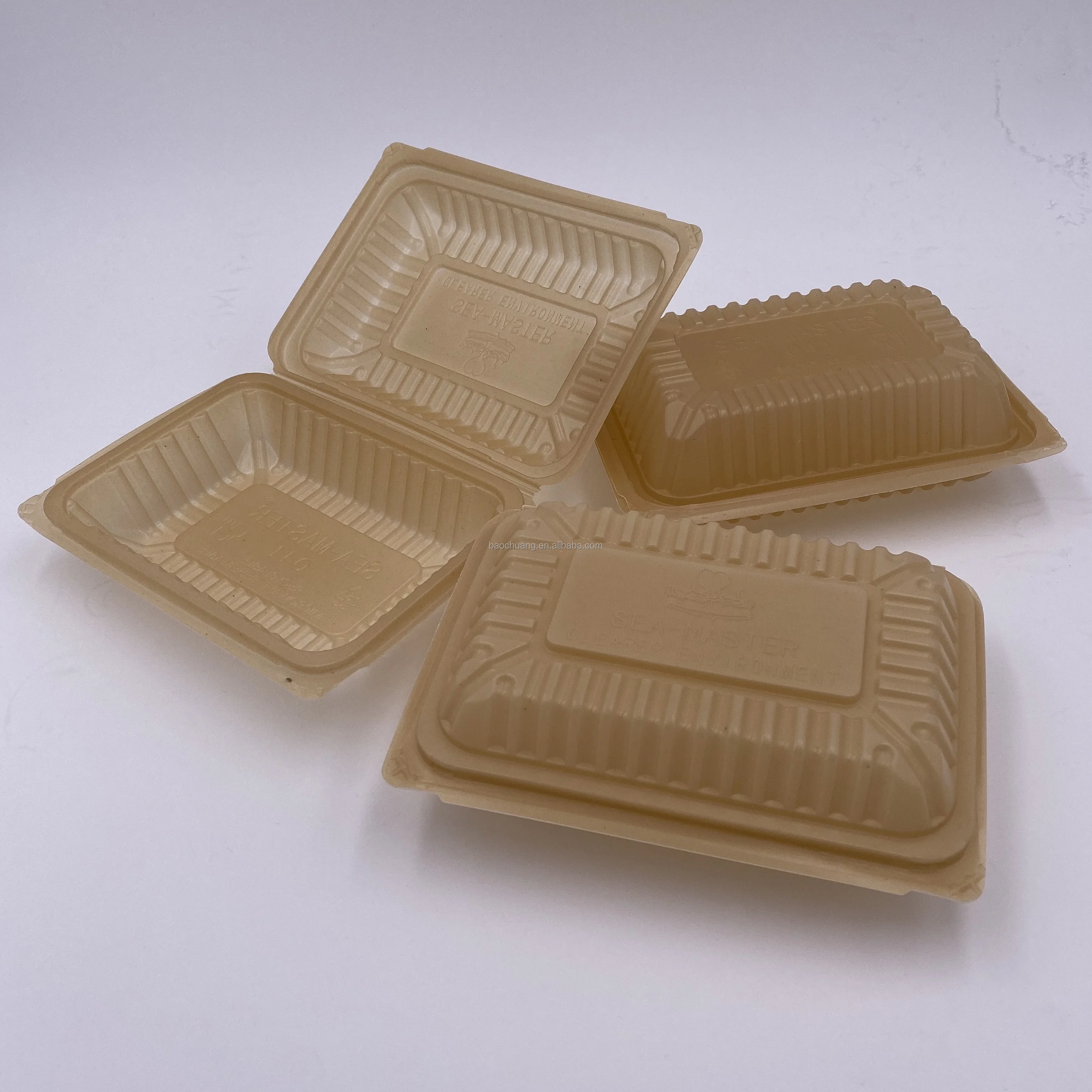

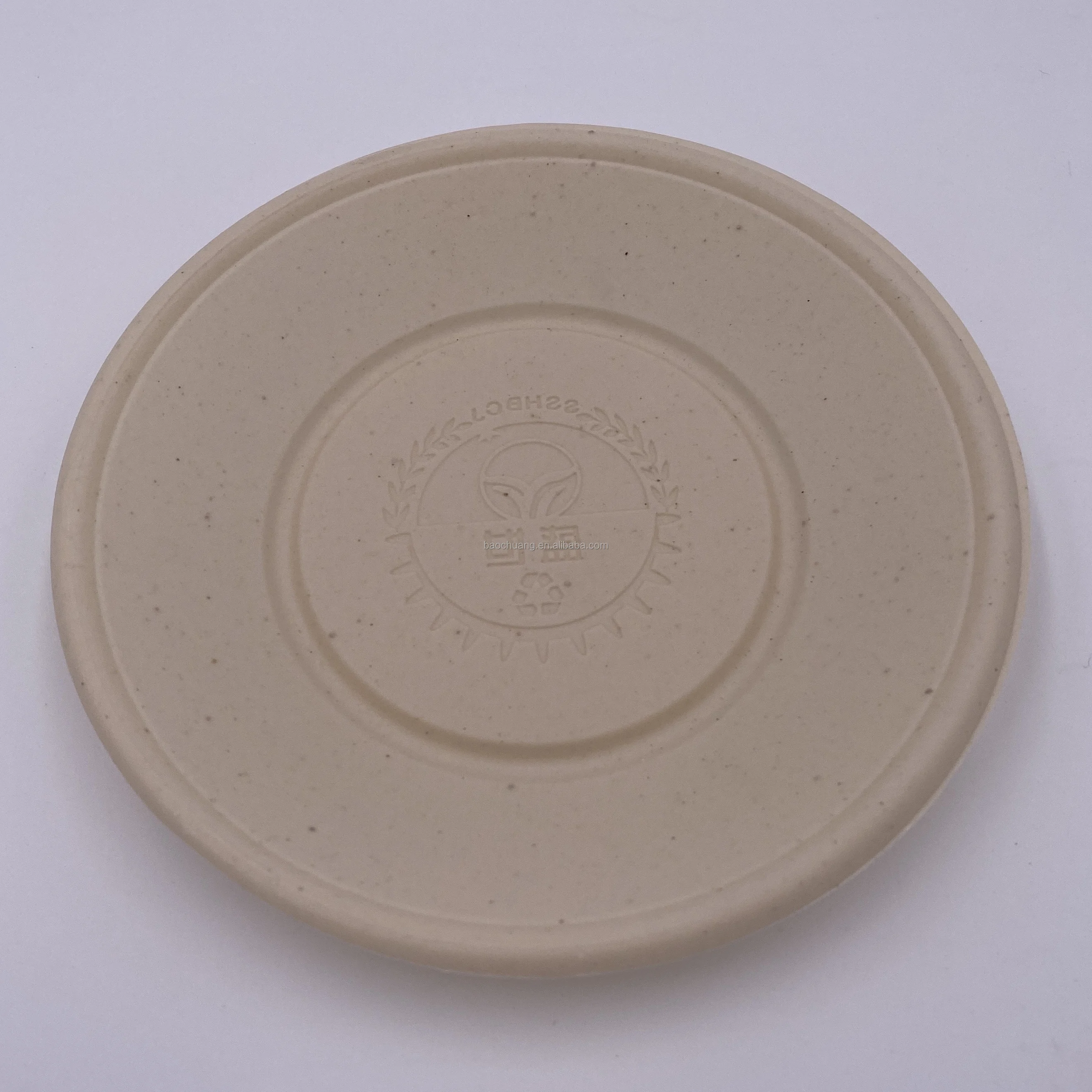

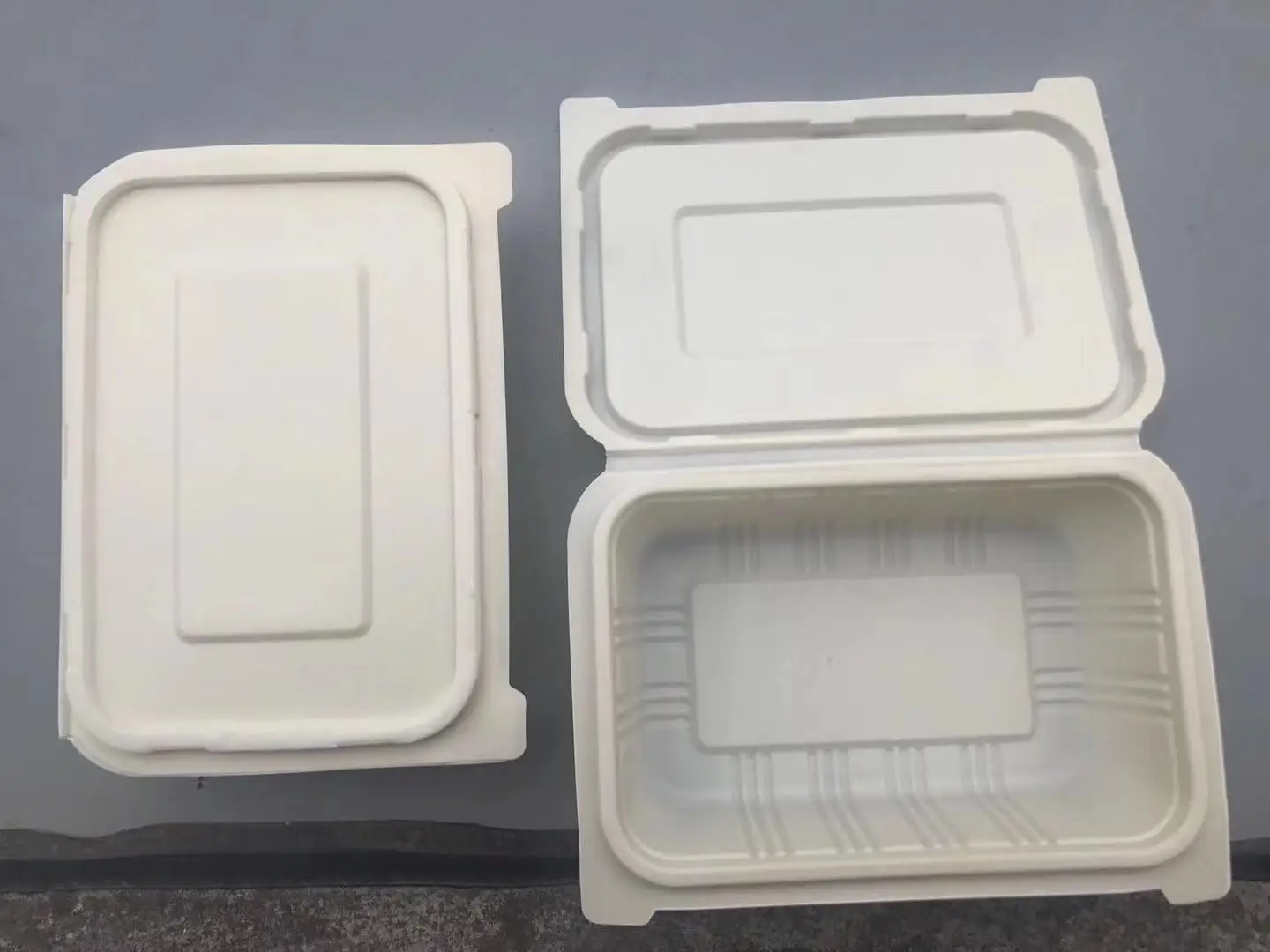

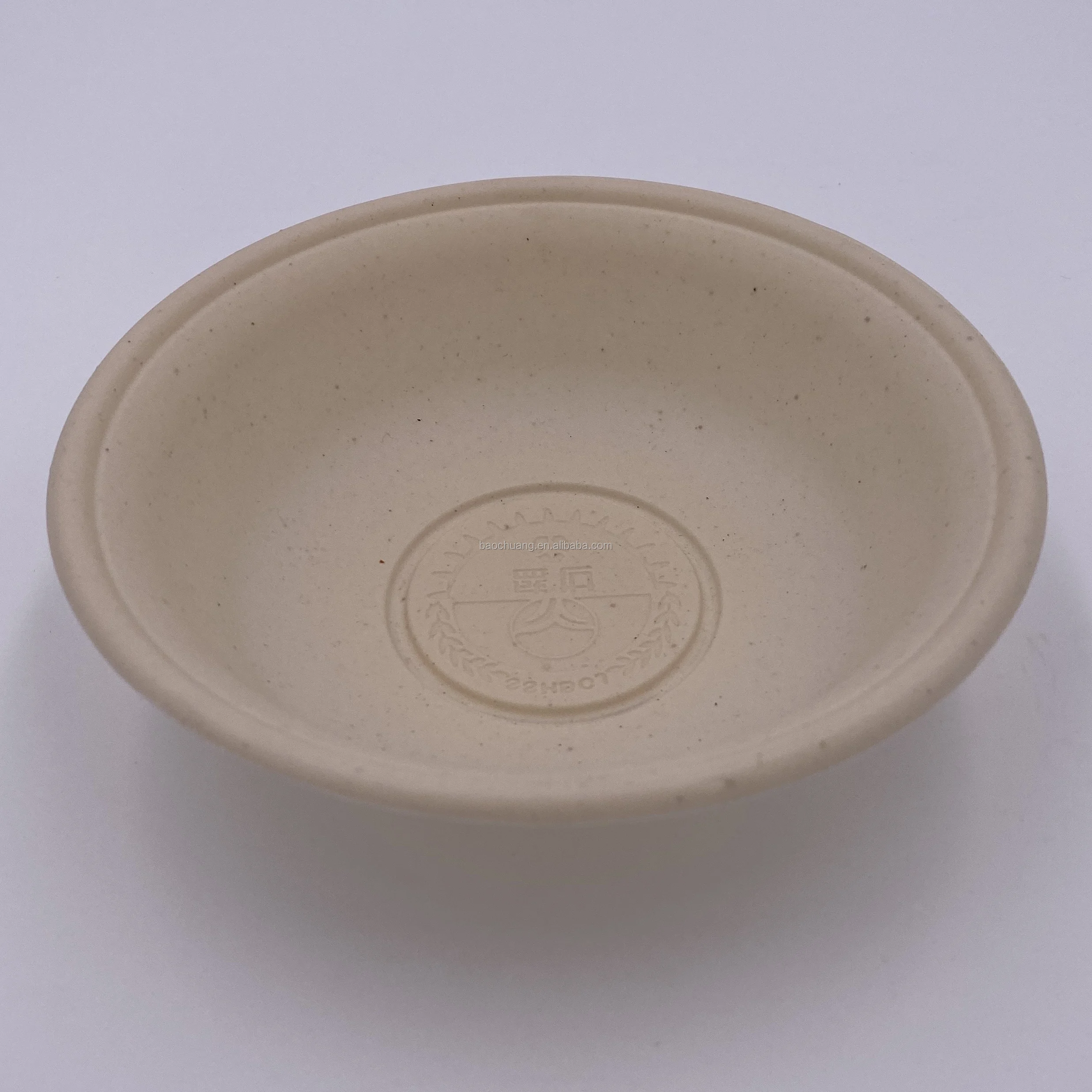

Sample Products
Recommend Products

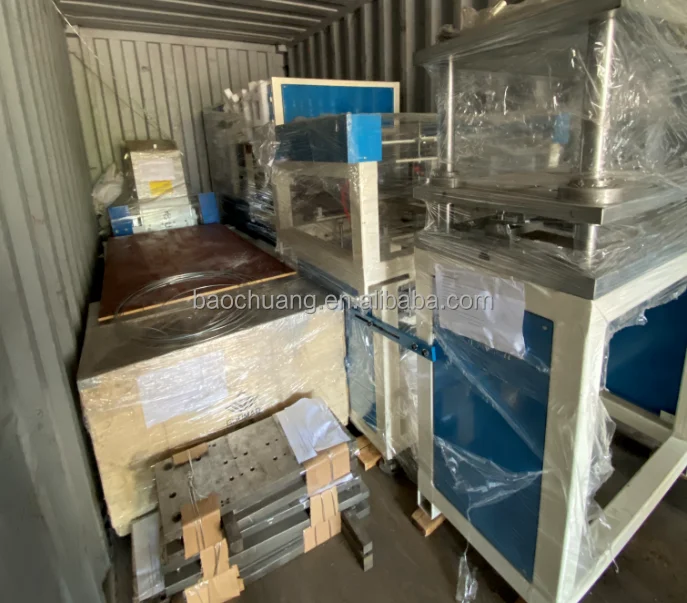

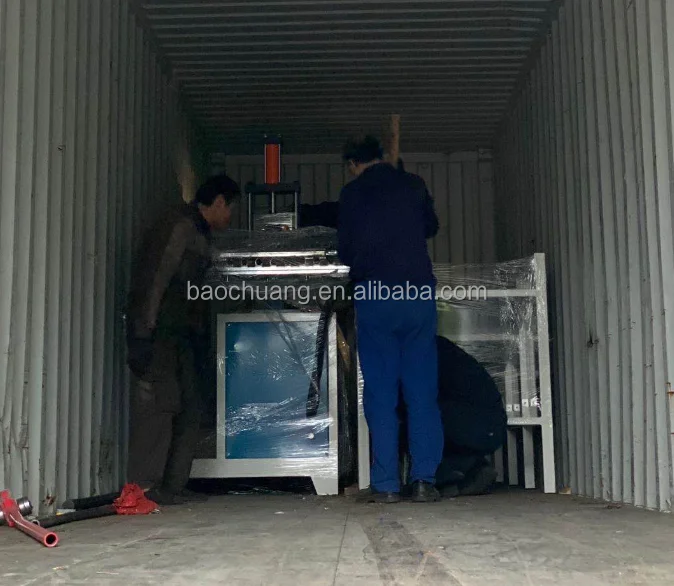

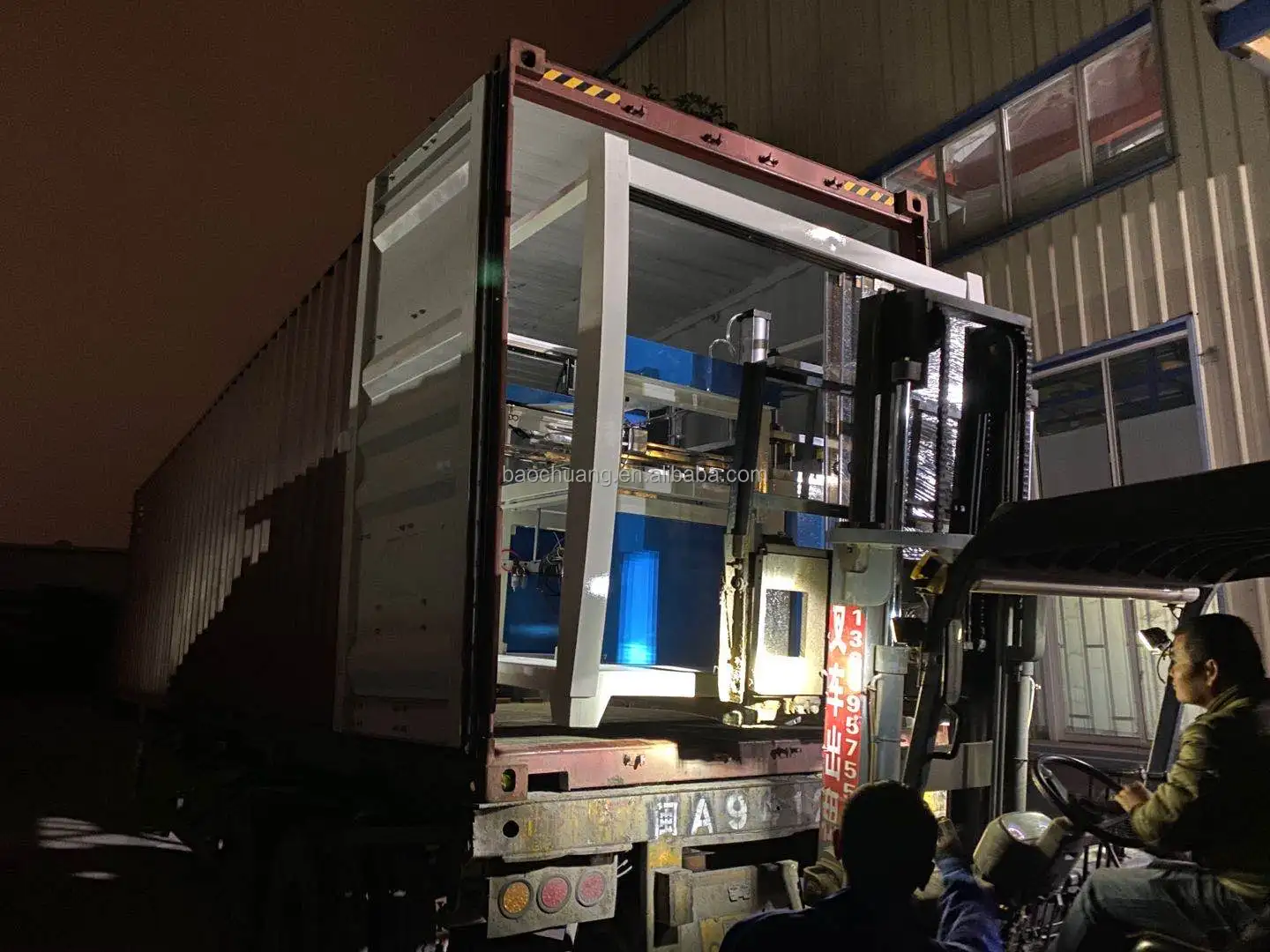

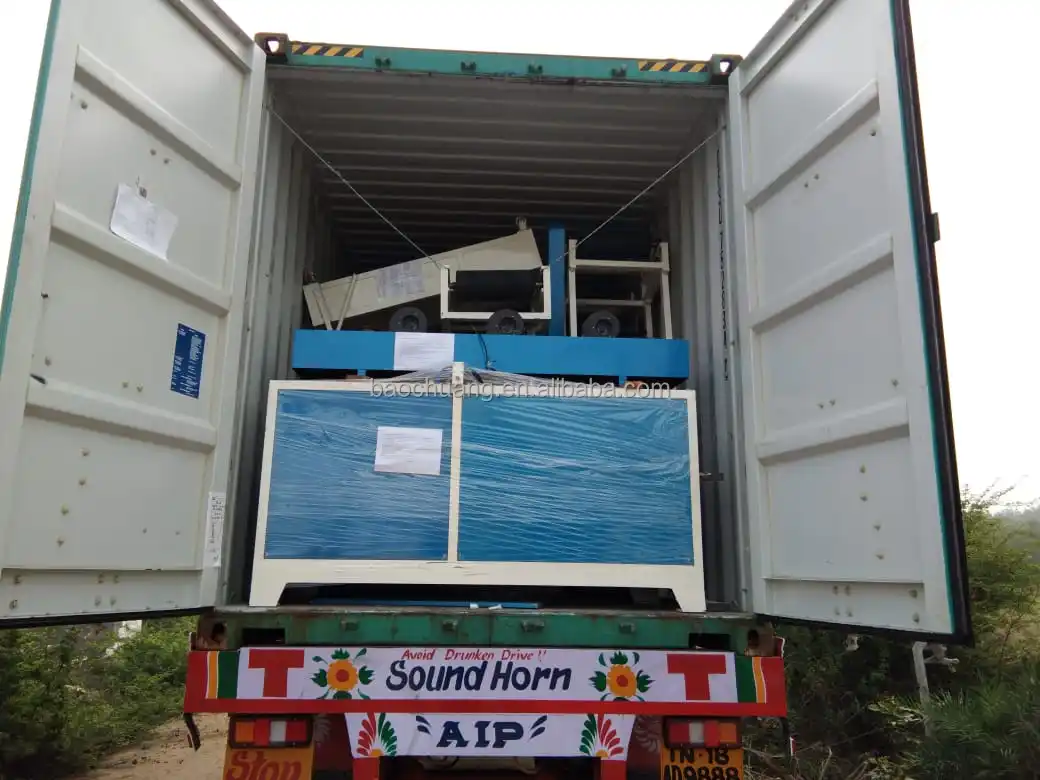

Packing And Delivery
Certifications and Patents
Company Profile
Fujian baochuang Machinery Industrial Co., Ltd.
The company is located in Fuzhou, Fujian Province, the factory covers an area of 43 acres. Located in Minhou Jingxi Minhou Tieling Economic and Technological Development Zone one on the 9th Road on the 9th. Mainly produces one-step extrusion plastic molding machine products; computer tableware machine products; single screw, twin screw extruder; high-speed mixer and plastic packaging molding machinery, after ten years of business the company has developed accumulation design and development of new products. Has dozens of national patents, products in the domestic similar products leader. Products exported to Southeast Asia, Africa, the Americas, Europe, and more than twenty countries. Products by "sgs" identified by EU standards. Company technical personnel from Institute of Chemical Engineering, Fuzhou, Fuzhou Plastics Research Institute, Fuzhou BYK technical backbone of the Institute of Light Industry.
Company Address: 21 Fuzhou Road Tongpan 307 (Provincial Revenue opposite) (Zuohai Park on the right)
Whatsapp: +86 15705988886
Company Address: 21 Fuzhou Road Tongpan 307 (Provincial Revenue opposite) (Zuohai Park on the right)
Whatsapp: +86 15705988886
Web://www.baochuang.com/EN/index.asp
