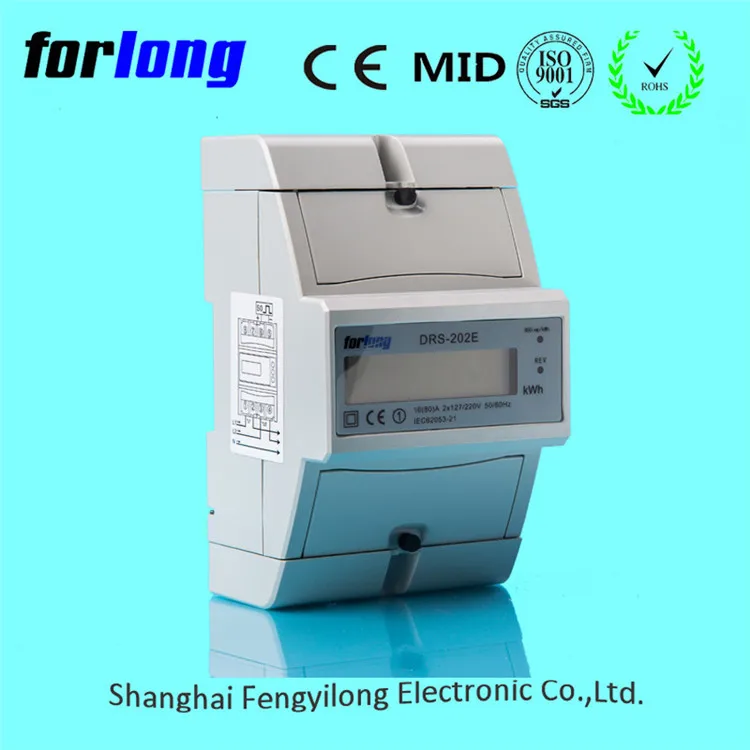

DRS-202E Single phase Three wires energy meter
Product Description
| Product name | DRS 202E shanghai fengyilong modbus energy meter | |
| Meter type | DRS-202E | |
| Digit length | 5+2 | |
| Nominal voltage(Un) | 110V/127V/133V AC | |
| 230/240V AC(option) | ||
| Operational voltage | (-0.7-1.3)Un | |
| Insulation capabilities | - AC voltage withstand | 2KV for 1 minute |
| - Impulse voltage withstand | 6KV – 1.2µS waveform | |
| Rated current (Ib) | 10A | |
| Maximum rated current (Imax) | 100A | |
| Operational current range | 0.4% Ib- Imax | |
| Over current withstand | 30Imax for 0.01s | |
| Operational frequency range | 50/60Hz ±10% | |
| Internal power consumption | ≤2W / 10VA | |
| Pulse output rate (pins 20 & 21 | 2000imp/kWh | |
| Consumption indicator (RED LED) | Flashing at load running | |
| Data store | The data can be stored for more than 25 years without power | |

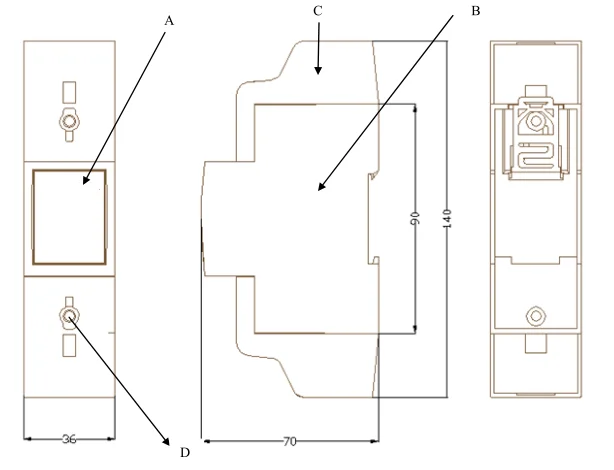

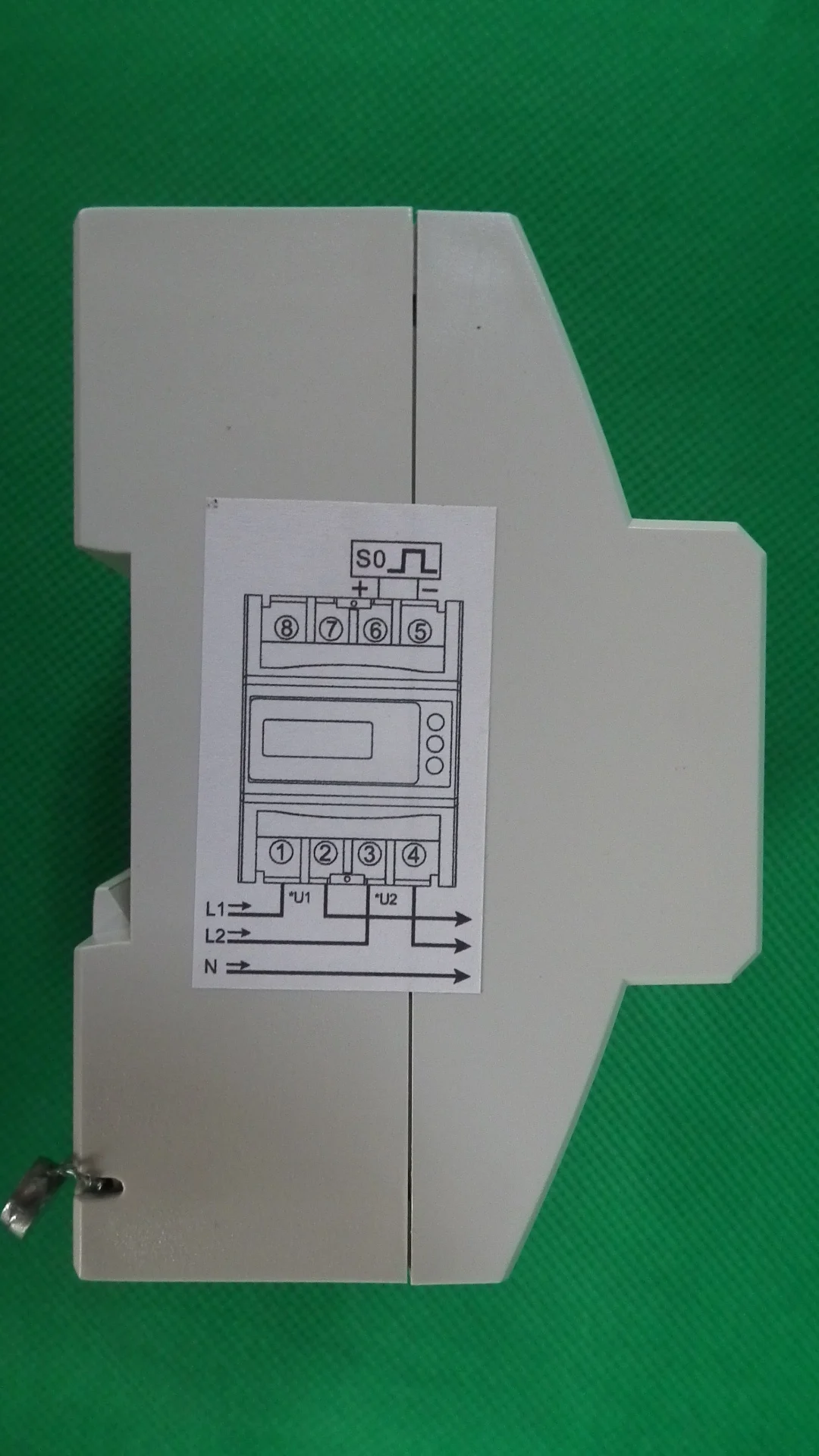

The drawing of DRS-202E factory directly sales watt hour Meter

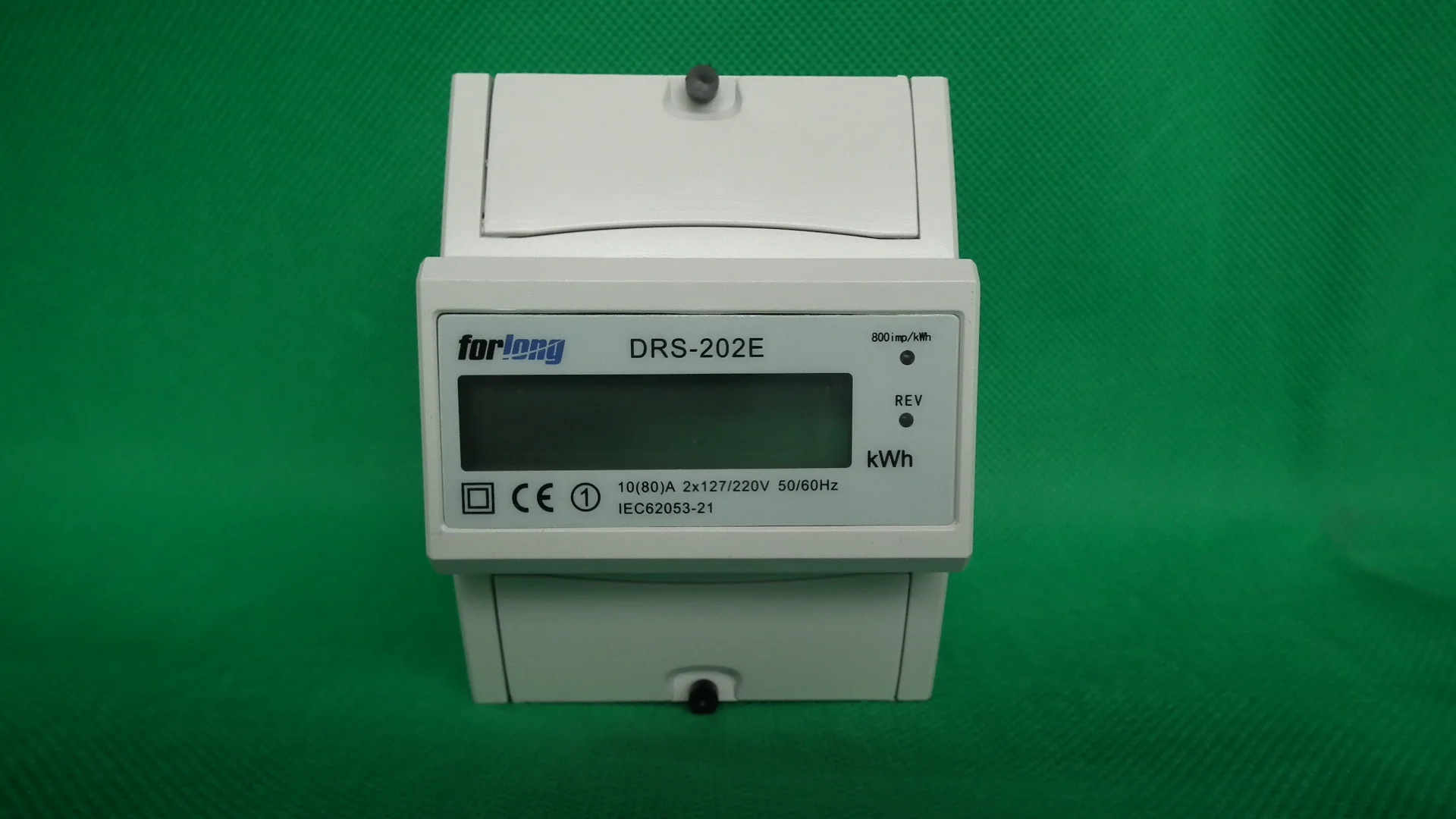

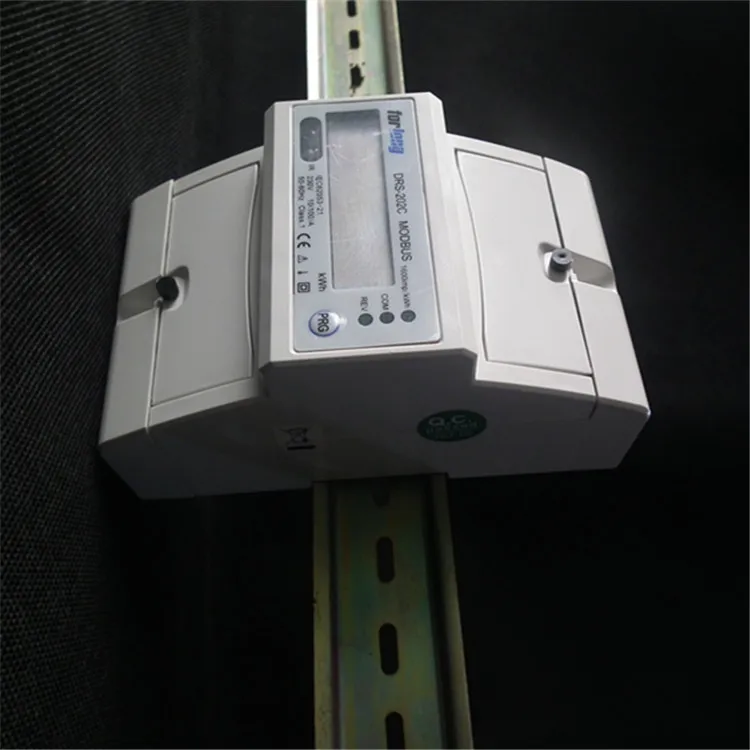

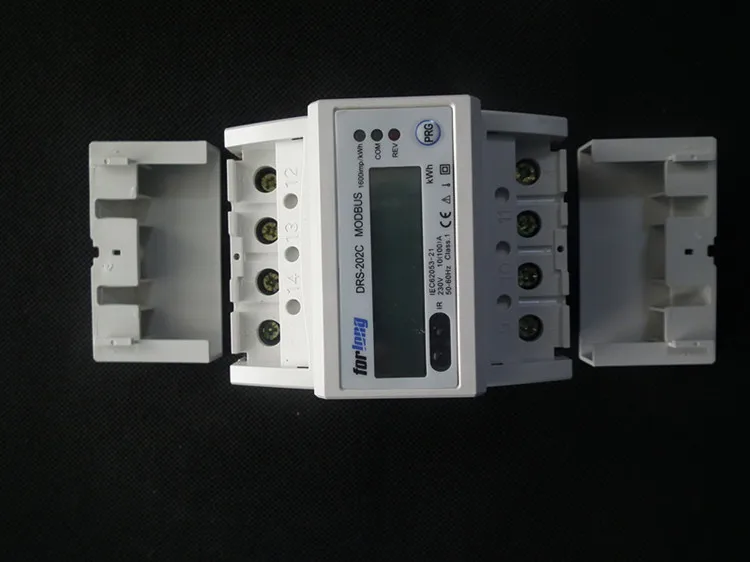

The actual pictures of China meter 4P 202E new electricity meter

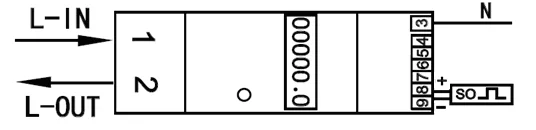

The data of 5(80)A 230V Single phase KWH Watt hour din-rail energy meter for mechanical display
Realated Production
Related meters of 5(45)A 230V 50HZ Single phase Din rail MID mechanical display electric meter
Why does choose us ?
1. Q:No light for the consumption indicator
A:Check switch or circuit-breaker and fuse or thermal cut-off.
A2:Reinstall terminal screws on the 1 and 4. Make sure all screws are fixed. Than there should be a 230V 50Hz AC voltage between the terminal screws on the 1 and 4 when power supply is input.
2. Q: No light for the consumption indicator.
A1:Only when load is running, this LED will flash.
A2;If the operating power is too low, the spacing interval of flashing will take some more time, this is why it seems like LED isn’t burning.
A3:Please contact your technical supporter to replace this meter.
3. Q:The register can’t run.
A1: Check that the power supply indicator is burning.
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
4. Q: No pulse output.
A: Check the external voltage source (Ui) is 5-27V DC.
A2: Check correct connecting:connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A3: Please contact your technical supporter to replace this meter.
5. Q: Pulse output rate wrong.
A: Please contact your technical supporter to replace this meter.
2. Q: No light for the consumption indicator.
A1:Only when load is running, this LED will flash.
A2;If the operating power is too low, the spacing interval of flashing will take some more time, this is why it seems like LED isn’t burning.
A3:Please contact your technical supporter to replace this meter.
3. Q:The register can’t run.
A1: Check that the power supply indicator is burning.
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
4. Q: No pulse output.
A: Check the external voltage source (Ui) is 5-27V DC.
A2: Check correct connecting:connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A3: Please contact your technical supporter to replace this meter.
5. Q: Pulse output rate wrong.
A: Please contact your technical supporter to replace this meter.
