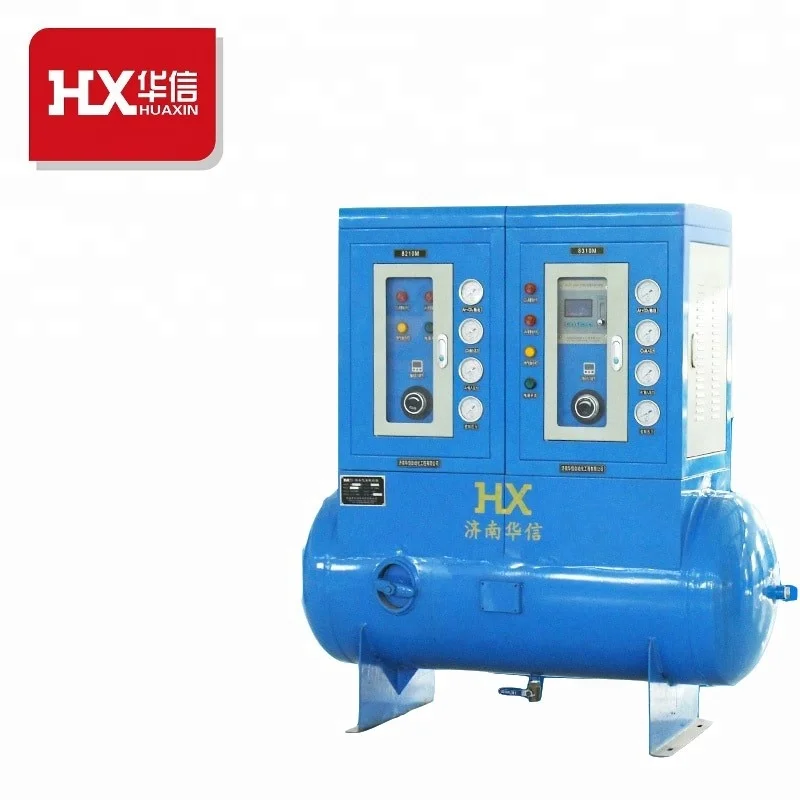

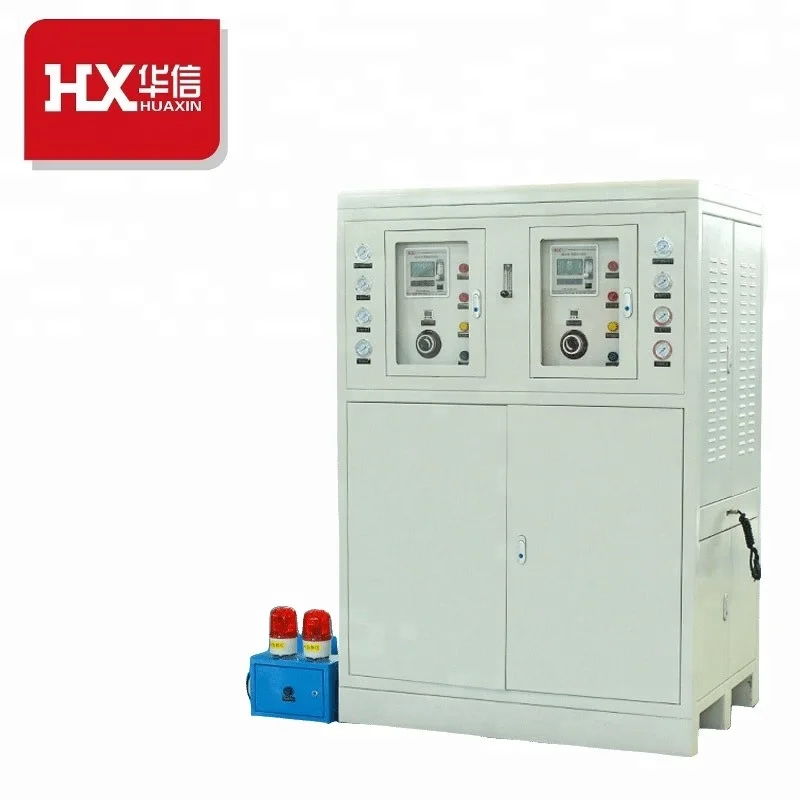

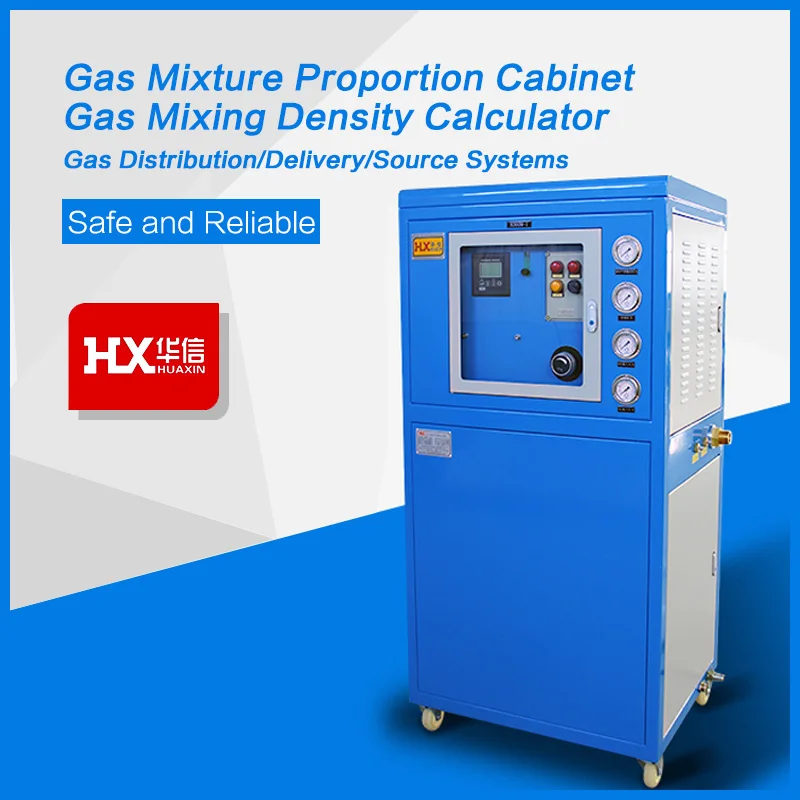

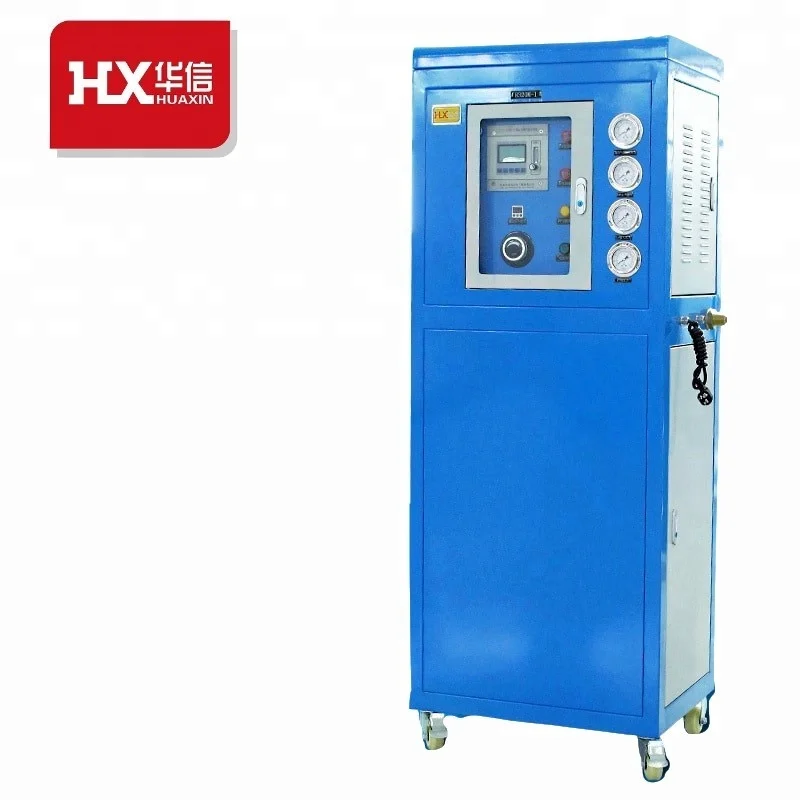

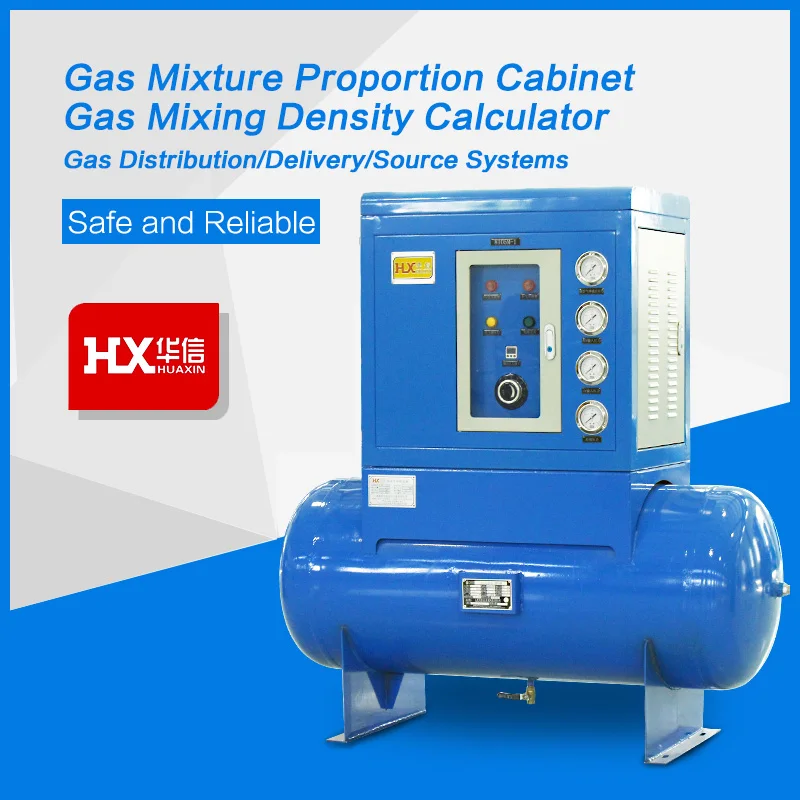

2 3 Elements Gas Mixer, Gas Mixed Proportion Cabinet from Manufacturer

Product Overview

Description

Design Features:
The series of gas mixture proportioning cabinet is specially designed for medium and small flow high precision two-element or multi-element gas proportioning. Input and output pressure of the product is adjustable and settable by itself. Thus, it can realize automatic control. It is equipped with an infrared analyzer. Consequently, the digital display of the proportioning content is more visualized and proportioning precision is higher.

Technical parameters:
8200W series
Outlet Flow: 50-150m3/h
Inlet Pressure: 0.6-1.2MPa
Outlet Pressure: 0.05-0.6MPa
Applicable Gas: (Ar+CO2/ Ar+O2/ Ar+CO2+O2/ Ar+H2/Ar+He/N2+CO2 and other two-element gases or multi-element gases)
Proportioning Range: It is arbitrary adjustable according to customers' manufacturing technological requirements.
Proportioning Precision: ±0.1-1.0 % (designed according to specific constituents of gas and technological requirements)
Connection Type: Stainless steel flange plate
Boundary Dimension: 1550×600×1400mm
