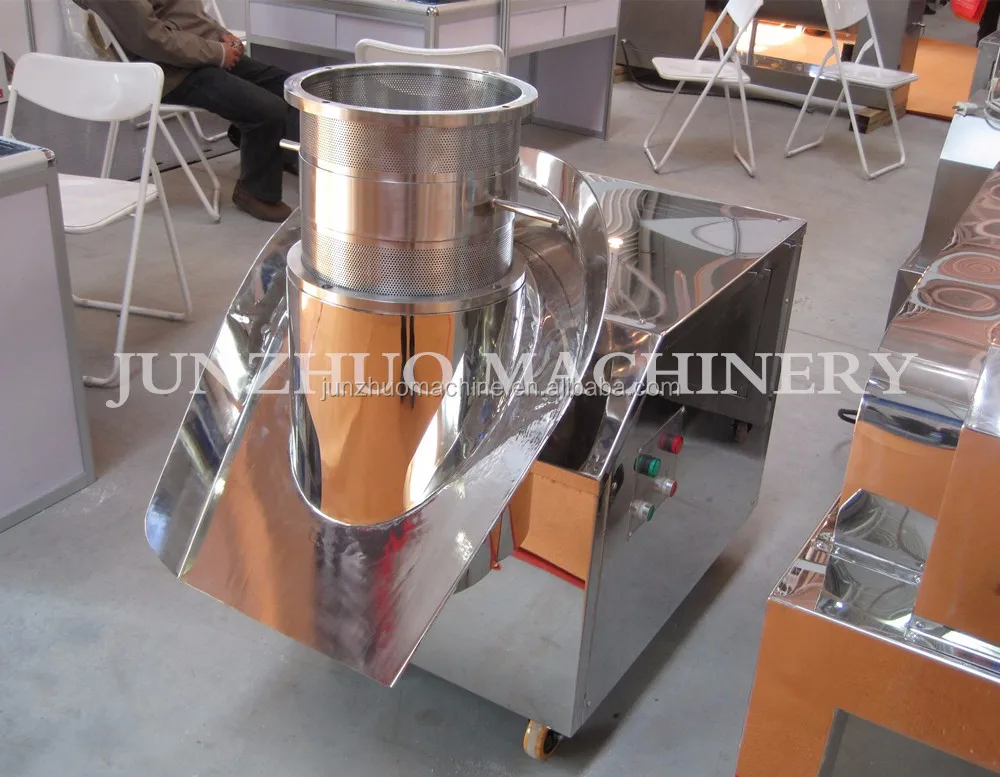

ZL 300 Extruding Granulator for detergent powder

ZL 300 Extruding Granulator for detergent powder

Category: Granulators >>>
Supplier: Jiangyin Junzhuo Machinery Manufacturing Co. Ltd.

Price:RUB 265,363.00

Quantity:

Product Overview

Description

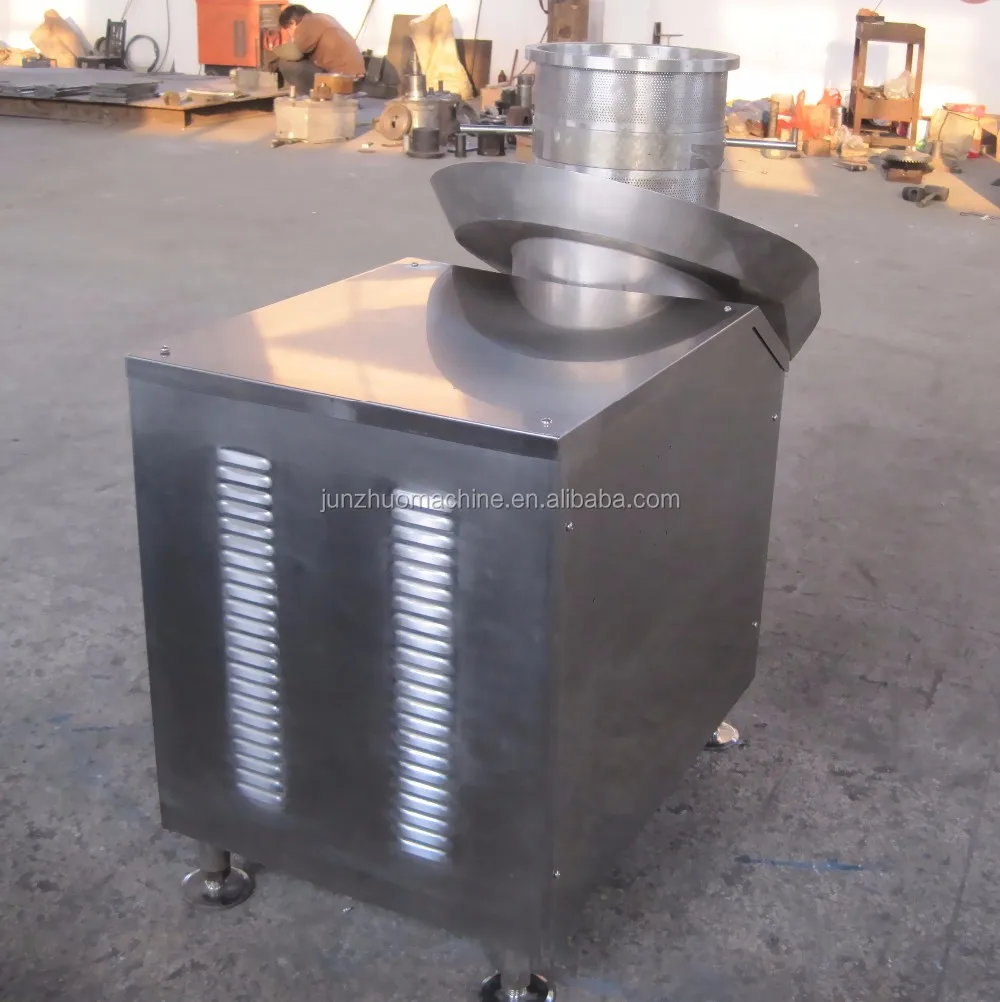

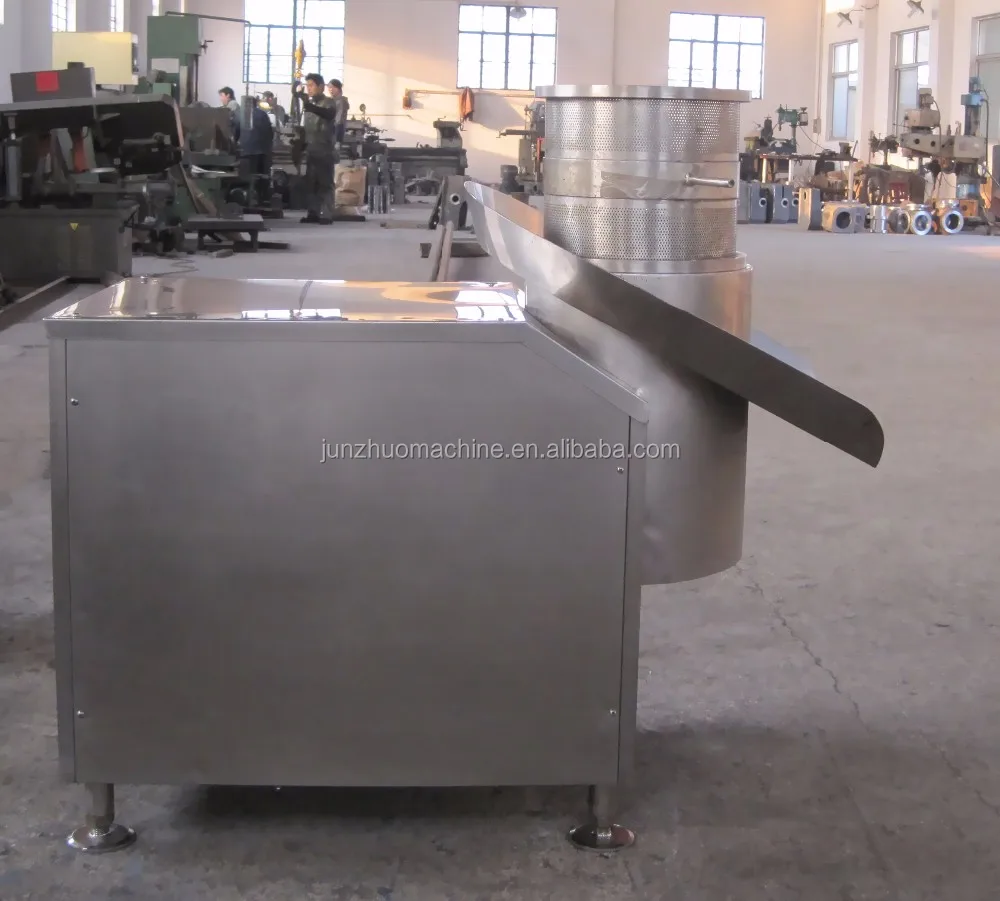

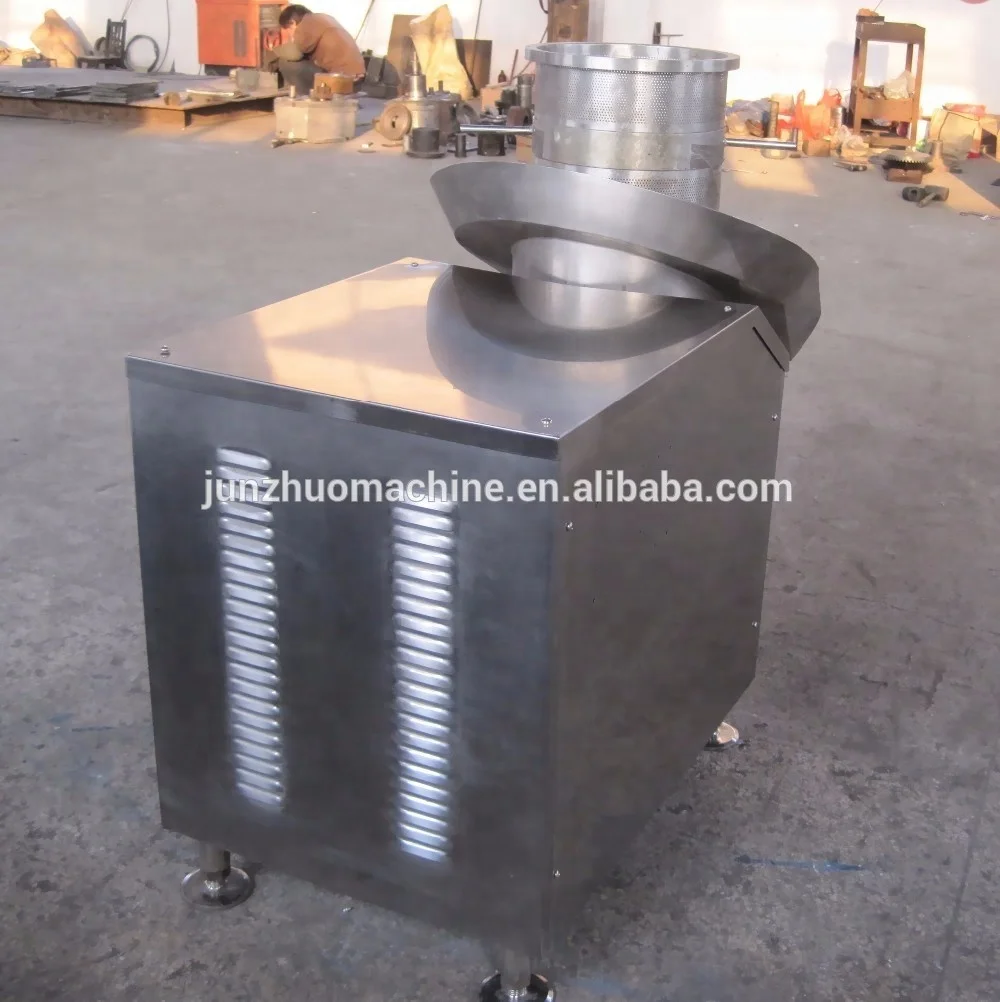

ZL-300 Rotary granulating equipment

Main Application:
This machine is used in pharmaceutical, food, chemical, solid beverage and other industries.

Features:
All parts contacted with the material are made of stainless steel. Water cooling system is available. Discharge by automatic tilting hopper to avoid granules broken caused by manual discharge.With reasonable design,it is suitable for production line.

Technical Parameter

Model	ZL-120	ZL-200	ZL-250	ZL-300
Granulating Knives Diameter	118mm	198mm	248mm	268mm
Final Product Diameter	0.8-2mm	1-2.2mm	1-2.2mm	1.2-3mm
Screen Mesh Diameter	120mm	200mm	250mm	300mm
Motor Power	1.5kw	3kw	4-5.5kw	5.5-7kw
Rotation Speed	55 r/min	50 r/min	50 r/min	45r/min
Capacity	5-20 kg/h	100-150 kg/h	140-200 kg/h	140-400kg/h
Overall Dimension	680380680	11005501050	11205501200	*11205501200*
Approx. Weight	90 kg	300 kg	350kg	400kg

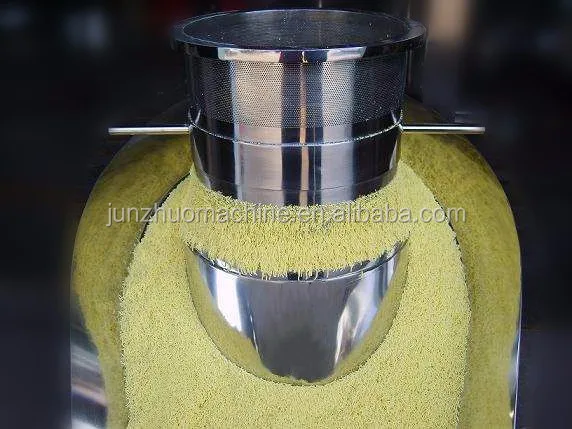

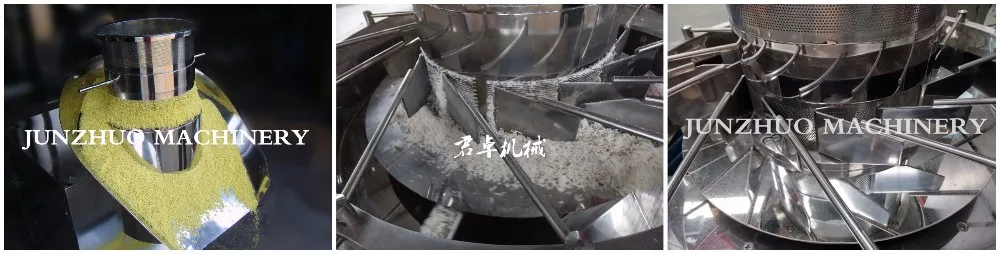

Working Principle

FAQ

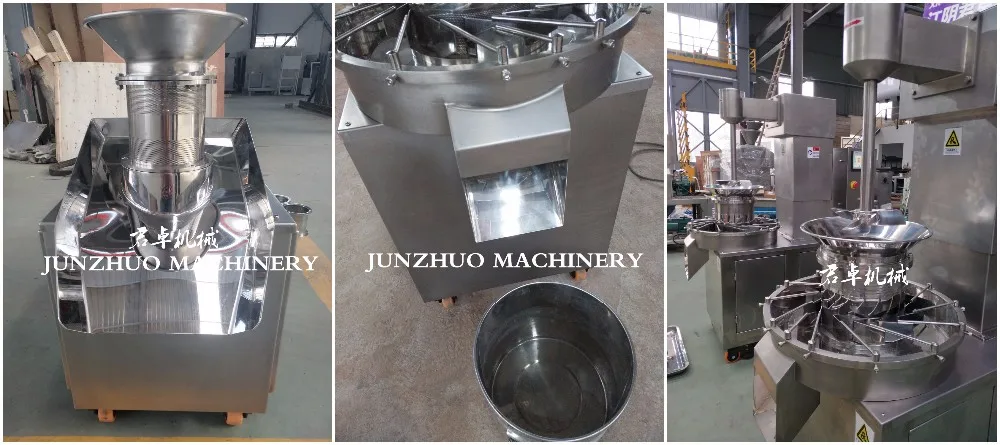

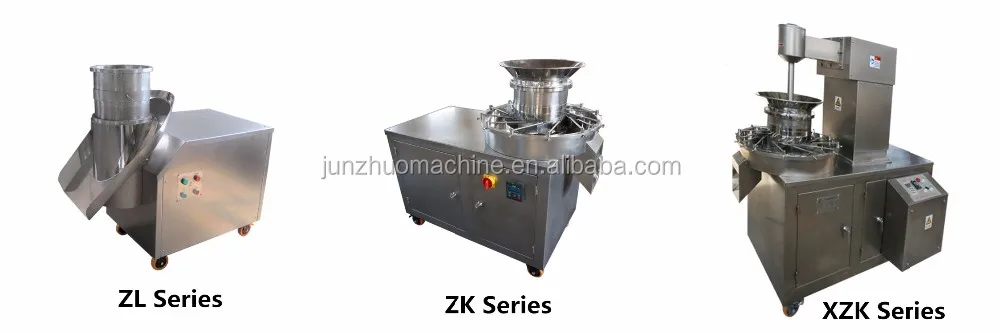

Q: The differences between ZL/ZK/XZK Series rotary granulator?

A: There are little differences. ZK series is the updated model of ZL series, because there are cutting knives around the screen mesh. XZK series is the updated model of ZK series, which has a lifting blade to help mixing and pushing the material.

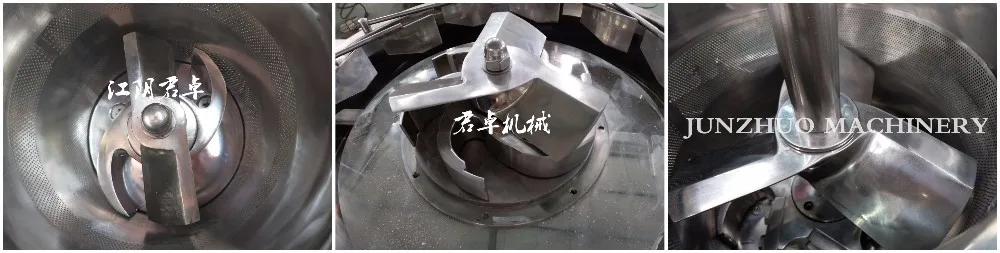

Q: What is the deffience of blade and rotating internal breaker?

A: Due to the same working principle, there is no much difference.

Q: What is the deffience of cutting knive?

A: Yes, ZL Series has no cush cutting knive, that's why ZK/XZK series is the updated model of it.

Q: What is the deffience of discharge?

A: Yes, ZL Series is a diffusion model, it also can be two discharge. But ZK/XZK Series only has single discharge, it is no worry of product spilled.

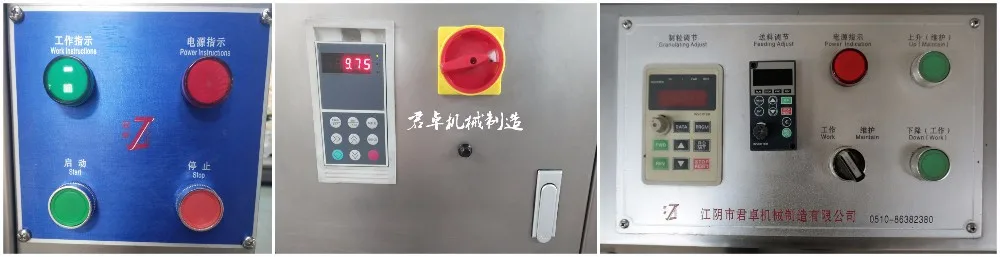

Q:What is the difference of operation screen?

A: ZL series is much easier than ZK/XZK series, because it is simple. Also it can be PLC control, just depended on your requirement.

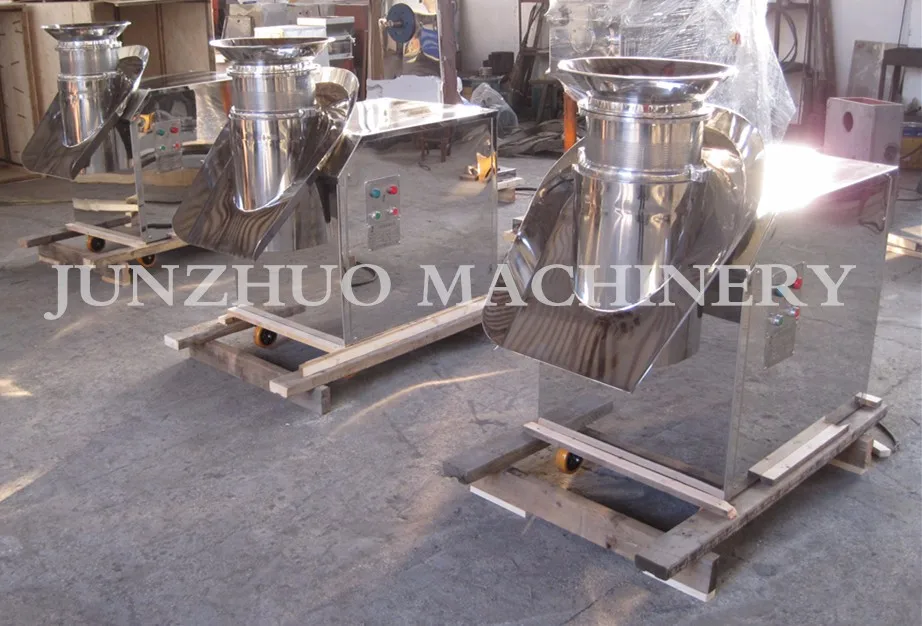

Product packaging

Spare Parts

It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.

Company Profile

Since 2008

JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.

Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
