He universal dividing head,

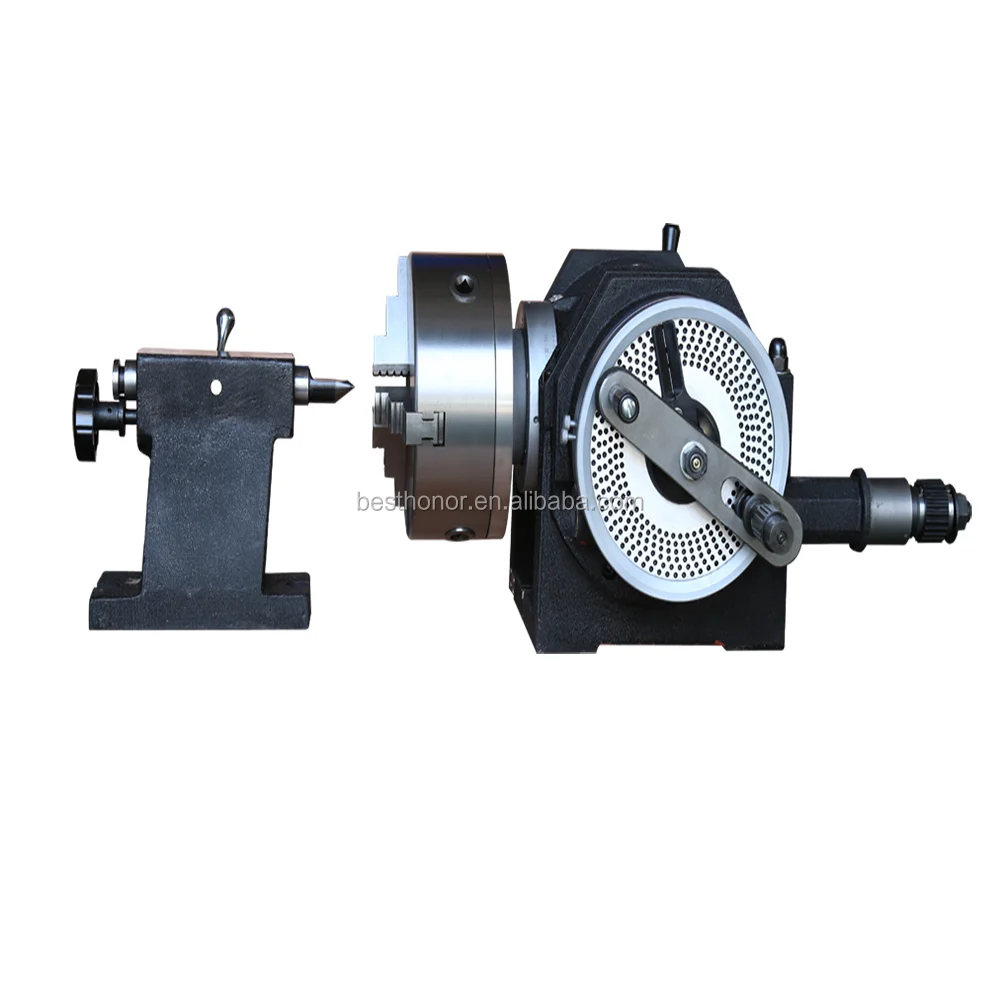

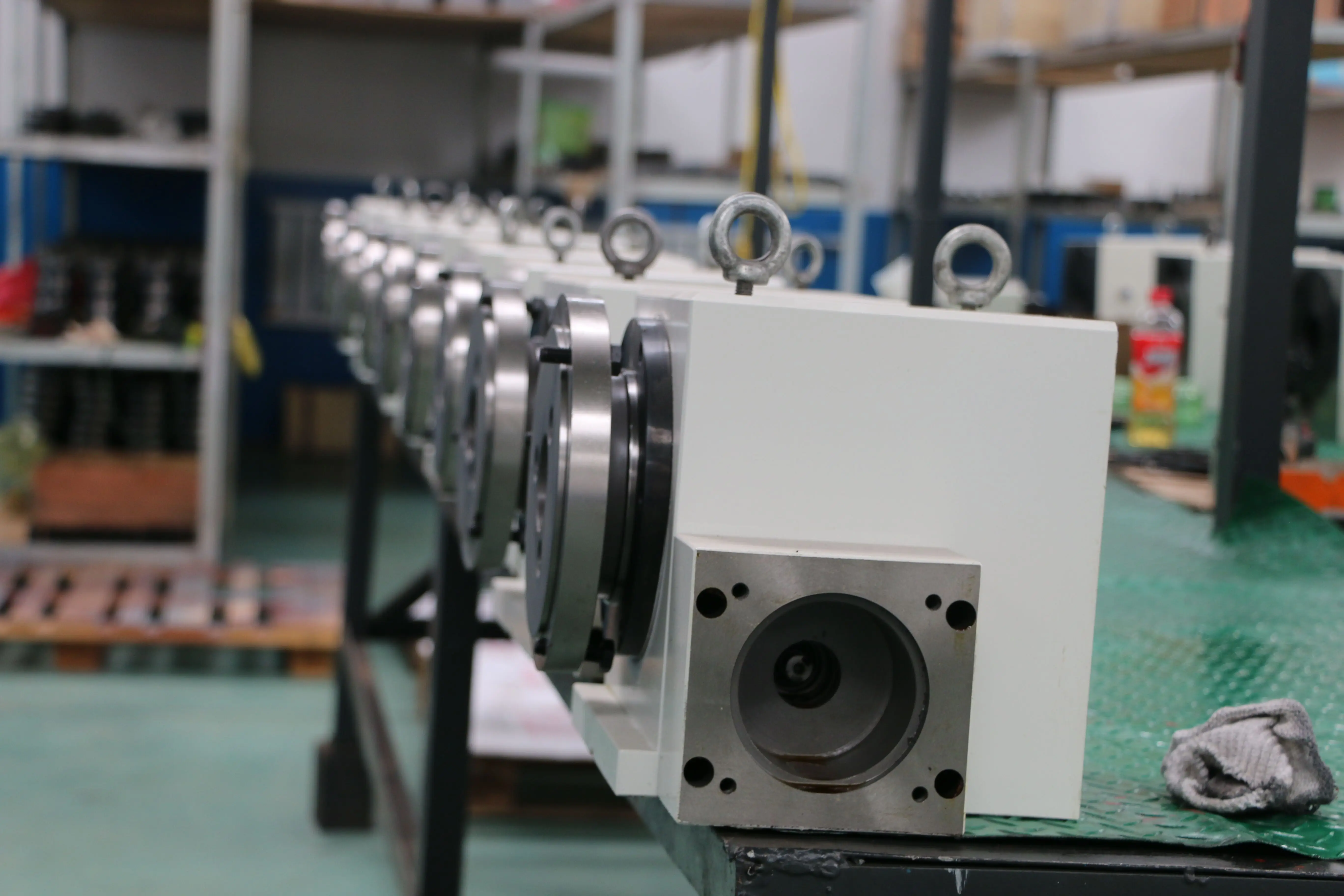

Type F11100A F11125A F11160A F11200A is one of the most important attachment for milling machine.

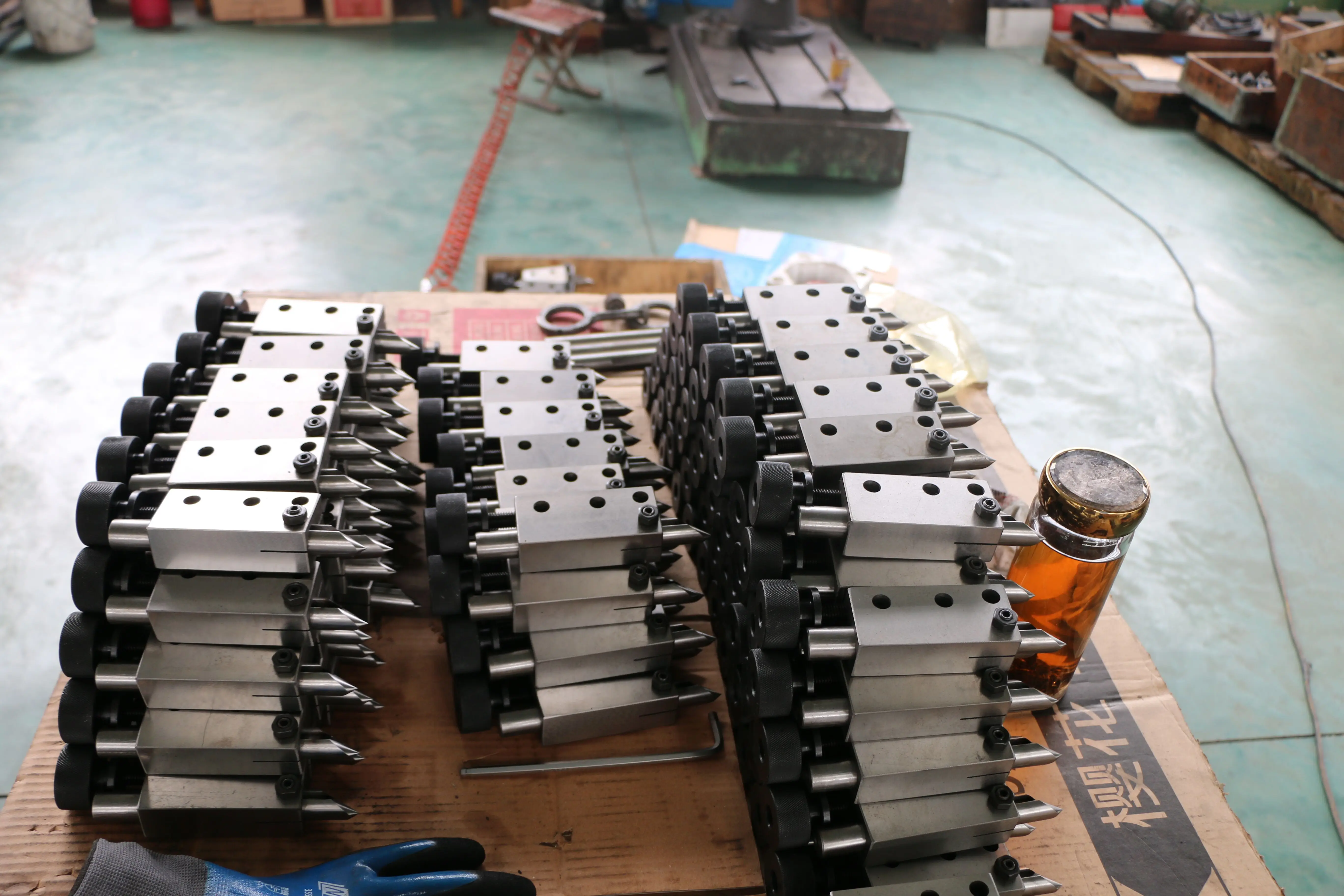

Withe the help of this dividing head the workpiece held between centers,
or on a chuck can be rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts.
By means of all kind of cutters,
the dividing head can also help milling machine to perform the milling operation for flutespur gear,
spiral flute,Archimedeam can,helical flute and etc.

The dividing head is equipped with a face plate that can be mounted onto the spindle nose.
The workpiece can be mounted on the face plate.
Thus cutting can be carried out on 4-sides of a worpiece.




MODEL
F11100A
F11125A
F11160A
F11200A
Center height
100mm
125mm
160mm
200mm
Swivel angle of spindle from horizontal to upward
≤ 95°
≤ 95°
≤ 95°
≤ 95°
Horizontal position(downward)
≤ 5°
≤ 5°
≤ 5°
≤ 5°
Rotating angle of spindle for one domplete revolution dividing handle
9°(540Grad.,1 each)
Min.reading of vernier
10
10
10
10
Worm gear ratio
1:40
1:40
1:40
1:40
Taper of spindle bore
MT3
MT4
MT4
MT4
Width of locating key
14mm
18mm
18mm
18mm
Diameter or short taper of spindle for mounting flange
Ø41.275
Ø53.975
Ø53.975
Ø53.975
Numbers of hole in dividing plate
1st plate 24.25.28.30.34.37.38.39.41.42.43

2nd plate 46.47.49.51.53.54.57.58.59.62.66
Change gear (Module)
1.5
2
2
2
Change gear (Teeth Numbers)
25.30.35.40.50.55.60.70.80.90.100
Individual indexing error of the spindle for one complete revolution of diving handle
±45"
±45"
±45"
±45"
Cumulate error at any 1/4 periphery of spindle
±1
±1
±1
±1
Max. bearing
100kg
130kg
130kg
130kg
Net/Gross weight
67/79kg
102/112kg
113/125kg
130/140kg
Case dimensions
616×465×265mm
635×530×530mm
710×535×342mm
710×535×342mm
