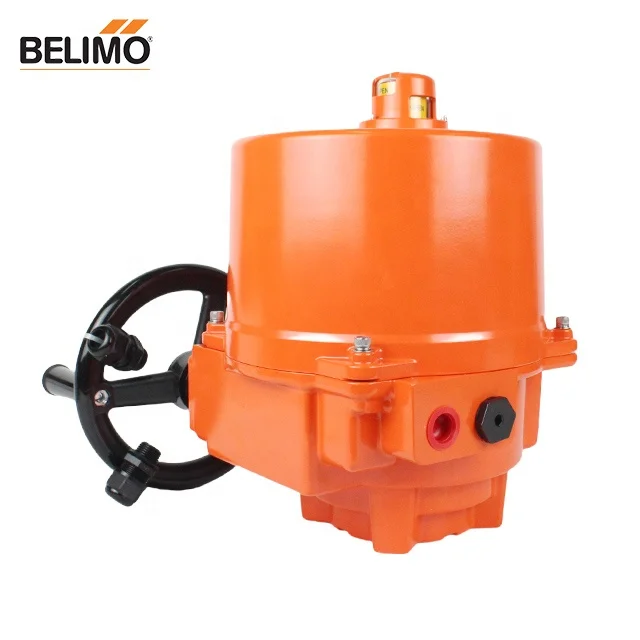

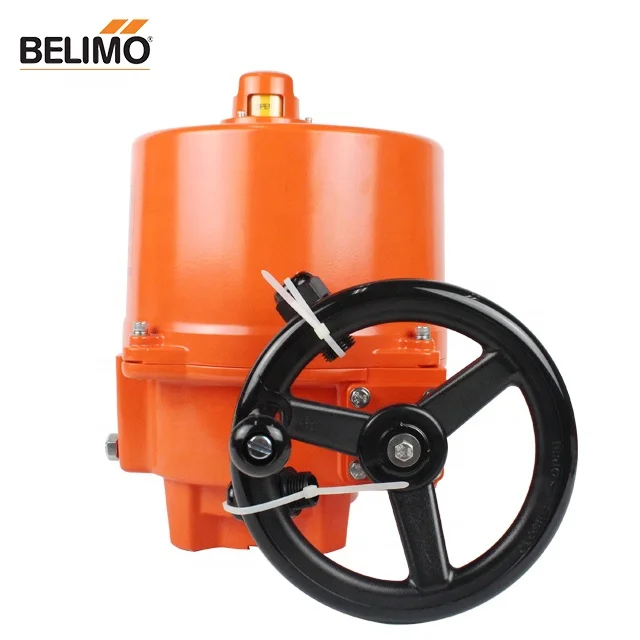

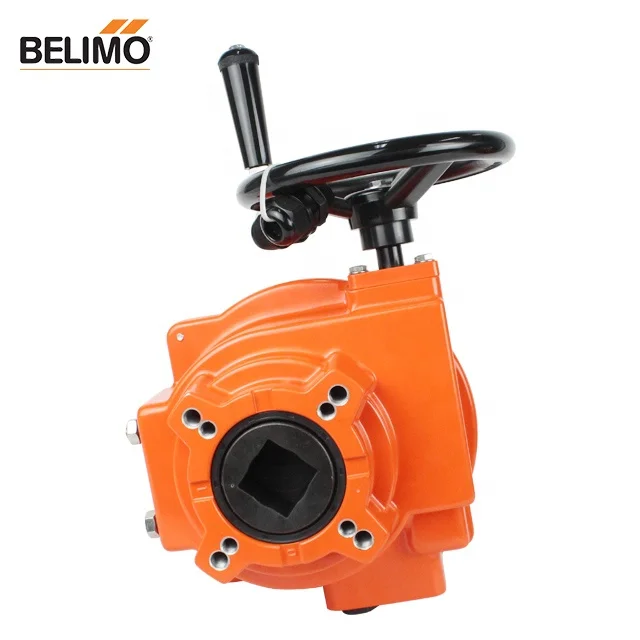

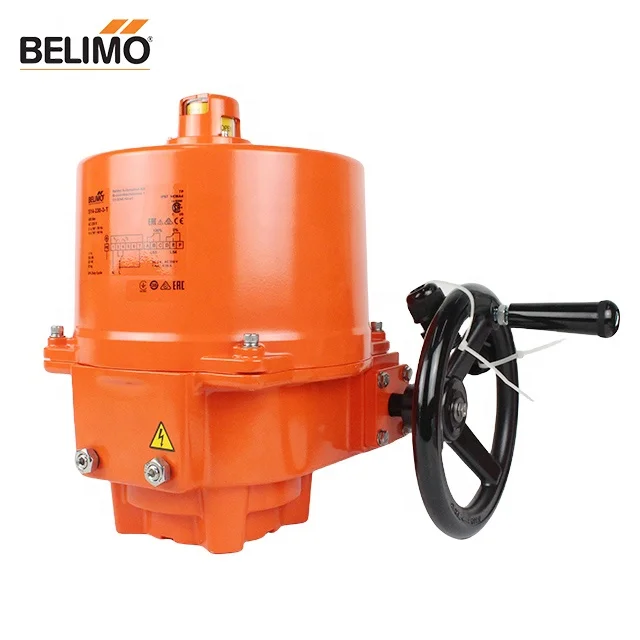

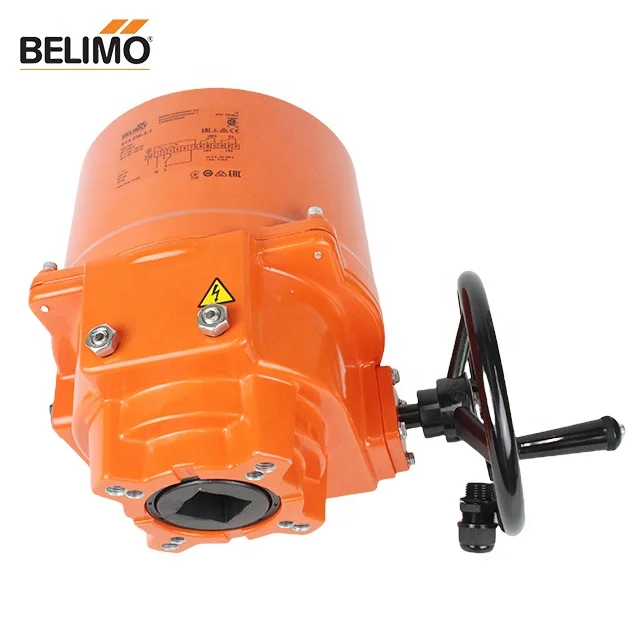

Belimo Rotary actuator for butterfly valves SY4 230 3 T with 2 integrated auxiliary switches SY4U230 MF T 400Nm IP67 Original
- Category: >>>
- Supplier: Beijing Ymer Technology Co. Ltd.
Share on (60796537789):
Product Overview
Description
Product Overview
Application places
Air handling units
Belimo devices enable the precise andefficient conditioning of air in buildings
Heating water plants
Belimo devices control the generation andthe flow of hot water in a building in anenergy-efficient way
Fire & smoke protection
Belimo safety actuators save lives and helpto minimise damage to buildings andtangible assets
Details Images
Products Description

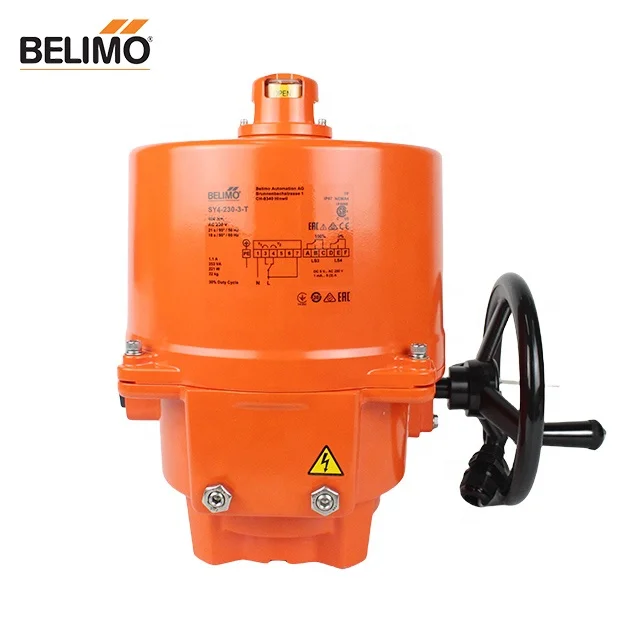

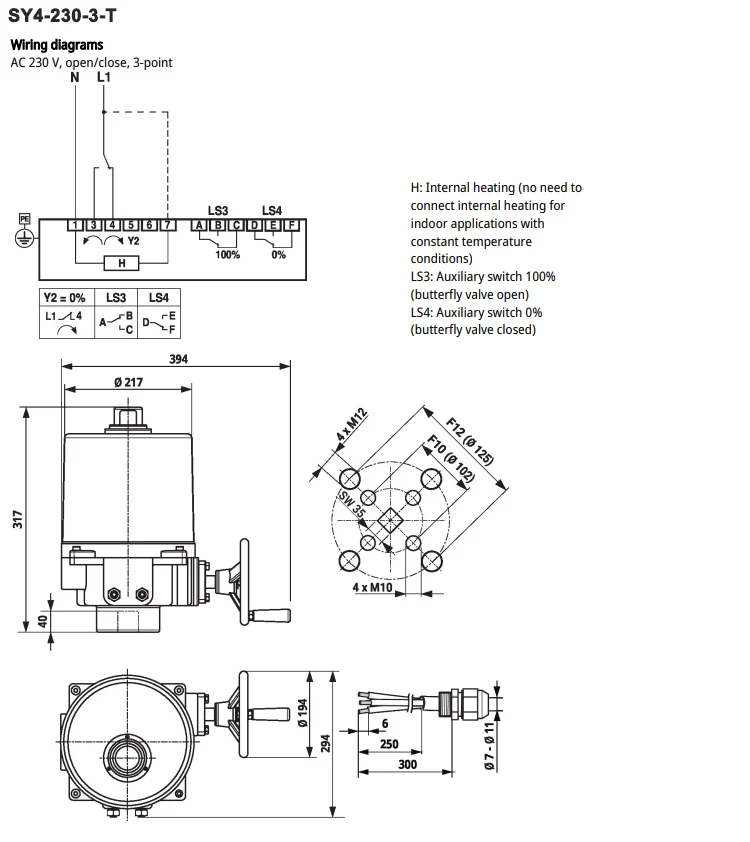

SY4-230-3-T
Rotary actuator for butterfly valves• Torque motor 400 Nm
• Nominal voltage AC 230 V
• Control Open/close, 3-point
• with 2 integrated auxiliary switches
• Control Open/close, 3-point
• with 2 integrated auxiliary switches
• Running time motor 21 s / 90°

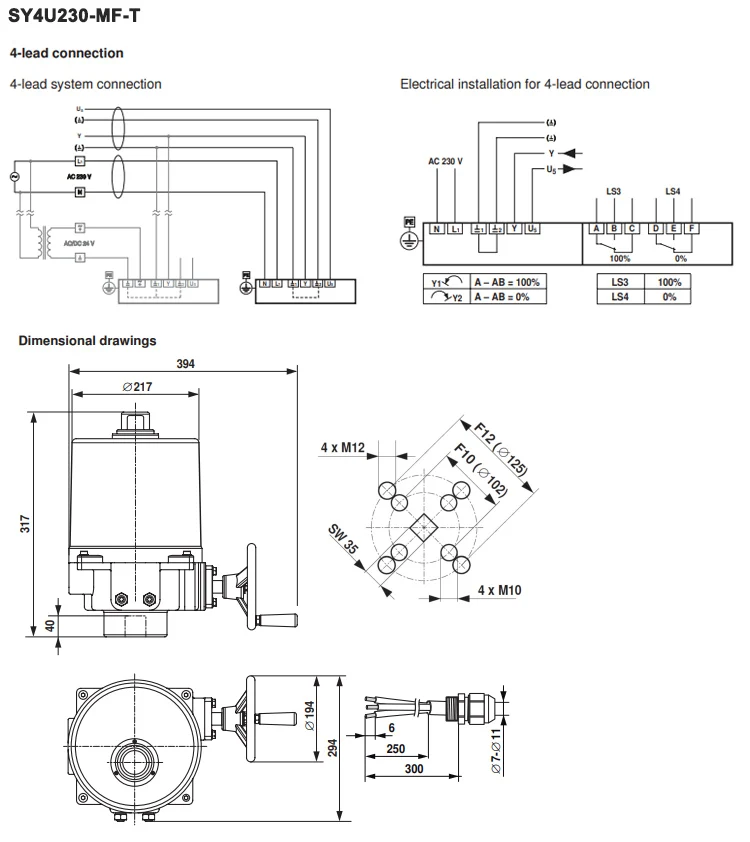

SY4U230-MF-T
Configurable rotary actuator forbutterfly valves
• Torque motor 400 Nm
• Nominal voltage AC 230 V
• Control modulating 2...10 V variable
• Position feedback 2...10 V variable
• with 2 integrated auxiliary switches
• Running time motor 16 s / 90°
1 | Nominal voltage | AC 230 V |
2 | Power consumption (running) | 221 W |
3 | Power Consumption For Wire Sizing | 253 VA |
4 | Auxiliary switches | 2x SPDT |
5 | Connection Supply Control | Terminals 2.5 mm² (Wire 2x 1.5 mm² or 1x 2.5 mm²) |
6 | Torque | 400 Nm |
7 | Control type | Open/close 3-point |
8 | Manual override | Temporary with handwheel (non-rotating) |
9 | Angle of rotation | 90 |
10 | Running time (motor) | 21 s / 90° |
11 | Protection category | IP67 |
12 | Ambient Temperature | -30...65°C [-22...149°F] |
13 | Connection flange | F10/F12 |
14 | Housing material | Die cast aluminium |
