A5.18 ER70S 6 SOLDADURA ALAMBRE ER70S 6 0.9MM 0.035 15KG factory

Product Overview

Description

A5.18 ER70S-6 SOLDADURA ALAMBRE ER70S-6 0.9MM 0.035 15KG
Application:
ER70S-6 is used for ship building steel (A, B, D, E, A36, D36, E36) and equivalent mild

steel or 550 MPA grade mild alloy steel, such as container building, bridge building,

construction machine, railway construction, pressure vessels for semi-auto or

automatic gas shielded welding.



A5.18 ER70S-6 SOLDADURA ALAMBRE ER70S-6 0.9MM 0.035 15KG

Specification:
1. gas-shielded welding wire ER70S-6
2. Size: 0.6mm,0.8mm,0.9mm,1.0mm,1.2mm,1.6mm
3.Applicable for weld of low carton steel and low alloy steel structure, such as ships,

vehicles, bridges, engineering machinery, pressure vessel and construction etc.
4. Lead time: 20days after confirming order
5. International standard: AWS ER70S-6
6. China standard: GB ER50-6
7. Surface treatment: copper coated
8. Material: Carbon steel





A5.18 ER70S-6 SOLDADURA ALAMBRE ER70S-6 0.9MM 0.035 15KG
Advantage:
1. Low welding costs.
2 High productivity and low electricity consumption.
3 Easy to operate.
4. All position welding.
5. Very low hydrogen content in the weld and lower nitrogen content.
6. Excellent crack-resistance.
7. Little deformation after welding.
8. Wide applicability. Suitable for welding thin, medium and thick plates.







A5.18 ER70S-6 SOLDADURA ALAMBRE ER70S-6 0.9MM 0.035 15KG

Storage:
Your welding wire storage should be dry and ventilated, avoiding damp, no water, acid or alkali liquid, no volatile corrosive substance.
Welding wire should put on the pallet, please do not put it on the floor directly or close to the wall.
Please keep the packing intact.

Classification	Chemical composition (average)		Mechanical specifications	Diameter		Package (kg/kgs)		Application
						spool	drum
EN 440 G3Si1 AWS A 5.18 ER70S-6 CE EN 13479	C%	0.07	Rm N/mm² 510	0.6mm	0.7mm	1	250	Fe 410, Fe 510, HI, HII, HIII, HIV 17 Mn 4, St 34, St 42, St 45, St 55, X 42, X 52, StE 28, StE 29, StE 36, StE 39, etc
	Mn %	<1.40	Rs N/mm² 430	0.8mm	0.9mm	5	350
	Si%	0.80	A%5d > 24	1.0mm	1.2mm	15	400
	P%	<0.020	kV (J)-20°C >= 70	1.4mm	1.6mm	20	450
	S%	<0.020		1.5mm		50	500
Shielding gas EN 439 C1 (CO2) and mixtures M21 - M33.
Welcome to buy and ship from zander welding industry factory lower price and good quality.





















































































A5.18 ER70S-6 SOLDADURA ALAMBRE ER70S-6 0.9MM 0.035 15KG

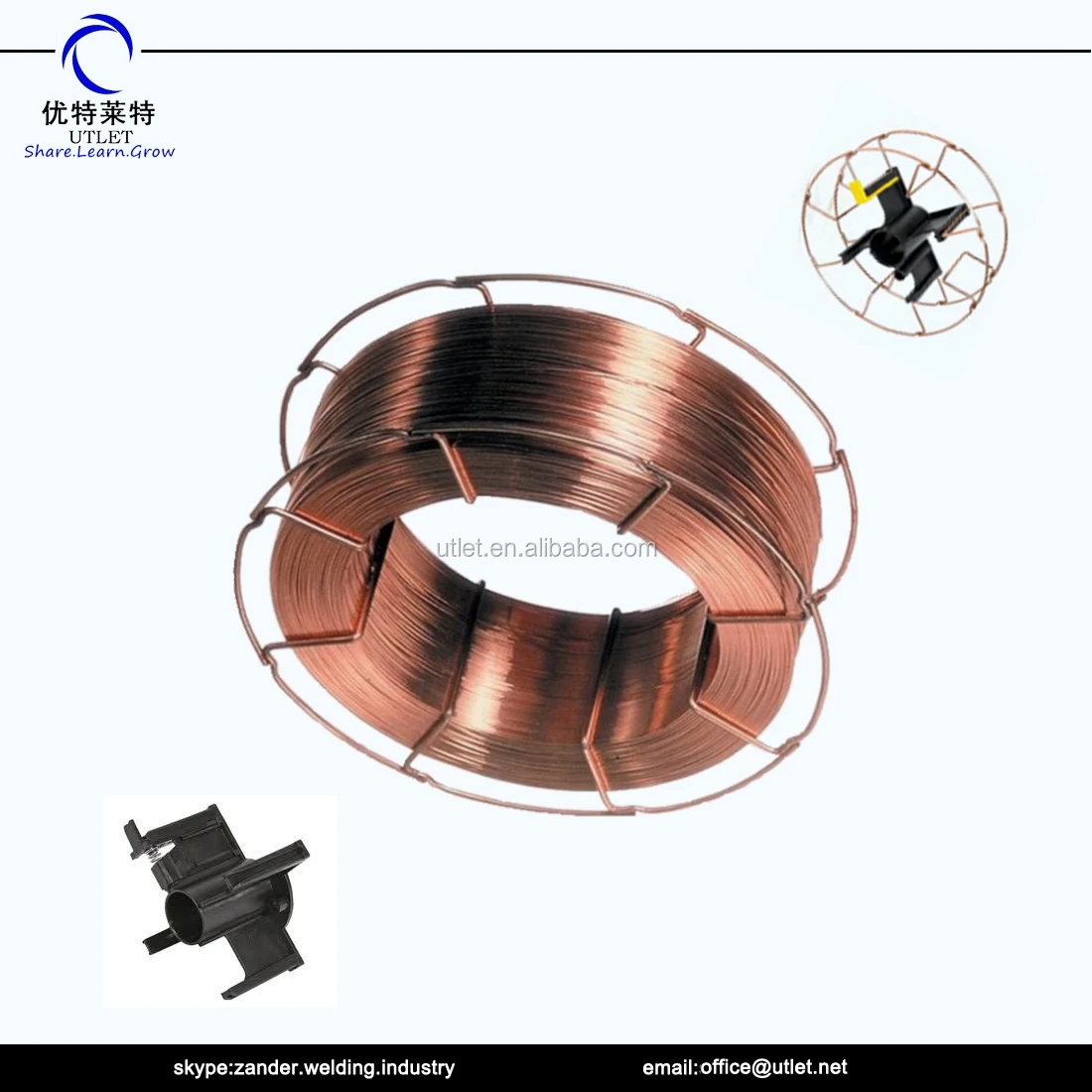

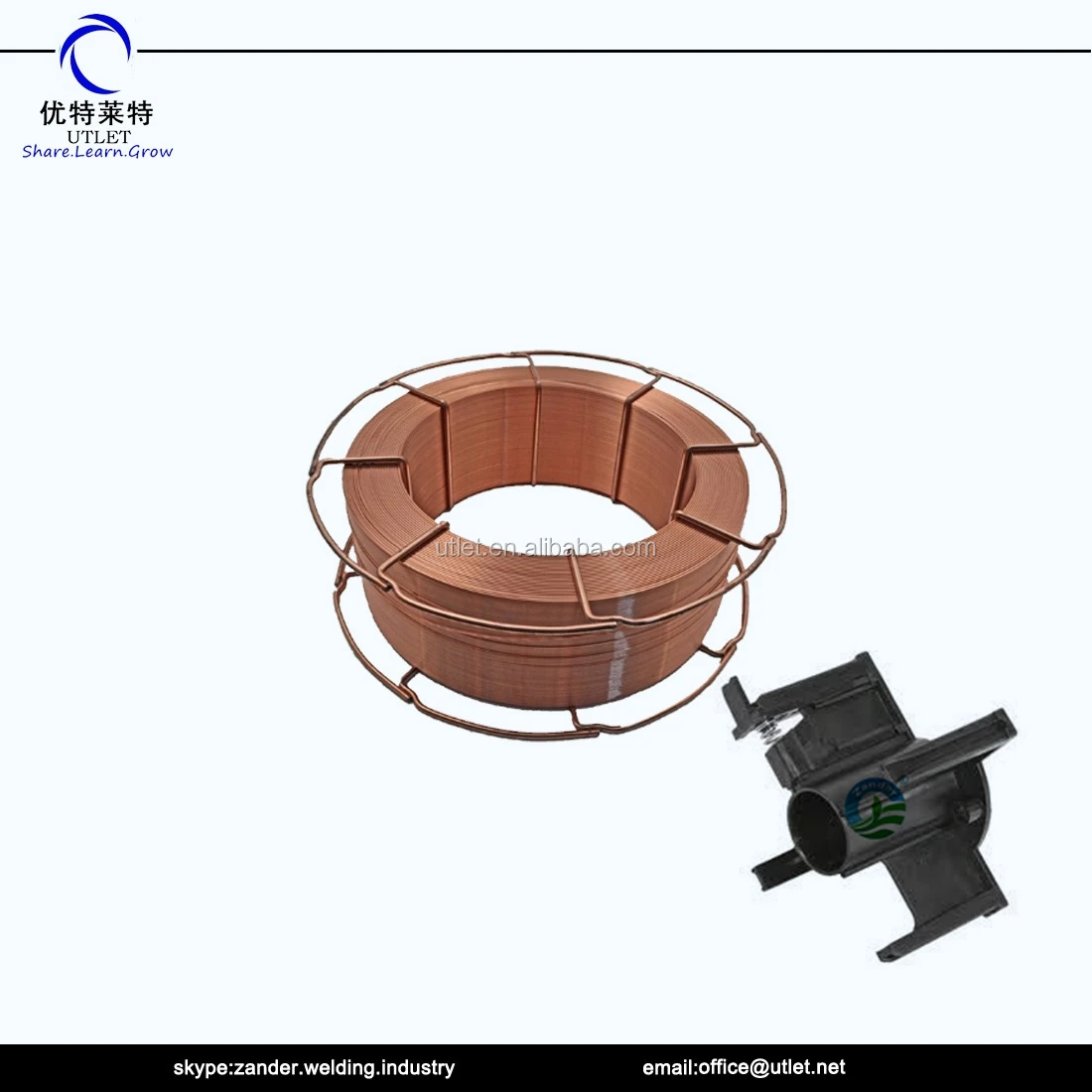

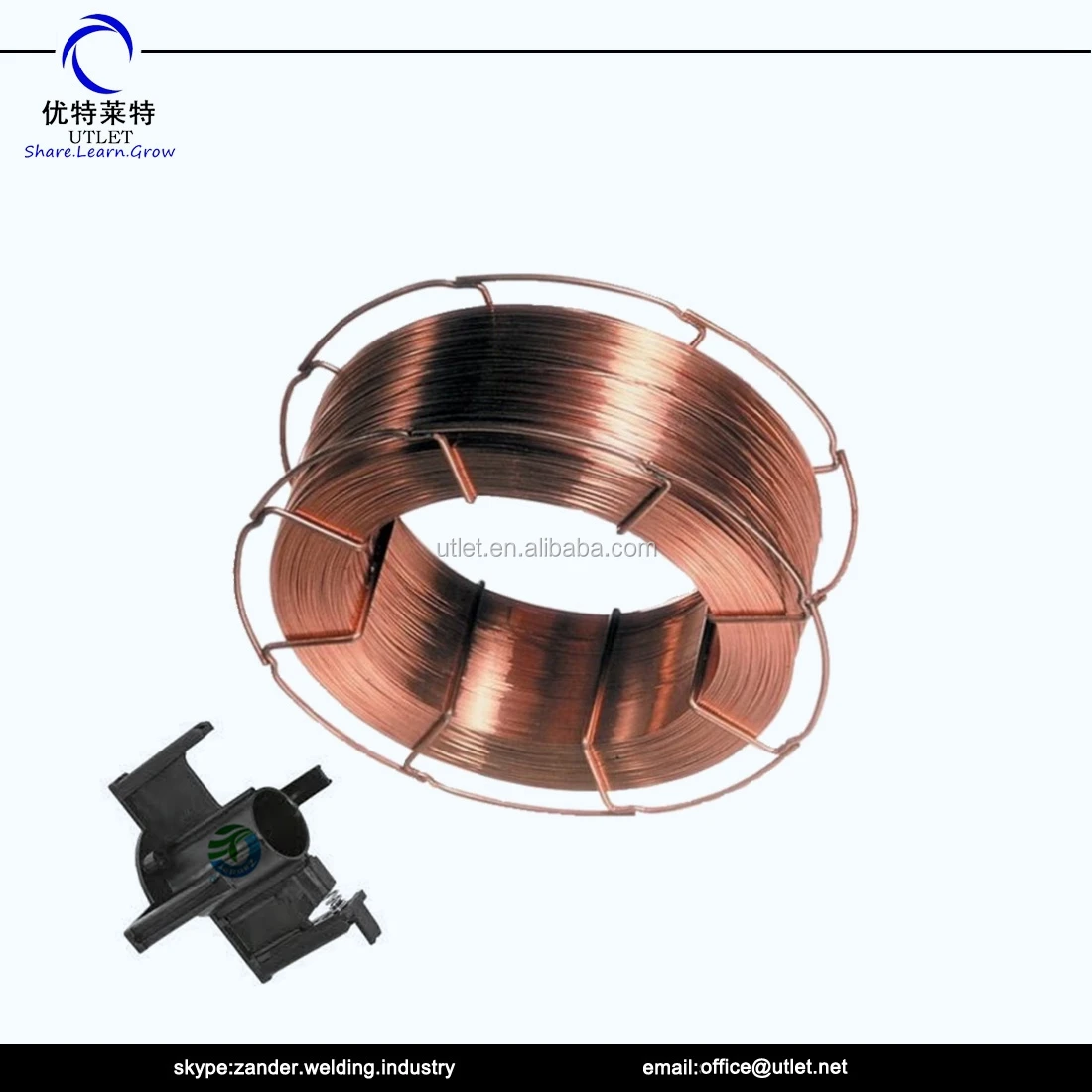

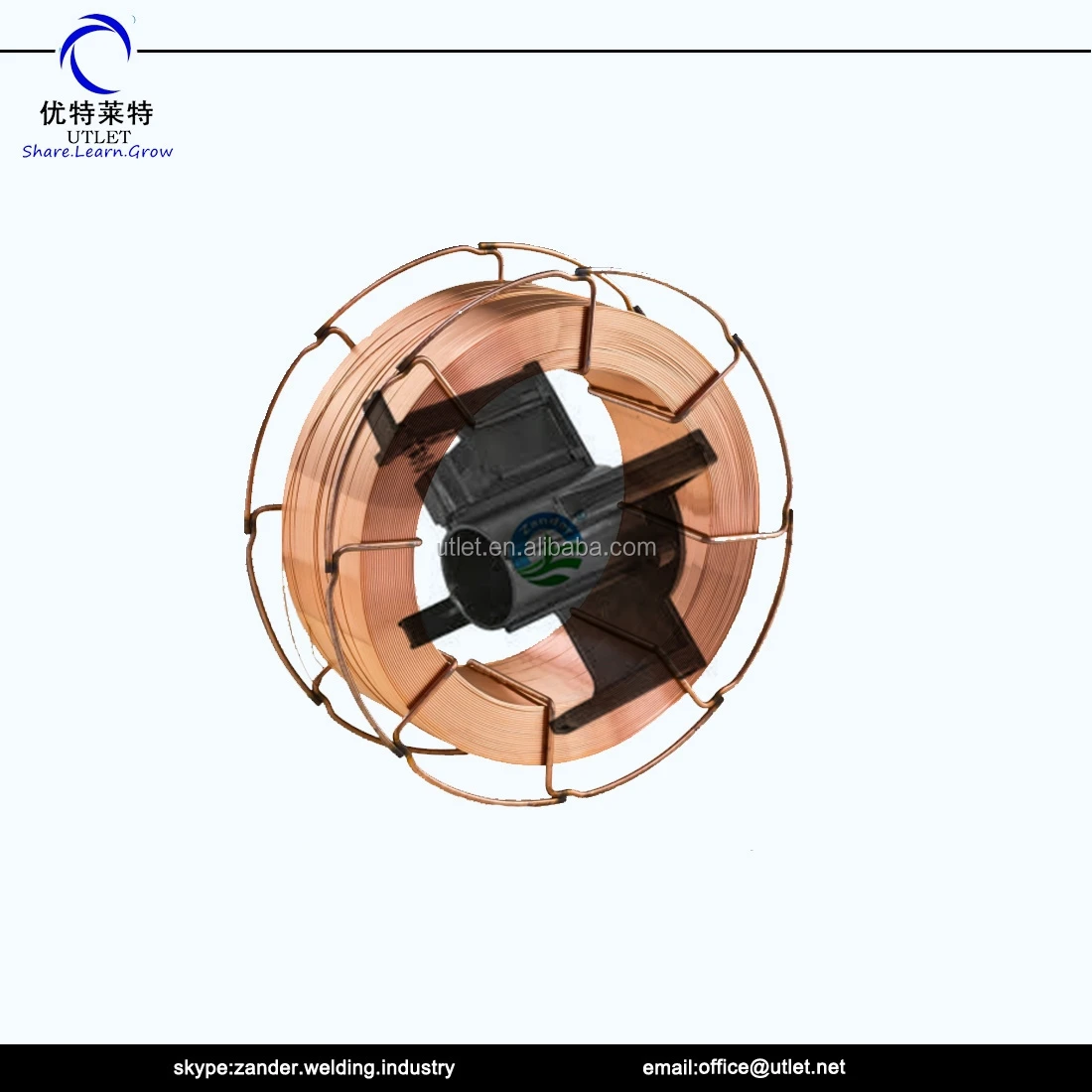

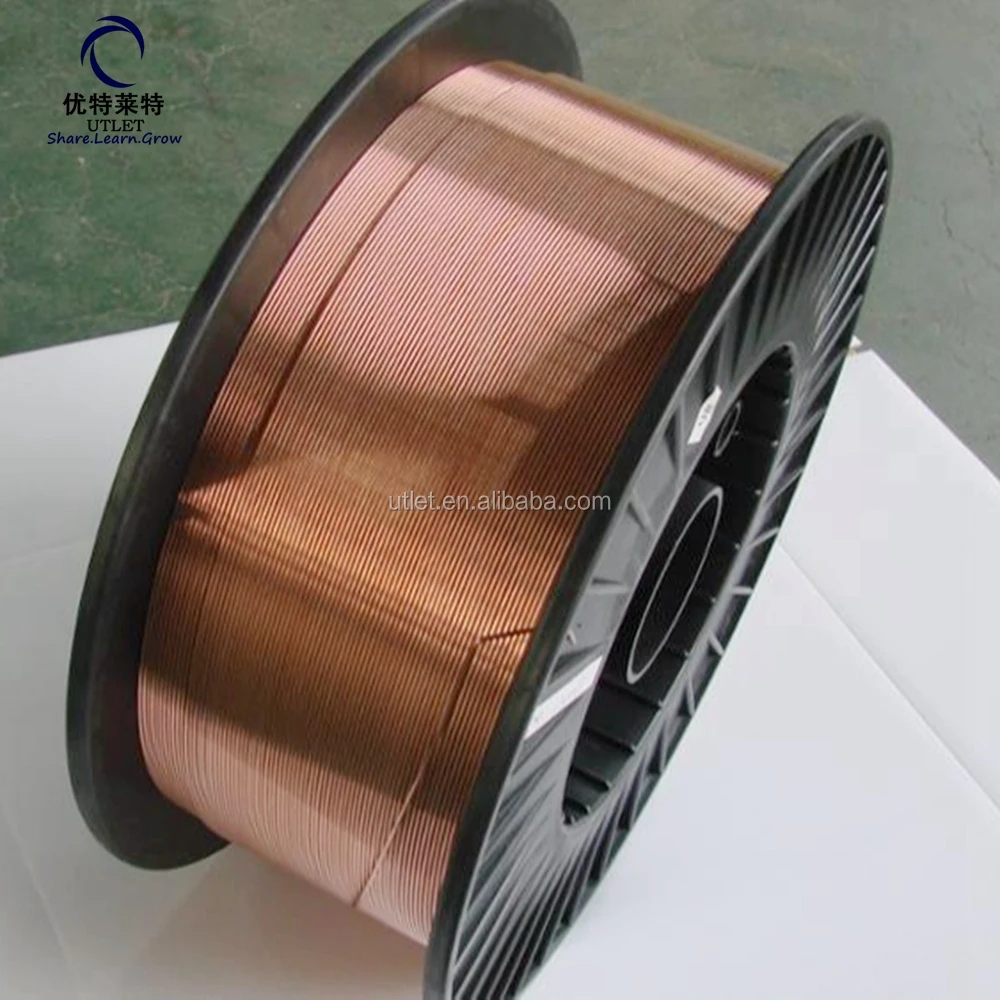

Packing for ER70S-6
MIG
(Dia: 0.6mm 0.8mm 0.9mm 1.0mm 1.2mm)
1kgs/D100-spool
5kgs/D200-spool
15kgs/D270-spool
15kgs/D300-spool
15kgs/K300-spool
15kgs/BS300-spool
TIG
(Dia: 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm)
5kgs/tube 10kgs/tube
Drum
(Dia: 0.6mm 0.8mm 0.9mm 1.0mm 1.2mm)
100kgs/drum 250kgs/drum 350kgs/drum
Welcome to order!
