Product Overview
Description
Product Introduction
This MPPT solar controller is an advanced maximum power point tracking solar battery charger. The controller features a smart tracking algorithm that finds and maintains operation at the solar array peak power point, maximizing energy converting efficiency.
The MPPT solar controller charging process has been optimized for long battery life and improved system performance. Self-diagnostics and electronic error protections prevent damage when installation mistakes or system faults occur. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the controller. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Product Features
12V/24V/48V auto work
Multi-stage charging optimizes battery performance
MPPT tracking efficiency >99.5%, peak conversion efficiency 98%
Compatible with gel, AGM flooded, sealed lead acid and lithium battery
Comprehensive protection

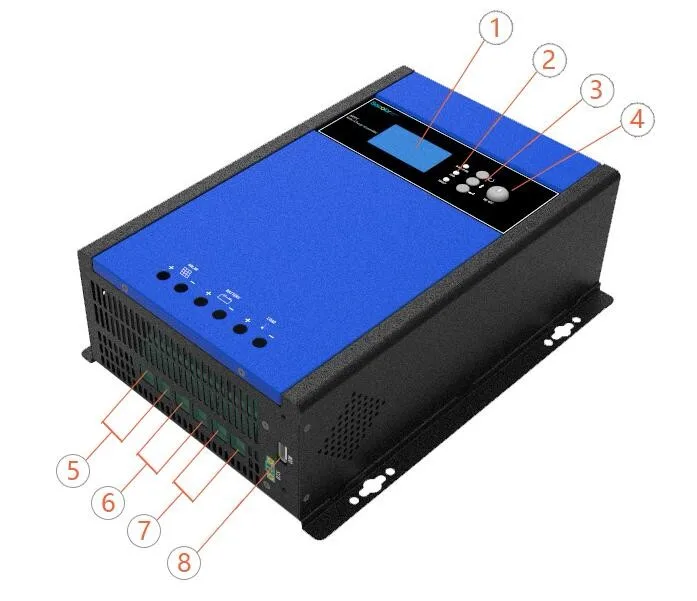

Product Overview
Product Overview | ||
1 | LCD Display | |
2 | Status indicators | |
3 | Function buttons | |
4 | On/Off switch | |
5 | PV input | |
6 | Battery input | |
7 | DC output | |
8 | WiFi/GPRS communication port | |

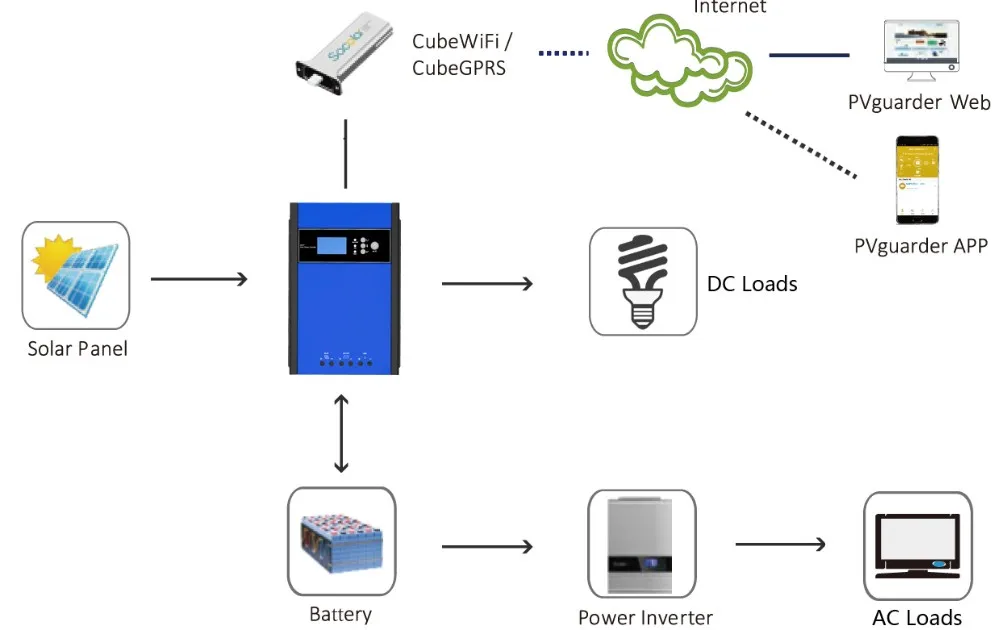

System Connection
Specification
Model | Spriter 48/30 | Spriter 48/40 | Spriter 48/60 | Spriter 48/80 | |||
Voltage | 12V/24V/48V auto work | ||||||
Max. PV Power | 12V 400W 24V 800W 48V 1700W | 12V 600W 24V 1200W 48V 2300W | 12V 800W 24V 1700W 48V 3400W | 12V 1200W 24V 2300W 48V 4600W | |||
Max. PV Charge Current | 30A | 40A | 60A | 80A | |||
MPPT voltage range | 18~145Vdc@12V 34~145Vdc@24V 60~145Vdc@48V | 18~145Vdc@12V 34~145Vdc@24V 60~145Vdc@48V | 18~145Vdc@12V 34~145Vdc@24V 60~145Vdc@48V | 18~145Vdc@12V 34~145Vdc@24V 60~145Vdc@48V | |||
Product Processing
With a assembly of the top talents in the industry
One of the most intelligent and automatic inverter production lines in China
Production capacity over 100, 000 pieces a year
