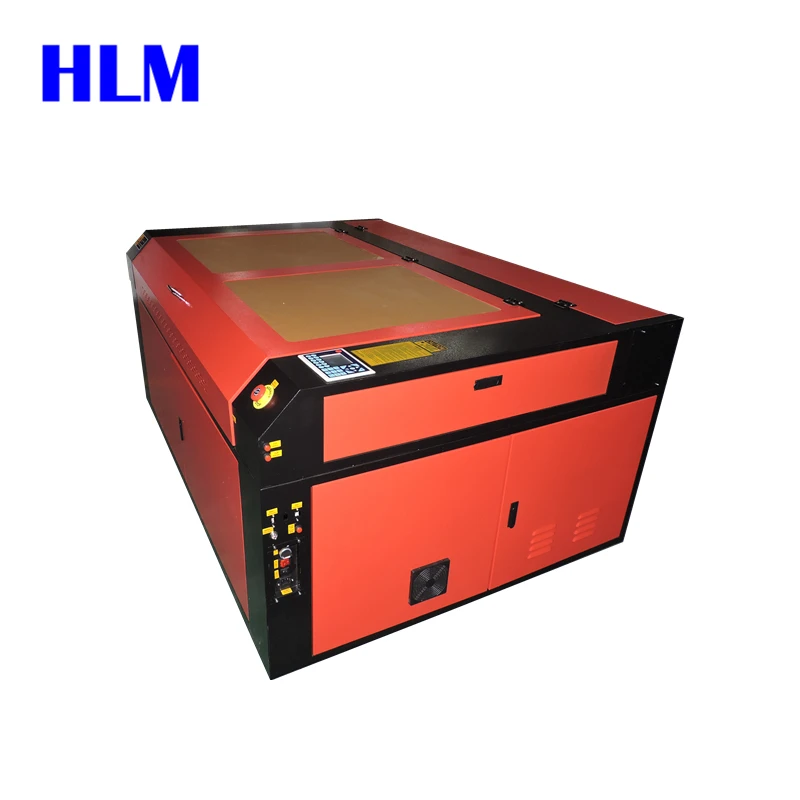

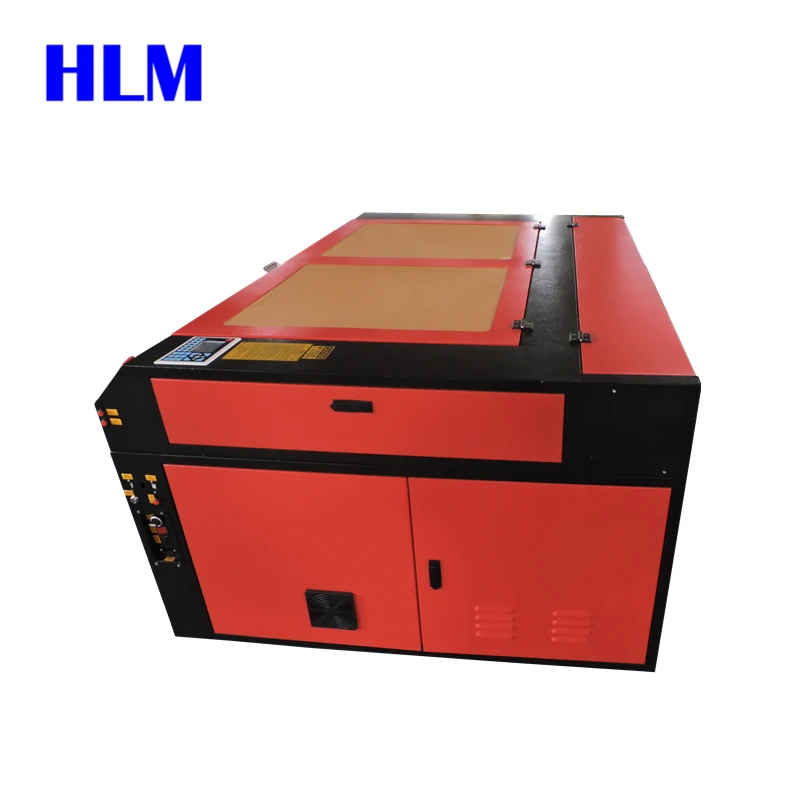

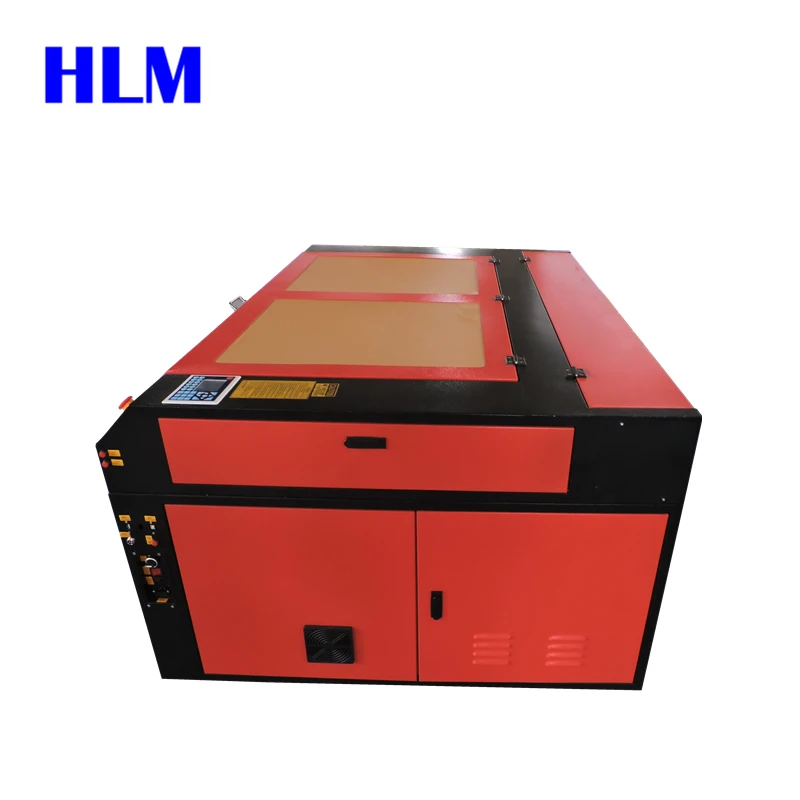

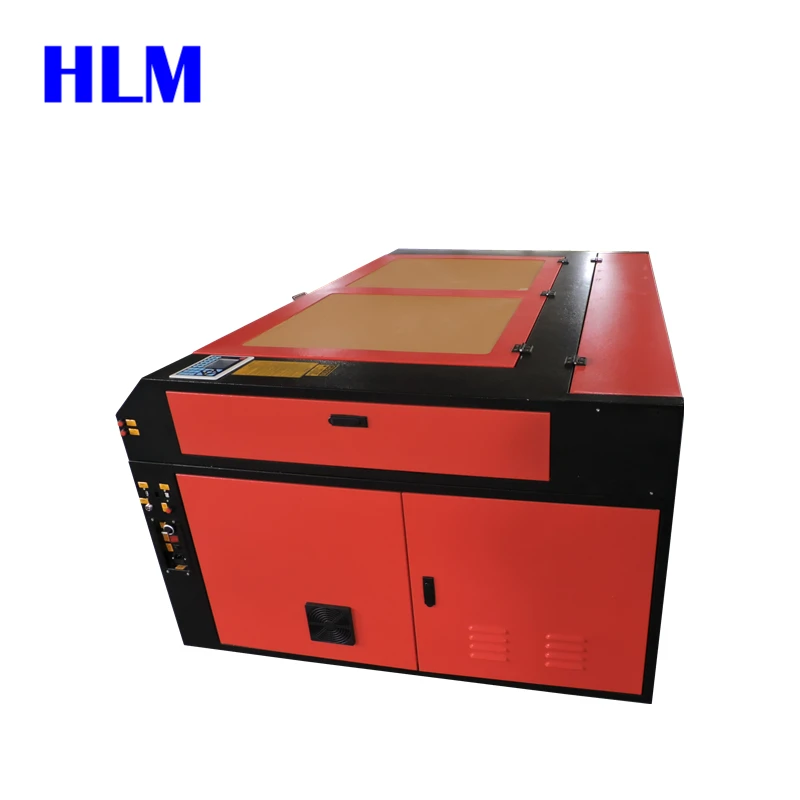

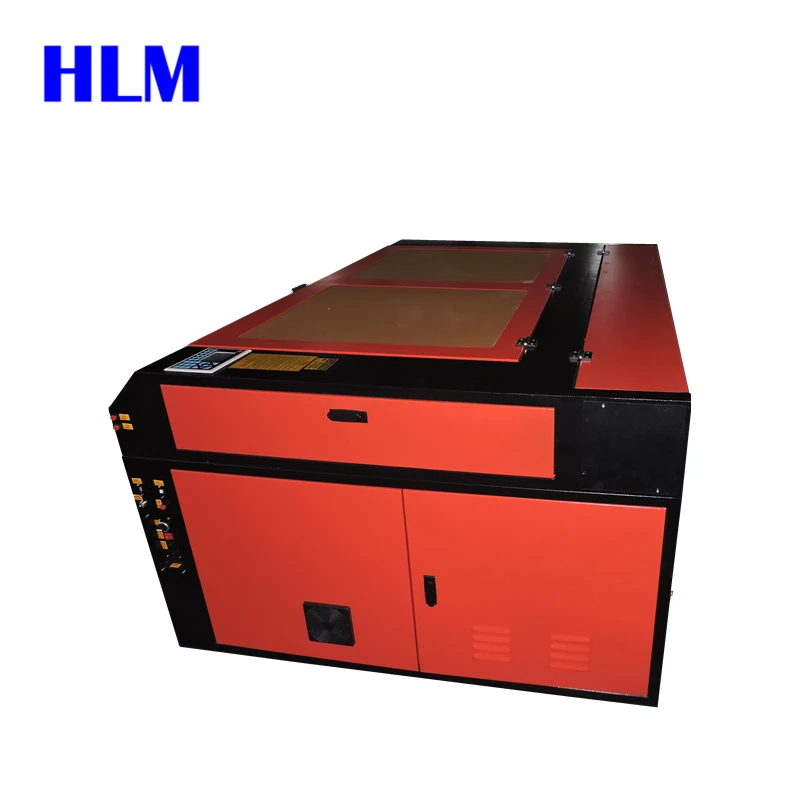

Hot sale smt stencil laser cutting machine for non metal cutting and carving
- Category: >>>
- Supplier: Shandong Hualaimeng Import And Export Co. Ltd.
Share on (60796627367):
Product Overview
Description
Product Description
Company profile
Our company can custom design and manufacture whole laser systems as well as supplying spare parts. We have wide experience developing laser machines using the best and latest technology as it becomes available. Our goals are to provide innovations and the best technology for laser applications in new fields and to create the best products at attractive prices as well as offering the highest possible level of customer service every step of the way.Customer satisfy is the eternal pursue of corporation.

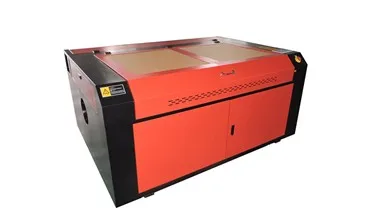

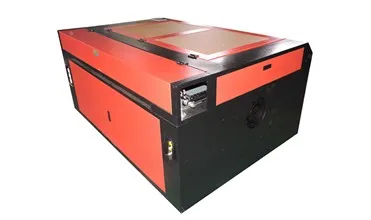

laser cutter HLM-1490
Applicable materials:Acrylic, crystal glass, leather, paper, plastic, plexiglass, plywood, rubber, stone, wood.
This machine is suitable for leather garments, template cutting, packaging, printing, advertising and tailoring, embroidery,Handicrafts, paper products, plastics industry, acrylic sheet, medium density fiberboard, decorative board and other non-metallic sheet precision cutting industry.
Main feature
1. High precision, easy operation and wide application range.
2. With scanning, engraving, cutting, punching and other functions. Suitable for hand made.
3. Graphics and letters are clear and durable.
Product | HLM1490 laser engraving machine | ||||
Laser Type | Sealed-off CO2 Laser Tub | ||||
Laser Power | 80w/100w/130w/150w | ||||
Working area | 1400*900 mm | ||||
Engraving speed maximum | 1000mm/s | ||||
Minimum Character | 1mm | ||||
Guideway | Linear Guideway | ||||
Drive Mode | 57 Digital Subdivision Stepper Drive | ||||
Positioning Mode | Red Light | ||||
Cooling Mode | Water Cooling | ||||
Lift table space | 500 mm up and down adjustable | ||||
Direct output | CorelDraw, AutoCAD, Photoshop, Laser CAD, etc... | ||||
Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc | ||||
Power supply | 220V 10% 50HZ / 110V 10% 50HZ | ||||
Standard parts | blower and exhaust pipe, water chiller, air pump, electric lift table, DSP offline control, software, etc. | ||||
Optional part rotary jig | used for carving on curved surface. | ||||
Optional Device | Water-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine | ||||
Detailed Images

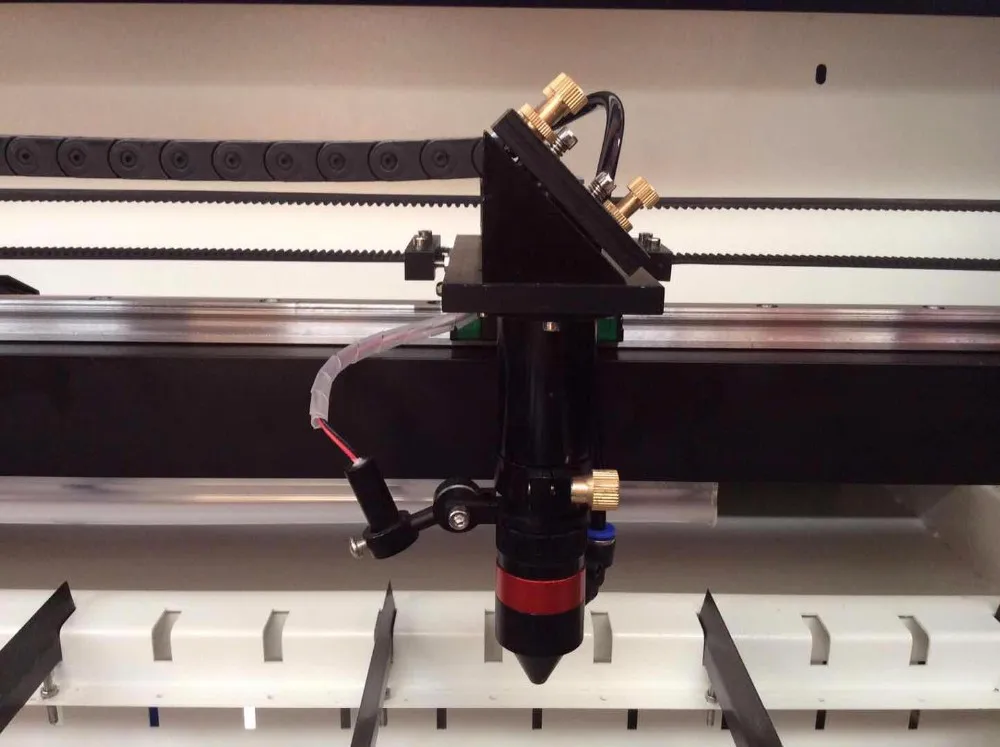

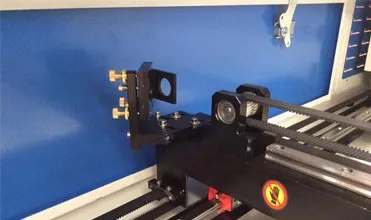

Laser head
-High stability
-high precision

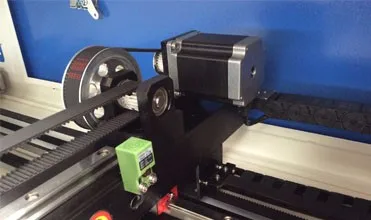

Stepper motor
-57 Digital Subdivision Stepper Drive
-High speed
-high stability
-High power
Linear guideway
-High durability
-high precision
-no rust

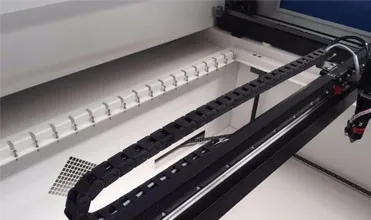

Traverse tube
-More neatness
-high stability
-high precision
-low risk
Wood | Plywood | Leather | Acrylic | pvc | Bamboo works | |
60W | 5.5mm | 4.5mm | 2.5mm | 9mm | 2.5mm | 1.5mm |
80W | 8.5mm | 8.5mm | 3.5mm | 13mm | 3.5mm | 2.5mm |
100W | 10.5mm | 10.5mm | 4.5mm | 17mm | 4.5mm | 3.5mm |
130W | 11.5mm | 11.5mm | 5.5mm | 20mm | 5.5mm | 4.5mm |
150W | 13.5mm | 13.5mm | 6.5mm | 23mm | 6.5mm | 5.5mm |
Plastic | Rubber | Clothing | Pleixglass | Paper | Class/crystac | |
60W | 1.5mm | 1.5mm | 1.5mm | 3.5mm | / | |
80W | 2.5mm | 2.5mm | 2.5mm | 7.5mm | / | |
100W | 3.5mm | 3.5mm | 3.5mm | 9.5mm | / | |
130W | 4.5mm | 4.5mm | 4.5mm | 11.5mm | / | |
150W | 5.5mm | 5.5mm | 6.5mm | 14.5mm | / |
Size & weight
Packaging | ||
Size | 1870 (L) * 1320 (W) *1105 (D) | |
Weight | 350--400kg | |
Packaging | ||
Size | 2000(L) * 1350 (W) * 1130 (D) | |
Weight | 420--450kg | |
Packaging Details | Conventional wooden box packing | |
Package details:
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-14 days after received your payment.

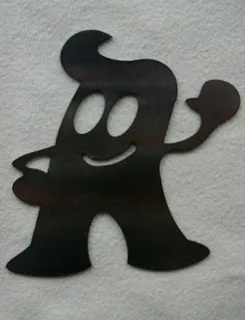

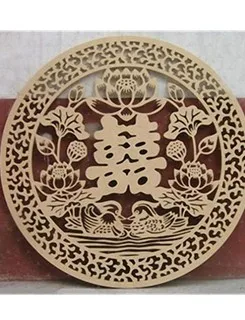

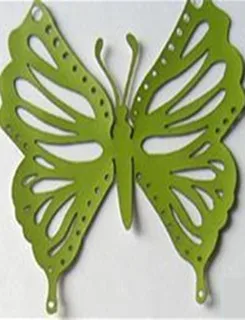

Sample
Applicable materials:
Acrylic, crystal glass, leather, paper, plastic, plexiglass, plywood, rubber, stone, wood.
Shipping & Payment
Company profile
2018 International Convention and Exhibition Center
2018 International Convention and Exhibition Center
More products click here:
900*600 working area laser cutting machine
1400*1000 working area laser cutting machine
1600*1000 working area laser cutting machine
FAQ
Q: How can I get the best machine for me?
A:You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q: This is the first time I use this kind of machine, is it easy to operate?
A:We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q:What's the guarantee, in case the machine breaks down?
A:The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as.
Q:How is the packing?
A:Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
space as much as possible for container loading.
