JST PH 2mm 17pin JST PHR housing nylon connectors DIP pins SMT headers wire to board wire to wire board to board connector
- Category: >>>
- Supplier: Shenzhen Jun An De Connector Co. Ltd.
Share on (60796664491):
Product Overview
Description
JST PH 2mm 17pin JST PHR housing nylon connectors DIP pins SMT headers wire to board wire to wire board to board connector
Product Description
Series name:PH
Authentication: ROHS REACH ISO9001 UL CUL
Application:wire to board

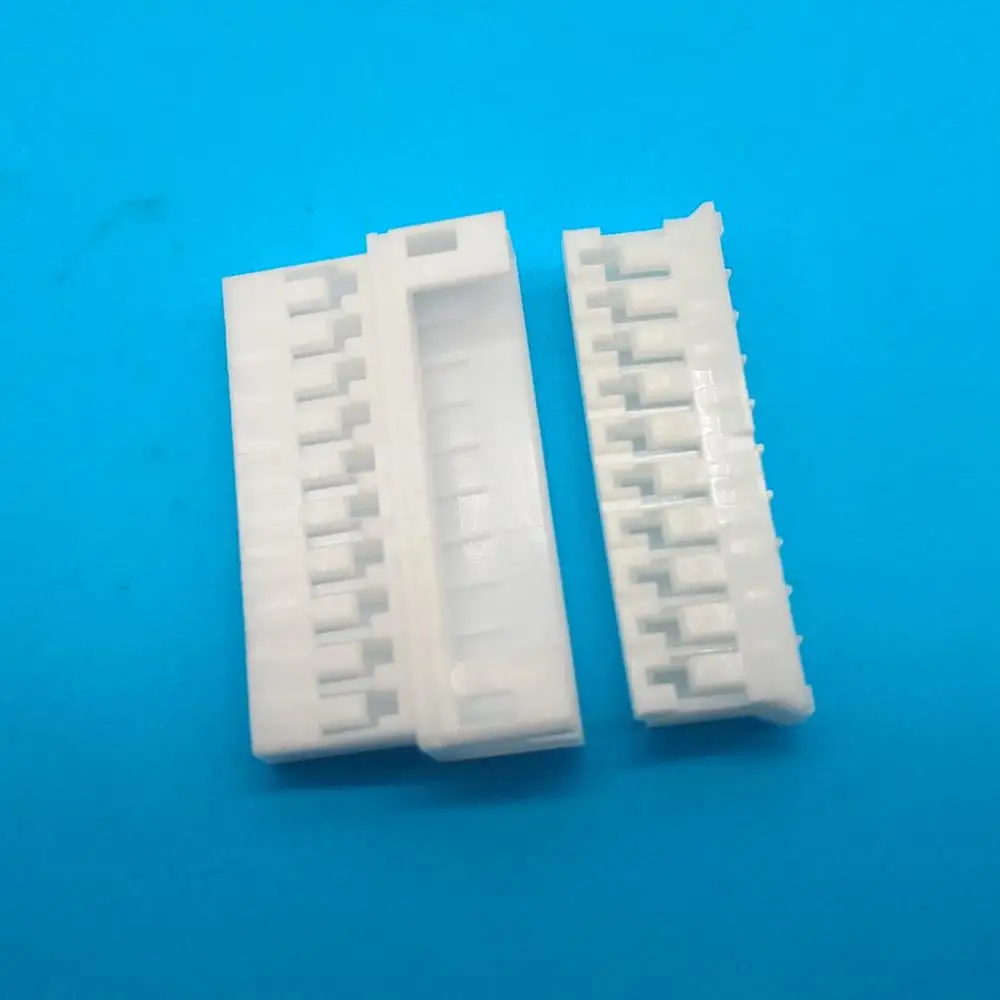

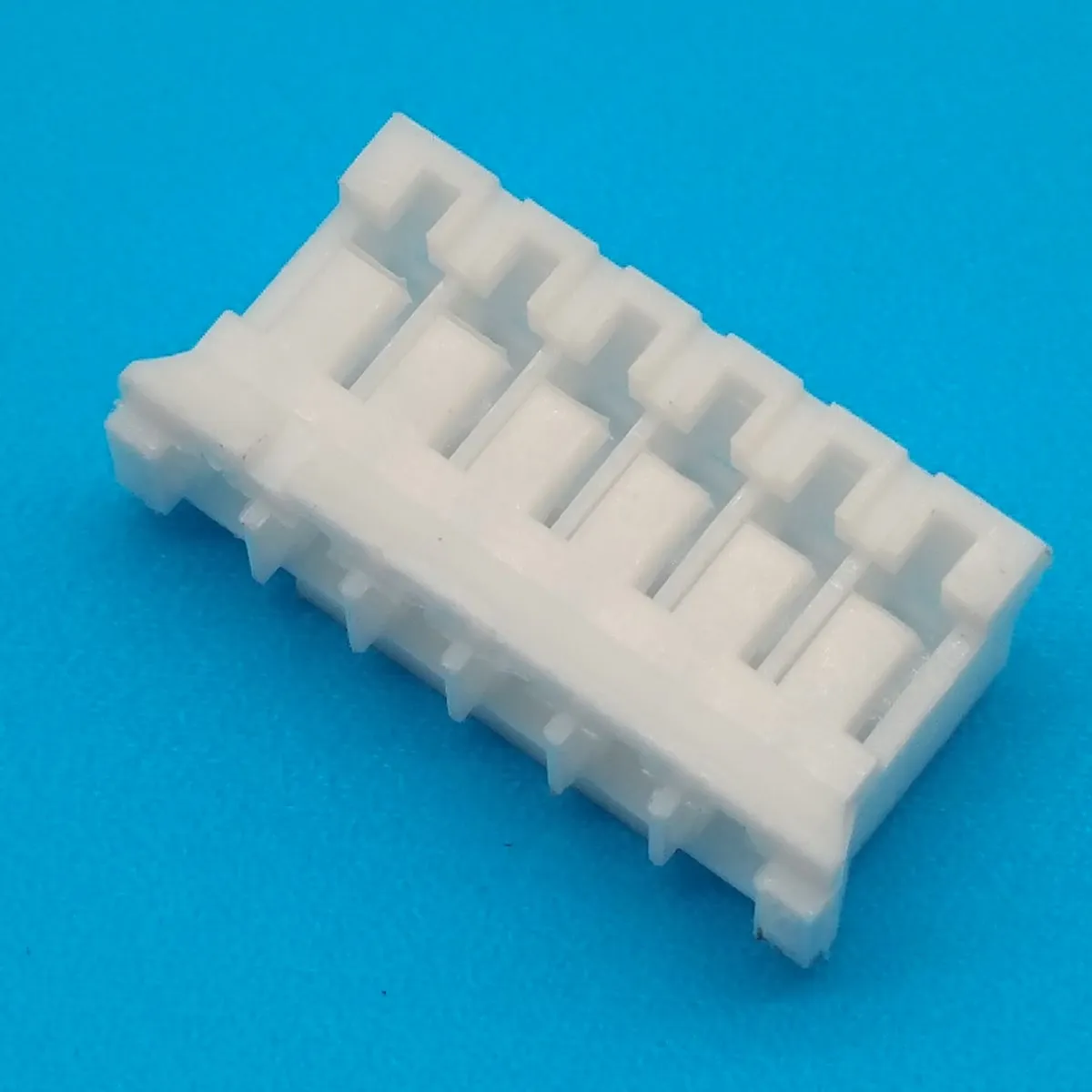

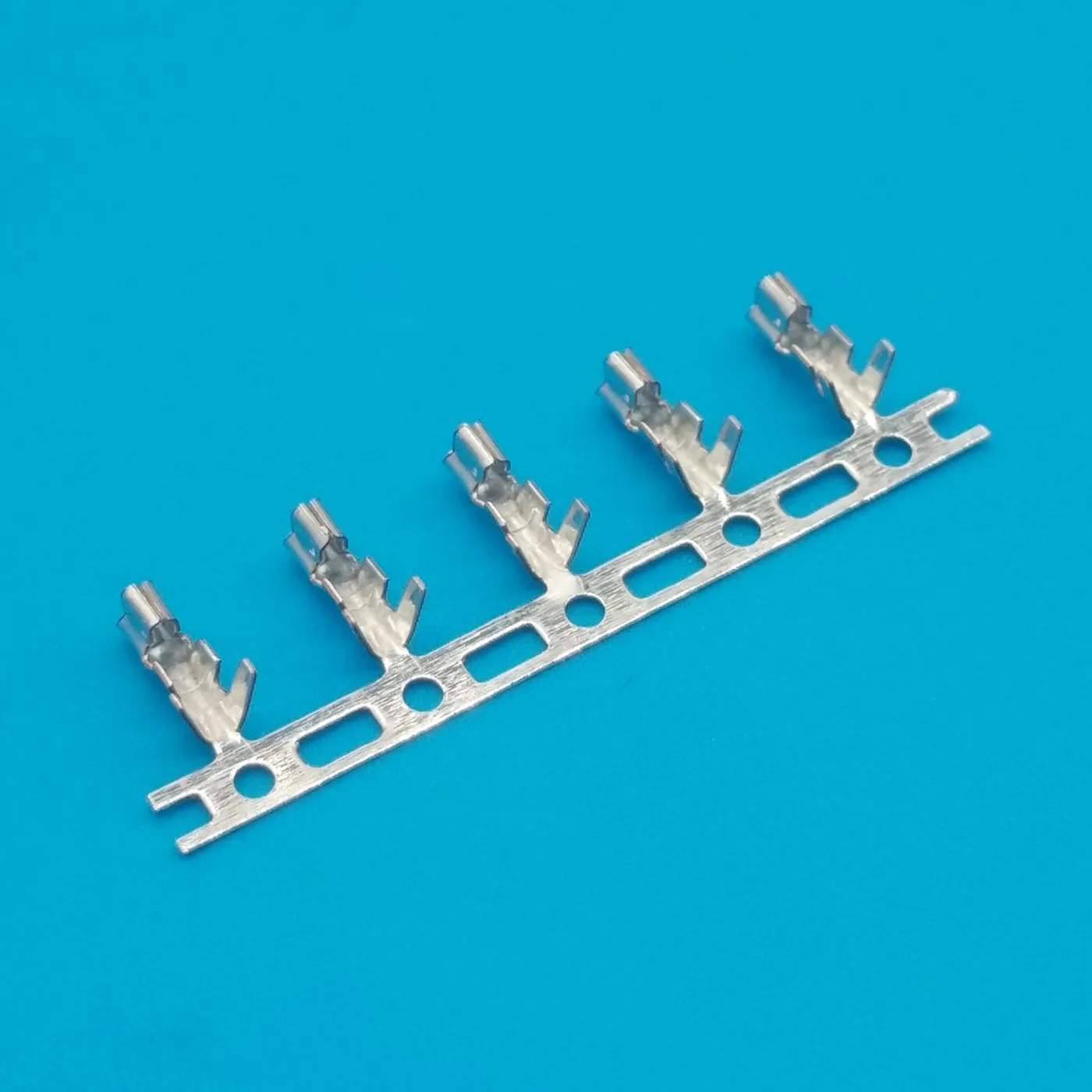

Housing:PH-nP Terminal :PH-T
Pitch:2.0mm Material:Phosphor Bronze
Poles:2pin~18pin Surface Treatment:Tin Plating
Material:Nylon UL94V-0 Packaging Type:Reel
Color:white Wire Size AWG: 22 24 26 28
Packaging Type:bag male Number:11000piece/reel
male Number:1000piece/bag

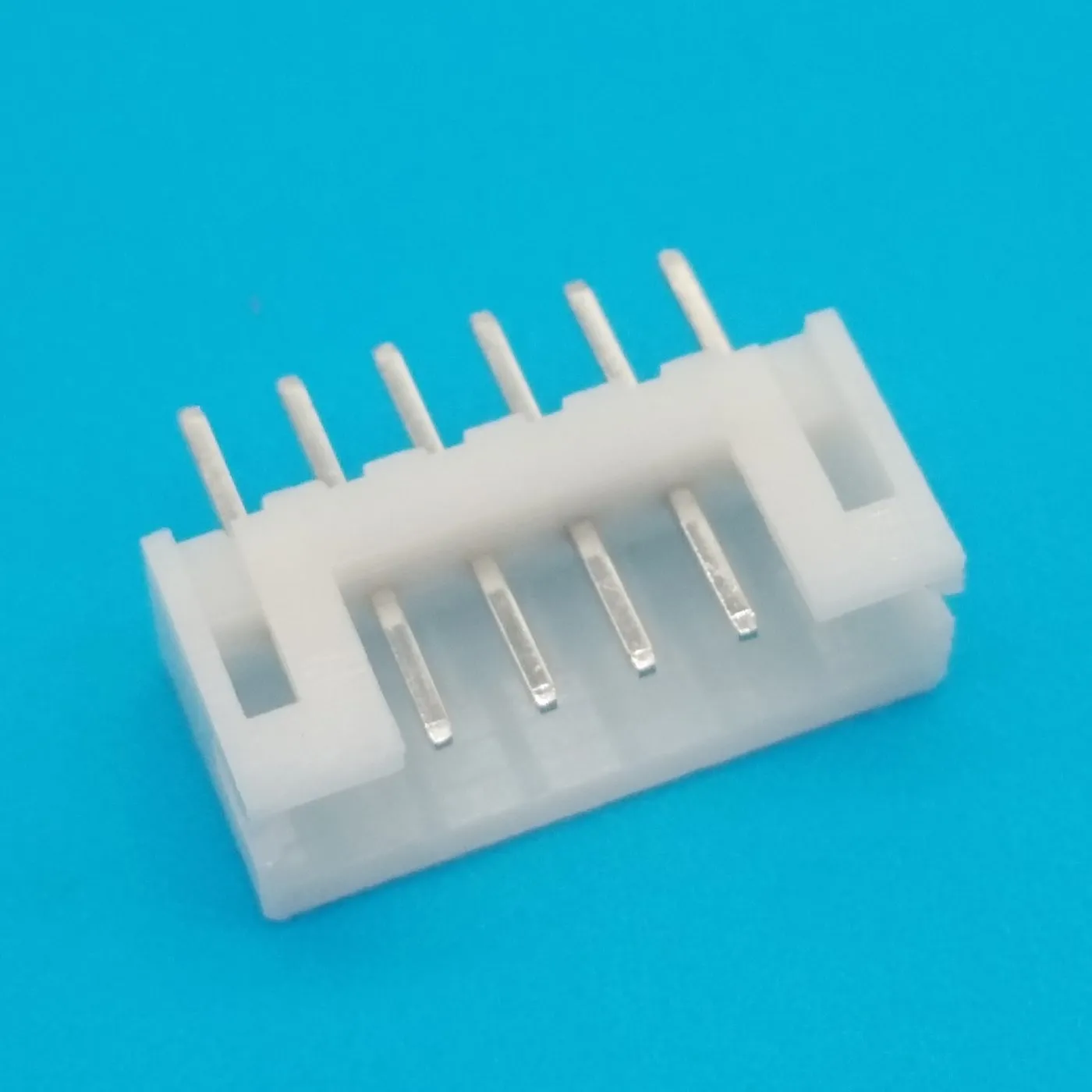

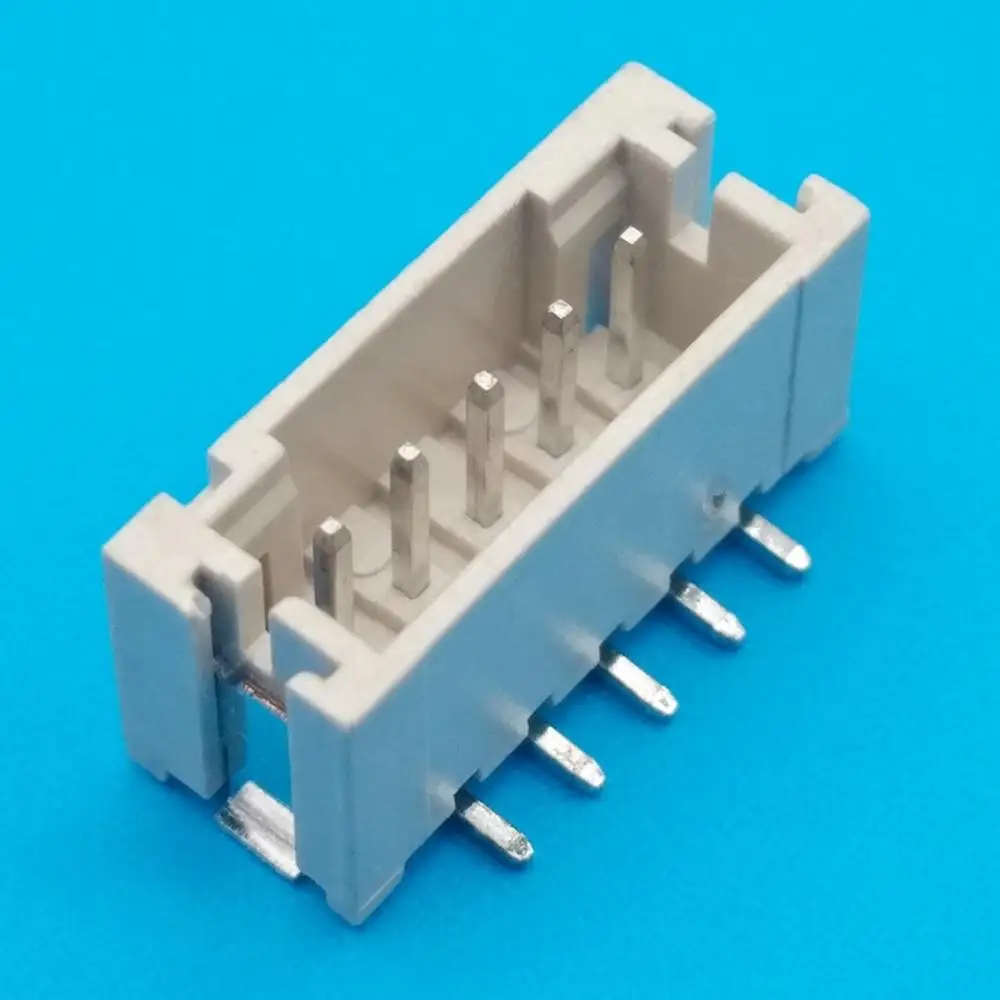

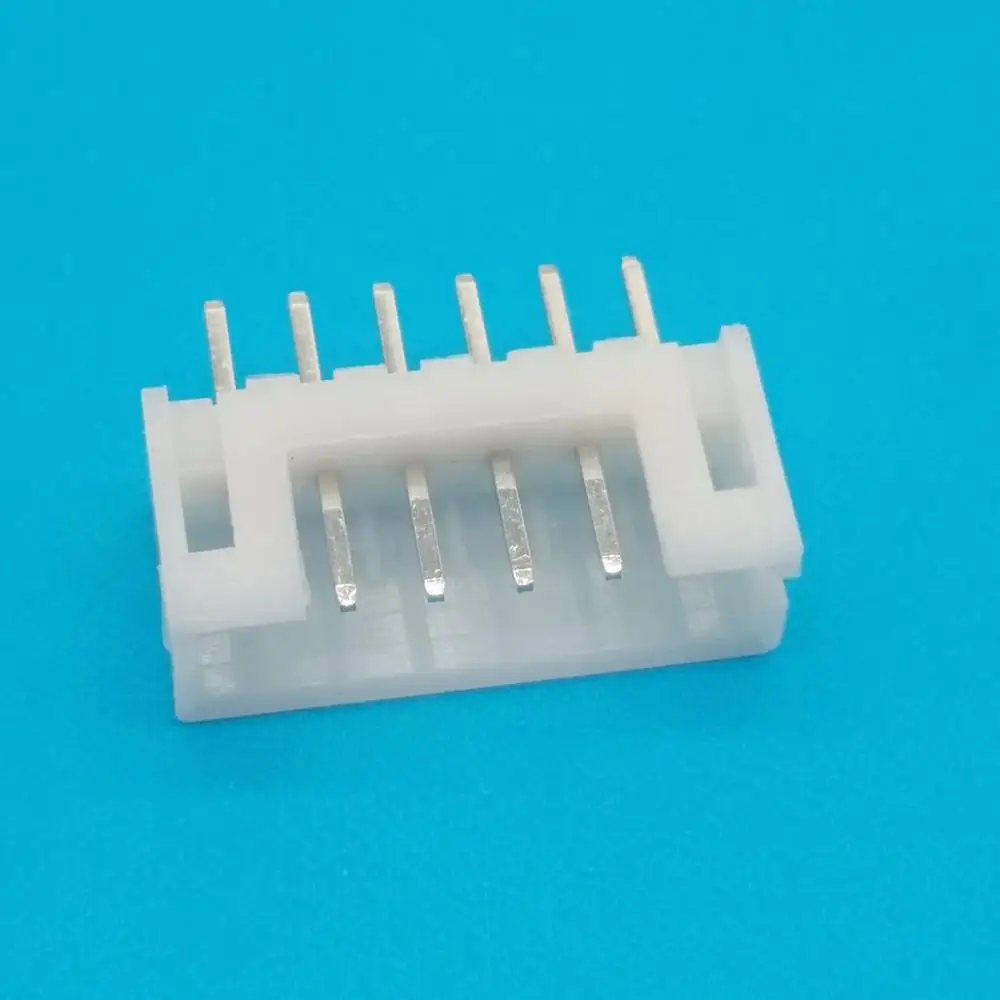

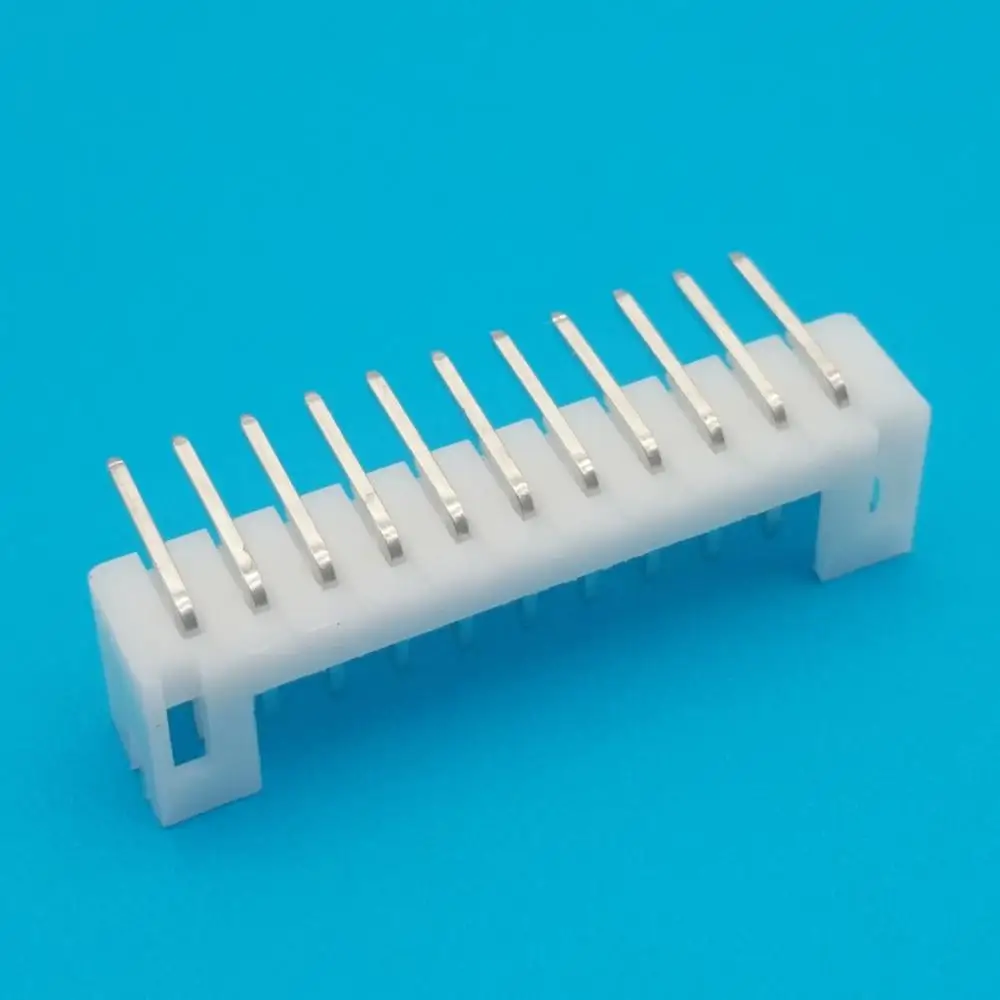

DIP Wafer:XH-nA 180° XH-AW 90° SMT:XH-nALT 180° XH-nAWT 90°
Material:Plastic shell--Nylon/Pins:Brass Tin Plating Material:Plastic shell--LCP/Pins:Brass Tin Plating
Poles:2pin~18pin Poles:2pin~18pin
Packaging Type:bag Packaging Type:Reel
Number:1000piece/bag Number:1000piece/reel
Color:white,beige Color:beige
Electrical Parameters
Voltage rating:100V
Current rating:2A
Withstand voltage:800V AC/minute
Working Temperature:-25℃~+85℃
Insulation resistance:1000mΩ
Contact resistance:20mΩ

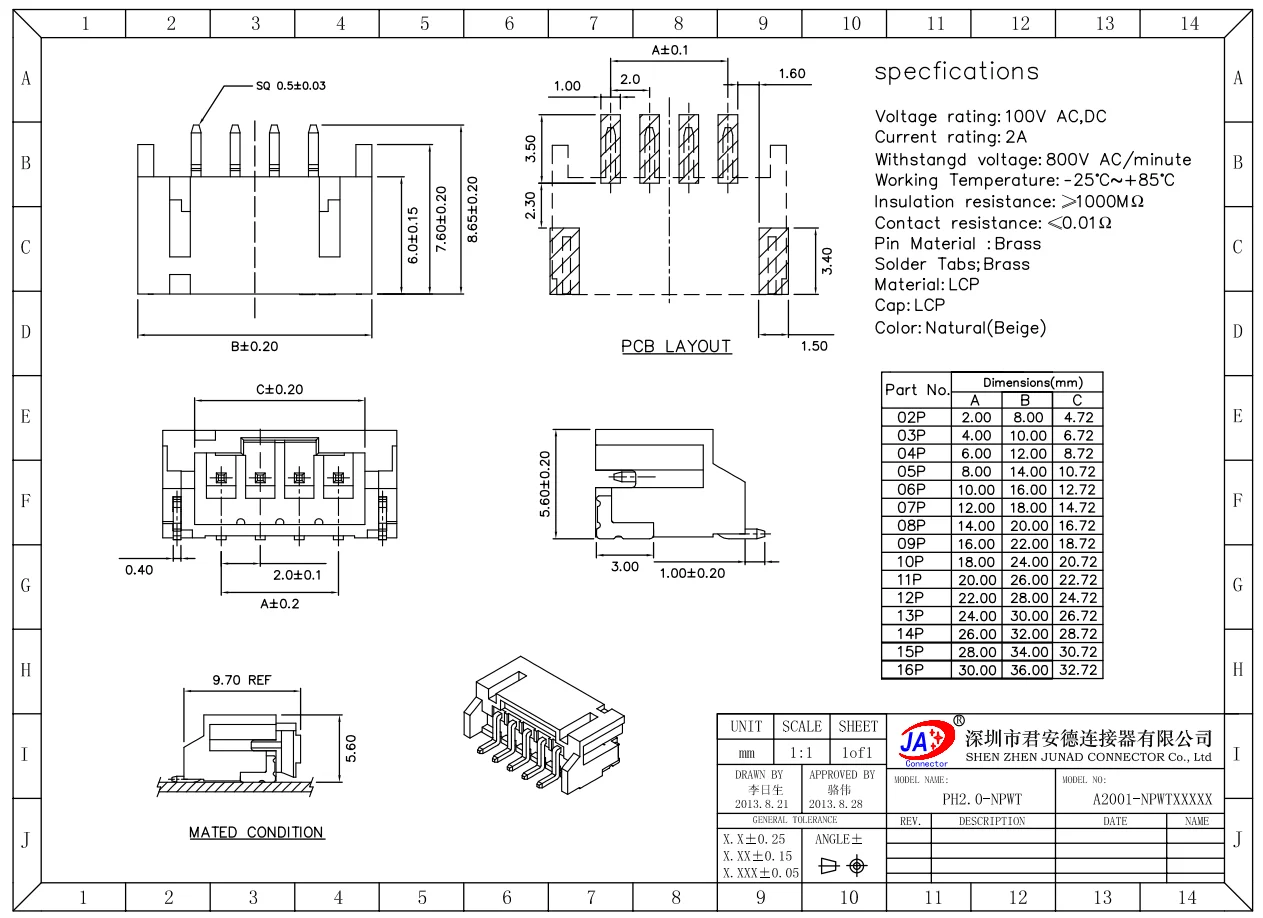

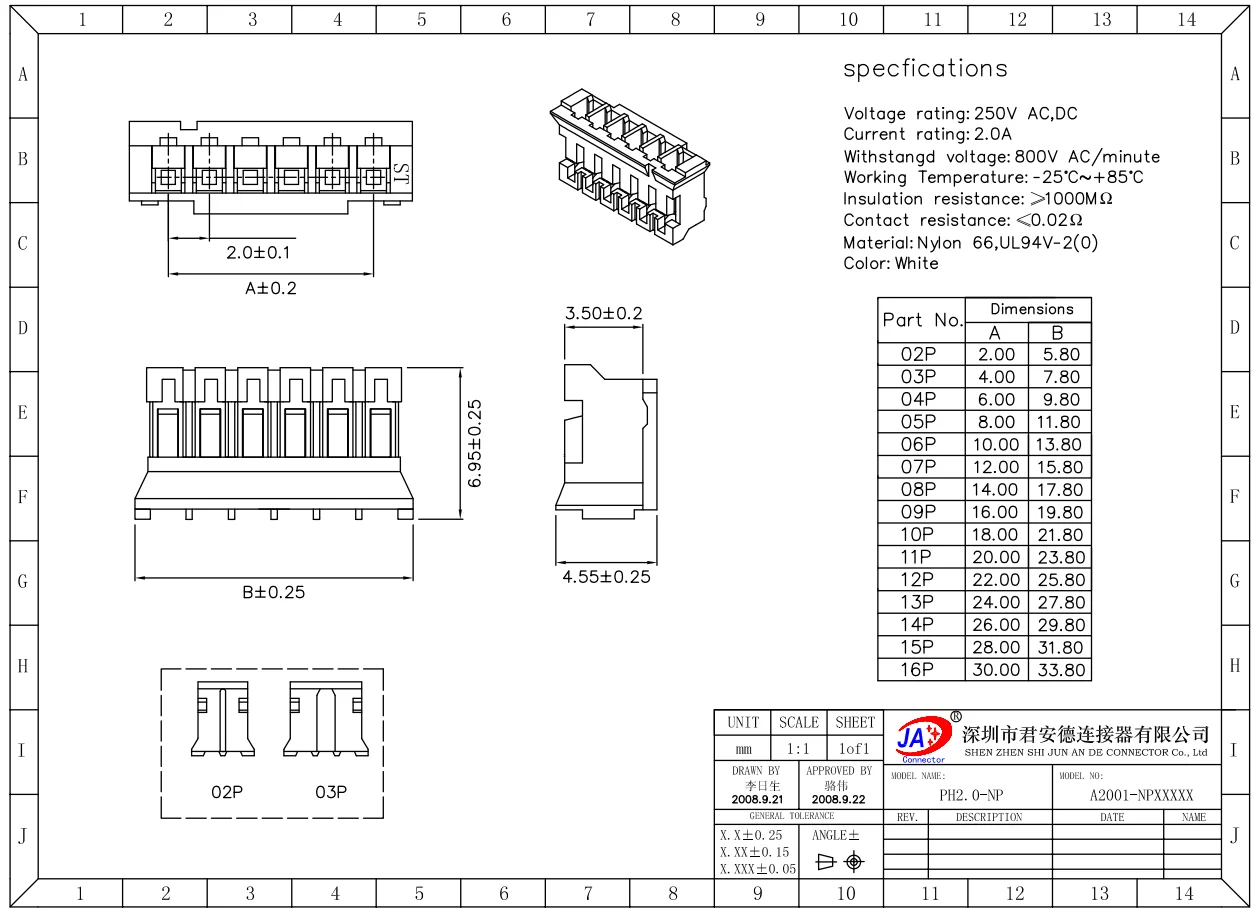

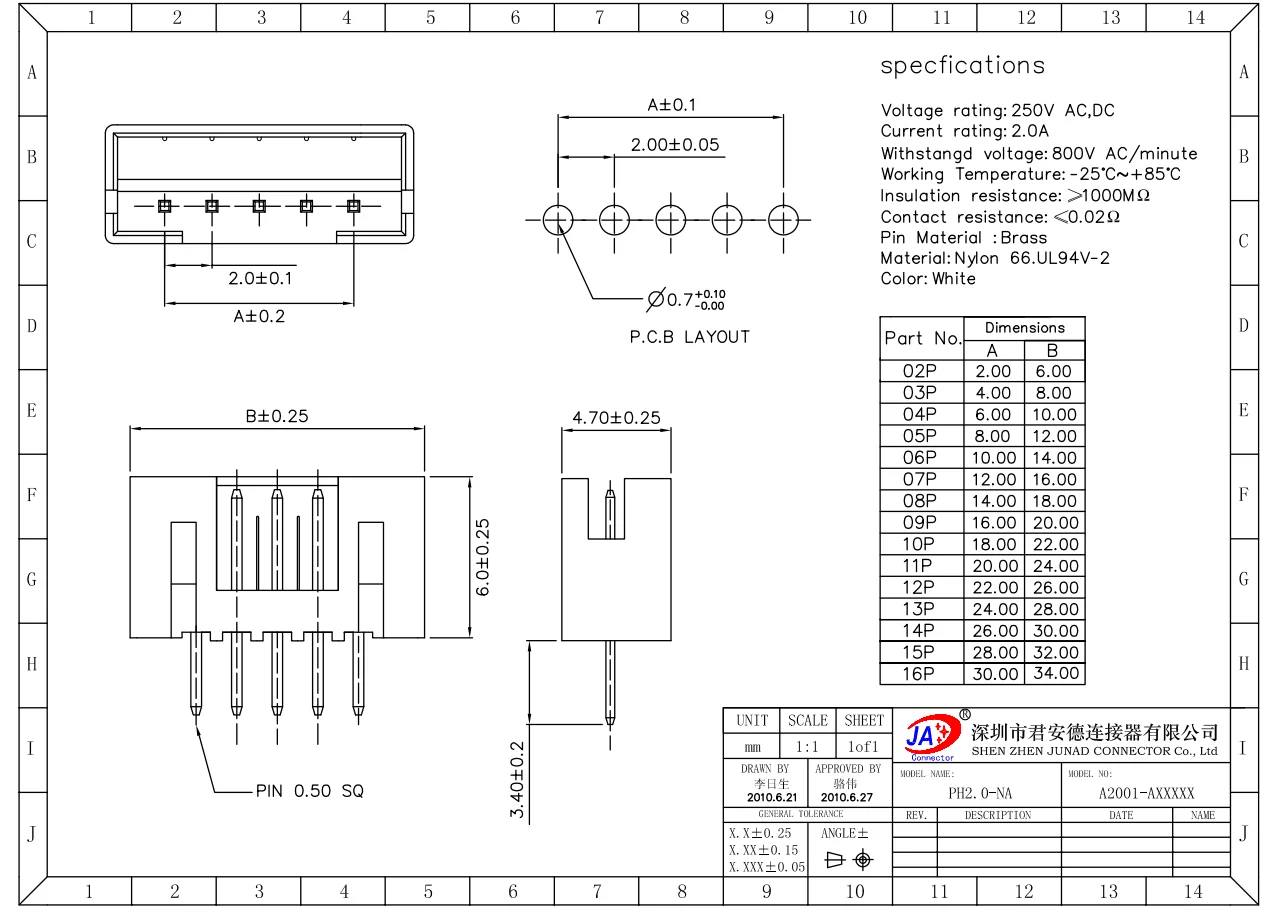

| Product drawings |
3KJDX3~1MIK}[I3TO4TR.png" width="760" height="510" ori-width="1271" ori-height="917"/>
Our advantage
Related Products
Company Information
Certificate
Packaging & Shipping
FAQ
Q: What is your MOQ?
A: There is no MOQ for most of the products. Small orders also will be highly welcome.
Q: What’s the sample time and lead time for mass production?
A: Normally, sampling time is about 2-3 days upon receipt of request . Lead time for mass production is 7day after payment
Q: Is a sample available?
A: Yes, we could provide you free sample as your requirement
