Huatec Hot Sale Industrial NDT X ray Film
General Characteristics:
Type T7 industry radiographic film is a fine grain, high contrast, high radiation sensitive, high definition radiographic film made by using novel emulation technology. Designed for direct exposure or with lead screens. For exposure with lead screens using either X-ray or gamma rays.
The T7 radiographic film consider two fundamental factors of the nondestructive control (NC) - quality of the image and stability of properties.
Applications :
This film is suitable for different NDT applications such as: medium thickness heavy metals and alloys, fairly thick light metals and alloys, and also suitable for NDT of heavy metal parts having thick section when exposed with high-energy radiation. The film is especially suited to high temperature automatic processing. This product is compatible with international norms.
Welding and casting
Defense industry
Aerospace and aircraft industry
Composite materials
Multiple film techniques
Specifications
Short technical characteristics | ||||
TYPE | Average gradient | Sensibility | Class EN 584-1 | Existence of a special protective layer |
T7 | 5.2 | 10-12 | C5 | + |
Relative factors of an exposition | ||||||
TYPE | 100 kv | 200 kv | iridium 192 | cobalt 60 | Linear accelerator 8 MB | contrast |
T7 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 5.4 |
Quality of the image and classes of films | ||||||||
| New | Old | ||||||
TYPE | CEN | ASTM | ISO | JIS | ISO | DIN | RCC-M | BS |
T7 | C5 | II | T3 | T3 | GIII | G3 | 4 | B |

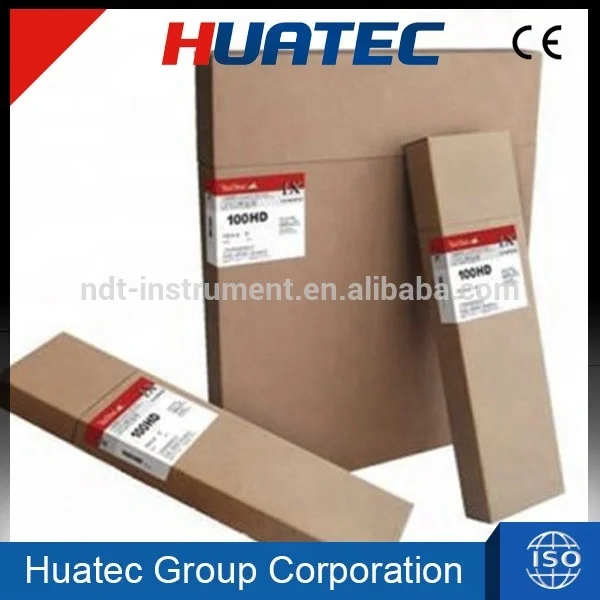

Our film is packaging with bare film on carboard to prevent exposure. This film can be cut to any length and loaded with or without lead screens in reloadable cassettes in the darkroom. The film has same performance to AFGA D7.
Film 100x240mm | x ray & gamma ray equal to D7 | bag/100films |
Film 100x400mm | x ray & gamma ray equal to D7 | bag/100films |
Film 300x85mm | x ray & gamma ray equal to D7 | bag/100films |
Roll type film 70mm width 100meters length | x ray & gamma ray equal to D7 | roll |
