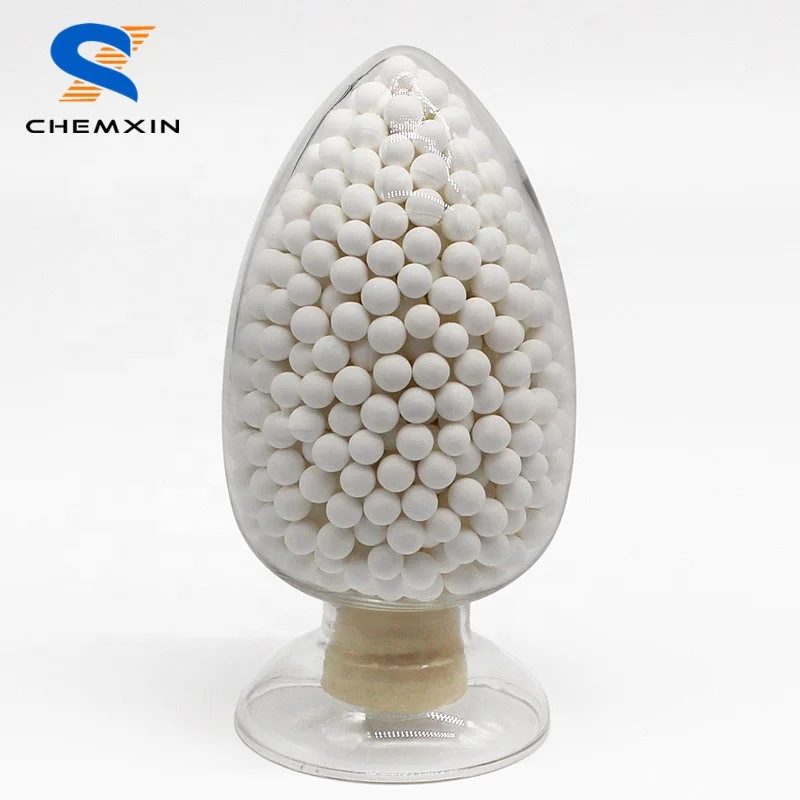

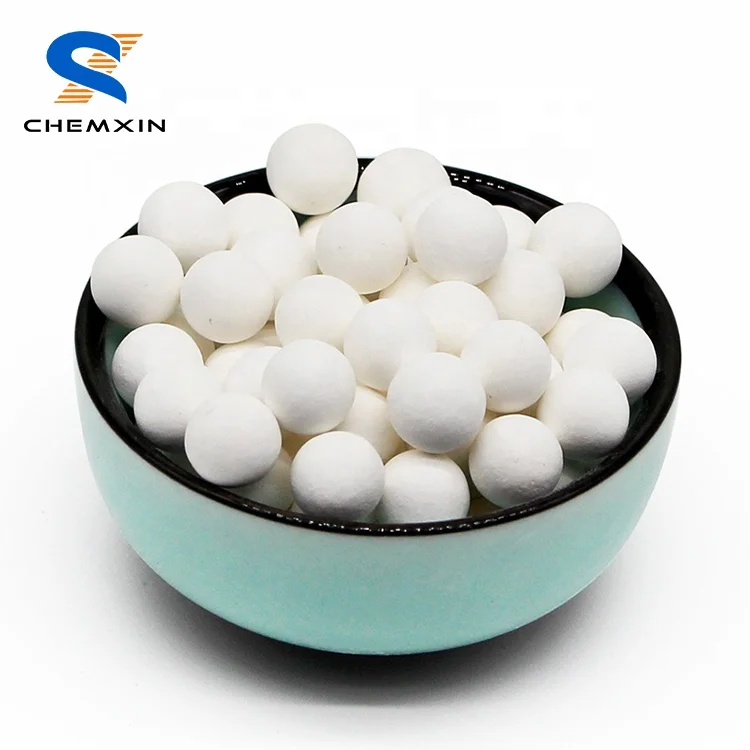

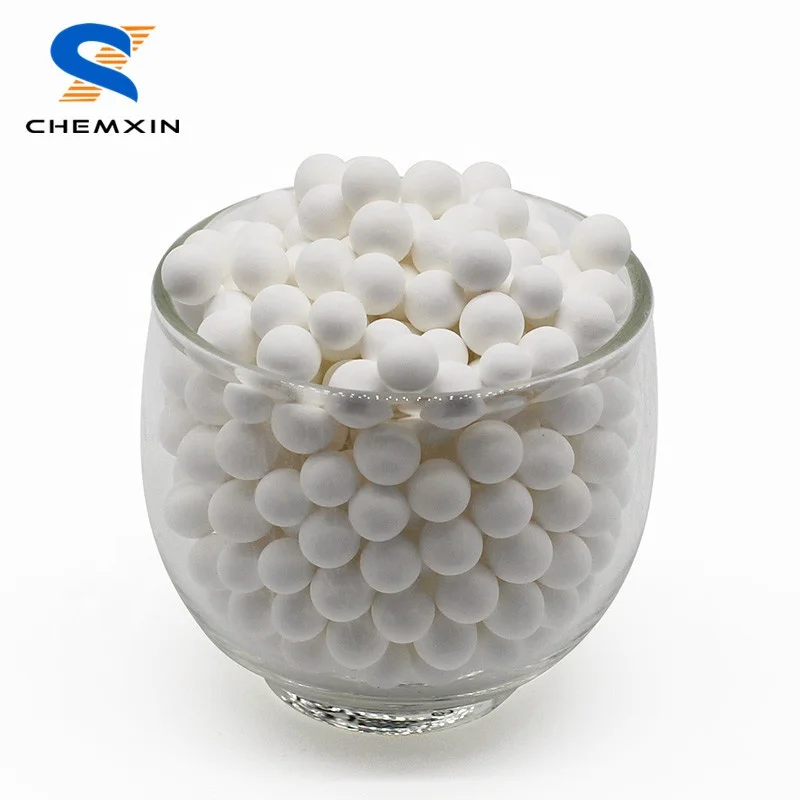

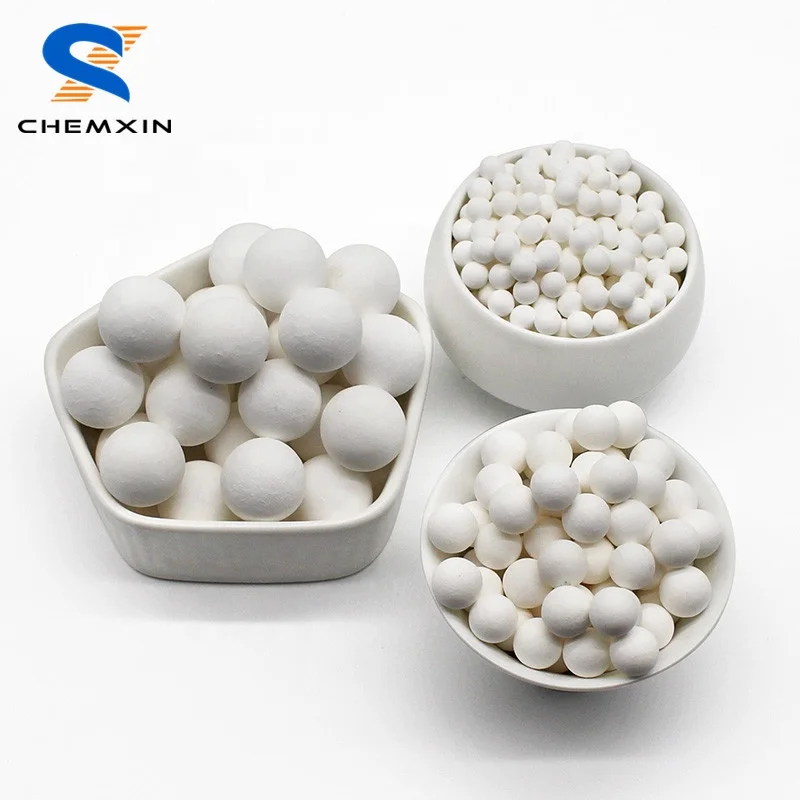

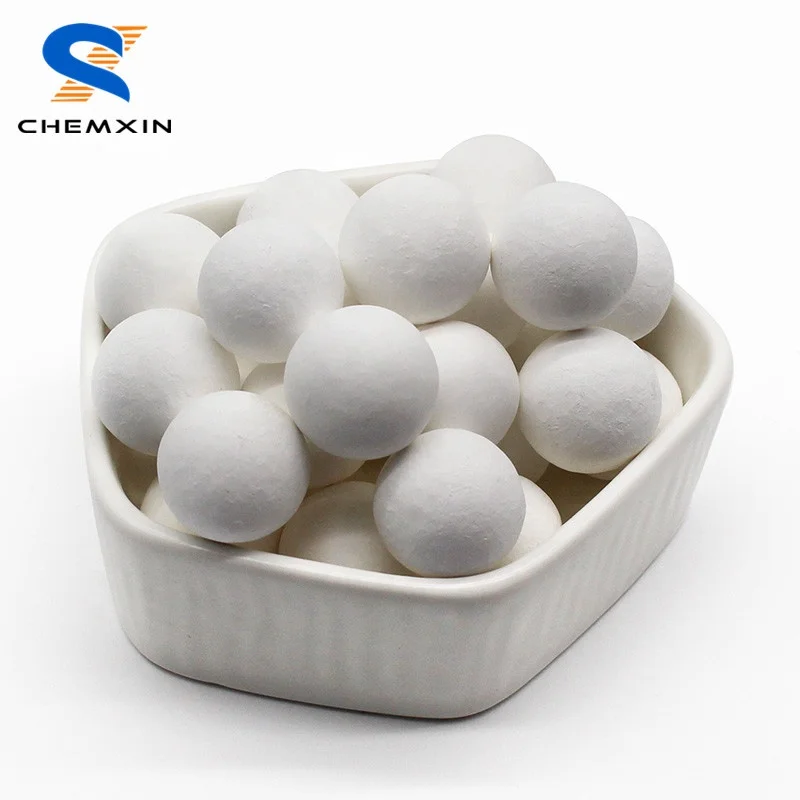

Factory Price 99% High Alumina Ceramic Ball Equal to Denstone 99 Catalyst Support Media for Ethylene Dryers





Product Description

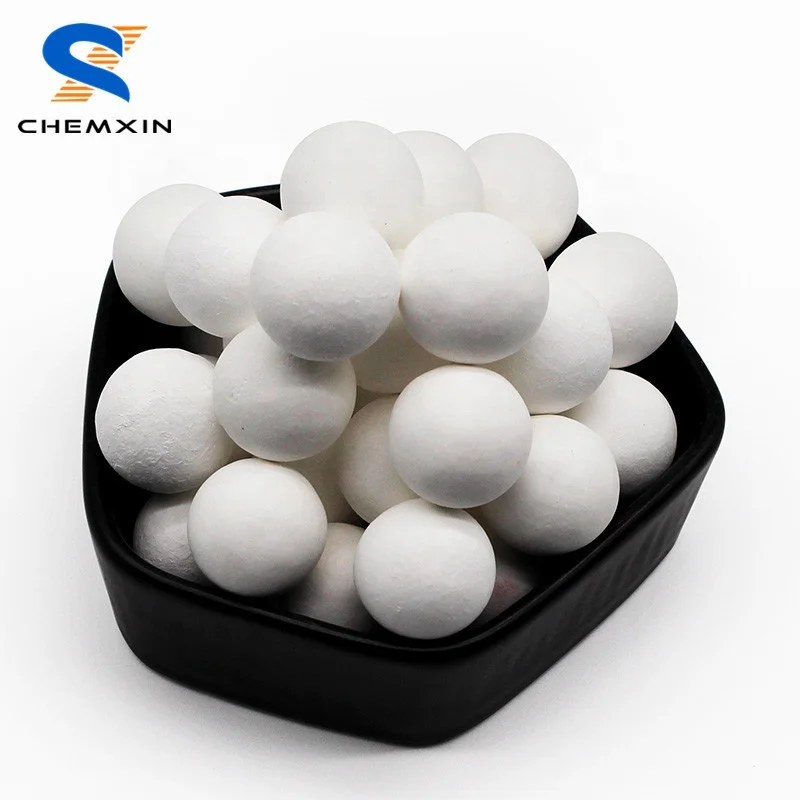

99% ceramic ball-19mm-6.jpg





The Chemxin 99 High Alumina Support Media is equal to Denstone® 99 Support Media. It is inchemical composition99+% alpha alumina and a maximum 0.2wt% SiO2 . Because of its highalumina content and low silica (SiO2 ), it's a very excellent and ideal product for high temperature and steam applications, such as secondary reformers in ammonia processing, where leached silica will coat downstream equipment or foul the catalyst bed.
The Chemxin 99 High Alumina Support Media has very excellent thermal properties, with its high density high-temperature resistance 1550℃, also it's a good choice for heat retention or equilibration media.For its superior chemical resistance, it's suitable for applications in olefin processes, such as ethylene dryers, where there's the polymerization problem. _02.jpg


Technical Parameter:





























































































































































































































ModelChemxin 99
ColorWhite
ShapeBall
Typical Technical CompositionMin. % Max. %Usual%
SiO2****** 0.20.18
Al2O399 99.699.3

Fe2O3



******


 0.2

0.02


TiO2****** 0.550.02
CaO****** 0.10.02
MgO****** 0.10.05
Na2O****** 0.250.01
K2O

******


 0.20.13
Physical properties
Index

 Value


 Value
Leachable Iron

≤ 0.01%


 ******
Apparent Porosity by Weight≤ 7.0%******
Moh's Hardness Scale>8.0******
Water Absorption<4.0 wt.%******
Acid Resistance>99.8%******
Thermal Conductivity0.7-0.8 w/m2.k******
Thermal Expansion @ 5000.10%******
Thermal Shock Stability, 1000 then water cooling10 times******
Max. Operating Temperature1550°C2822
Specific Density3400 kg/m3212 lb/ft3
Bulk Density (Packing Density)2000 kg/m3131 lb/ft3

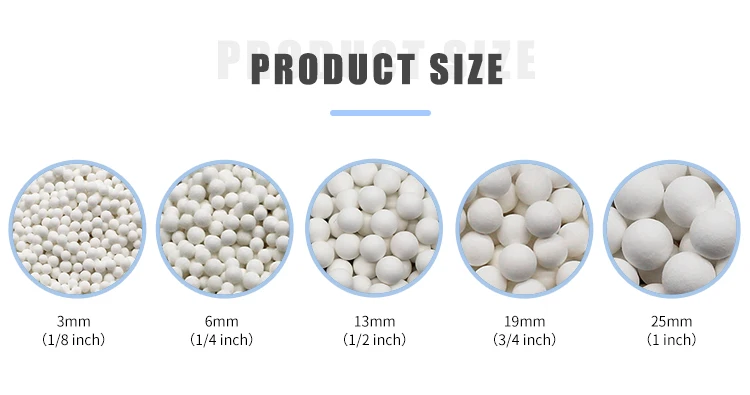

Crush Strength
SizeCrush Strength
Nominal Size(lbs)(kg)(N/pc)
mminchmin.min.min.
31/8"11552510
61/4"2301051030
103/8"4402001961
131/2"13556156031
165/8"17207807650
193/4"2315105010297
251"3130142013925
381-1/2"4034183017946
502"4960225022065
Typical Applicationa)high temperature and steam
b)has very excellent thermal properties, with its high density high-temperature resistance 1550.
c)it's suitable for applications in olefin processes, such as ethylene dryers

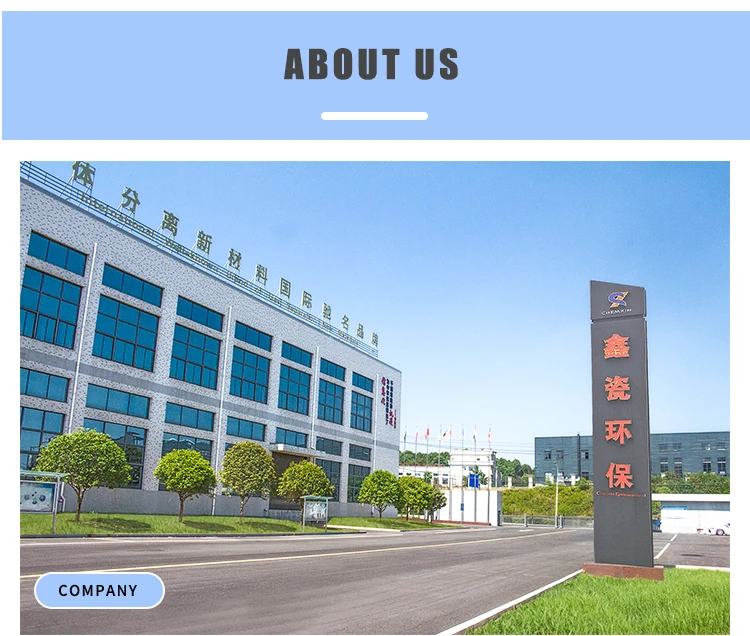

Company Information

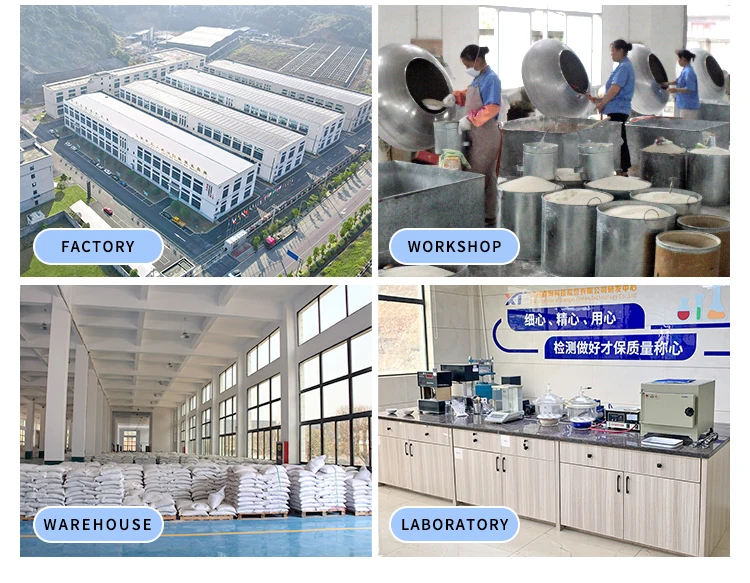

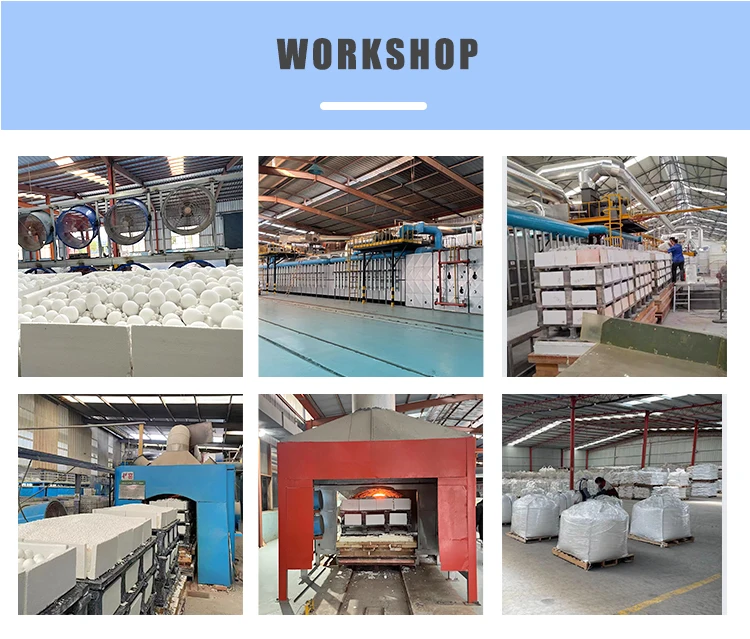

CHEMXIN is one of the biggest leading manufacturer of adsorbents, tower support medias and tower packings in China. Our factory covers an area of 42,000M2 with fully automatic production lines, intelligent warehouse, perfect production system, as well as excellent quality control system throughout all stages of production. We have nearly 20 years of factory production experience enables us to guarantee customer satisfaction.
