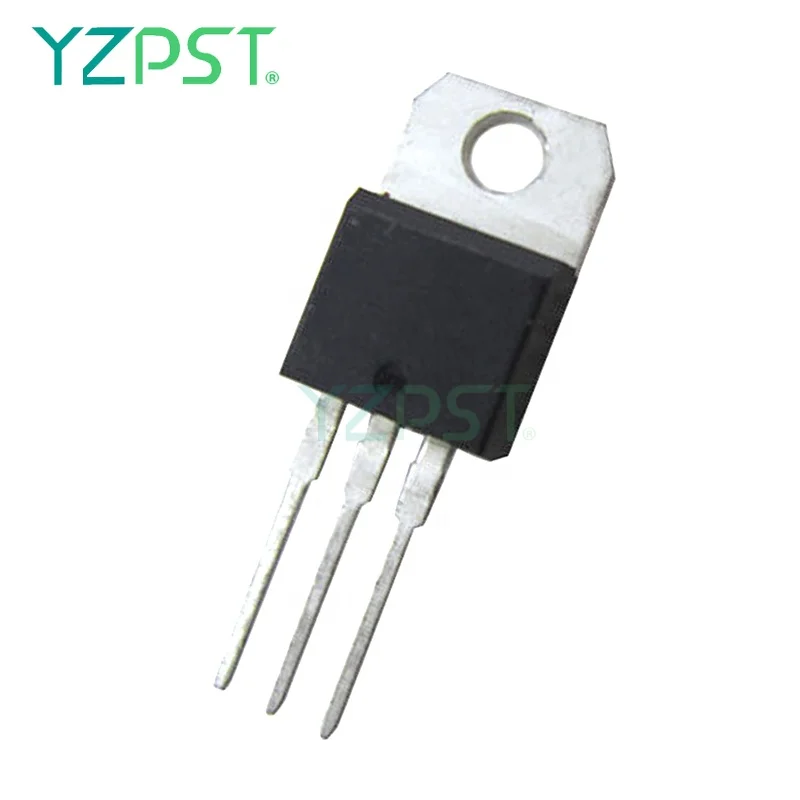

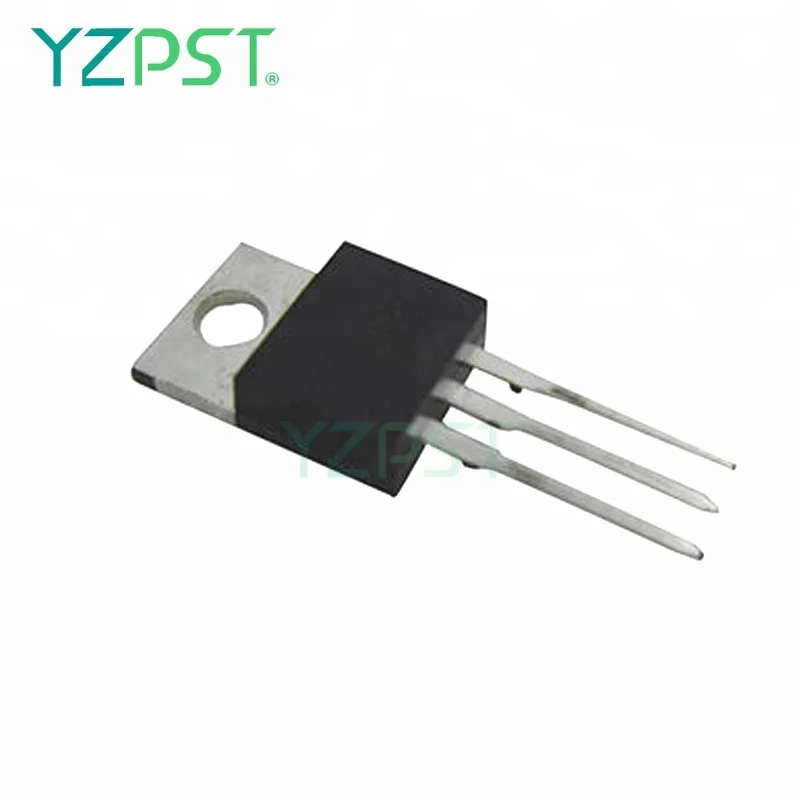

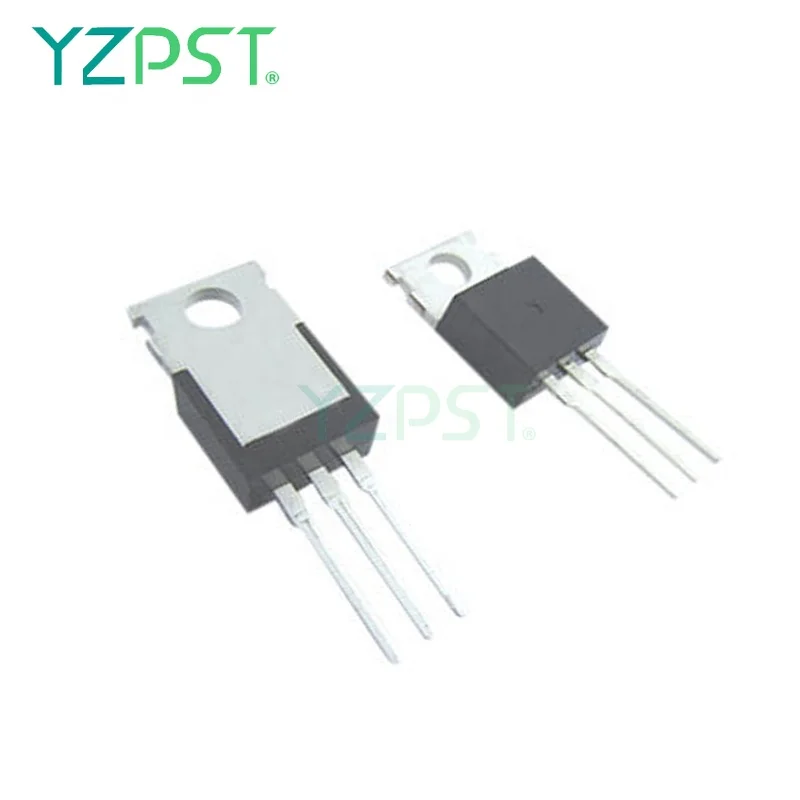

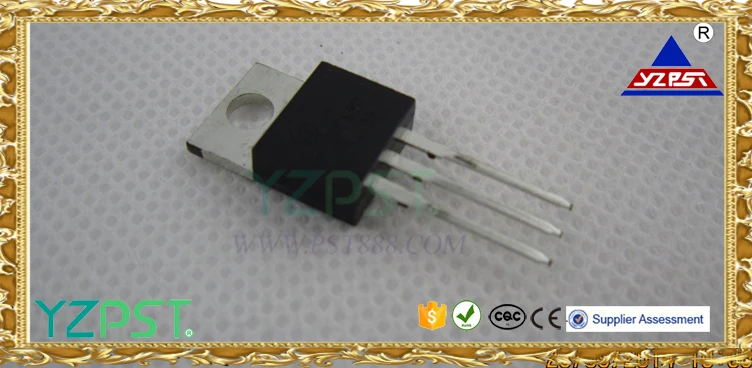

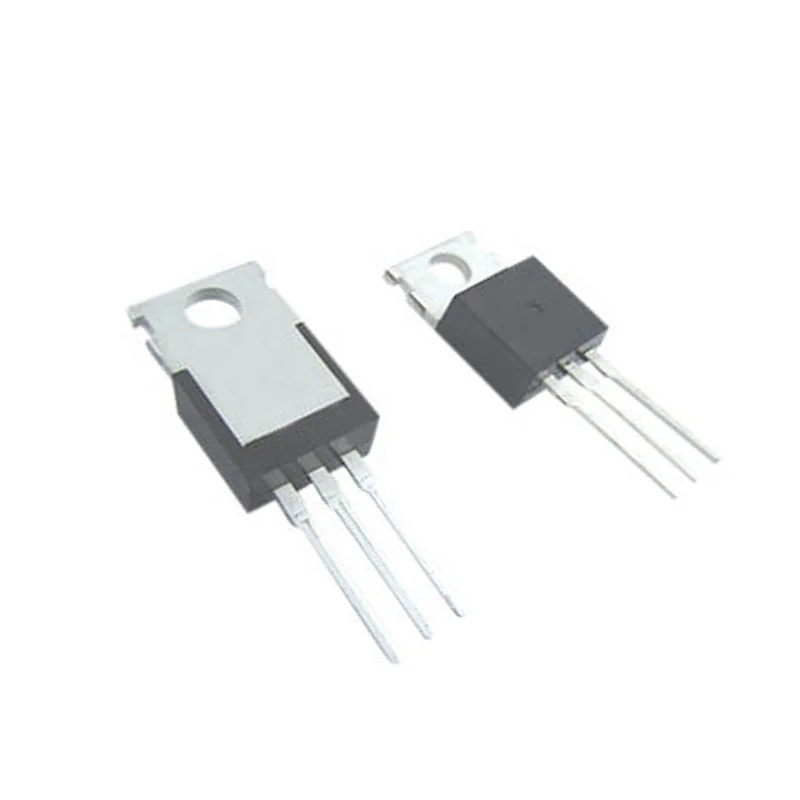

Standard triac BTA04 electronic components

Feature

*The third quadrant sensitine trigger structure ,

  The best match for commutating ability and gate sensitivity .

*Diffusion and glass passivated technology.

  Ensure specification reliability and uniformity.

*Match the appropriate gate specification as high temperature requirement.

  Main application

*Washing machine vacuum cleaner dimmer. remote switch .

*AC motor control equipment.

*Switching inductive load.



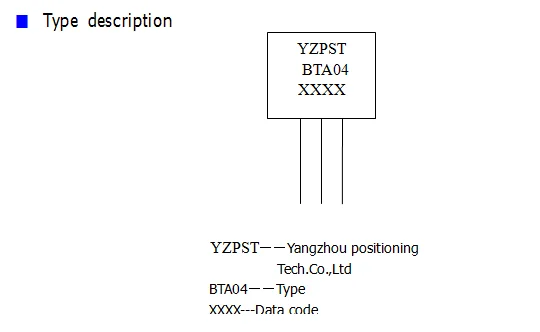

  Outline and pin array



  TO-220



 Rate value (unless special shows , T_j=25℃)

Description	symbol	value	unit
Repetitive peak off-state voltage (Tj= −40 ~125℃) Half sine wave 50Hz, gate open   04-600 04-800	VDRM VRRM	600 800	V
Nominal RMS on-state current Full sine wave 50 Hz	IT(RMS)	4	A
Non-repetitive peak surge current   (junction temperature Tj =25℃) One cycle 50 Hz	ITSM	35	A
Fuse current (t = 8.3 ms)	I2t	6	A2s
Gate average power (TC = 80℃, t = 8.3 ms)	PG(AV)	0.5	W
Gate peak current (t≤2.0μs)	IGM	4	A
Work junction temperature	TJ	-40~125	℃
Storage temperature	Tstg	-40~150	℃



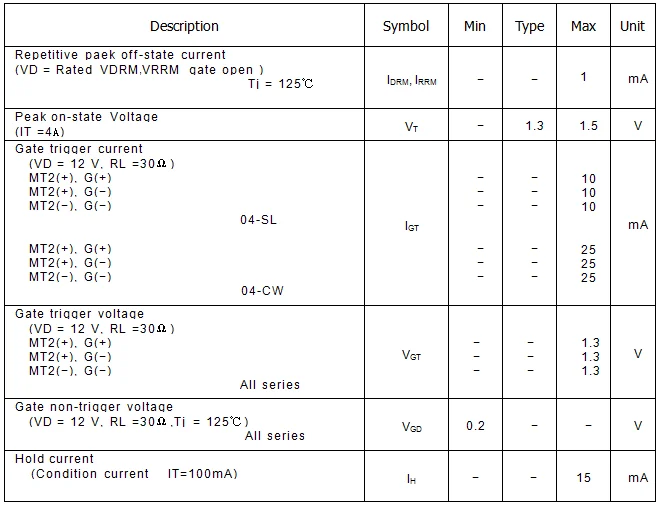

Thermal characteristics



Description	Symbol	Max	Unit
Thermal resistance  ( junction to around )	Rj A	75	°C/W
