BT180 портативный Настольный Токарный станок 550 Вт
- Category: Machine Tool Equipment >>>
- Supplier: Jiangsu Bestech Industrial Co. Ltd.
Share on (60796803524):
Product Overview
Description
Product Description

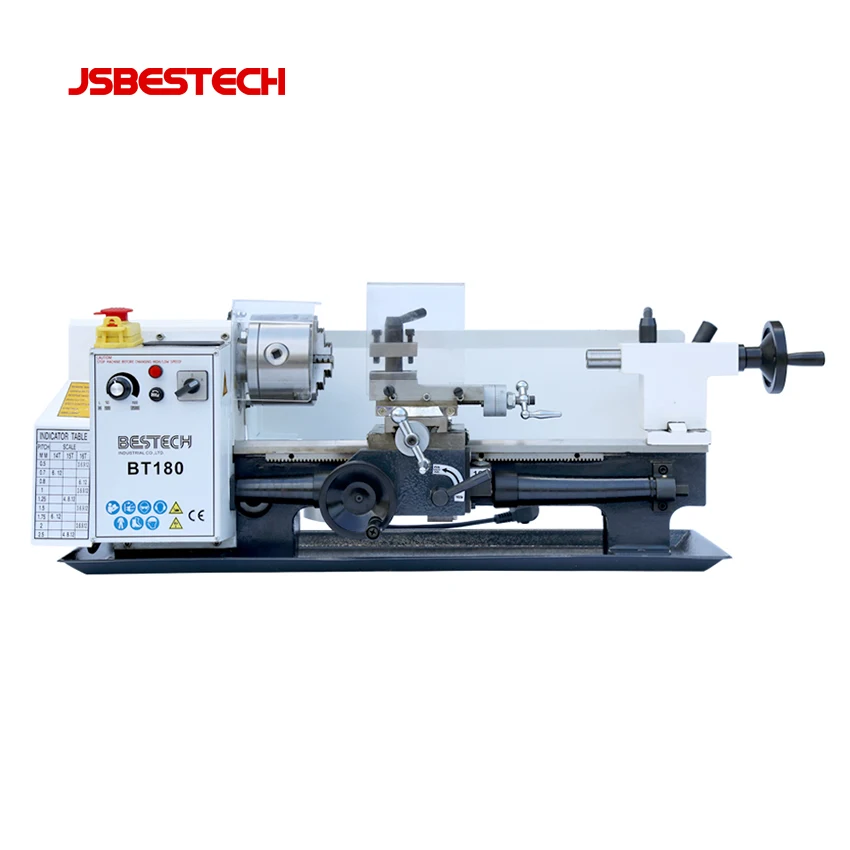

BT180 Grizzly portable table lathe machine 550w
1. Variable speed,
2. Spindle speed readout
3. Quick lock tailstock
4. Most economical and widely used hobby lathe
5. V- way bed is precision ground
6. Spindle is supported by precision tapered bearing
7. Headstock is constantly oiled during operating
8. Power longitudinal feed allows threading.
Model No. | BT180 |
Center distance | 200/300/350mm |
Max. Swing over bed | 180mm |
Max. Swing over cross slide | 110mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Chuck diameter | 80 / 100 mm |
Spindle bore | 20 mm |
Cross slide travel | 65 mm |
Tool slide travel | 35 mm |
Range of metric threads | 0.5-2.5mm |
Range of imperial threads | 12-52TPl |
Spindle accuracy | 0.05mm |
Spindle speed | 50-2500,100-2500rpm |
Motor | 400/550W |
Voltage/Frequency | Customer requested |
Net weight | 35kg/38kg/40kg |
Gross weight | 38kg/42kg/45kg |
Packing size | 660/760/810×310×320mm |
Motor type | ordinary brush motor Brushless motor as optional |

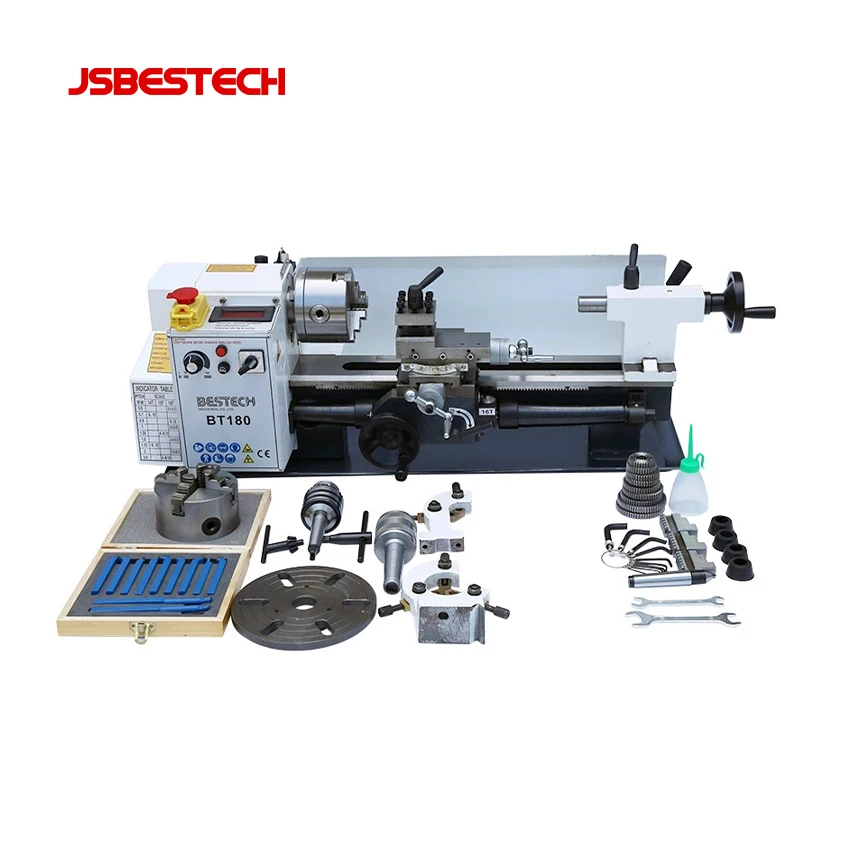

Standard Accessories | Optional Accessories |
3-jaw Chuck 80mm | 4-jaw chuck(80/100mm) |
MT2 Dead Center | Follow rest |
Change gear set | Steady rest |
Wrench set | Face plate |
Oil can | Quick change tool post |
Splash guard | Rolling center |
Chip tray | Tailstock chuck |
Toolbox &tools | Cutter |
Stand |
Detailed Images
Name: mini lathe
Brand: bestech
Original: China
variable speed, quick lock tailstock, spindle readout, metal gear available, brushless motor for optional.
Headstock:

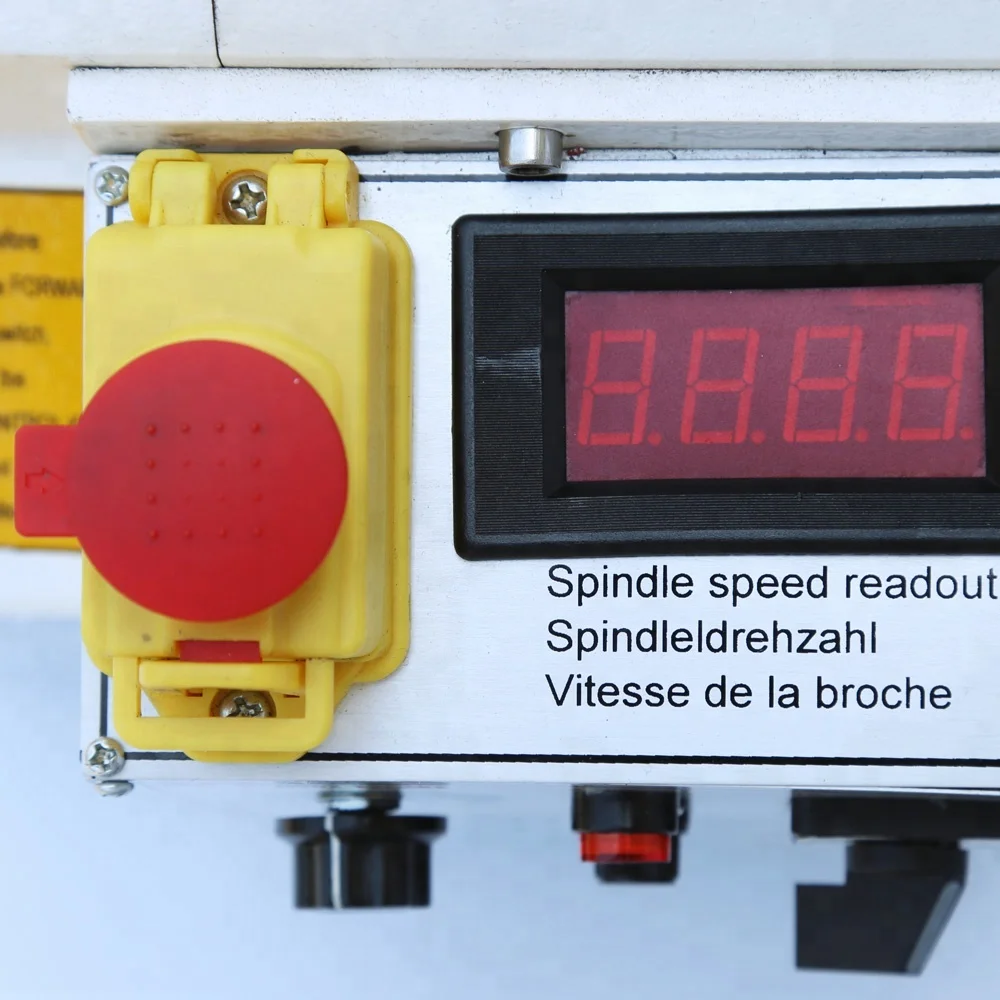

Spindle speed readout and safty switch
Chuck:
80mm 3 jaw chuck,
80mm 4 jaw chuck, 100mm 3 jaw and 4 jaw chuck as optional
Tool post:
4 way tool post
Quick change tool post as optional

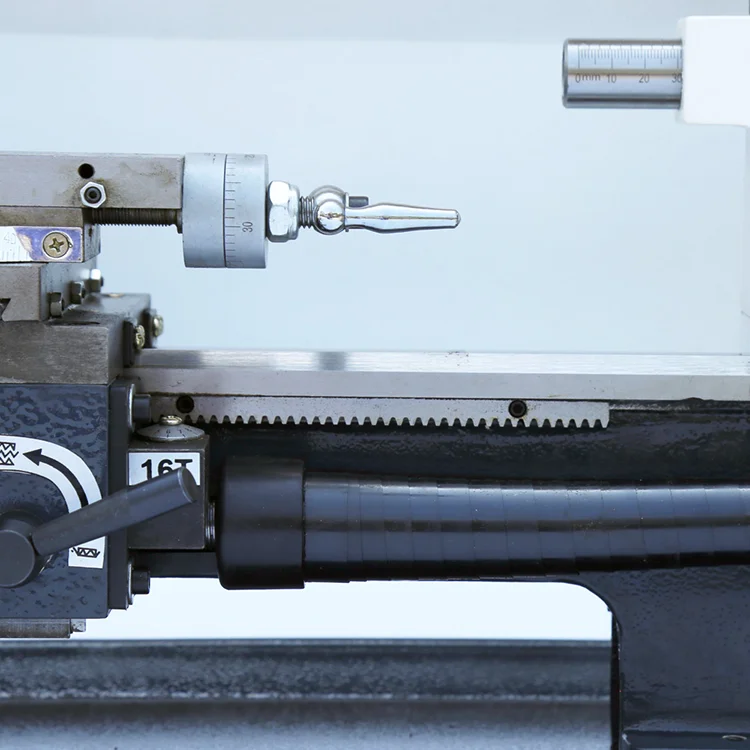

Leadscrew:
leadscrew guard as optional

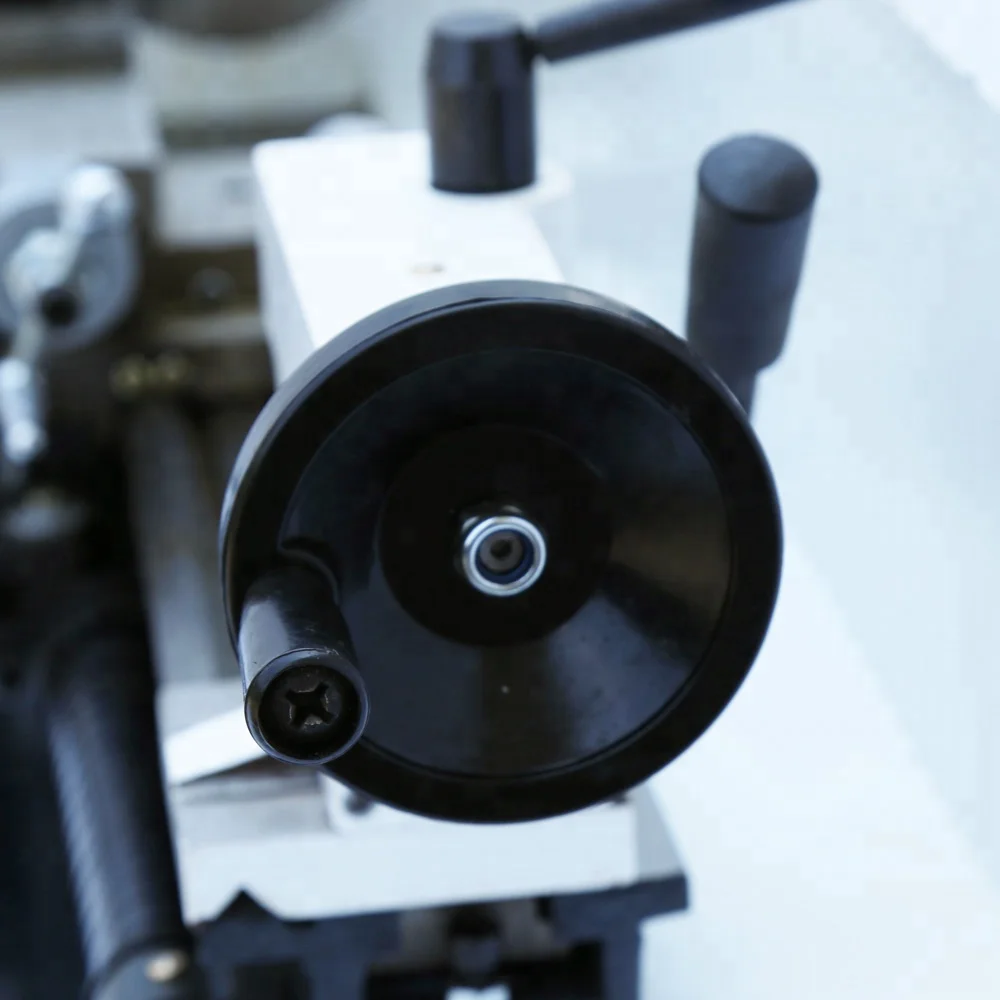

Tailstock:
Quick change tailstock
