Product Overview
Description
Product Description
Specification | ||
Model No. | KY450/KY700 | |
Height of center | 125mm | |
Max.distance between two centers | 450(700)mm | |
Max.length cutting | 420(660)mm | |
Max.swing over bed | 250mm | |
Max.swing over carriage | 130mm | |
Taper of spindle nose | MT4/27mm | |
Spindle speed range | 115-1620rpm | |
Matric thread cutting | 0.2-3.5mm(20 kinds) | |
Inch thread cutting | 8-56/1(20 kinds) | |
Moulder thread cutting | 0.1-1.25mm(10kinds) | |
Range of longitudinal feed | 0.05-0.1mm | |
Max.round angle of tool post | 45° | |
Max.travel of tool post | 70mm | |
Taper of tailstock sleeve | MT2 | |
Motor | 0.75kw | |
Drilling/Milling | ||
Spindle taper | MT3 | |
Spindle stroke | 80mm | |
Spindle nose to table | 160mm | |
Milling table size | 215*150mm | |
Spindle speed | 400-1640rpm | |
Motor poser | 550W | |
Standard accessories | ||
Splash guard | 1 pc | |
Chip tray | 1 pc | |
Drawbar | 1 pc | |
Arbor | 1 pc | |
Toolbox & tools | 1 set | |
Optional accessories | ||
4-jaw chuck | 1 set | |
Backplate | 1 pc | |
Follow rest | 1 pc | |
Steady rest | 1 pc | |
Face plate | 1 pc | |
Collet chuck | 1 set | |
Turning tools | 1 pc | |
Packing & Delivery
Warehouse to film
Related Products

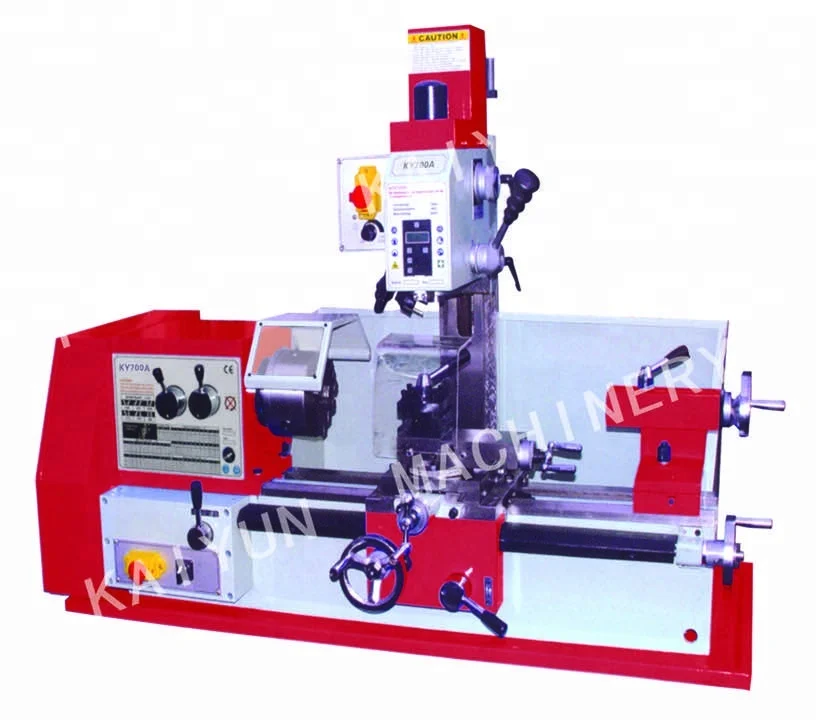

KY450A/KY700A

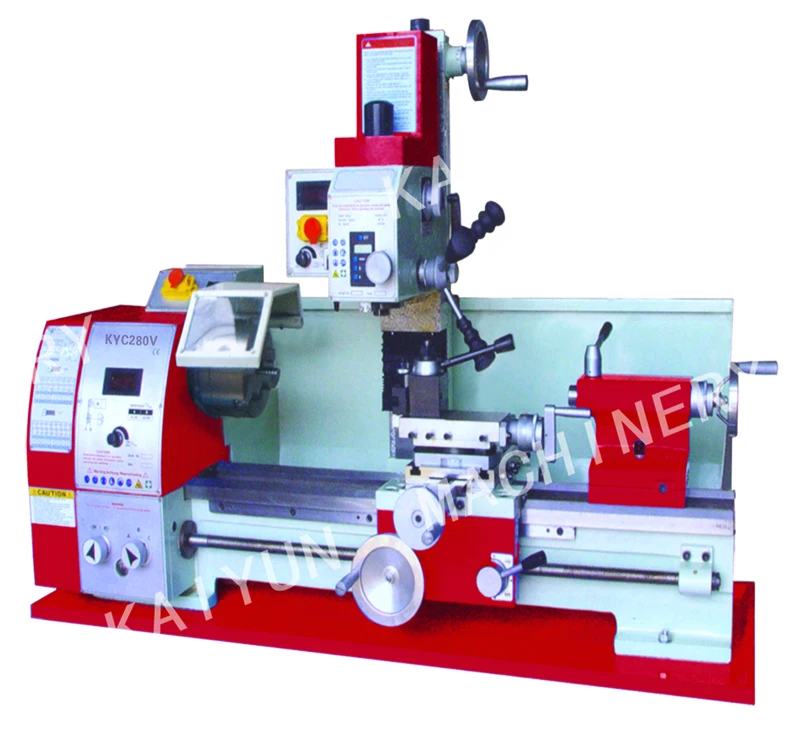

KYC280V
