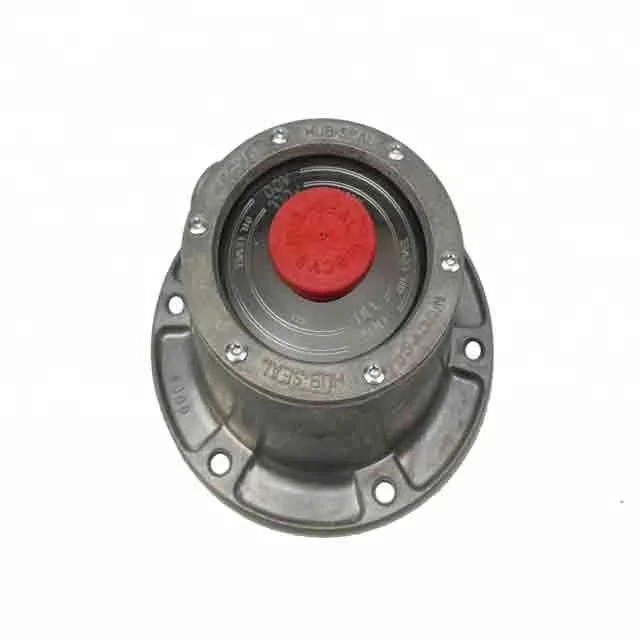

343 4009 WGCVS TN axle oil hubcap Aluminum Trailer Hub Cap

Share on (60796884643):


Price:RUB 498.39

Quantity:


Product Overview

Description

Product Description
Bolt Circle
5 - 1/2'
Bolt Size
5/16'
Number of Bolt
6
Application
Trailer
Height
2 - 11/16'
Inside Depth
1 - 15/16'
Flang ID
4 - 3/8'
Flang OD
6 - 1/4'
Grasket
G3009
Replace  STEMCO Hubcap
343-4009
Type
T (Tradition )Series
MOQ
1 Piece
Model Number
T1-4009
Port
Shanghai

Hubcap body


1.High strength aluminum alloy by 380 Ton Pressure Casting provide high resistance to deformation and pierce
2.Boss design as bolts position to incress stability and torque consistency

Hubcap Window
1.EMS TR-55 mateial provide the best durability and transparency
2.Oil level upper and low limit indication line
3.High density closed-cell in EVA foam gasket from Japan eliminate the chance for water and dirt getting in the violent vibration

Hubcap Flange gasket (optional)
Proved performance


Specifications
