DDR3 1600MHZ 2G (optional 4G or larger memory capacity);
Network card
REALTEK integrated network card
Graphics card
INTEL integrated graphics;Sound card REALTEK integrated sound card, support 2/4/5.1 channel output, HD audio;
CPU
Intel ATOM D2550, dual-core four-thread X86, 1.86GHz;
System audio signal signal to noise ratio
LINE: 70dB; MIC: 60dB;
System audio signal distortion
1KHz <0.3%
System audio signal standard input level
LINE: 250mV; MIC: 5mV
System audio signal standard output level
0dBV;
Audio format
PCM (no compression format), ADPCM, MP3, WAV, OGG;
Number of channels
channel 30, on-demand 30, recording 15;
Load capacity
500 terminals;
Power failure and network restart recovery time
power failure is less than 30 seconds, network disconnection is less than 1 second;
Storage capacity
Industrial grade solid state drive (SSD) can be equipped with 32G/64G/128G/256G/512G solid state drive;
Transmission rate
10/100Mbps;
Audio mode
network packet, CD sound quality;
Working temperature
-20 ° C ~ +60 ° C;
Working humidity
10% to 90%;
Power consumption
≤50W;
Power supply
AC110 ~ 240V / 50Hz;
Dimension
482 (L) × 320 (W) × 310 (H) (mm);
Net weight
13.2Kg
Function Description

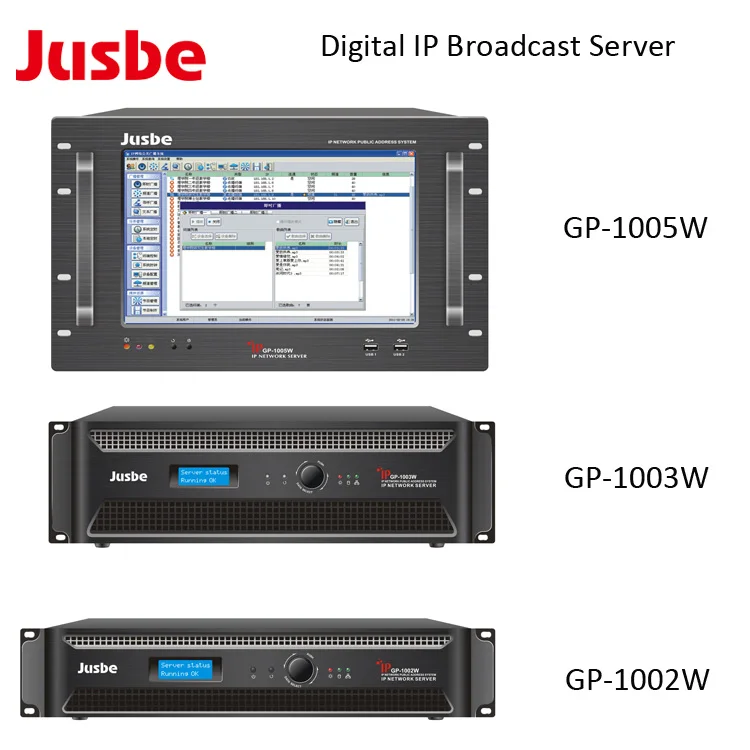

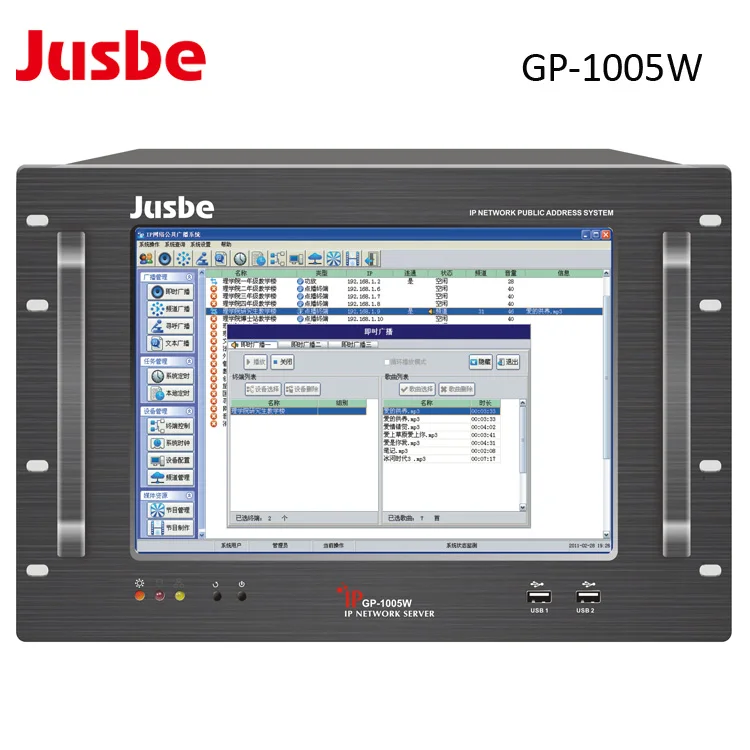

1.IP network broadcast touch control center, using industrial-grade industrial computer chassis design (6U), chassis with steel structure, using SSD solid-state hard drive is more secure and reliable 2.Using a 15.6-inch large display, the touch screen is easy to operate 3.The system is equipped with powerful media resource program library management and storage functions for channel broadcast, instant broadcast, scheduled tasks and terminal on-demand programs. 4.The system provides powerful channel broadcast management function, supports multiple sets of channel broadcast online synchronous broadcast, each channel broadcast can support timed task management mode or manual control management mode 5.The system has multiple sets of timed task management schemes, which support multi-mode operation of timed tasks. The timed tasks can be controlled by cycle or by day. The flexible timed task configuration can be suitable for various complex applications. 5.The system provides flexible terminal on-demand management functions, with a rich on-demand program library for flexible selection of terminal on-demand, supporting multi-channel terminal synchronization on-demand management 6.System support and peripheral linkage control management, with matrix, power amplifier, partition system centralized configuration and task timing control management 7.All devices of this system have offline operation function, which can run independently from the server in the network. 8.Support mobile APP remote control, remote control terminal playback, volume level, channel play, remote control via mobile phone. You can also play the songs in your phone directly to the specified terminal. 9.Support third-party platform system embedded development, provide standard development protocol, realize mutual integration between platforms (monitoring and dispatching system, hotel passenger control system, building visitor system) 10.System integrated LED information release, audio and video remote control multimedia control software. Can publish information, unified management of audio and video files 11.Support TTS voice synthesis package, standard sound quality tone 12.Support WAV song format, compatible with standard college entrance examination foreign language listening test system songs.
Related Products
Contact Us
Certifications
Packaging & Shipping
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
4.Q:How can I get some samples?
A: We are honored to offer samples to you. If you need, please send a inquiry to us
