Super September purchasing P1.875 HD Full Color Rental Led Video Wall Display Screen
- Category: >>>
- Supplier: Shenzhen RGX Electronics Co. Ltd.
Share on (60796921518):
Product Overview
Description
Alibaba Super September purchasing P1.875 Indoor HD LED Video Wall LED Panel LED Screen
P1.875 Indoor Rental & Fixed LED Display for 4K HD LED Video Wall
Small Pixel Pitch LED Display series We have P1.25 P1.667 P1.875 P1.904 P1.923 P2 Indoor full color led display
Product Description
Parameters
Description | Technical parameter | ||
Unit module | Module size | 240x120mm | |
Pixel pitch | 1.875mm(0.6kg) | ||
Pixel density | 284444dots/m2 | ||
Pixel configuration | 1R1G1B | ||
Led chips | SMD1515 3 in 1 | ||
Pixel resolution | W:128dots*H:128dots | ||

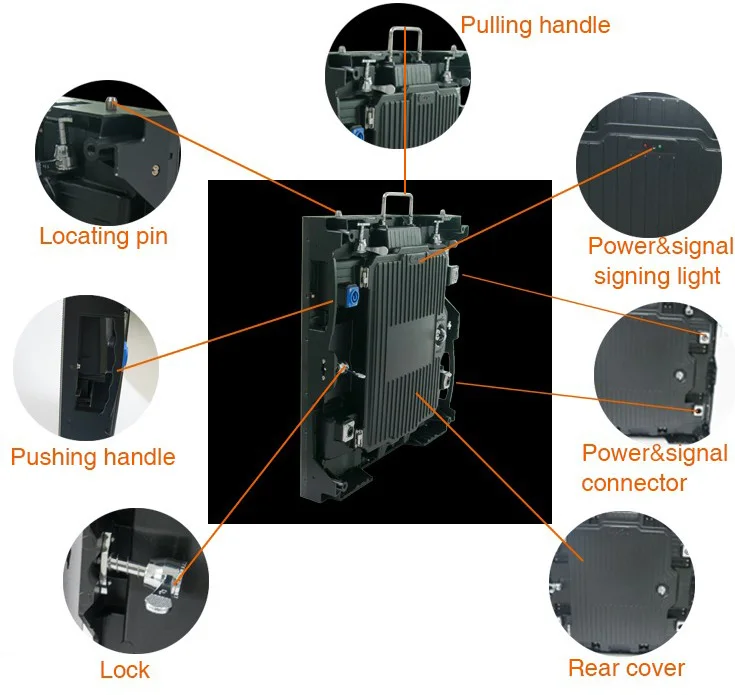

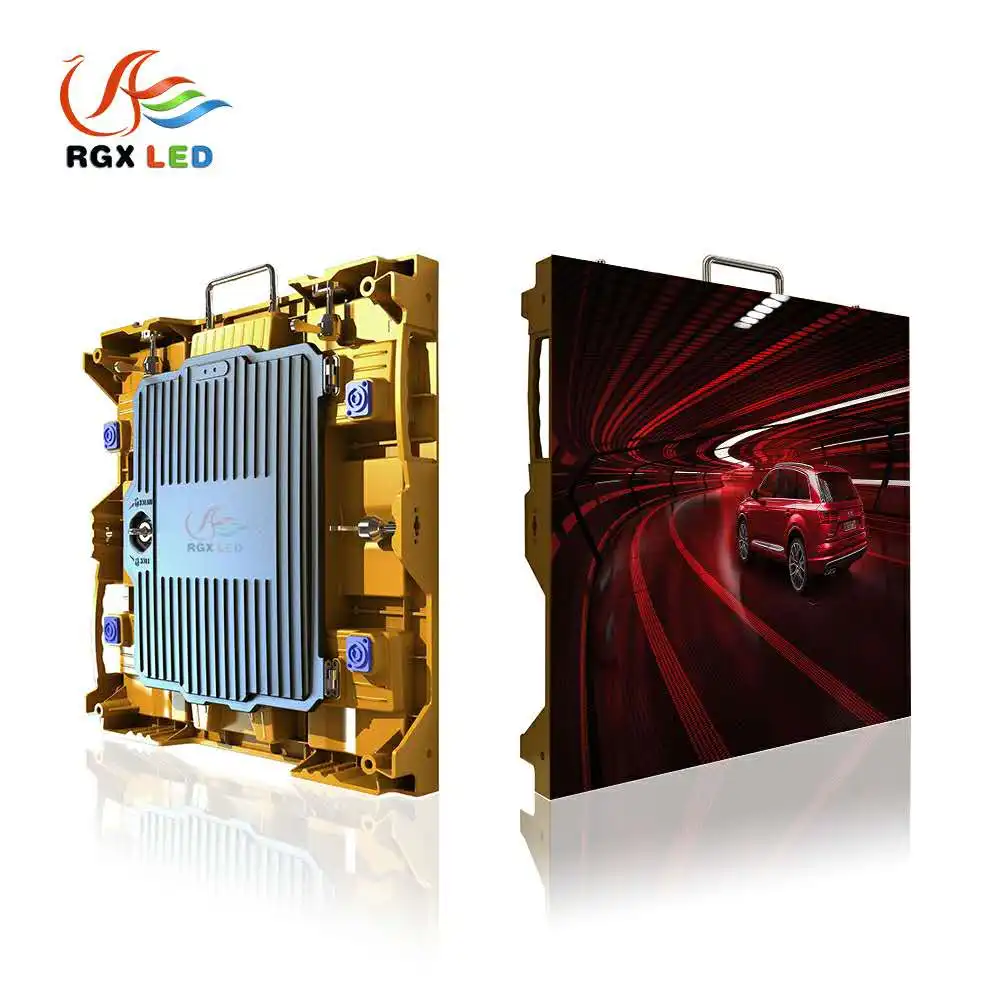

Cabinet | Dimension | 480x480mm( die cast aluminum ) | |
Cabinet pixels | 256x256 dots | ||
Total weight | 6.2kg | ||
Best viewing angle | >1 .5m | ||
Thickness | 6-8cm | ||
Power | Working voltage | AC220V/110V±10% | |
Control system | CPU | Pentium4 or above | |
Control method | Synchronization/ Asychronization | ||
Main technical parameter | Driving device | 1/3 scan | |
Drive type | Constant Current driver IC | ||
Display type | Video/Graphics/Animation/Message/Text | ||
Refresh frequency | 2400-3840Hz | ||
Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | ||
Video signal | PAL/NTSC VGA HDM1 DVI S-VIDEO RF RGBHV YUV …etc. | ||
Life span | ≥100,000hours | ||
Flatness | Tolerance of inter pixel ≤0.3mm | ||
Tolerance of modules clearance≤0.6mm | |||
Power switch | Automatic switch | ||
Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. | ||
Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM | |||
Software | LED media player | ||

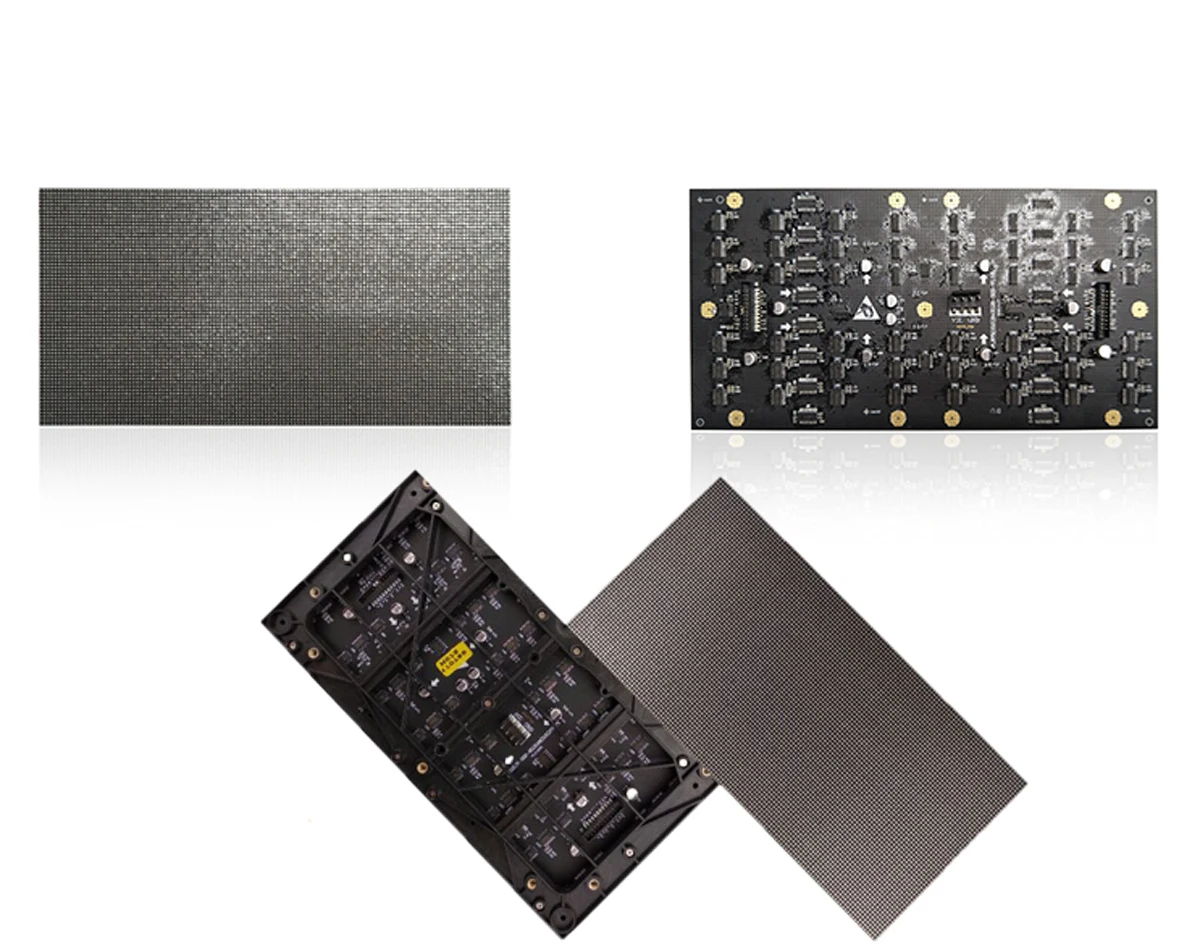

Fine pitch 240*120mm P1.875 indoor hub-75 interface full color led modules September hot sale in alibaba

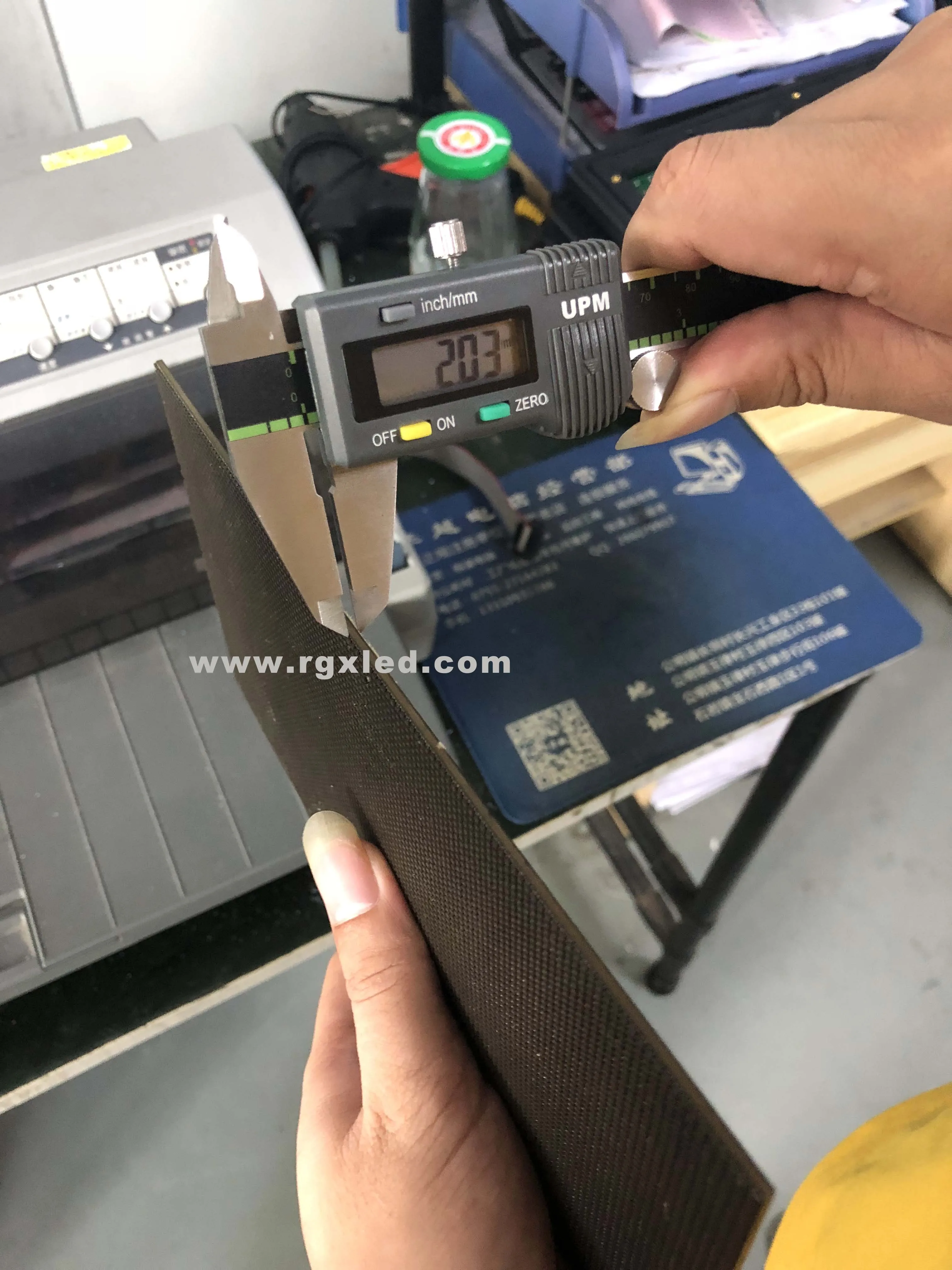

Goood quality PCB board ,more durable

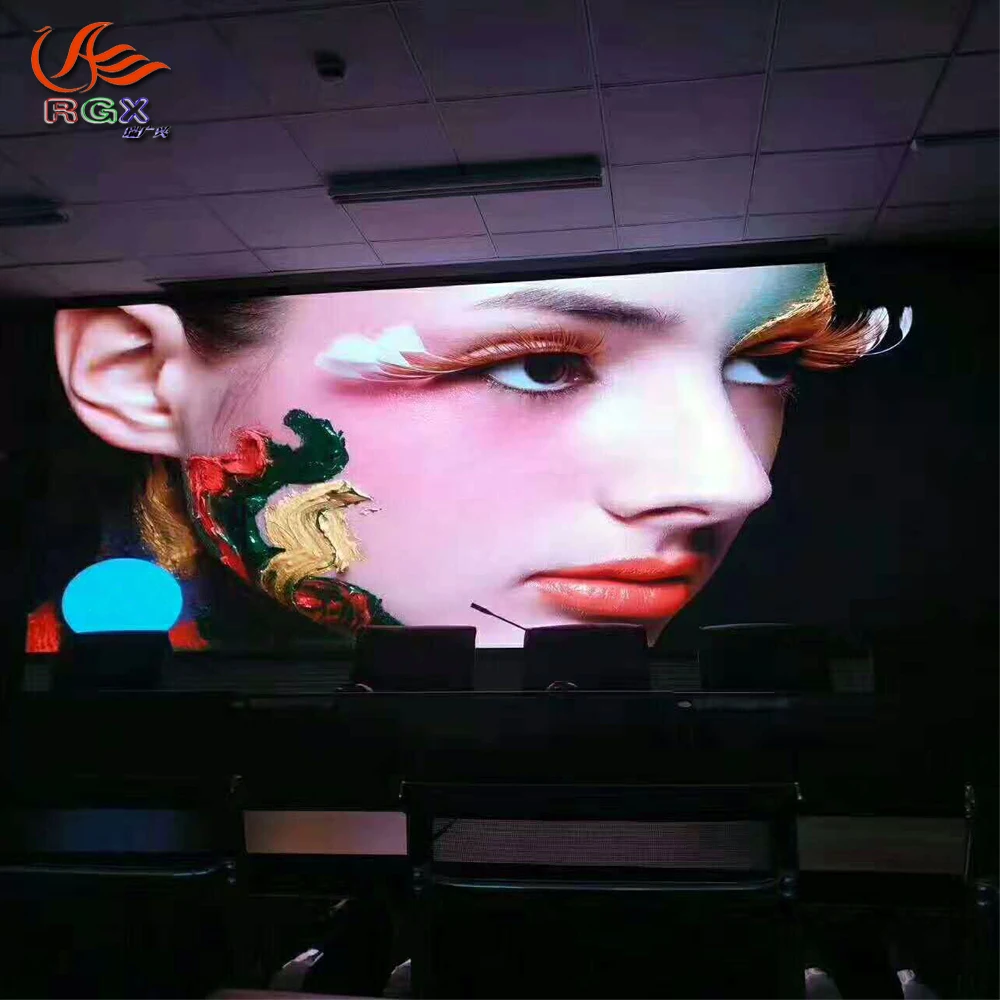

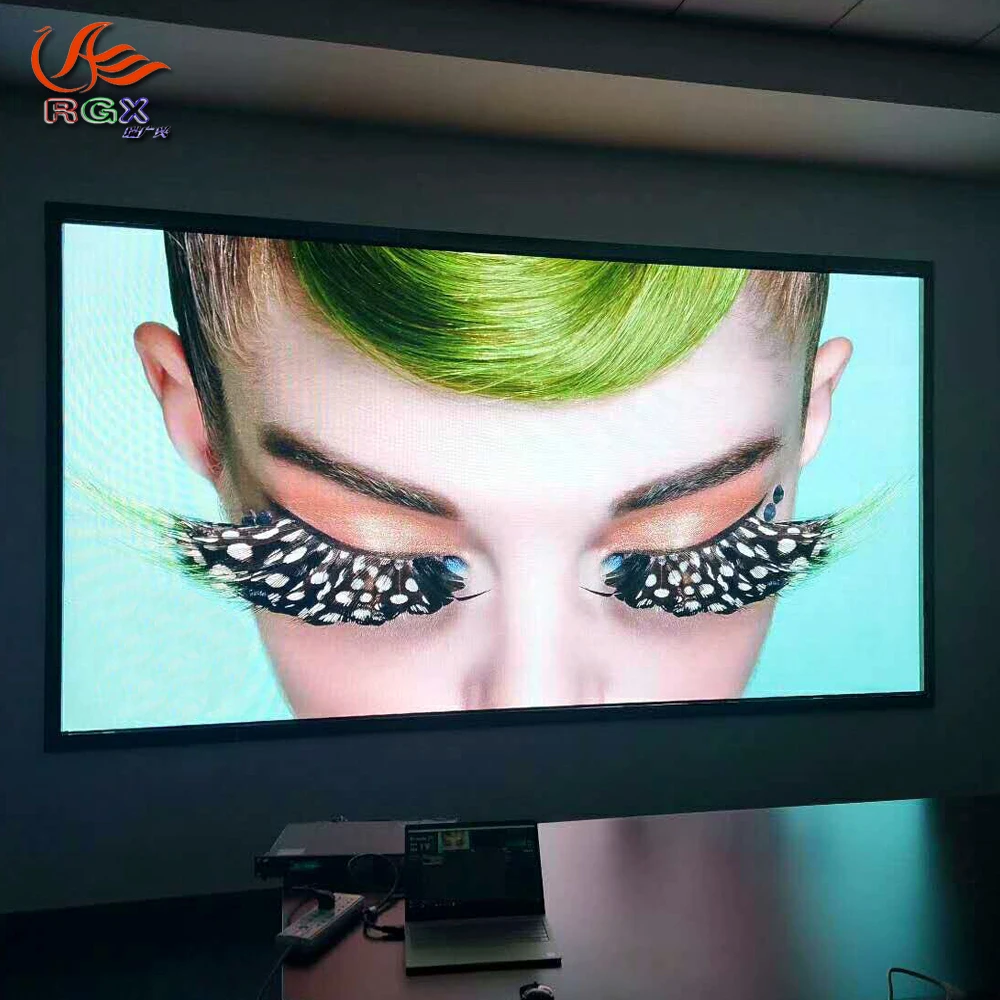

P1.87 china P1.875 indoor full color HD movie video wall advertising led display panel
We pay More Attention to details.
With 140°- 160°view angle, high-definition big screens are self- emitting units and the color performance of any viewing angle can be kept intact
Exquisite design, seamless combination

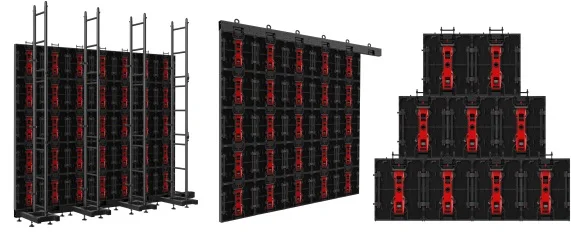

Varies installation ways for stage design
Online Serives
Click on my profile picture below, 7x24 hours online service
You can also add WhatsAPP/Wechat: +86 180 3806 9578
Our Services
1. After-sales service:
1) 24 hours on line
2) 3-5 years warranty ,life long free maitenance.
3) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemesand the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
Company Information
Shenzhen RGX Electronics Co., Ltd.
Shenzhen RGX Electronics Technology Co., Ltd. ( Shortened form: RGX) we are re-registered in June 2006, it main apply oneself to LED screen, led light,led power supply ,led controller, series R&D, Production, distribution , service and design for inner and oversea s great piazza, big inside and outside ground traffic, and big stage etc. RGXlead the well-accomplishment team composed by the R&D, sales, and management talent, make RGX becomes a talent showing itself among hundreds of led manufacturers in Shenzhen ,China.
thanks-Bruce Lei
