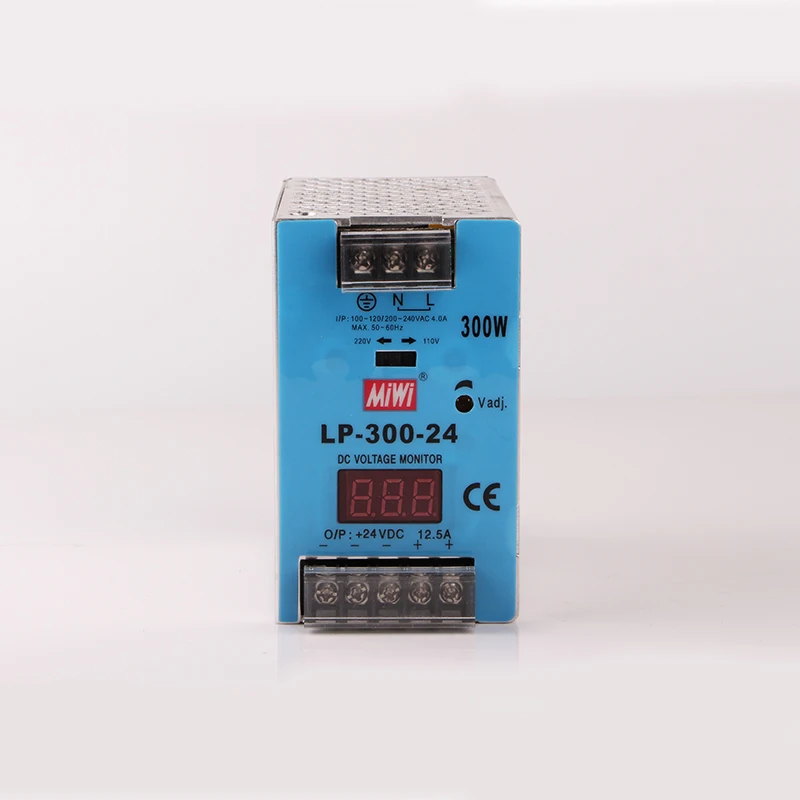

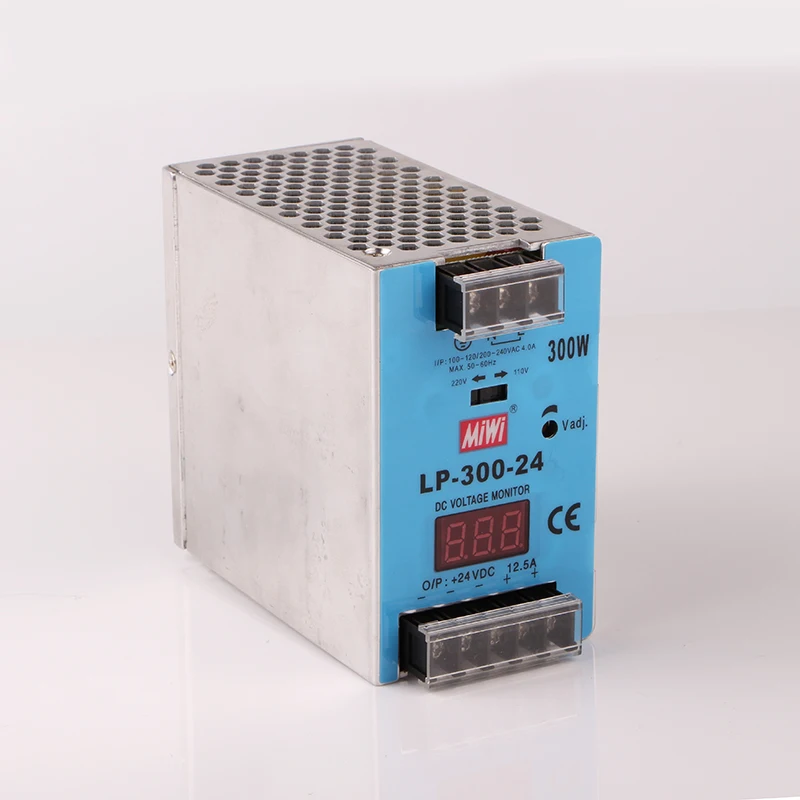

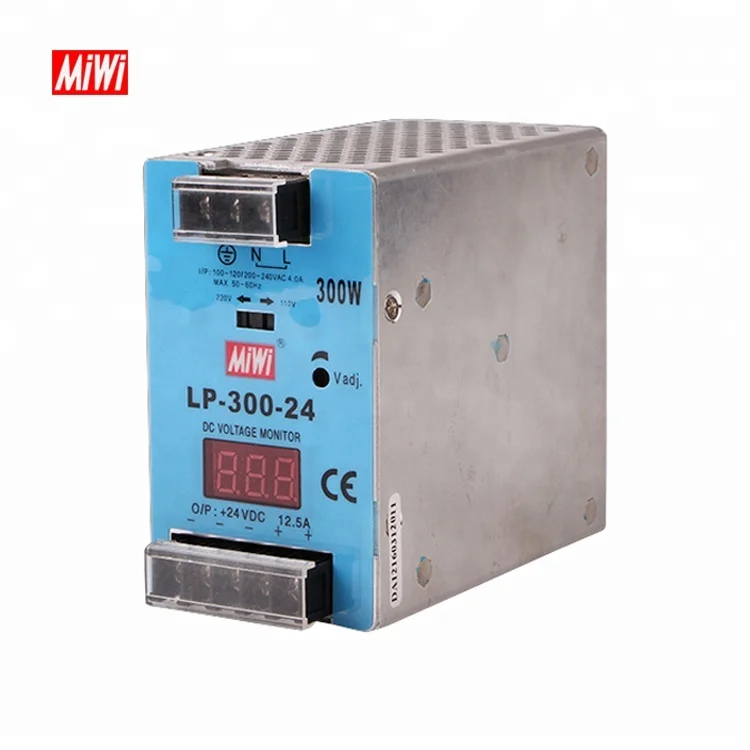

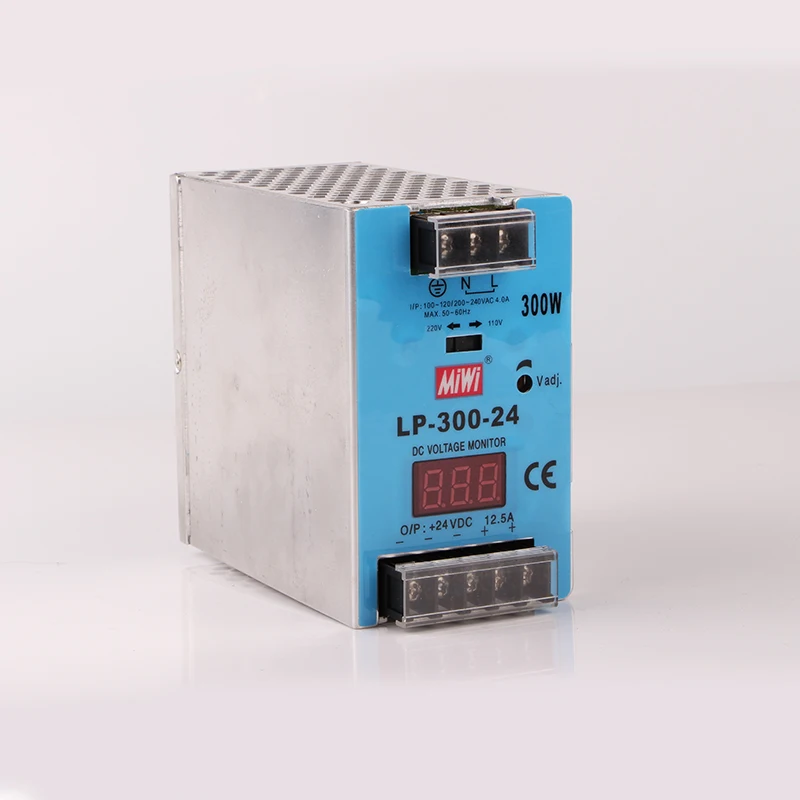

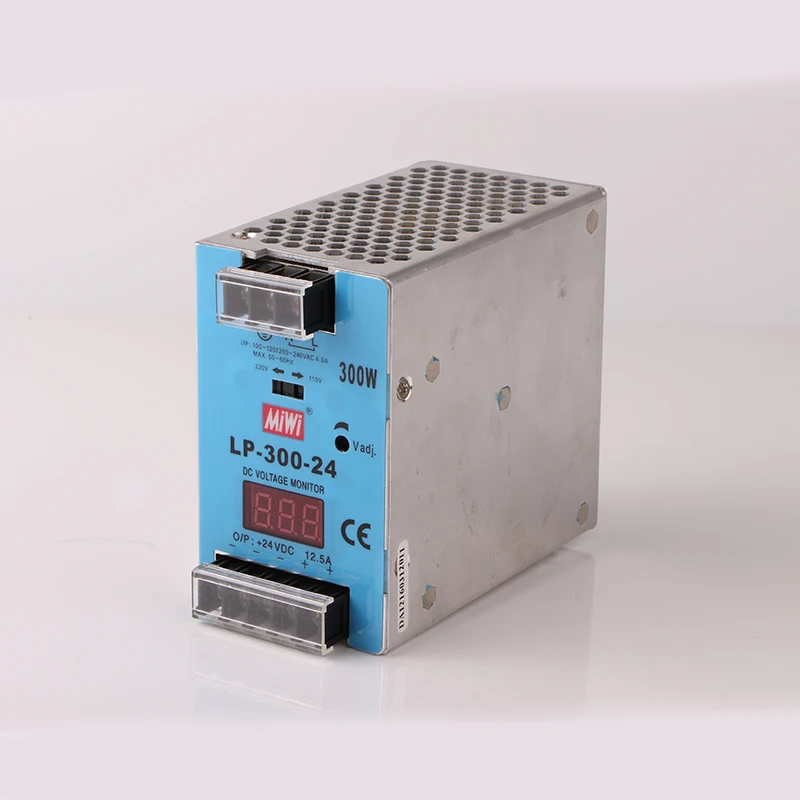

LP 300 12 led Digital display din rail 12v 300w power supply
- Category: >>>
- Supplier: Wenzhou Qianxiang Electric Technology Co. Ltd
Share on (60796948715):
Product Overview
Description
Featured Peoducts
LP-300-12 led Digital display din rail 12v 300w power supply
Model Specification | LP-300-12 | LP-300-24 | LP-300-48 | |
| Output | DC Output Voltage | 12V | 24V | 48V |
| Output Voltage tolerance | ± 1% | ± 1% | ± 1% | |
| Rated Output Current | 23A | 12.5A | 6.25A | |
| Output Current Range | 0-23A | 0-12.5A | 0-6.25A | |
| DC Output Power | 300 W | 300 W | 300 W | |
| Tripple and Noise | 240mVp-p | 240mVp-p | 300mVp-p | |
| Adjustable Range for DC Voltage | 10.8-13 V | 20.5-26.5V | 44.5-51V | |
| Input | AC Input Voltage Range | 85-132VAC/176-264VAC selected by swith or 248-373VDC 47~63Hz; | ||
| AC input current | 3A/115VAC 1.5A/230VAC | |||
| Efficiency | 83% | 83% | 85% | |
| AC Inrush Current | Cold-Start Current: 15A/115V, 30A/230V | |||
| Leakage Current | <2mA/240VAC | |||
Protection charateristic | Overload Protection | 110%-150% | ||
| Protection mode: cut off output and reset automatically | ||||
| Over Voltage Protection | 13.1-14V | 27-30V | 51-54V | |
| Protection mode: cut off output and reset automatically | ||||
| Environment | Work Temperature Humidity | -10℃~+50℃ , 20%~90%RH | ||
| Storage Temperature Humidity | `-20℃~+85℃, 10%~95%RH | |||
| Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft | |||
| Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC | ||
| Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC | |||
Executive Stantand | Safety Standards | CE | ||
| EMC Standards | Design refer to FCC part 15J Conduction Class B | |||
| Others | Weight | 0.65KGS | ||
| Package | 24pcs/ctn 38*30*28 | |||
| size | 100*60*110(L*W*H) | |||
| Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | |||
production process
Yueqing Mingwei Electric Co., Ltd. with a better organized, high efficiency and the most reliable engineer team and state-of-the-art technology, we are able to design and develop high-quality components,and customized solutions. We also have our own mold tooling open & design team,assembling production line and QA department.
Variety Of Products
Company Information
Every year we john 2-3 fairs to meet our customers. What we show is our ability, and what you feel will be our profession. We take the time to answer questions and ensure that our clients understand all there is to know about our products. Further, we work with all of our clients to help find the right products that will meet both needs and budget. We work hard to provide good customer service and ensure that it is never just about sales, but about building a relationship.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are the real manufacturer which focus on power supply & push button switch since 2002,but not the trading factory for different kind of product.
Q2: What kind of payment term do you accpet?
A2: T/T,L/C,Paypal,Western Union,MoneyGram,Escrow,O/A.
Q3: What is your MOQ?
A3:The MOQ can be only 1PCS.
Q4: What's your Lead time?
A4: The delivery time is 1~25 days which depend on detail item and quantity.
Q5: Do you accept OEM?
A5: Yes.
Q6: Can we be your distributor?
A6: Yes,if your annuals sales much more than our other customers in your market that you can be our distributor
Over rich OEM experience,we can provide professional solutions for customers.
Click "Send "get the Latest quotation Now!!! You can get the FREE SAMPLES soon.
