Ip65 высокий отсек, яркие кампаны
- Category: LED High Bay Light >>>
- Supplier: HOMBO Technology Public Limited Company
Share on (60796963016):
Product Overview
Description
2020 hotsale die cast led 150w high bay light for warehouse
Product Description
Dimensions
Wattage | Weight | Length | Width | Height | ||||
Ib. | kg. | In. | mm. | In. | mm. | In. | mm. | |
HB-668-02-60w/80w | 13.7 | 6.2 | 20.31 | 516 | 20.31 | 516 | 8.4 | 211 |
HB-668-03-90w/120w | 14 | 6.3 | 20.31 | 516 | 20.31 | 516 | 8.4 | 211 |
HB-668-04-160w/180w | 14.3 | 6.4 | 20.31 | 516 | 20.31 | 516 | 8.4 | 211 |
Technical Parameter
Series No. | Wattage | Input Voltage | Color Temperature | Lumen Efficiency | Color of Housing | Mounting Way |
HB-668 |
60w 80w 90w 120w 160w 180w
|
Normal: 100~240V AC
North American: 100~277V AC 480V AC
Solar System: 12V DC 24V DC |
Cool White: 5000K
Day White: 4000K
Warm White: 3000K
Customized CCT |
Normal bright: 115 lm/w (chips)
Super bright: 135 lm/w (chips)
@ CRI≥70 |
Normal : Whole Grey
Customized color (MOQ≥50 PCS) |

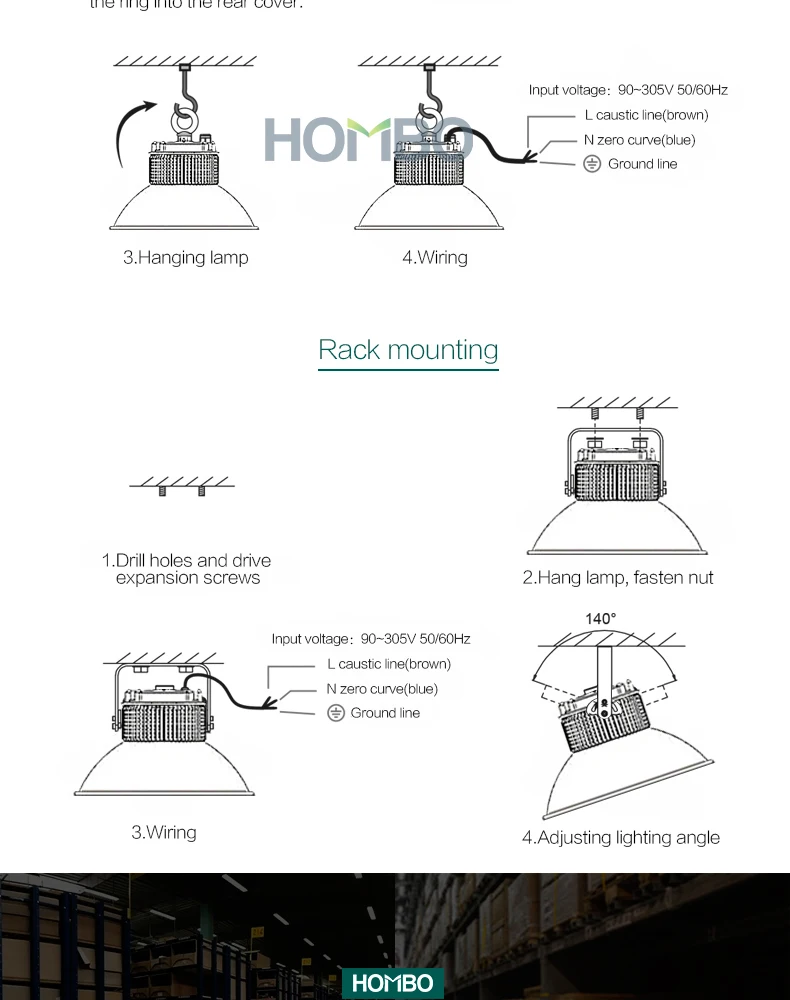

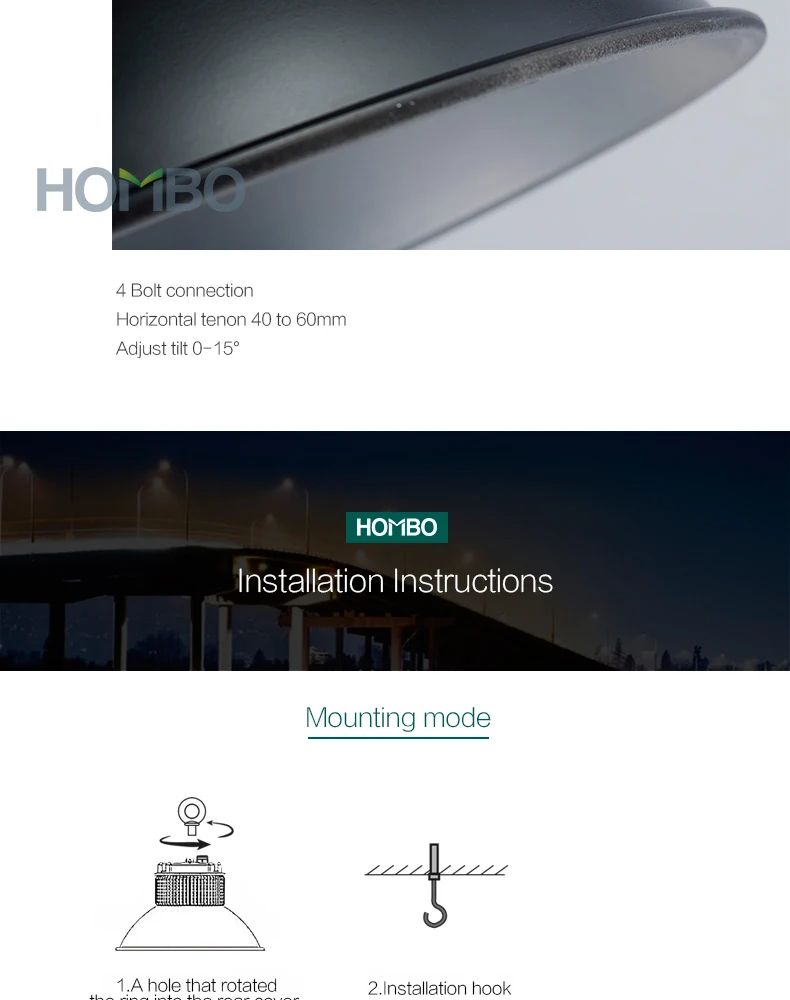

Horizontal mounting |
Electronics
Item No. | Number of LEDs | Lamp Wattage | System Wattage | Max. System Current | LED Current |
HB-668-02-40w | 40 PCS | 40 W | 42 W | 0.42 Amp @100V | 0.68 Amp @20w |
HB-668-02-60w | 60 PCS | 60 W | 63 W | 0.63 Amp @100V | 0.95 Amp@30w |
HB-668-02-80w | 80 PCS | 80 W | 84 W | 0.84 Amp @100V | 1.35 Amp@40w |
HB-668-03-90w | 90 PCS | 90 W | 95 W | 0.95 Amp @100V | 0.95 Amp@30w |
HB-668-03-120w | 120 PCS | 120 W | 126 W | 1.26 Amp @100V | 1.35 Amp@40w |
HB-668-04-160w | 160 PCS | 160 W | 168 W | 1.68 Amp @100V | 1.35 Amp@40w |
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the brightness difference between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation, while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to conact us, you will get reply at the first ti
