High quality premium 24k Gold Plating 60hz 2.0V 30m HDMI Cable 4K

SPECIFICATIONS

Conductos

bare copper

Insulation

Outer Jacket with protective nylon sleeve. (color optional)

           Contacts

                           24K Gold Plated

Connectors

HDMI Type A Male to Type A Male

Available lengths

1.5m-100m

Available terminations

HDMI,19PIN,Male to Male, Version 2.0v, up to 1440P

Available gauge

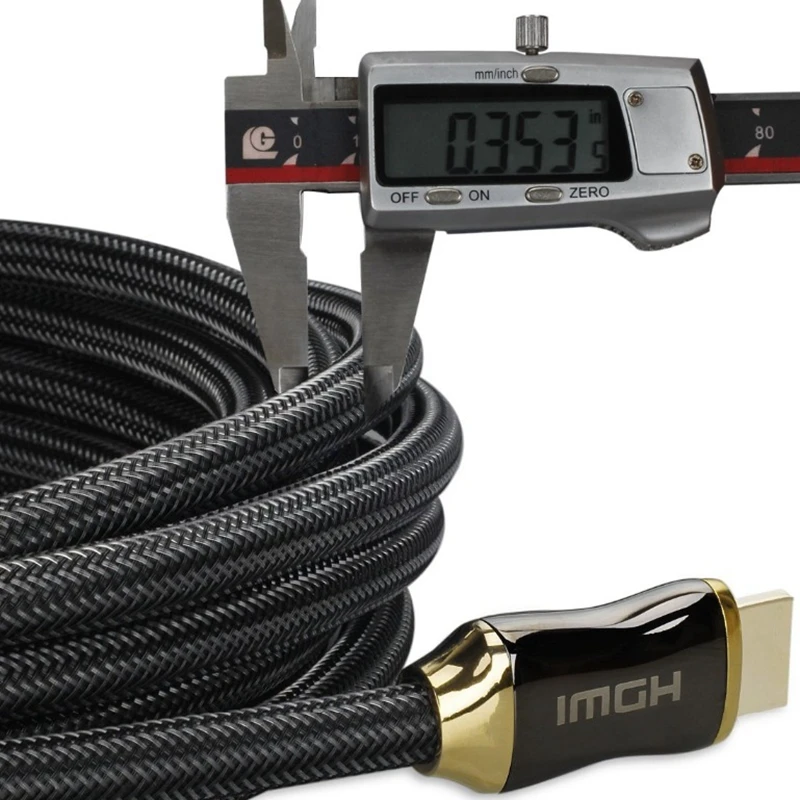

 OD:7.3/8.0/9.0mm

Certification

RoHS,UL,CE,CE

Shielding

AL+ ML+ Braiding+ Ferrite(optional)

AWG

22/24/26/28/30/32

ELECTRICAL

Quality Control

operation according to regulations & rules in ISO9001:2008

Voltage

DC300V 5M ohm/10ms

Insulation Resistance

10M min

Contact Resistance

2 ohm max

Working Temperature

-25C-80C

Data transfer rate

10.2Gbps Max

Differential Impedance

100±10Ω(TDR)

FEATURES

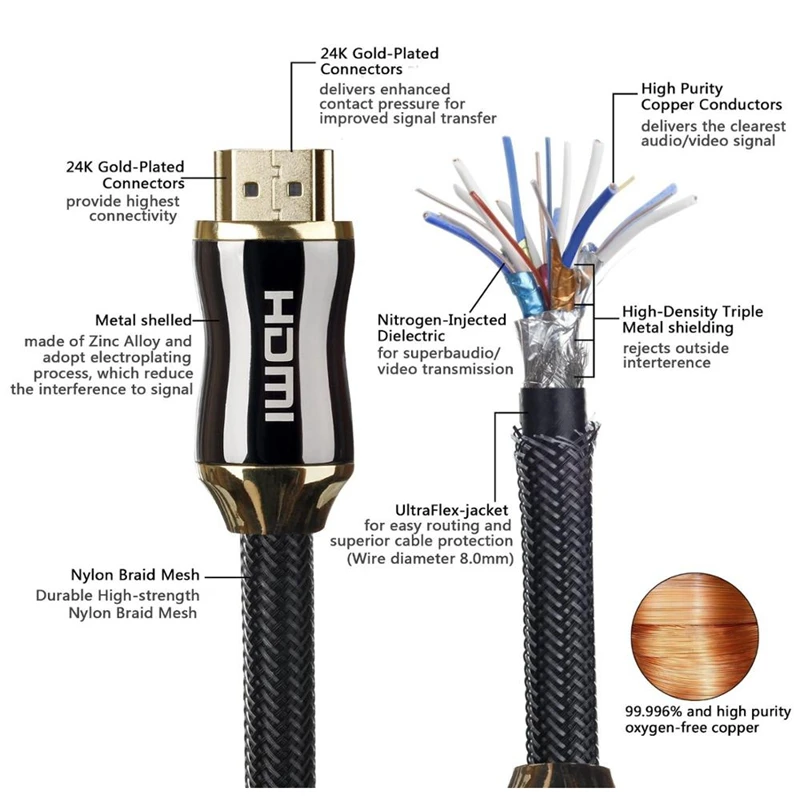

1, Center conductor: high quality digital signal delivered by oxygen-free copper

2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.

3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference

4, Outer shield:95% copper braid shield, prevents most low frequency noises and interference.

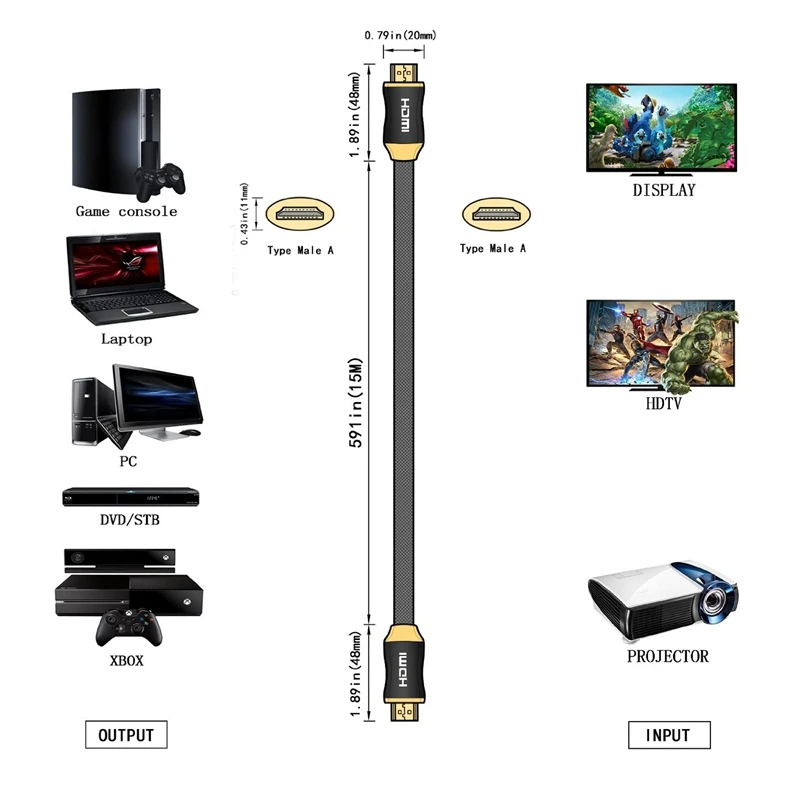

5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.

6, High density triple shielding for maximum rejection of EMI and RFI

7, Transfer speed: 10.5Gbps

8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance

9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chrome
