Diesel Engine Driven Water Pump For Irrigation

Product Overview

Description

Diesel Engine Driven Water Pump For Irrigation

Usage:

It transports the clean raw water or other liquid which chemical & physical feature is similar with clean water, and the temperature should not be higher than 80º C, and applicable for industrial and city water supply and drainage as well as for the agricultural irrigation and drainage.



The technical parameters:

Model	Capacity	Head	Speed	NPSHr	Efficiency	Power
	Q(m3/h)	H (m)	n(rpm)	r(m)	η (%)	Kw
50-32-125	12.5	20	2900	2	60	2.2
50-32-160	12.5	32	2900	2	54	3
50-32-200	12.5	50	2900	2	48	5.5
50-32-250	12.5	80	2900	2	38	11
65-50-125	25	20	2900	2	69	3
65-50-160	25	32	2900	2	65	5.5
65-50-200	25	50	2900	2	60	7.5
65-40-250	25	80	2900	2	53	15
65-40-315	25	125	2900	2.5	40	30
80-65-125	50	20	2900	3	75	5.5
80-65-160	50	32	2900	2.5	73	7.5
80-50-200	50	50	2900	2.5	69	15
80-50-250	50	80	2900	2.5	63	22
80-50-315	50	125	2900	2.5	54	37
100-80-125	100	20	2900	4.5	78	11
100-80-160	100	32	2900	4.5	78	15
100-65-200	100	50	2900	3.6	76	22
100-65-250	100	80	2900	3.8	72	37
100-65-315	100	125	2900	3.6	66	75
125-100-200	200	50	2900	4.5	81	45
125-100-250	200	80	2900	4.2	78	75
125-100-315	200	125	2900	4.5	75	110
125-100-400	100	50	1450	2.5	65	30
150-125-250	200	20	1450	3	81	18.5
150-125-315	200	32	1450	2.5	79	30
150-125-400	200	50	1450	2.8	75	45
200-150-250	400	20	1450	3.5	82	37
200-150-315	400	32	1450	3.5	82	55
200-150-400	400	50	1450	3.8	81	90



 Remarks:

1. each model has different flow rate and head lift.
2. each modelhas different type impeller: A, B, C type impeller.

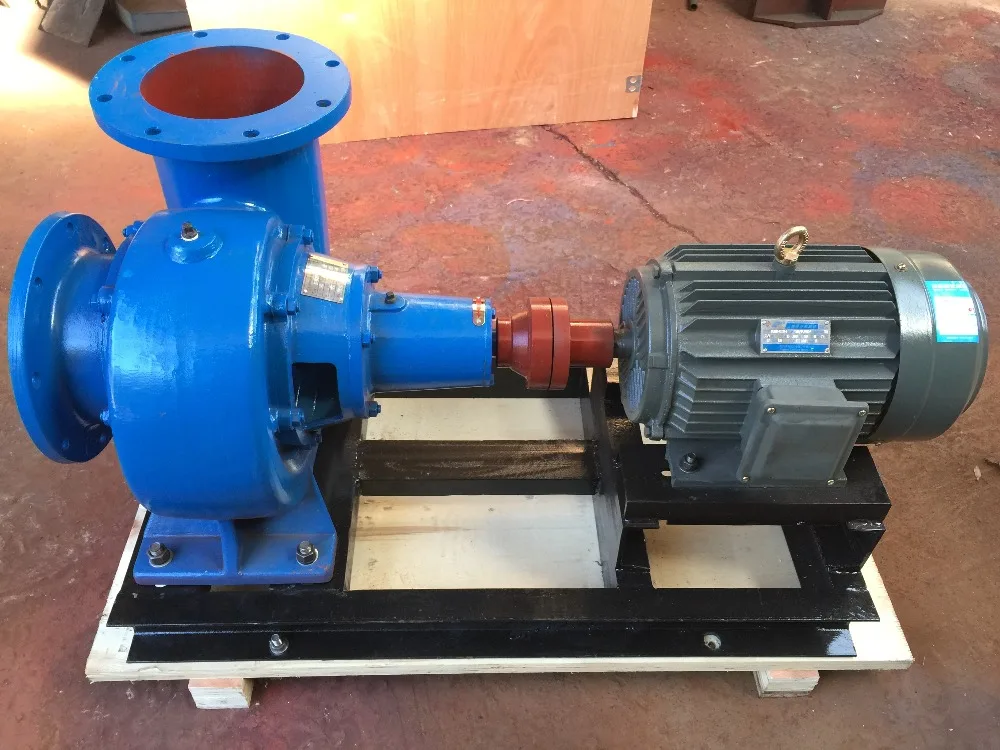

3. each model could coupled with 2poles or 4 poles motor by coupling, and also could driven by diesel engine.

Feature:
1.It is a new type centrifugal pumps which has advanced design at the base of common raw water pump
2.It has advantages of high efficiency, saving energy, low noisy, reliable performance.
3.It could meet the need of lots part of situation according to working temperature, different medium.
4.It delivers water and physical chemical water liquid, the solid particle whose volume less than 0.1% of unit cubage, viscosity less than 0.2mm



Application:

a.Apply to agricultural irrigation.
b.Apply to power plant circulation.
c.Apply to water treatment.
d.Apply to hot water boiler as feed pump, circulation pump
e.Apply to flood control, hydraulic projects.
f.Apply to industrial drainage.
g.Apply to water supply and drainage of urban
