1.WJ Series rotary blowing machine is the successful introduction of the latest German technology,with OUR superior design capabilities and manufacturing capacity,to create a high-speed automatic blow molding machine with the international advanced level. 2.Complete product mainly by blowing host,heating,automatic transmission device,electronic control systems,compressed air systems,and the like. 3.The machine has high automation,stable performance,high efficiency,low running costs,low failure rate etc.

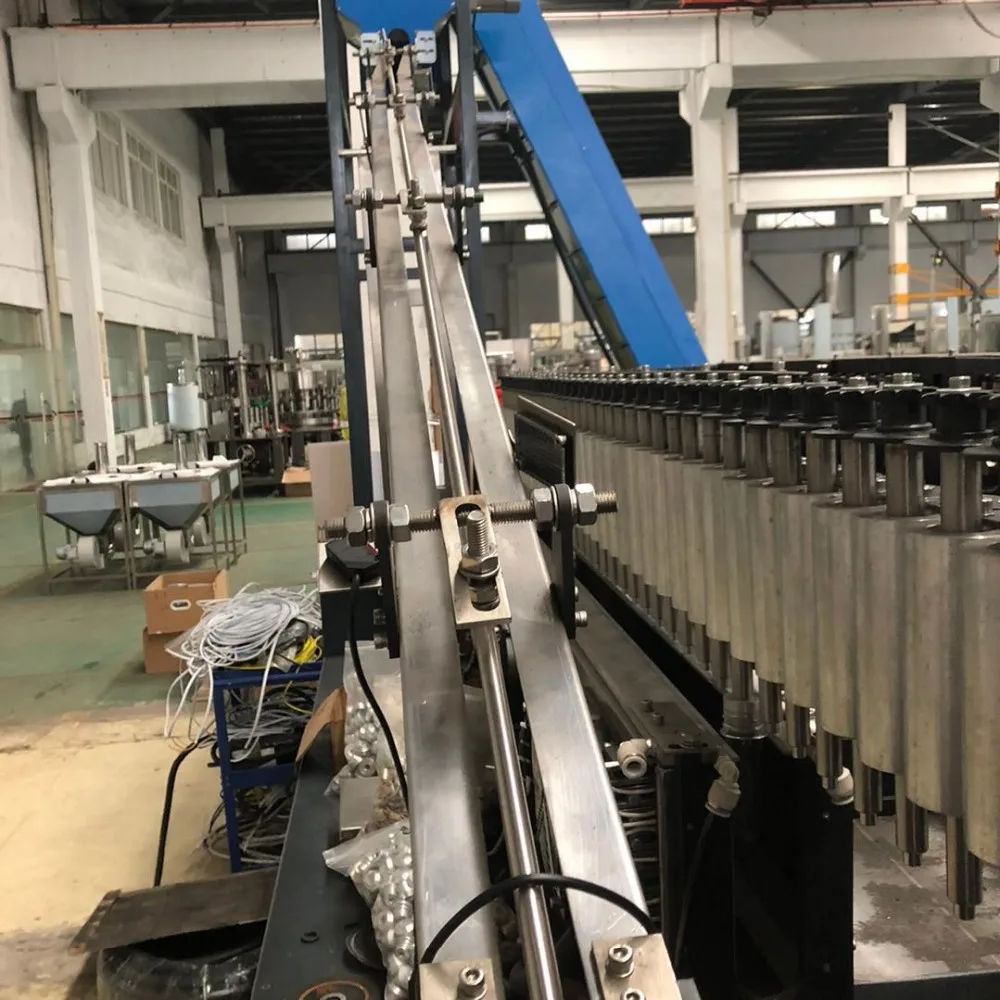

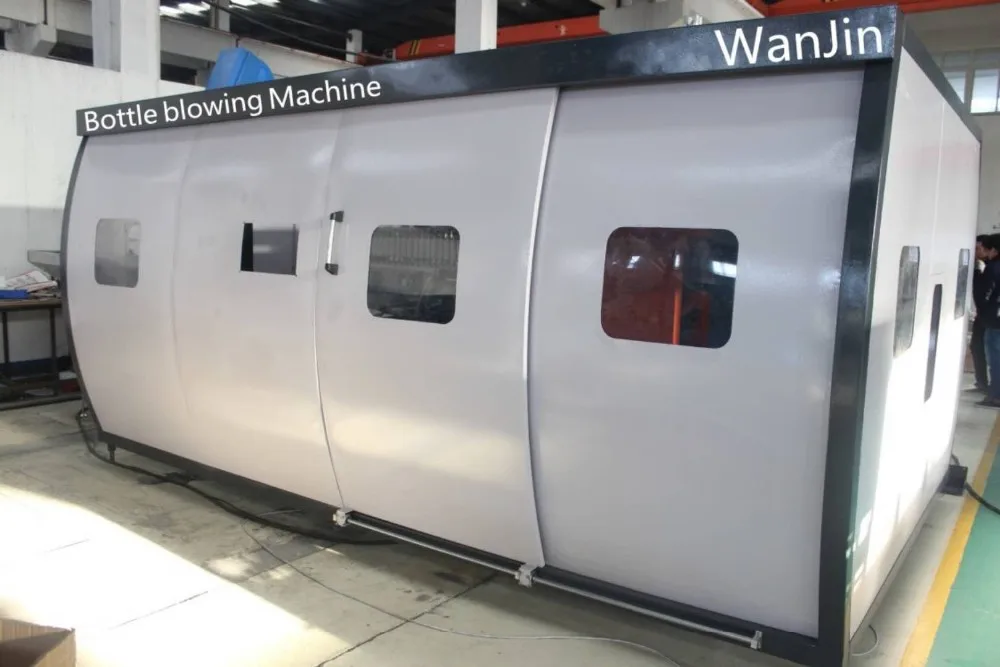

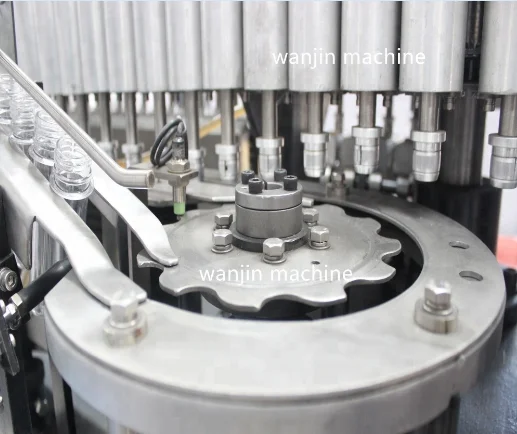

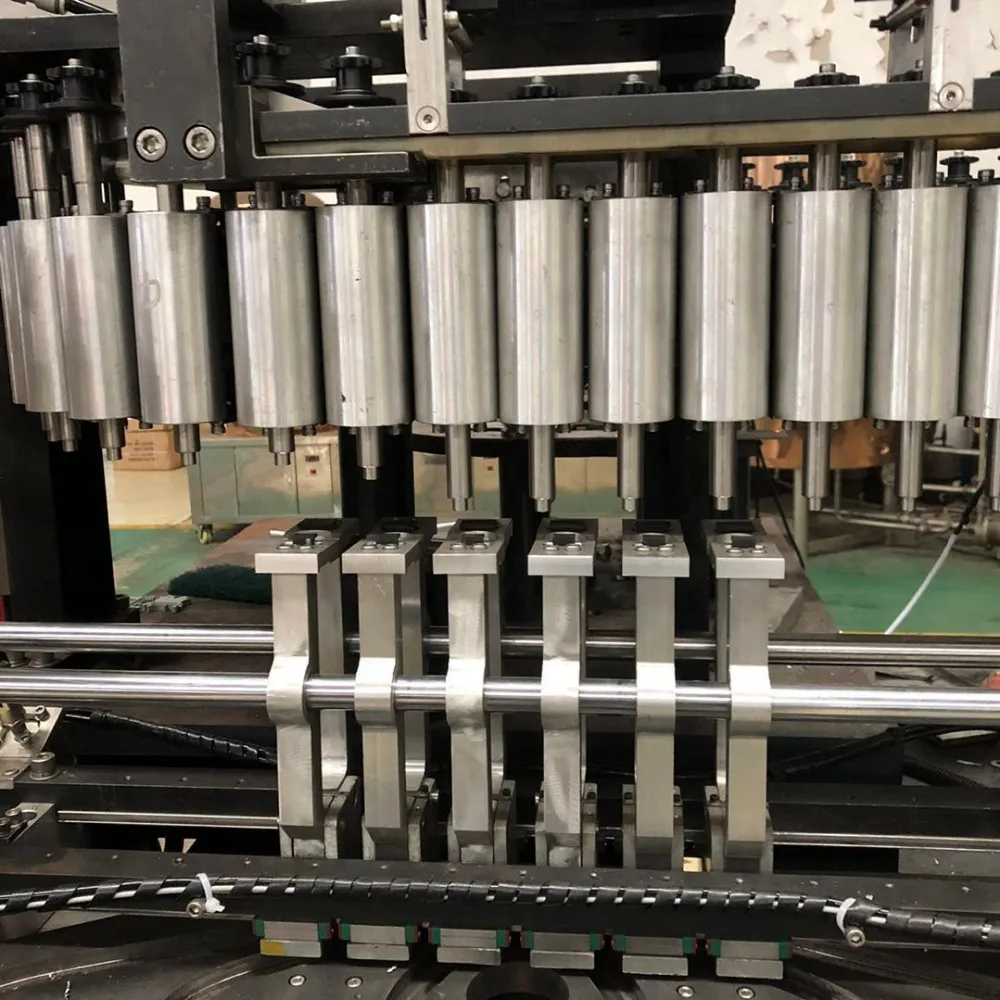

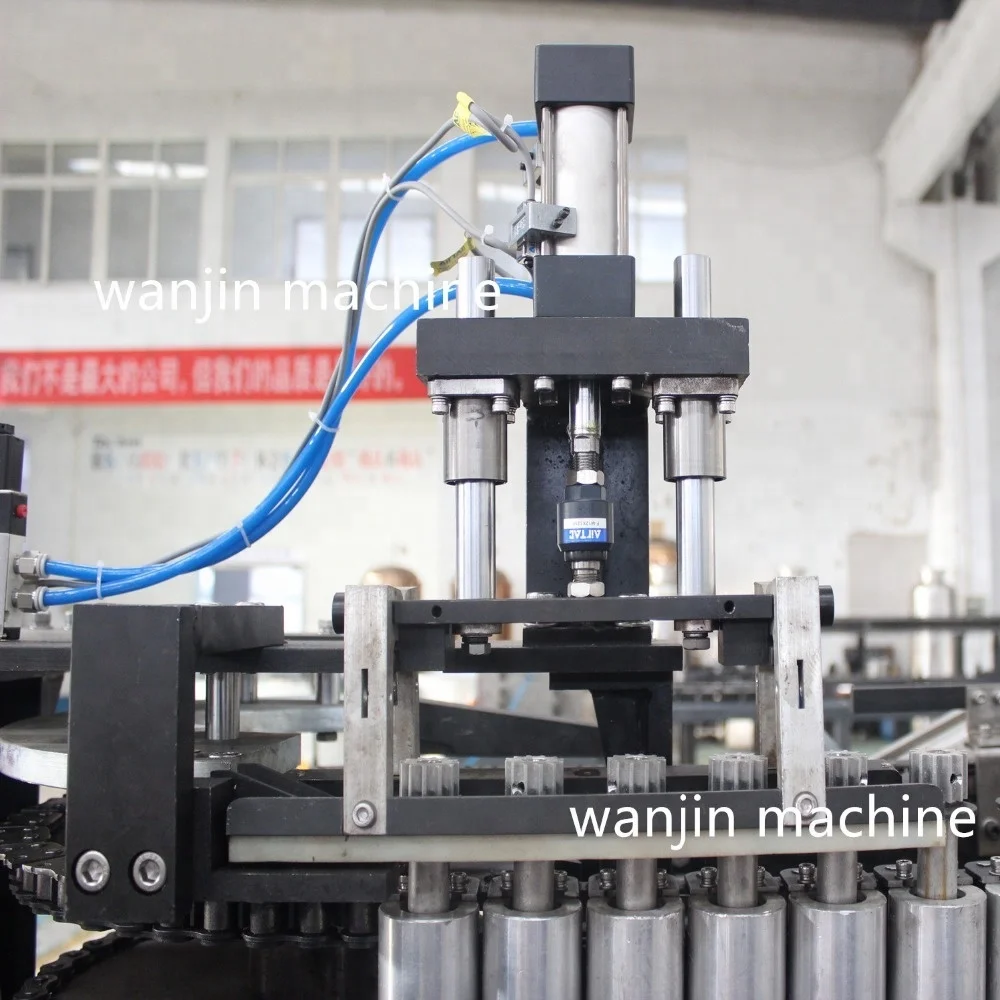

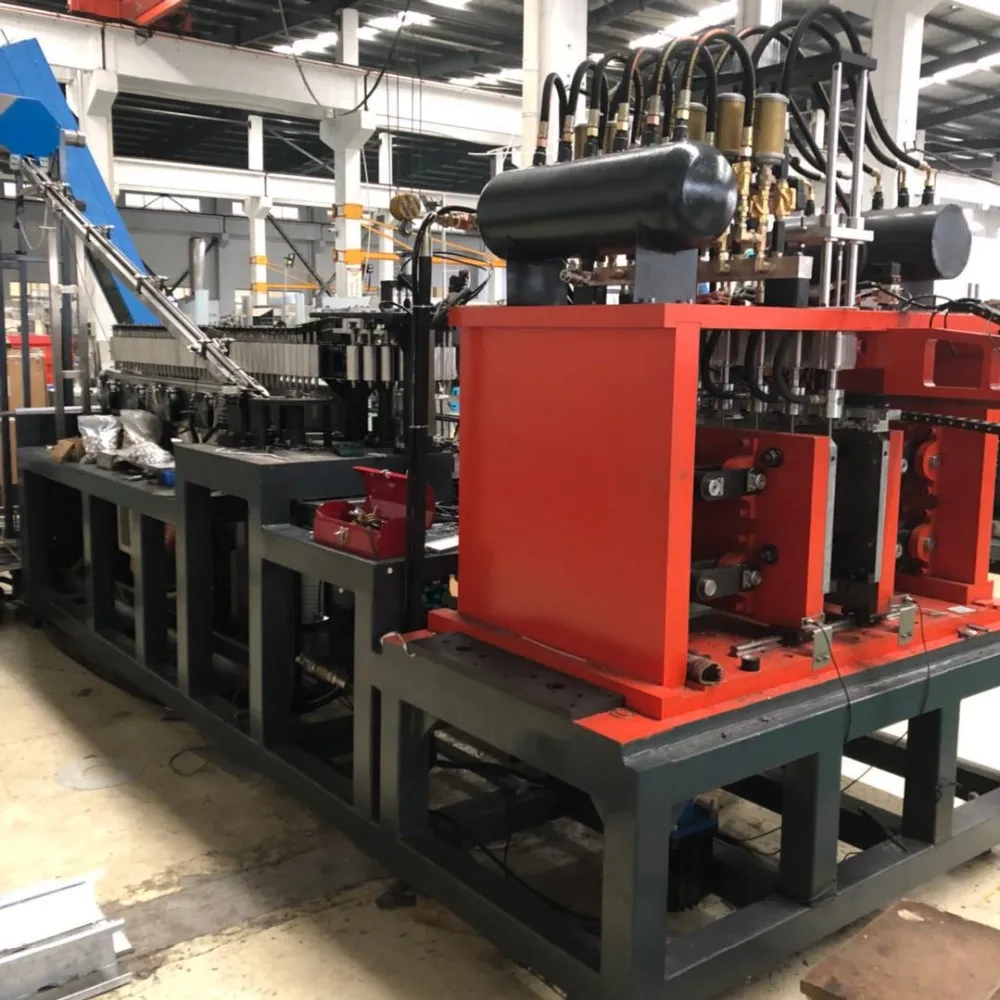

Detailed Images
Technical parameters:
ITEM
WJA-3
WJA-4
WJA-6
WJ-8
Theoeretical output
4000-5000
Pcs/h
5000-6000
Pcs/h
8000-9000
Pcs/h
10000Pcs/h
Product
Volume
1.5L
1.5L
1.5L
1.5L
Max.height
360mm
360mm
360mm
360mm
Max.diameter
105mm
105mm
105mm
195mm
Mould
Number of cavities
3
4
6
8
Mould piate dimension(LxH)
430x360mm
600x360mm
820x360mm
820x360mm
Mould thickness
190mm
190mm
190mm
280mm
Electrical
Mould opening stroke
110mm
110mm
110mm
200mm
Power
220-380V/50-60HZ
Total power
18KW
25KW
35KW
30KW
Heating power
15KW
22KW
32KW
27KW
Air system
Operation pressure
0.8-1.0Mpa
Action air consuming
≧1.6m3/min
Blowing pressure
Blowing air consuming
≧2.4m3/min
≧3.4m3/min
≧4.8m3/min
≧3.2m3/min
Machine
Main body dimension(LxWxH)
2.7x1.45x2.0m
3.4x1.9x2.0m
4.4x1.9x2.0m
4.4x1.9x2.0m
Main body weight
2000KG
2600KG
3200KG
3200KG
Pre-heater(LxWxH)
1.6x0.85x2.2m
1.6x0.85x2.2m
1.8x0.85x2.2m
1.6x0.85x2.2m
Pre-heater weight
200KG
200KG
200KG
200KG
Features: 1) Stable performance with advanced PLC. 2) Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater. 3) High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus. 4) High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into the state of safety in case of a breakdown in certain procedure. 5) No contamination and low noise with the air cylinder to drive the action instead of the oil pump. 6) Satisfaction with different atmospheric pressure for blowing and action by dividing the blowing and action into three parts in the air pressure diagram of the machine. 7) Strong clamping force with high pressure and double crank links to lock the mold. 8) Two ways of operating: automatic and manual. 9) Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand. 10) Low cost, high efficiency, easy operation, easy maintenance, etc, due to automatic technological process. 11) Ideal effect of the chilling with the chilling system. 12) Easy installation and starting.
