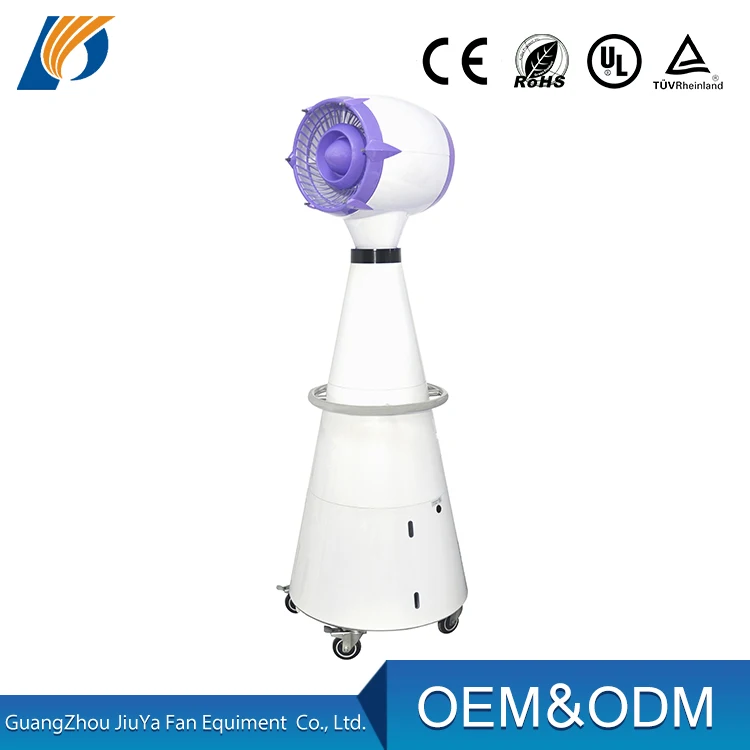

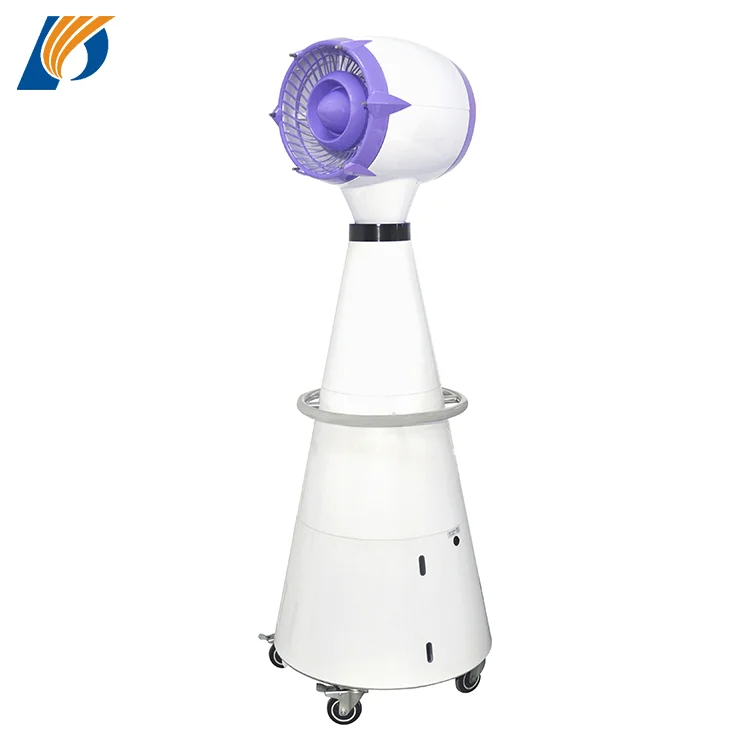

Movable Pressure type mist cooling fan POPULA A 4PT with Purple color
- Category: >>>
- Supplier: Guangzhou Popula Jiuya Fan Co. Ltd
Share on (60797243079):
Product Overview
Description
Why choose us
WHY CHOOSE US?
1.We have CE/SASO/CB/GCC/CCC certifications.
2.1-3 days for samples order,7-30 days for bulk order.Production capability:500-1000pcs/Day.
3. OEM&ODM for you.
4. We care about your business, Your inquiry will be replied within 4-6 hours.
5.1 years warranty with well-built complaint system.
| Product Categories | |||
| EVAPORATIVE AIR COOLER | FRESH AIR SYSTEM | MIST AIR COOLER | INDUSTRIAL FAN |
Product Description
| Product Name | ip55 110 volt spray mist fan humidifier stand fan waterproof outdoor cooling fan |
| Model No | A-4PT |
| Products Color | Blue /Green/Purple/Black |
| Vol/Freq(V/Hz) | 220~240V/50Hz or 110V / 60Hz |
| Power(Kw) | 0.32kw |
| Rotation(r/min) | 1400r/min |
| Noise (db) | ≤67db |
| Volume(m3/h) | 2450m3/h |
| Water Tank Capacity (L) | 94L |
| Water Consumption | 6-8 L/H |
| Effective Area(m²) | 95m² |
| Oscillating Angle | 90° |
| NET Weight(kg) | 58kgs |
| Size(mm) | 700*700*2000mm |
| Occasions | Outdoor , restaurant , fair , cafe, garden, bus station, walking street, play ground, amusement park , or any place which needs cooling. |
Features for the ip55 110 volt spray mist fan humidifier stand fan waterproof outdoor cooling fan:
- The pressure type misting principle produce smaller mist for better cooling effect.
- The water inlet filter protects the pressure pump from foreign matters , and the filter element is changeable
- Innovative design with the high-tech feeling, various colors optional
- Hierarchical structure , isolated operation of water and electricity to ensure the safety
- The large-capacity water tank, provides 8 hours use with one fill , in addtion, the automatic water inflow system offers long-term water supply.
- The low pressure 1#nozzle with stainless steel filter screen , prevents blocking and also washable

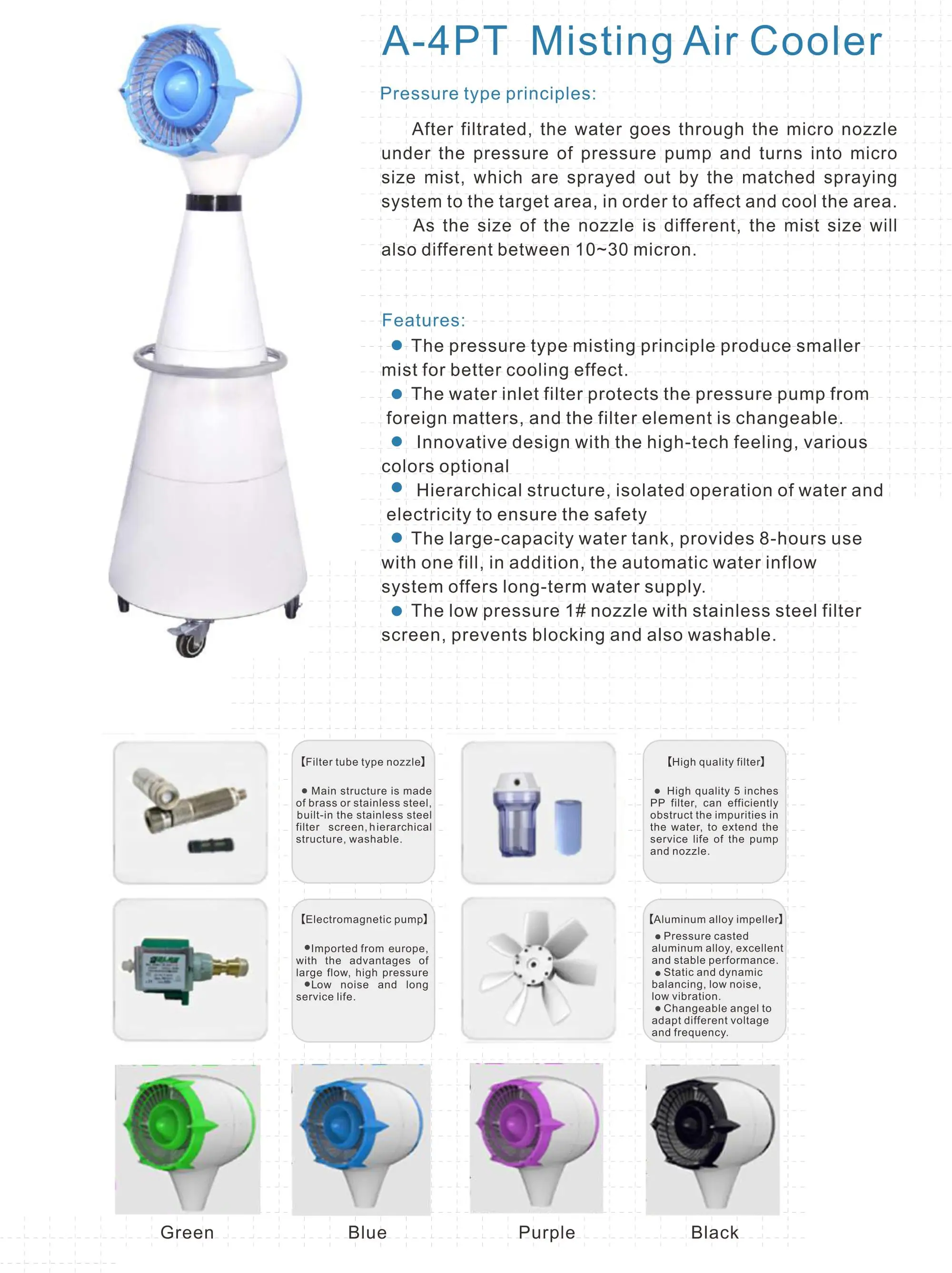

Pressure type principle :
After filtrated , the water goes through the micro nozzle under the pressure of pressure pump and turns into micro size mist , which are sprayed out by the matched sparying system to the target areaz , in order to affect and cool the area.As the size of the nozzle is different , the mist size will also different between 10- 30 micron.
Superior material to ensure high quality , the waterproof outdoor cooling fan each part detailed picture for your reference :
- Filter tube type nozzle: Main structure is made of brass or stainless steel, built-in the stainless steel filter screen , hierarchical sturcture , washable
- Ball-bearing motor : lifetime of ball bearing motor with resettable thermal fuse is 1.5 times of oil bearing motor, ensures the motor works well during the lifetime of the product
- High quality filter: High quality 5 inches PP filter, can efficiently obstruct the impurities in the water, to extent the service life of the pump and nozzle
- Electromagnetic pump: Imported from Europe - Italy , with the advantages of large flow, high pressure ; Low noise and long service life
- Aluminum alloy impeller : Pressure casted aluminum alloy , excellent and stable performance ; Static and dynamic balancing , low noise , low vibration ; Changeable angel to adapt different voltage and frequency

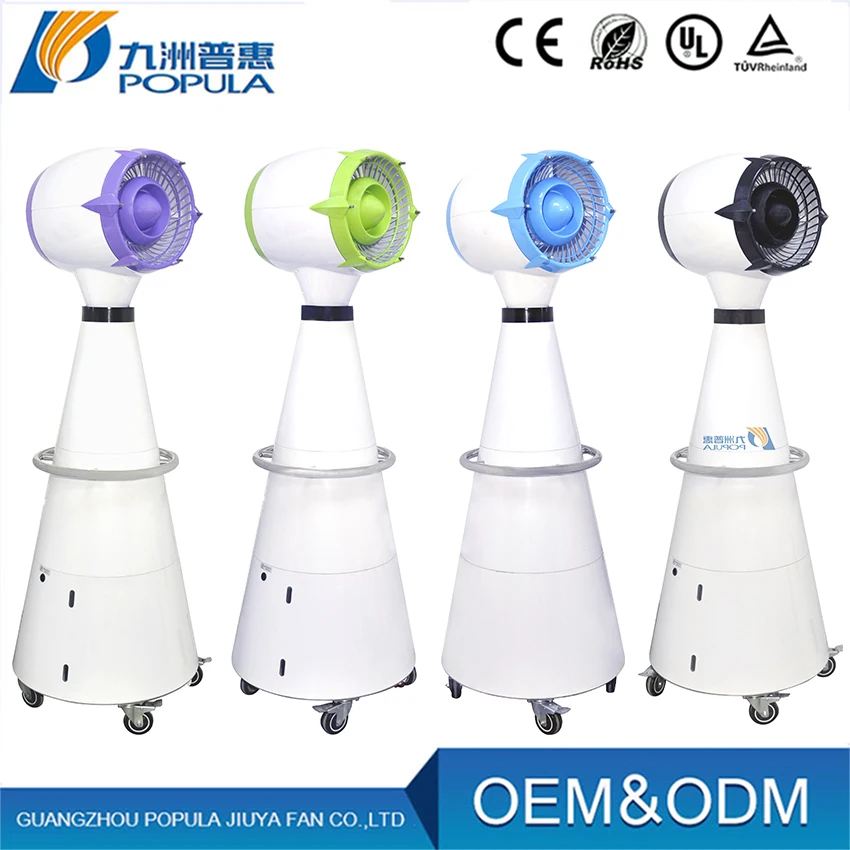

- Colors optional : green , blue , purple , black for your choice

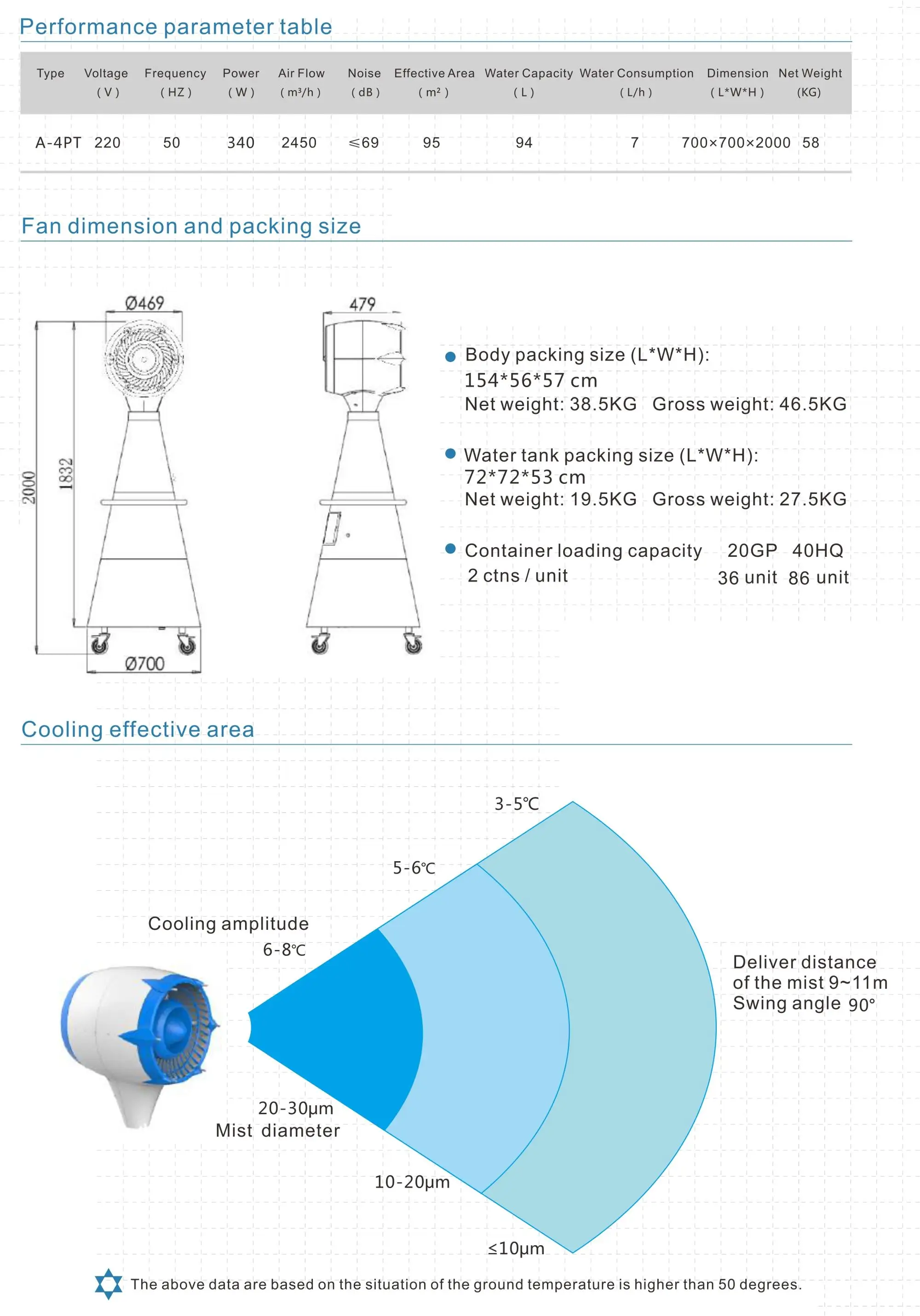

our this pressure type waterproof fan of A-4PT model each part size and packing size for your reference :
The cooling effective area could deliver distance of the mist 9 -11m swing angle 90 degree and decrease 3- 5℃ or 5 - 6 or 6 - 8℃ based on the different distance
PS: the date based on the situation of the ground temperature is higher than 50 degrees.

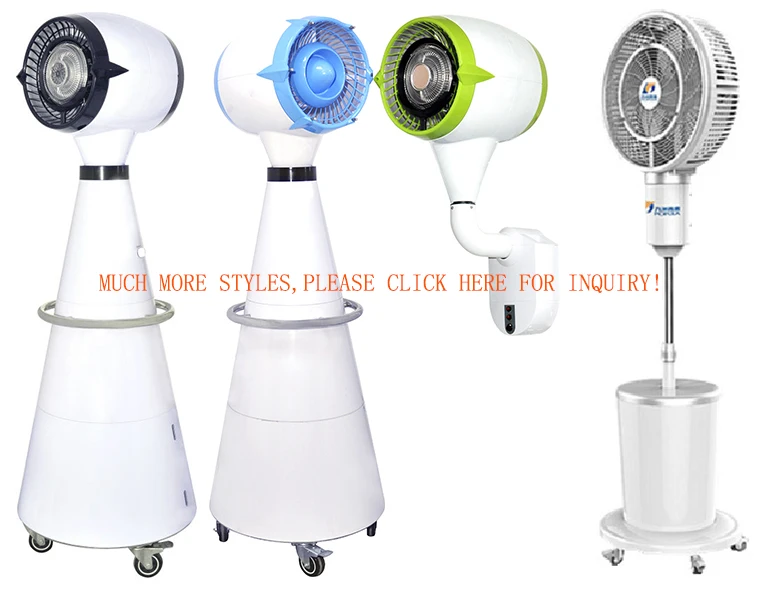

More model mist fan for your reference , stand or wall mounted mist fan with centrifugal type or pressure type :
Hot sale
Application-Mist Fan
Application places for all series of industrial water mist fan : canton fair , theme park , villa , concert , zoo , football club , restaurant , garden, bus station, walking street, play ground, amusement park outdoor part , etc
dust effectively ABS plastic blue outdoor stand water mist fan
company
Guangzhou POPULA JiuYa Fan Co., Ltd mainly sales centrifugal fan , axial fan , mist fan , ventilation fan , fresh air system , exhaust fan , air cooler and all kinds of motors such as three phase induction motor , asynchronous motor , electiromagnetic motor etc products.
As the practitioner and pioneer of low-carbon economy, we’ve been always thinking how to scientifically improve people’s living conditions.
With 20-years experience in the ventilation industry, JIUYA insist on the idea of low-carbon green environment by integrating the IAQ concept. By increasing the product efficiency with the new energy saving motor, environmentally-friendly materials and optimized air flue design, we provide the consumers with high-efficient, energy saving, safe and reliable products all over the world.
As a devout follower of excellent quality, by means of the vertical integration of industrial chain,we integrate the attitude of pursuing perfection in every part of JIUYA.
From R&D, mould developing, panel beating, injection, motor manufacture to product assembling, we monitor the quality control of every step, in order to remain the significant advantages in quality, cost, efficient and service area, which vastly increase our comprehensive strength and risk resistance capacity.
We treat the quality as our life, this keeps our perfection even in tiny things. We have passed the international qualified certification such as, ISO9001, 3C, CE, CB and SASO, furthermore, we’ve also got more than 40 kinds of national patents.
Packaging & Shipping
| MOQ | 1pc |
| Packing | the mainly body packing size : 154*56*57cm , net weight 36.5kg , gross weight 44.5kg the water tank packing size: 72*72*53cm , net weight 19.5kg , gross weight 27.5kg |
| Loading quantity | 2 cartons per unit , 36pcs / 20GP ; 86pcs / 40HQ |
| FOB port | Foshan port / Guangzhou port |
| Leadtime | 1~ 7 days for sample; 15~30 days for production. |
| Transportation | by sea or by airplane |
FAQ
1. What kind of mist fan you could supply ?
- Centrifugal type and pressure type , two kinds of mist fan available for us. Stand mist fan and wall mounted mist fan two kinds of for your choice.
2. Where is the main use ?
-- Our mist fan mainly for outdoor using, such as canton fair , theme park , villa , concert , zoo , football club , restaurant , garden, bus station, walking street, play ground, amusement park etc other outdoor part
3. How to add water ?
-- Automatically or manually for stand fan, need connect with water pipe if automatical. Usually wall mist fan is automatically .
4. Whether all your mist fans use Italy imported pump ?
-- Only two kinds of pressure type stand mist fan use Italy pump, centrifugal stand mist fan and wall mist fan use China pump.
5. What’s the difference of centrifugal type and pressure type ?
-- The principle difference. Centrifugal type : The water flows through the high-speed rotating centrifugal disc. The centrifugal force created by high-speed rotating makes the water diffused and become smaller. Eventually , the water turns into mist by heating the base of misting part, then being sprayed out by the belowing system. Pressure type: After filtrated , the water goes through the micro nozzle under the pressure of pressure pump and turns into micro size mist , which are sprayed out by the matched sparying system to the target areaz , in order to affect and cool the area.
