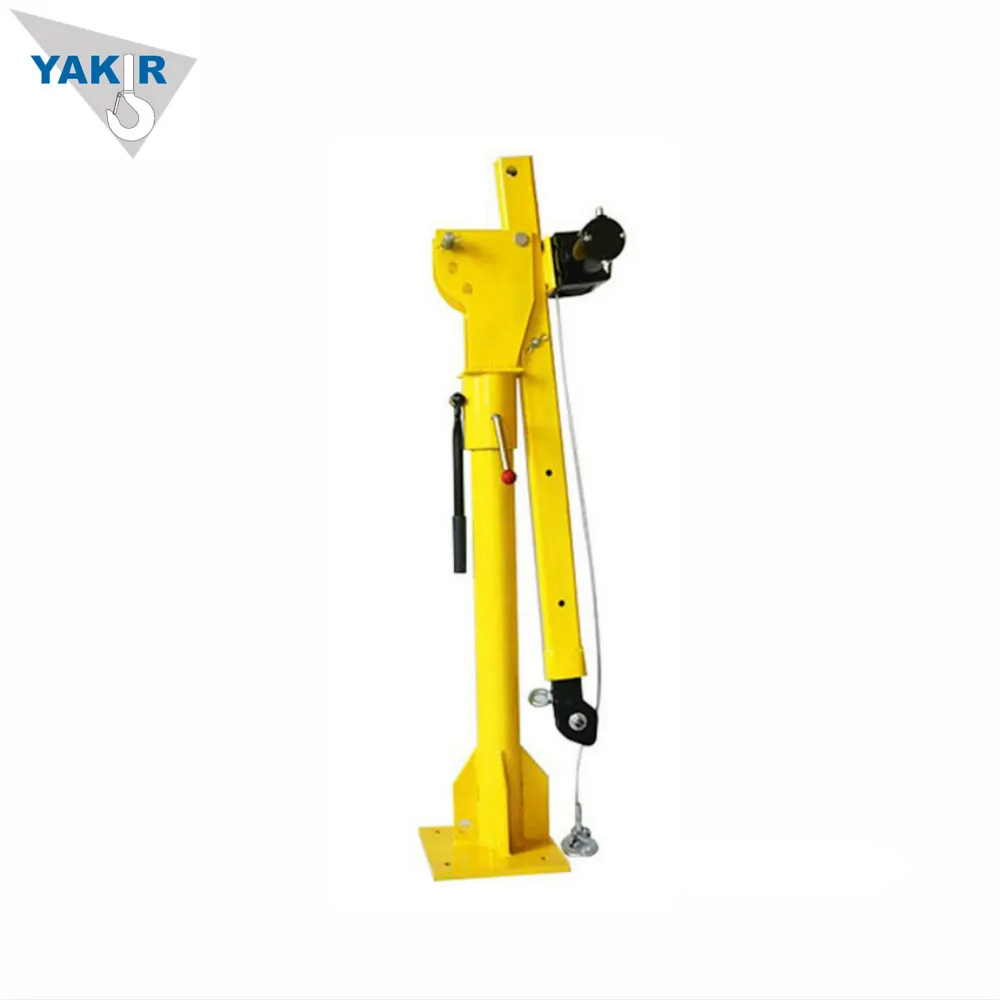

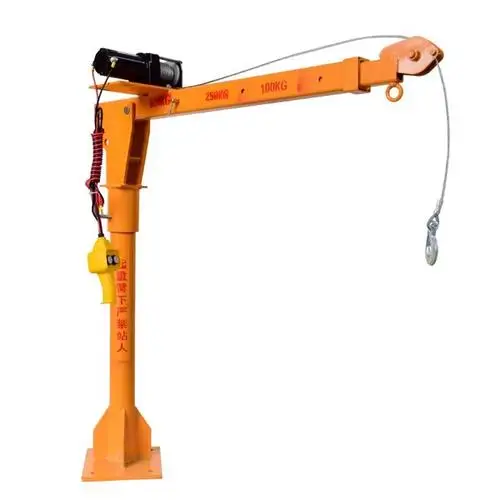

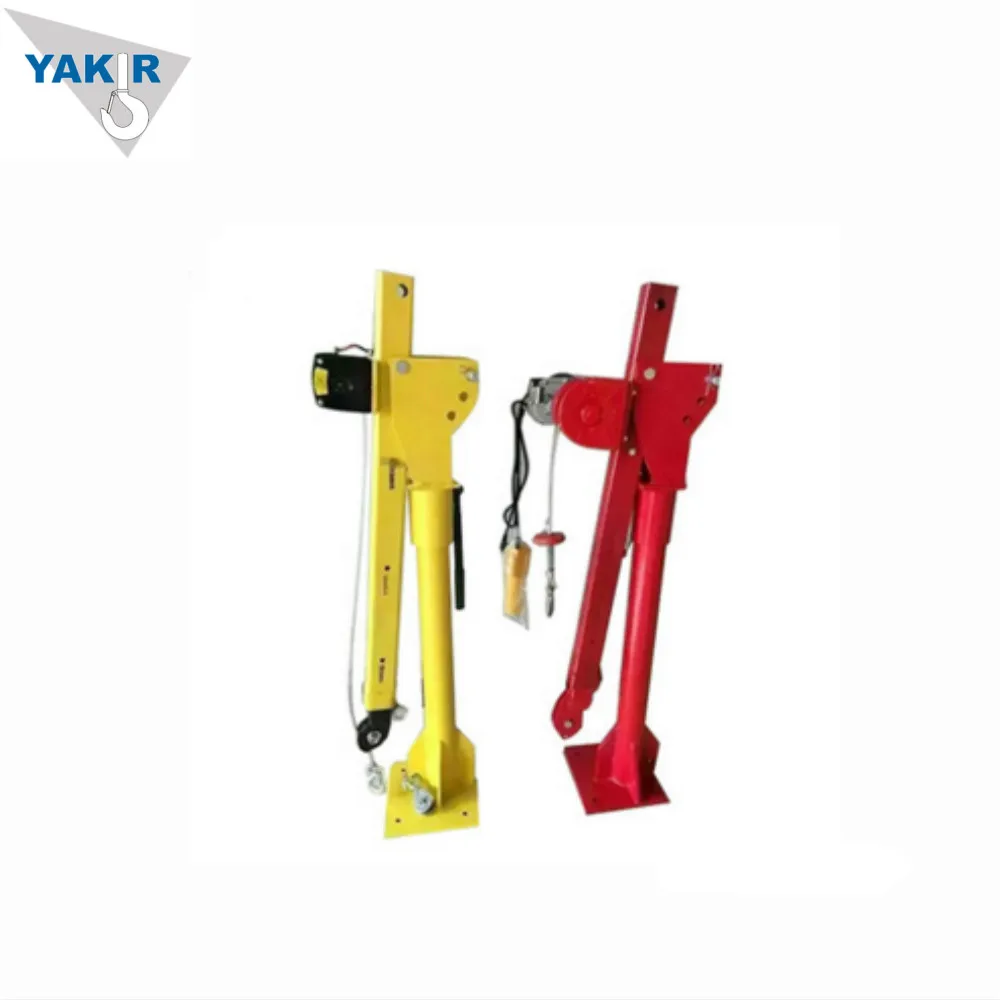

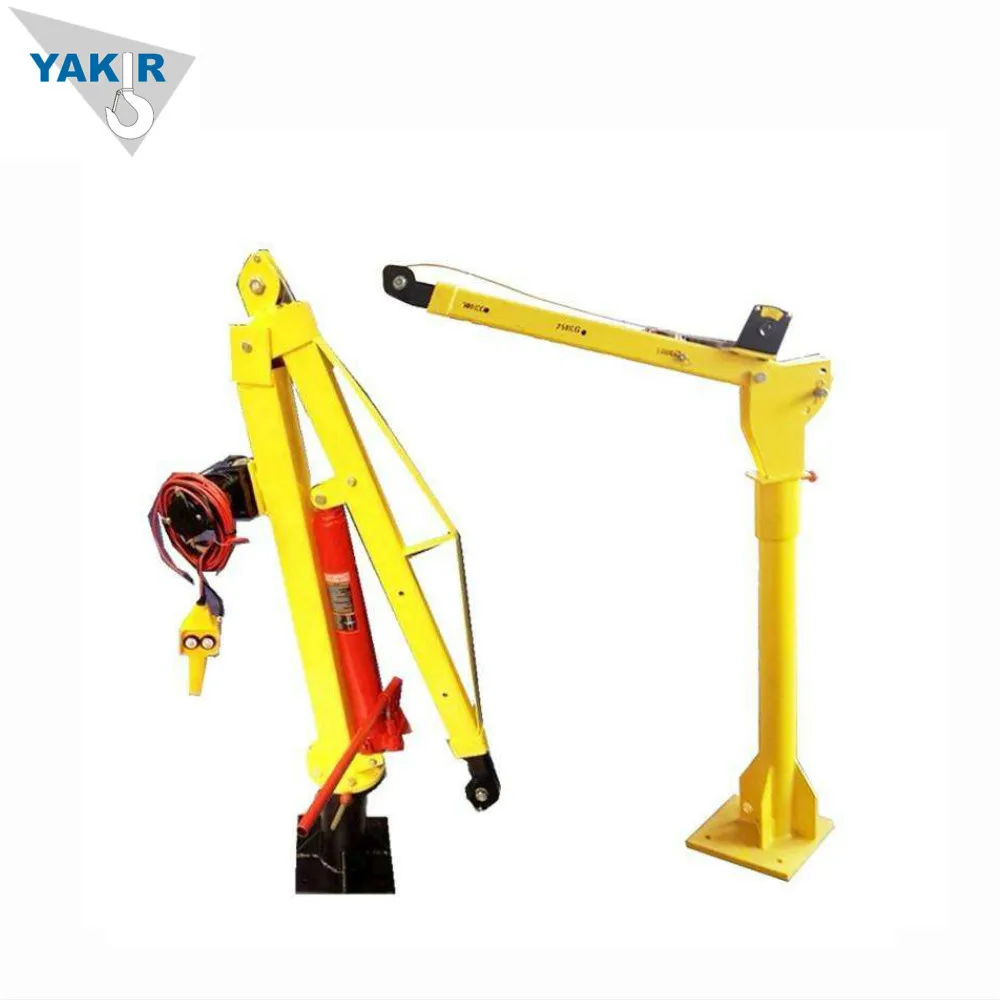

1 ton used mini truck mounted crane
Product Description
Machinery 24v 12v winch small truck mounted 1000kg mini crane 500kg
Mini crane 500kg ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place .
Small car lifting crane is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room .

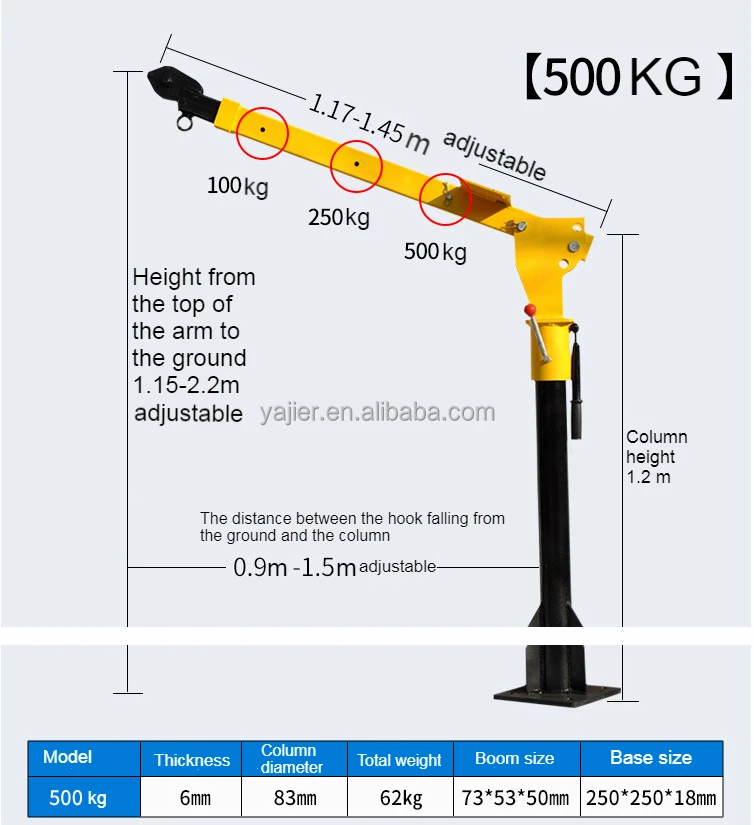

Specifications of mini crane 500kg
Single line Lifting Capacity(maximum) | 500kg |
Double-line Lifting Capacity(maximum) | 800kg |
Lifting Height Max.Std.(base to hook) | 1940mm |
Reach Max.(from center of rotation) | 1490mm (see Figure 3) |
Rotation (continuous) with Brake | 360° Manual |
Lifting Cable | 4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m-1pc(for double-line lifting) |
Line speed with No Load | 3.6m/min single line |
Power Requirements | 12V DC 125 amps |
Switch Cable | 4.2m |
Mounting Base | 250x250x18mms |
Mounting Bolt Hole Pattern | 170x170mms |
Net Weight of Crane (LBS) | 58.5KGS |

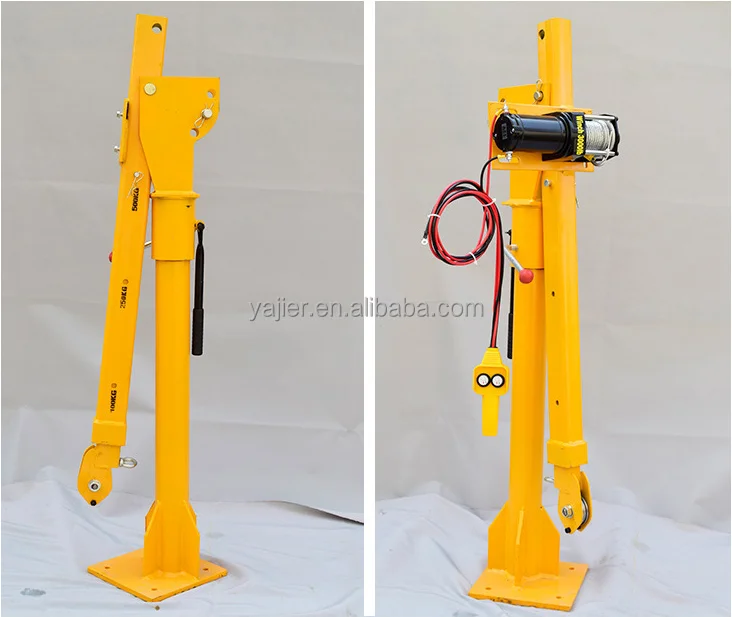

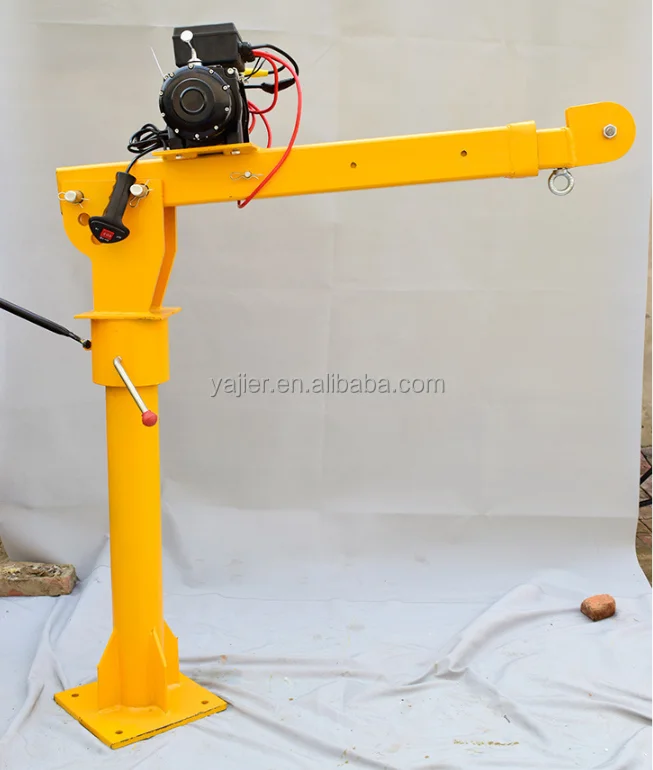

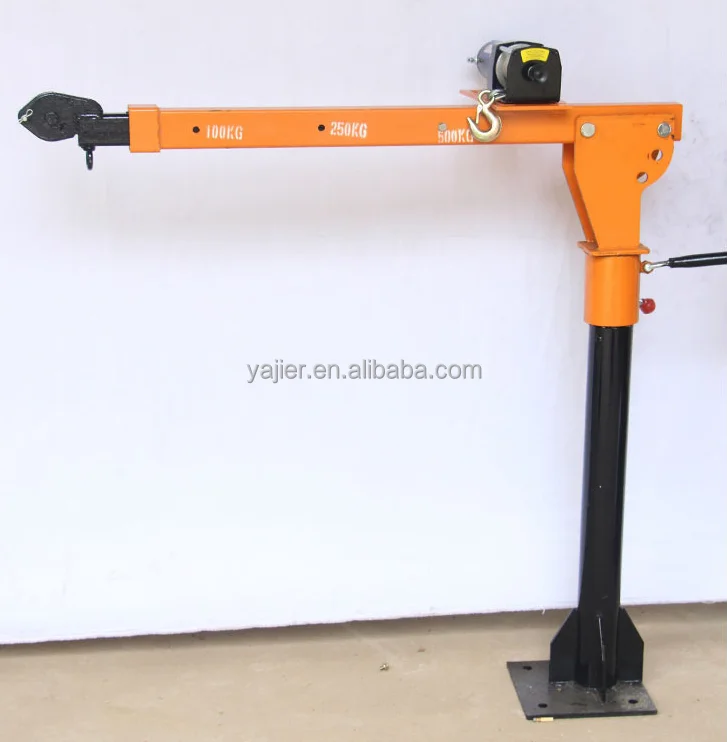

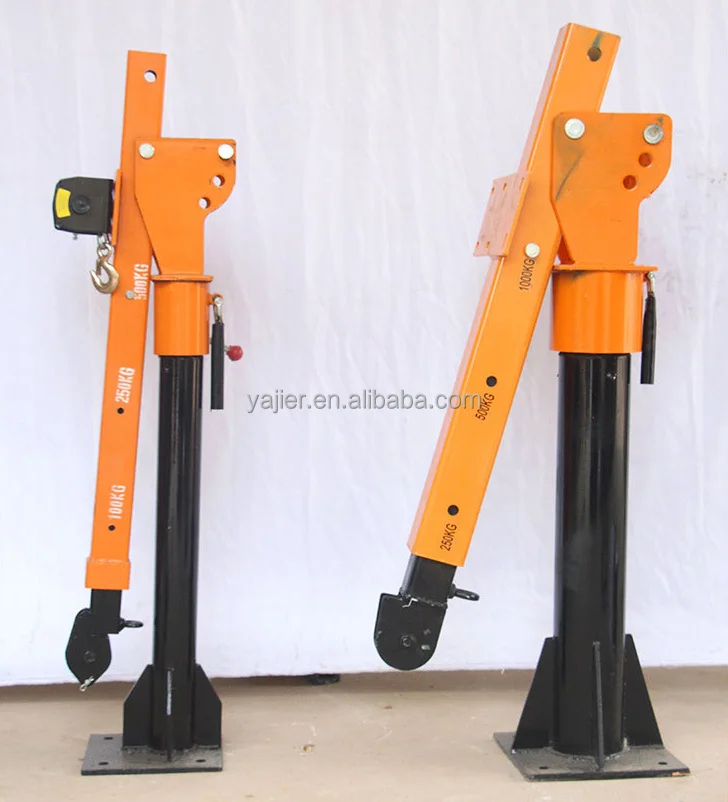

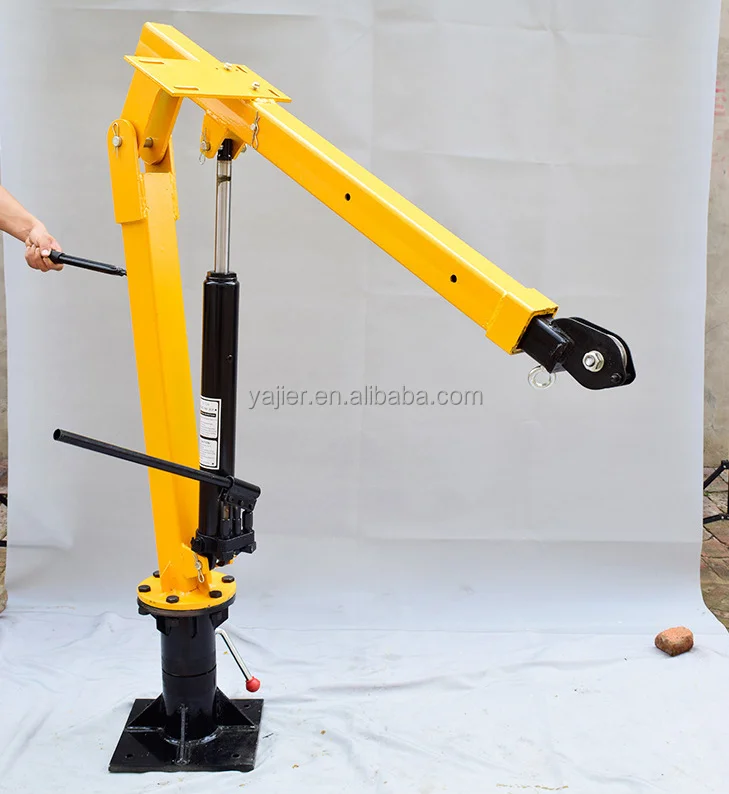

Photos of mini crane 500kg

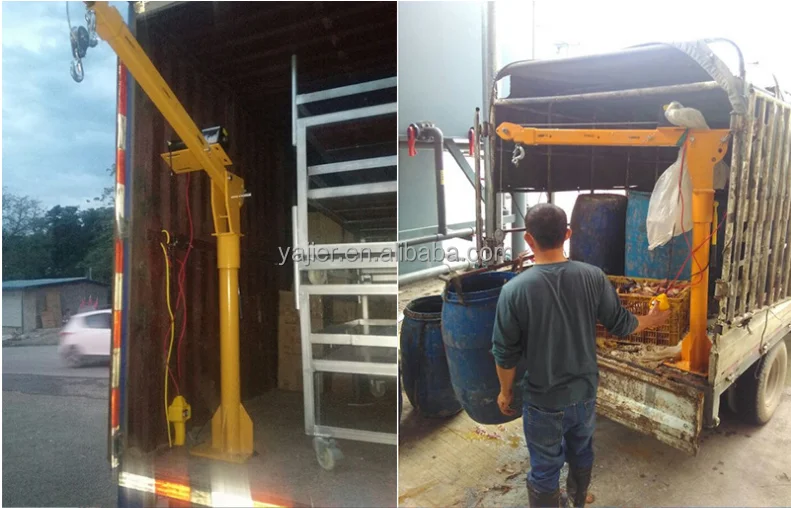

Application of mini crane 500kg

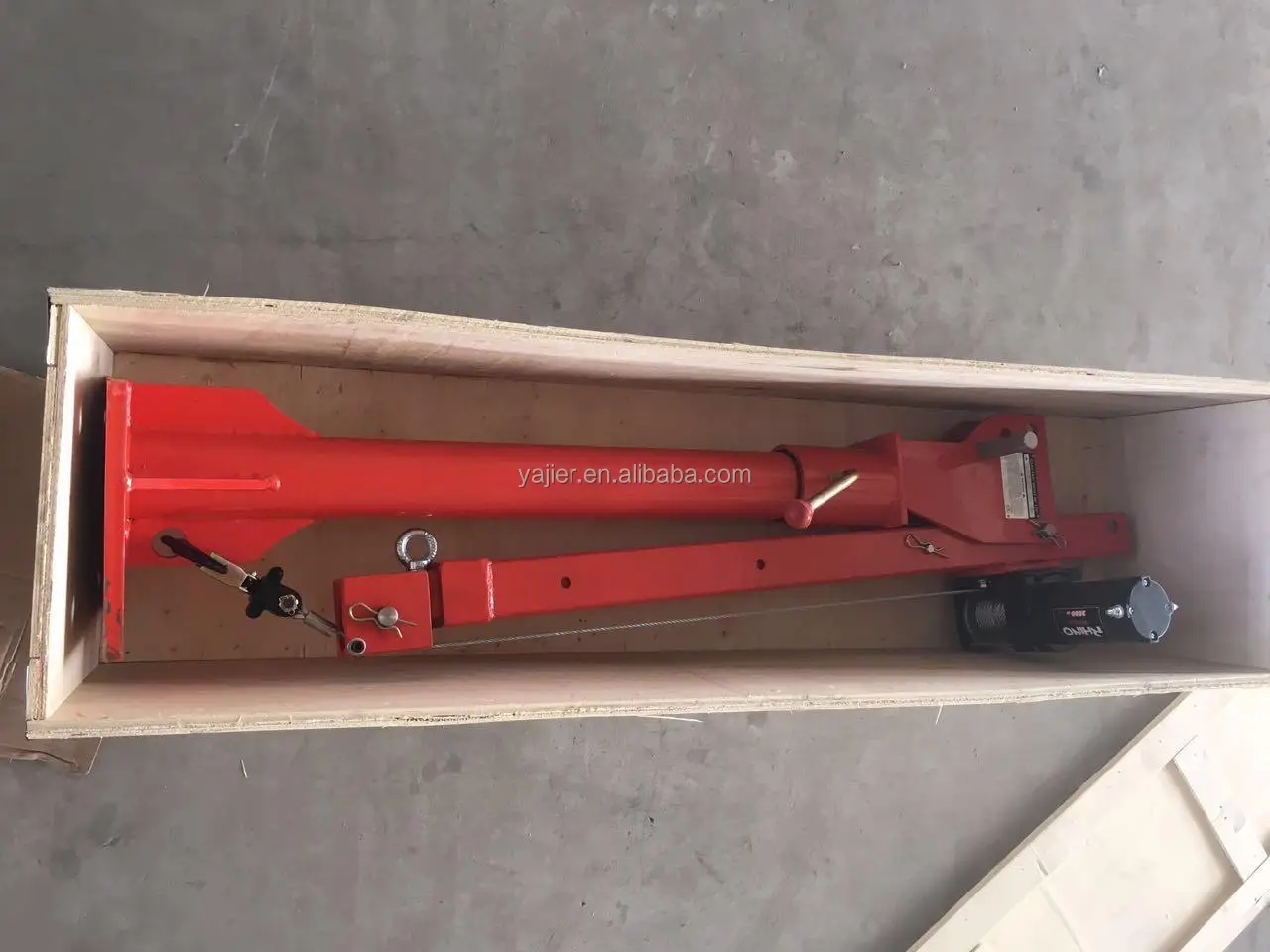

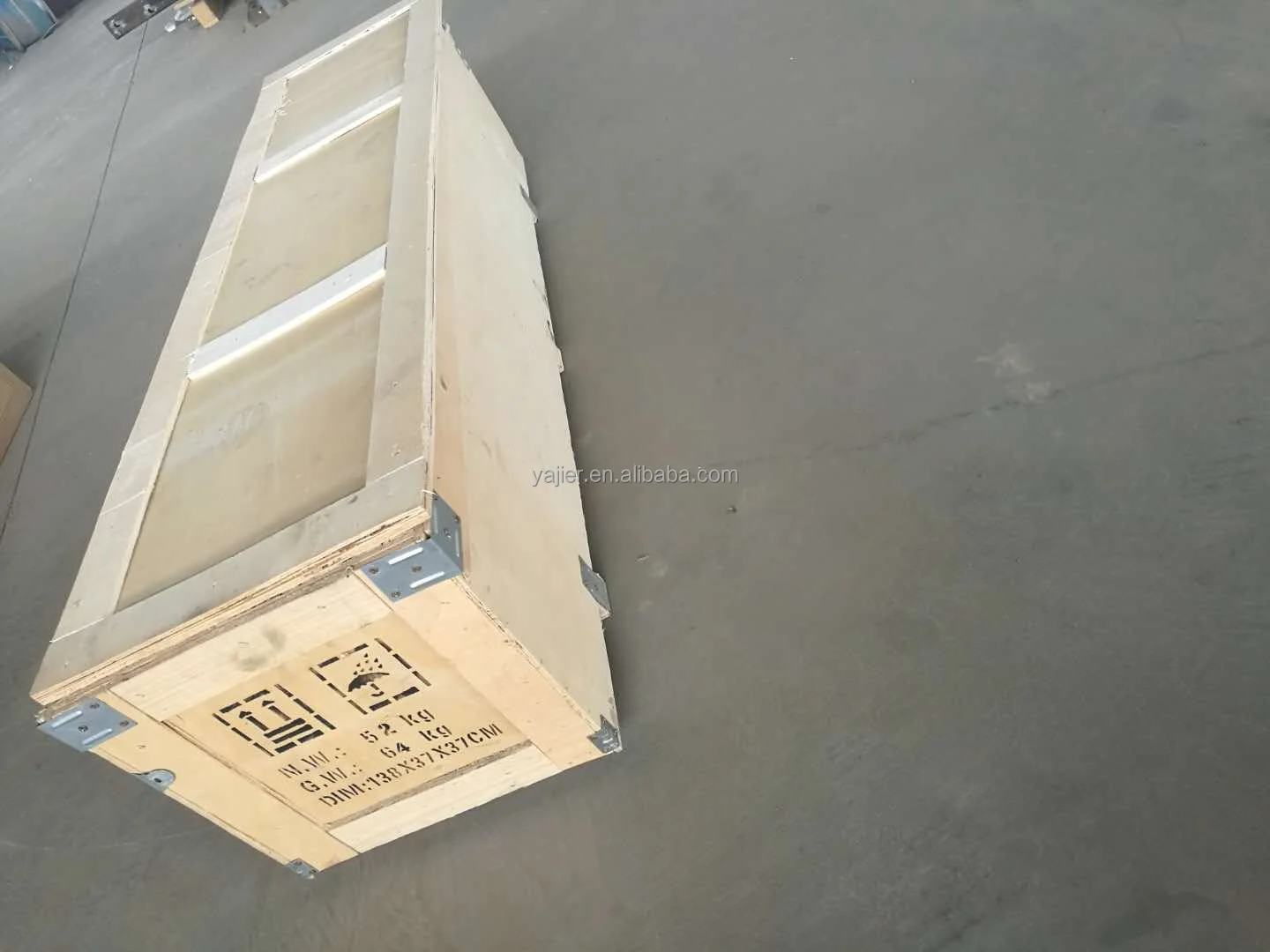

Packaging & Shipping

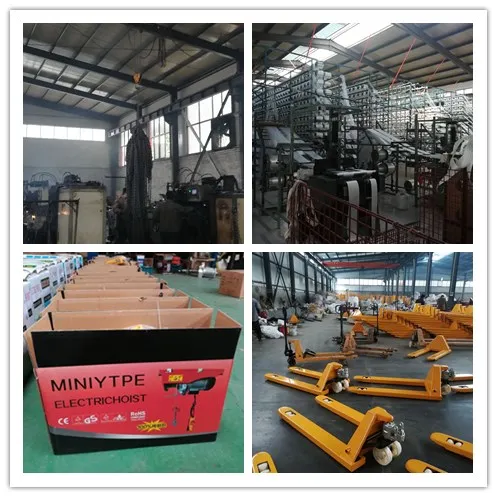

Company Information
Our Services
1. When you give us your order, we confirm the quantity,date of delivery and the information of forwarder .
2. We give you a definite date of delivery!
3. We guarantee that the commodity is in conformity to all respects with the quality,
4. After you received our goods, we will send you the Client Service Table,
