commercial laundry equipment dry cleaning machine laundry
- Category: >>>
- Supplier: Wuhan Huabotai Industry Co. Ltd.
Share on (60797250553):
Product Overview
Description
Products Description
Title goes here.
1.PERC Solvent
2.Full closed and full automatic
3.Stainless steel 304
Specification | Model | P-516F | P-520F | P-524F | ||||
Capacity | ㎏ | 8 | 10 | 12 | ||||
Detergent | PERC | |||||||
Washing Speed | r/min | 45 | 45 | 45 | ||||
Spinning Speed | r/min | 450 | 450 | 450 | ||||
Power of Washing Motor | Kw | 1.8 | 1.8 | 1.8 | ||||
Power of Pump | Kw | 0.55 | 0.55 | 0.55 | ||||
Power of Air Blower | Kw | 0.55 | 0.55 | 0.55 | ||||
Power of Drying Heater | Kw | 6 | 6 | 9 | ||||
Distillation Power | Kw | 8 | 8 | 8 | ||||
Installation Capacity | Kw | ELECTRIC 10 STEAM 4 | ELECTRIC 11 STEAM 4.5 | ELECTRIC 12 STEAM 5.7 | ||||
Power Supply | V | AC220V/380V/50Hz | ||||||
Pressure of Inlet Water | Mpa | 0.2--0.4 | 0.2--0.4 | 0.2--0.4 | ||||
Steam Pressure | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | ||||
Pressure of Compressed Capacity | Mpa | 0.4--0.6(Extra device) | ||||||
Weight | Kg | 950 | 1100 | 1200 | ||||
Dimension | mm | 1580X1100X1821 | 1580X1217X1821 | 1580X1300X1821 | ||||
All specifications subject to change without notice. | ||||||||

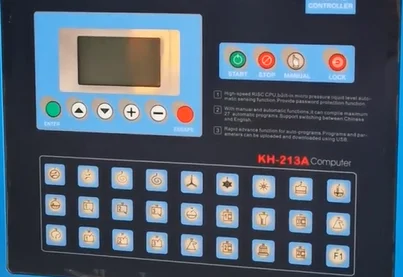

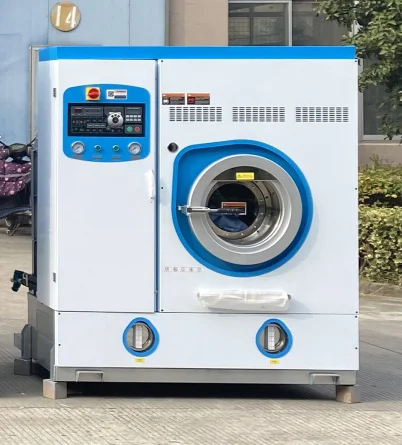

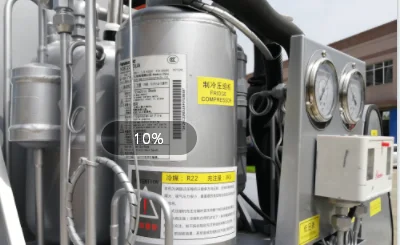

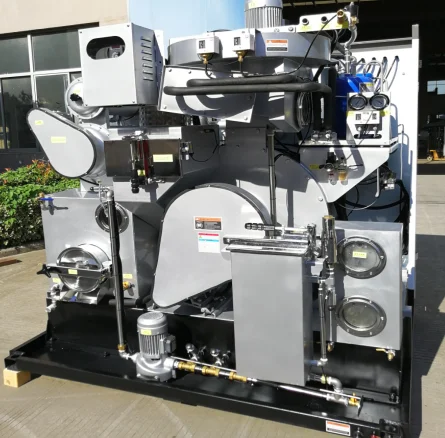

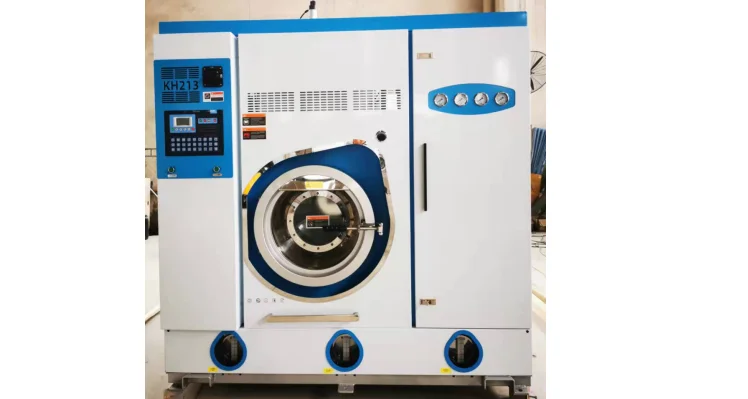

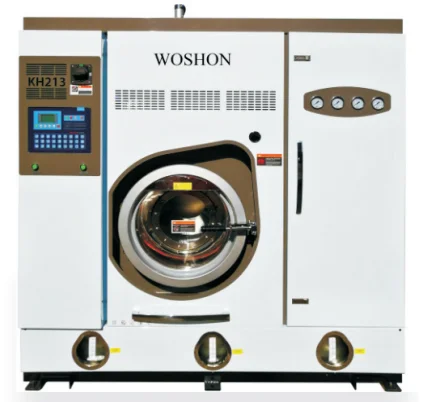

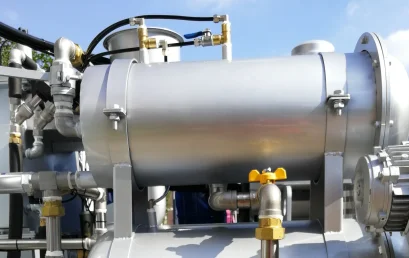

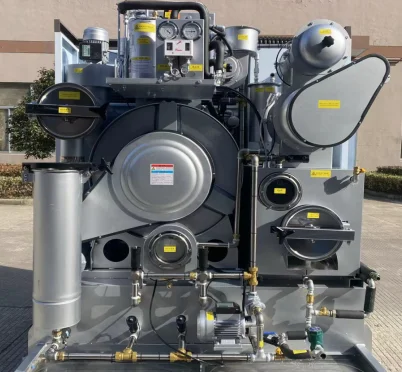

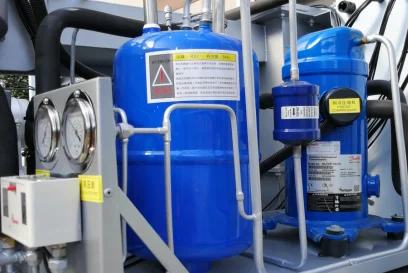

Details Images
Product packaging
Why Choose Us
Quality assurance, service assurance！
Products Description

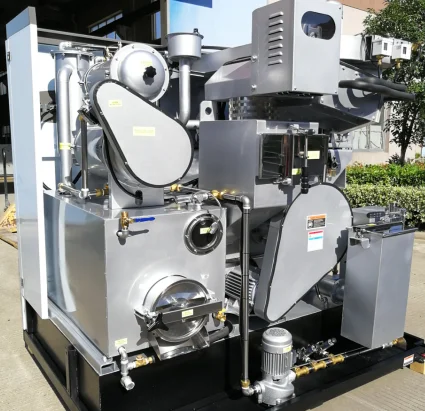

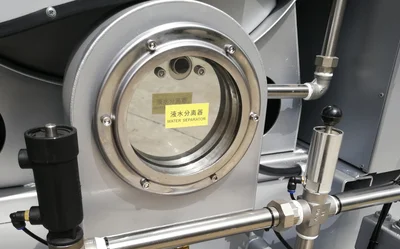

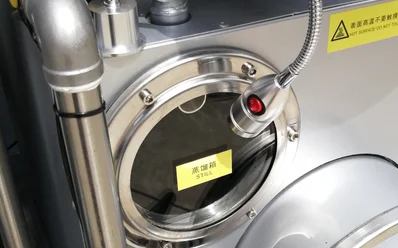

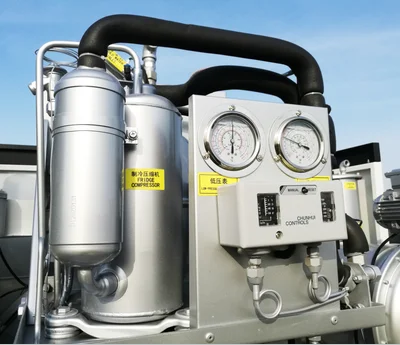

Manufacturing Technique
Specification | Model | P-728F | P-738F | ||
Capacity | kg | 12 | 16 | ||
Diameter | mm | 730 | 730 | ||
Depth | mm | 500 | 660 | ||
Loading door diameter | mm | 486 | 486 | ||
Wash speed | rpm | 40 | 40 | ||
Extraction speed | rpm | 400 | 400 | ||
Working Cycle time | min/cycle | 50 | 50 | ||
Tank 1 volume | lt | 150 | 150 | ||
Tank 2 volume | lt | 150 | 150 | ||
Tank 3 volume | lt | 190 | 216 | ||
Still volume | lt | 200 | 236 | ||
Still speed | lt/h | 120 | 130 | ||
Filter Volume | lt | 50 | 50 | ||
Filtration area | m2 | 4 | 4 | ||
Filter specifications | pcs | 15 | 15 | ||
Power supply | AC380V/415/440/50Hz/60Hz | ||||
Solvent pump | kw | 0.75 | 0.75 | ||
Driving motor | kw | 1.5 | 4 | ||
Fan motor | kw | 0.75 | 1.1 | ||
Filter motor | kw | 0.25 | 0.25 | ||
Refrigerator | kw | 2.6 | 3.8 | ||
Drying heating elements | kw | 8.4 | 8.4 | ||
Still heating elements | kw | 8.4 | 11.1 | ||
Compressed air pressure | mpa | 0.4--0.6 | 0.4--0.6 | ||
Compressed air inlet | mm | ф8 | ф8 | ||
Water pressure | mpa | 0.2--0.4 | 0.2--0.4 | ||
Water inlet&outlet | inch | DN15 | DN15 | ||
Steam pressure | mpa | 0.4--0.6 | 0.4--0.6 | ||
Steam inlet&outlet | inch | DN15 | DN15 | ||
Air consumption | Lt/h | 8 | 9 | ||
Water consumption | Lt/h | 180 | 220 | ||
Steam consumption | Kg/h | 35 | 38 | ||
Width | mm | 2016 | 2016 | ||
Depth | mm | 1509 | 1560 | ||
Height | mm | 2030 | 2030 | ||
Net weight | kg | 1300 | 1700 | ||
Packing weight | kg | 130 | 150 | ||
