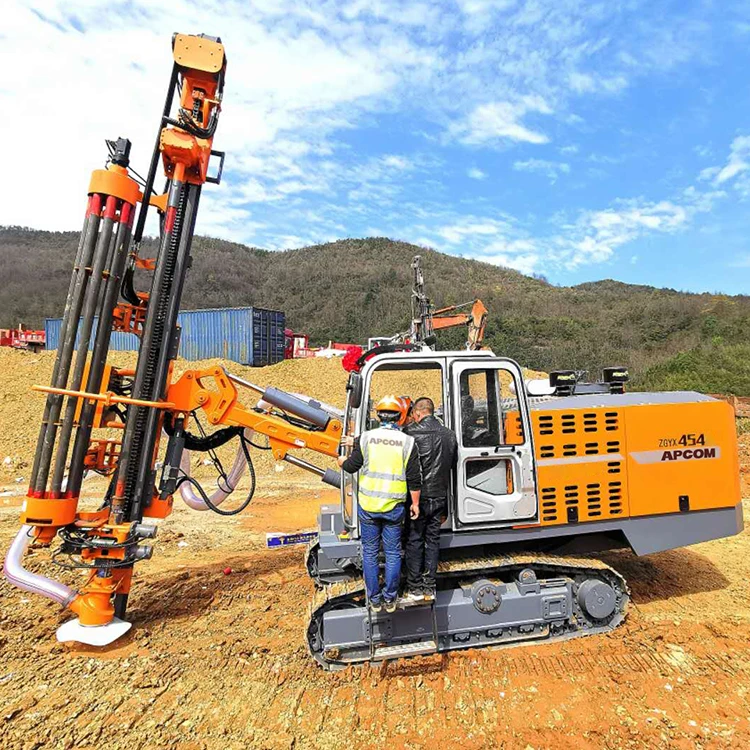

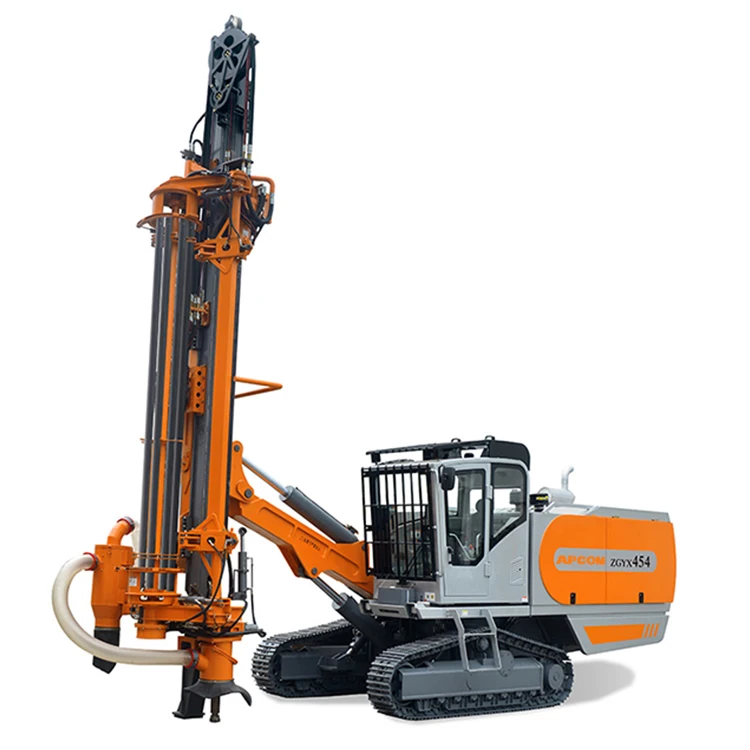

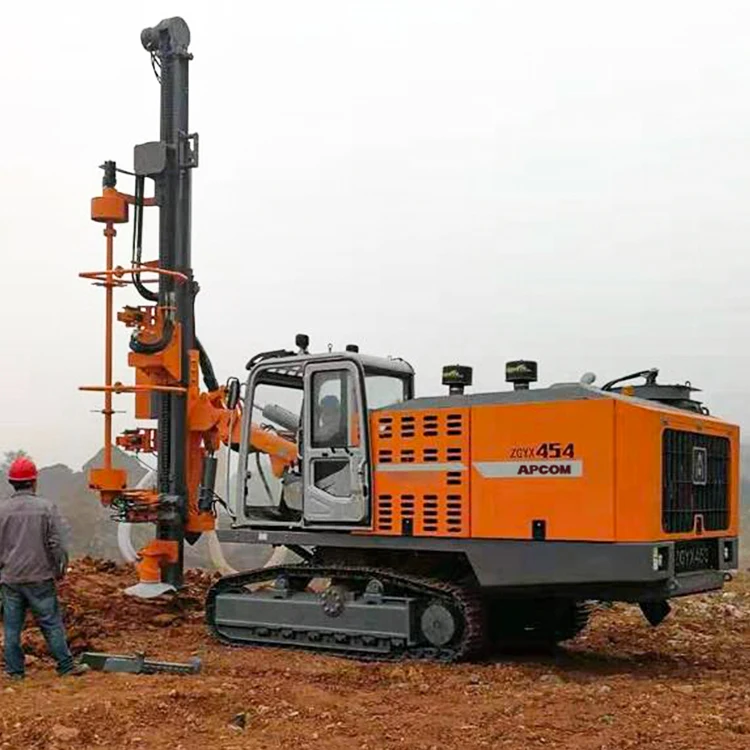

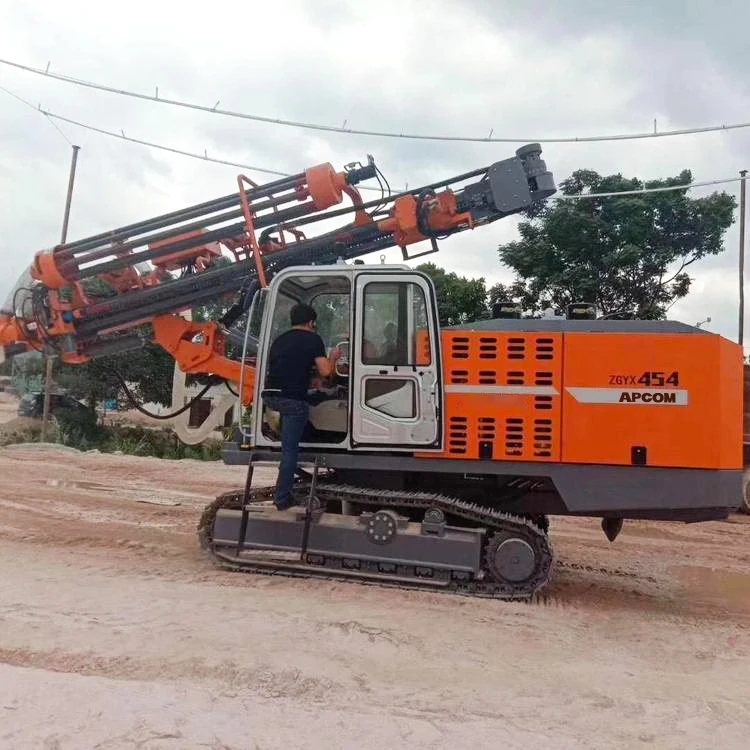

APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction
APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction
APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction
APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction
APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction
APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction
APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction

APCOM ZGYX 454 wholesale hydraulic rotary head small rock drilling rig ZEGA soil tube well drilling rig machine for construction

Share on (60797258604):


Price:

Quantity:


Product Overview

Description





ZAYX-454 Rig Parm


Main Specifications
ZGYX-454

Recommended
Aperture Range
Aperture range
φ110-152 mm
Application of down hole impactor
4"/5" inches

Pole changing system capability
Number of storage rods
6+1
Drill pipe outer diameter
89/102 mm
Drill pipe length
4 M
Automatic pole changing Kong Shen
28 M
Hydraulic Rotary Head
Slewing speed
0-105 rpm
Working torque(Max.)
4,310 Nm
Engine
Steyr/Cummins
Power rating
266 KW
Emission level
Tier III
Fuel Tank
Volume
480 L






Air Compressor
Working pressure(Max.)
20 Bar
Displacement
18 m3/min
Drill arm type
High strength single straight arm
Propelling beam
Cylinder rope propulsion system
General length
8, 100 mm
Advance stroke
4,600 mm
Advance compensation
1,200 mm
Speed of advancement(Max.)
0.88 m/s
Propelling force(Max.)
34.5 kN
Pulling force(Max.)
67.6 kN



Chassis
Walking speed(Max.)
3 km/h
Walking drive(Max.)
117.7 kN
Climbing ability
30º (recommended to use winch when greater than 20)
Swing angle of crawler rack
±10º
Ground clearance
420mm
Transport size
(No purchase items)about
Total weight
21,000kg
Length * Width * Height
10,260 * 2,500 * 3,280 mm
















More Video:

Full automatic hydraulic top hammer drilling rig: 3 products.

 01   ZEGA T635 -11 s              02   ZAYX T424 -10 s            03    ZAYX 660-478 s

Full automatic pneumatic down-the-hole drilling rig: 3 product.

01    ZAYX-450 - 308 S             02    ZAYX-460 - 451 S          03    ZAYX-470 - 40S

Separate pneumatic dowm-the-hole drilling rig:8 product.

01  ZAYX-410 -146 S               02   ZAYX-415 - 8 S             03    ZAYX-420 - 10 S          04  ZAYX-425  - 52 S

05  ZAYX-430 - 4 S                   06    ZAYX-452 -9 S                07    ZAYX-452 - 43 S            08  ZAYX-421T-10 S

ZEGA series drilling rig: 4 product.

01    ZEGA D535 - 193 S         02     ZEGA D450 - 9 S           03     ZEGA D460 -109 S       04   ZEGA T635 - 11 S



Integrated Rig Parm


ZAYX-421T & ZAYX-452

High Current Price Ratio
High Efficiency
High Quality


An integrated drilling rig, which means that the air compressor has been installed in the rig and is driven by the same diesel engine.






 Integrated DTH Surface Drill Rig
With Air Compressor
Model
Power
Compressor
Diameter
Depth
Cabin
ZAYX-421T
YUCAI        140KW
10m3/min  15bar
80-100mm
25m
No
ZAYX-452+
YUCAI        191 KW
15m3/min  17bar
108-127mm
25m
No
ZAYX-423
YUCAI        162KW
11m3/min  15bar
90-115mm
25m
Yes
ZAYX-453
YUCAI        230KW
16m3/min  17bar
90-138mm
25m
Yes
ZAYX-454
Commins  266KW
20m3/min  18bar
110-152mm
28m
Yes
ZAYX-455
Commins  287KW
20m3/min  24bar
138-165mm
35m
Yes
ZAGA-470
YUCAI        294KW
20m3/min  24bar
138-178mm
40m
Yes




 Top Hammer Drilling Rig
Model
Power
Compressor
Diameter
Depth
Cabin
ZAYX-422T
Commins 93KW
3.4 m3/min 7bar
42- 89mm
15 m
yes
ZAYX-423T
Commins 119KW
4.7 m3/min 9bar
64-102mm
17 m
yes
ZAYX-424T
Commins 179KW
8.0 m3/min 10bar
76-115mm
25 m
yes
ZAYX-425T
Caterpiller 168KW
8.0 m3/min 10bar
76-115mm
25 m
yes


Contact Us



24 Hours For You



WhatsApp: +86 137 0579 6425

WhatsApp: +86 189 6700 9313

WhatsApp: +86 181 6701 6615



Drill rig Intro


Surface Drilling Rig
APCOM brand Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 80-203 mm. A total of 56 products.

1 ) Click on ==> Automated hydraulic drilling rig ( Drilling method: Tophammer ),  7 products found:
     ZAYX-T422 / ZAYX-T423 / ZAYX-T424 / ZAYX-T425; ZEGA-T630 / ZEGA-T635 / ZEGA-T640
2 ) Click on ==> Anchor surface drilling rig ( Drilling method: Down-the-hole ),3 products found:
     ZGM 1240A / ZAYX-420S / ZAYX-425S
3 ) Click on ==> Water well surface drilling rig ( Drilling method: Down-the-hole ),  8 products found:
     SJ-180 / SJ-200 / SJ-250 / SJ-300 / SJ-400 / SJ-450 / SJ-600 / SJ-700
4 ) Pneumatic drilling rig ( Drilling method: Down-the-hole ) , 28 products found:
    Click on ==> 16 products separate drilling rig
    Click on ==> 4 products integrated drilling rig no cabin
    Click on ==> 8 rigs are fully automatic pneumatic DTH rigs

Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click on UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33
